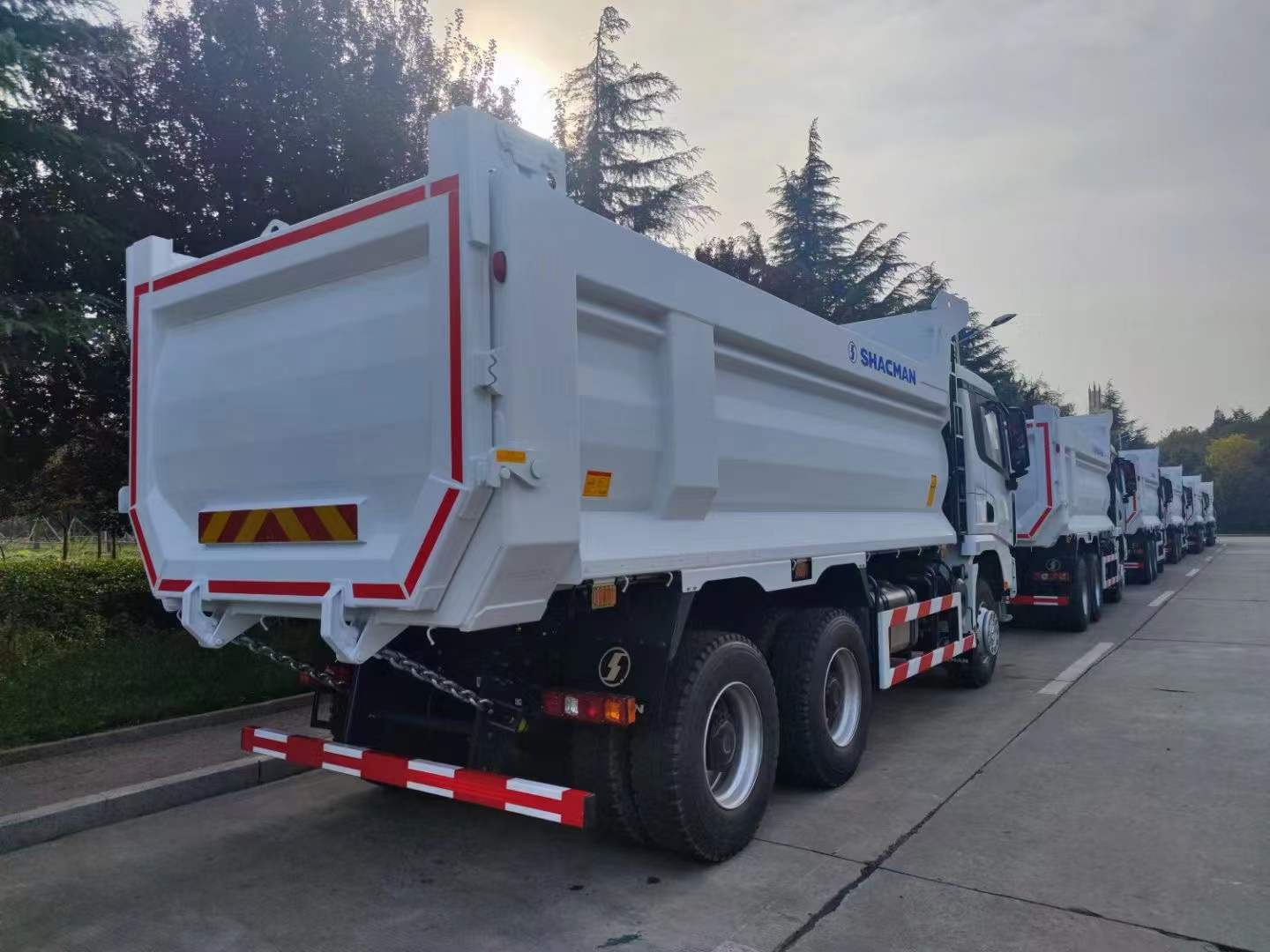

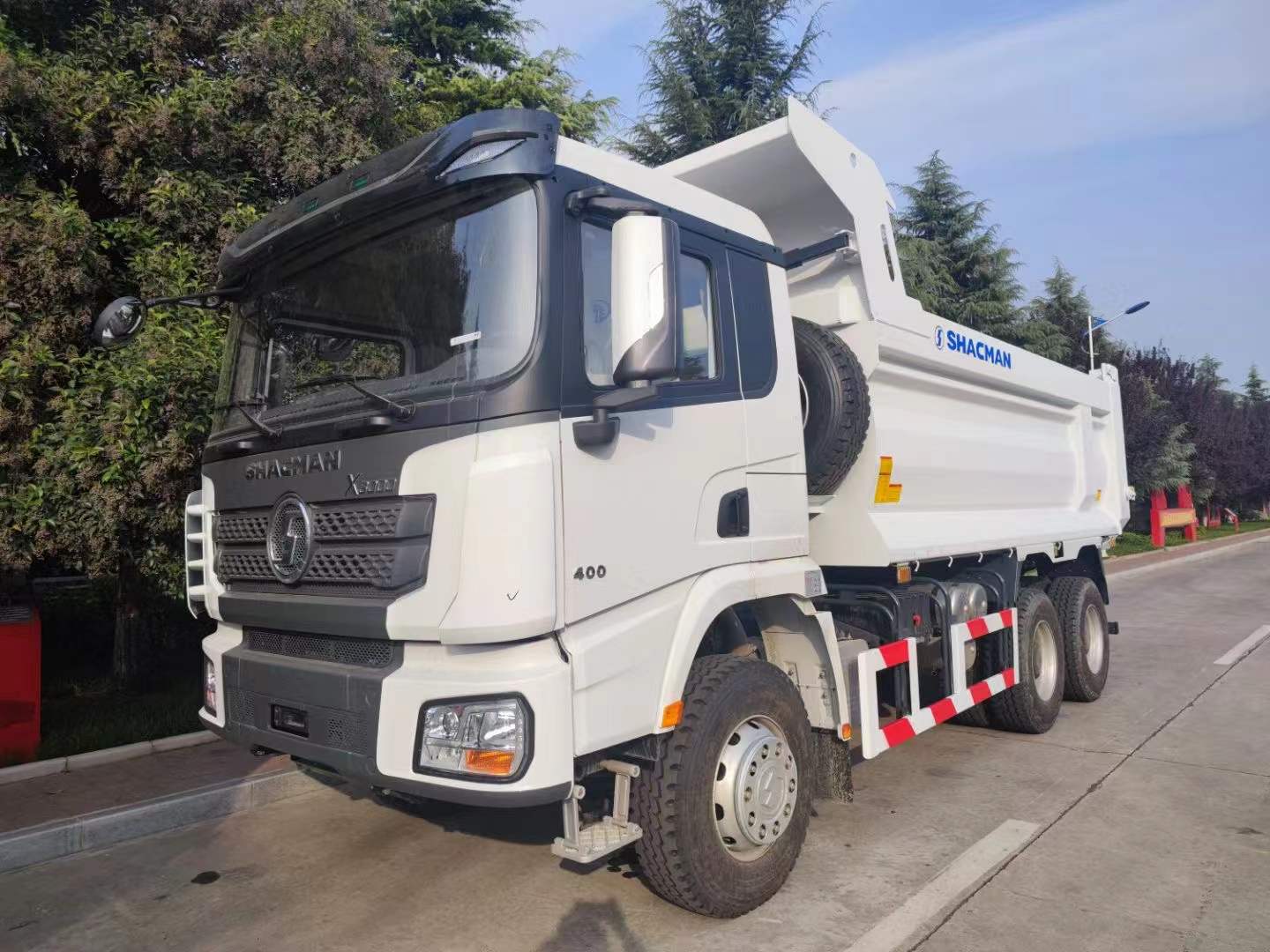

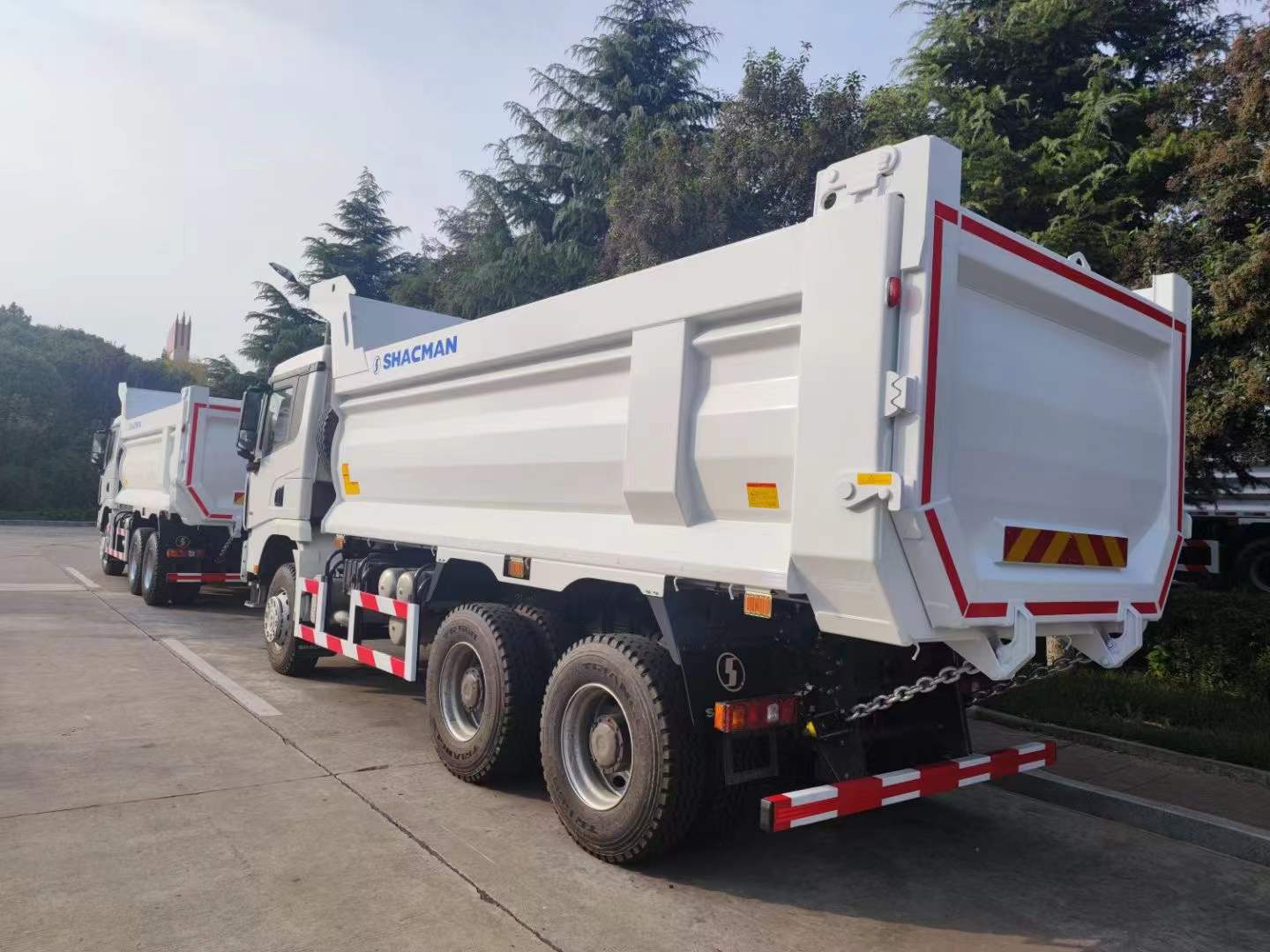

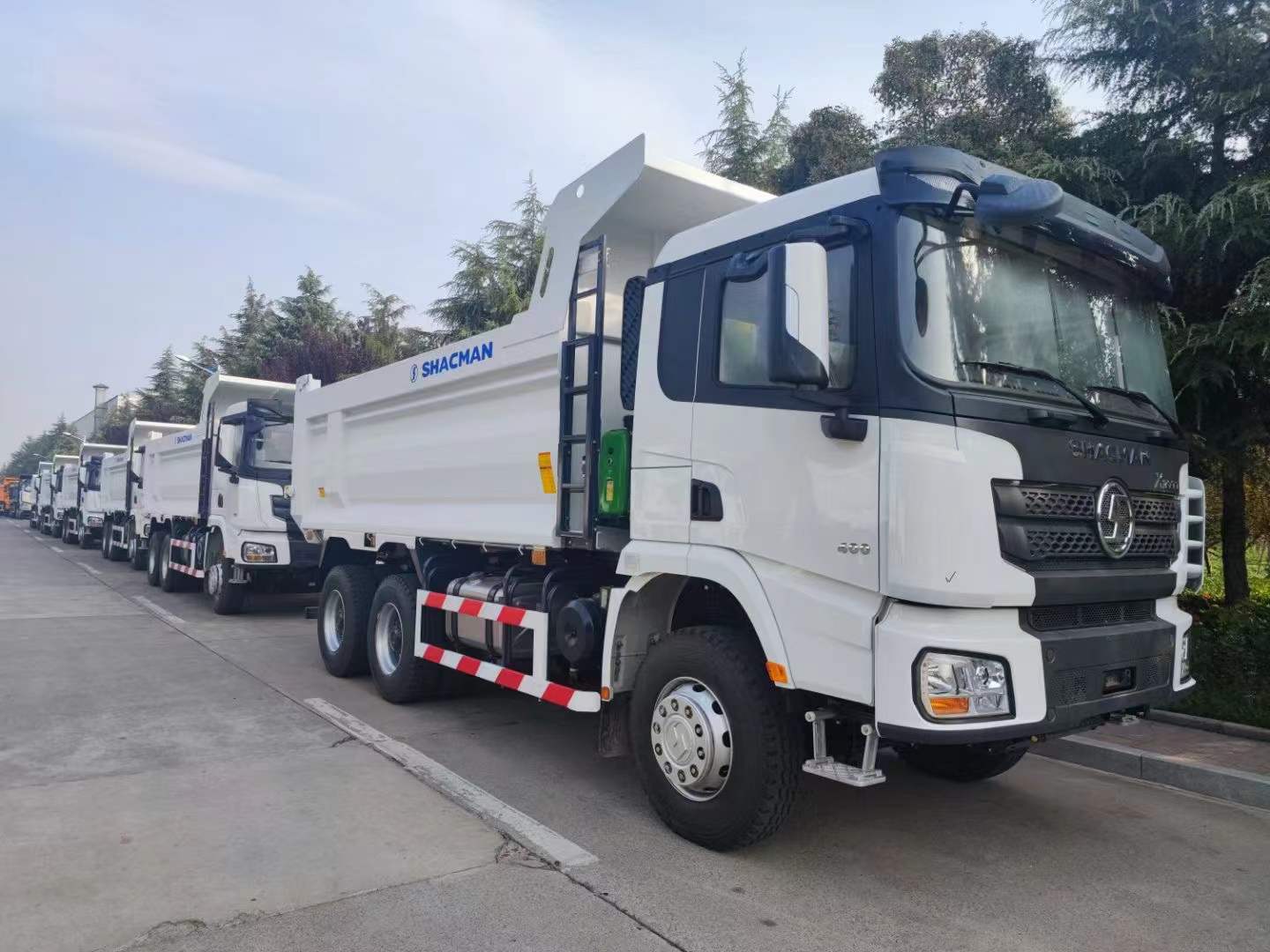

Home > Products > Dump Truck > 6×4 SHACMAN X3000 Heavy Duty Tipper Truck 340HP Euro II | Reinforced Chassis 16T Double Reduction Cast Axle
Driving type
6*4
Wheelbase(mm)
3975+1400
Max. Speed/(km/h)
65km/h
Usage Scenario
Ideal for mine transport, earthwork, road construction and bulk cargo delivery. Reinforced structure copes with muddy, gravel and mountainous rough roads, perfectly matching quarries, sand fields and various construction operation environments.
PRODUCT DETAILS
Power System
Matched with reliable Weichai WP10 engine, strong power output, low fuel consumption, stable performance under long-time heavy-load operation.
Load-bearing Structure
Thickened reinforced frame plus high-strength cargo box, equipped with 16-ton heavy-duty double reduction axle, excellent impact resistance and deformation resistance.
Driving Experience
X3000 comfortable cab with shock absorption design, good sealing performance, effectively isolate road noise and dust for long-distance driving fatigue reduction.
Adaptability & Service
The whole vehicle is optimized for bad road conditions such as mines and construction sites; complete spare parts supply supports convenient overseas maintenance.
Model Core Technical Parameters
| Item | Specific Parameter |
|---|---|
| Vehicle Model | SHACMAN X3000 6×4 Dump Truck |
| Overall Dimension | 8500×2550×3650 mm |
| Rated Load Capacity | 25 Ton |
| Cargo Box Size | 5600×2350×1500 mm |
| Engine Model | Weichai WP10.340E200 |
| Rated Power / Rotate Speed | 340HP / 2200rpm |
| Emission Standard | Euro 2 |
| Transmission | 10-speed Manual Gearbox |
| Rear Axle | 16Ton Single-stage Reduction Heavy Duty Axle |
| Suspension | Leaf Spring Suspension |
| Tire Specification | 12.00R20 |
| Fuel Tank Volume | 400L |
| Driving Cab | X3000 Luxury Suspension Cab |
MAIN PARAMETER
| Item | Parameter Details |
|---|---|
| Gross Vehicle Weight (GVW) | 45 Ton |
| Curb Weight | 18 Ton |
| Shipping Mode | Bulk Ship / Ro-Ro Ship |
| Single Vehicle Shipping Dimensions | 8500×2550×3650 mm |
| Net Weight per Unit | 18,000 KG |
| Gross Weight per Unit | 18,500 KG |
| Container Loading | Cannot be loaded into standard container, bulk shipment only |
| Loading Quantity (Bulk Vessel) | 8–12 units per 40ft bulk space |
1. Terms of payment: TT, 30% deposit, balance before delivery from factory.
2. Delivery at China port period: 55 working days after advance payment.
3. Vehicle warranty period: 12 months from the date of bill of lading.
RELATED PRODUCTS

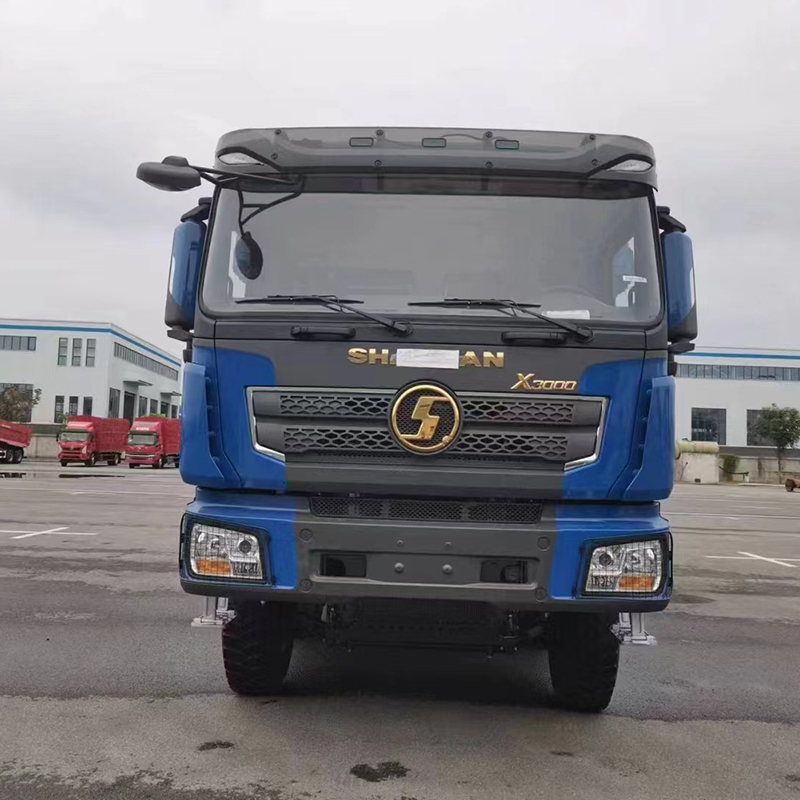

SHACMAN X3000 8×4 Heavy Duty Reinforced Dump Tipper Truck 400HP Euro II WP12 Engine Mining Dumper With Cargo Box Bottom Heating & Multilateral Custom Options
SHACMAN H3000 8X4 DUMP Truck
SHACMAN F3000 6×4 Compactor Garbage Truck SX5255ZYSDR434C, 345HP Euro III 20 Cubic Meter Waste Compression Truck
X3000 Heavy Duty 8x4 Tipper Truck SHACMAN 400HP Euro 2 Dumper For Bulk Material Haulage

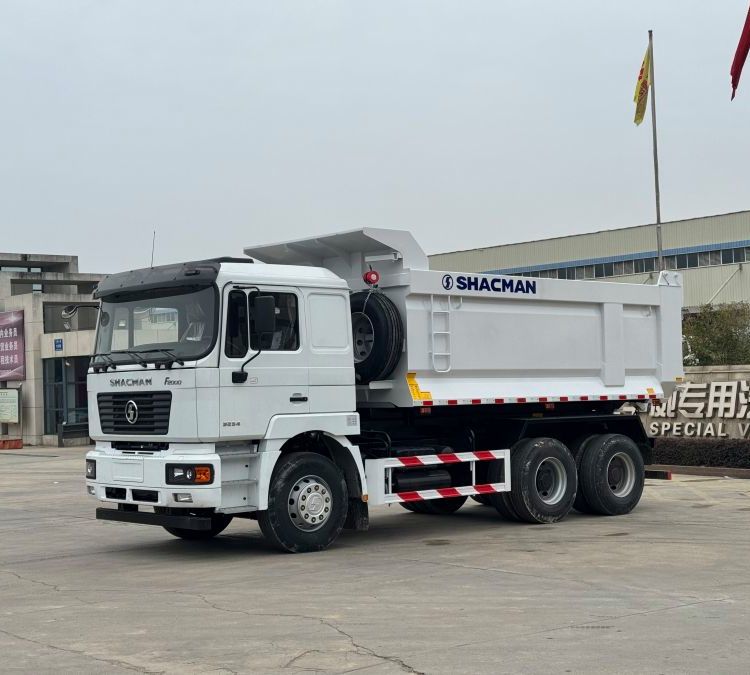

SHACMAN F3000 Heavy Duty 6×4 Tipper Truck 380HP Euro II For Construction Mining
X3000 Heavy Duty 6x4 Tractor Truck SHACMAN 430HP Euro 2 Prime Mover For Container Transport

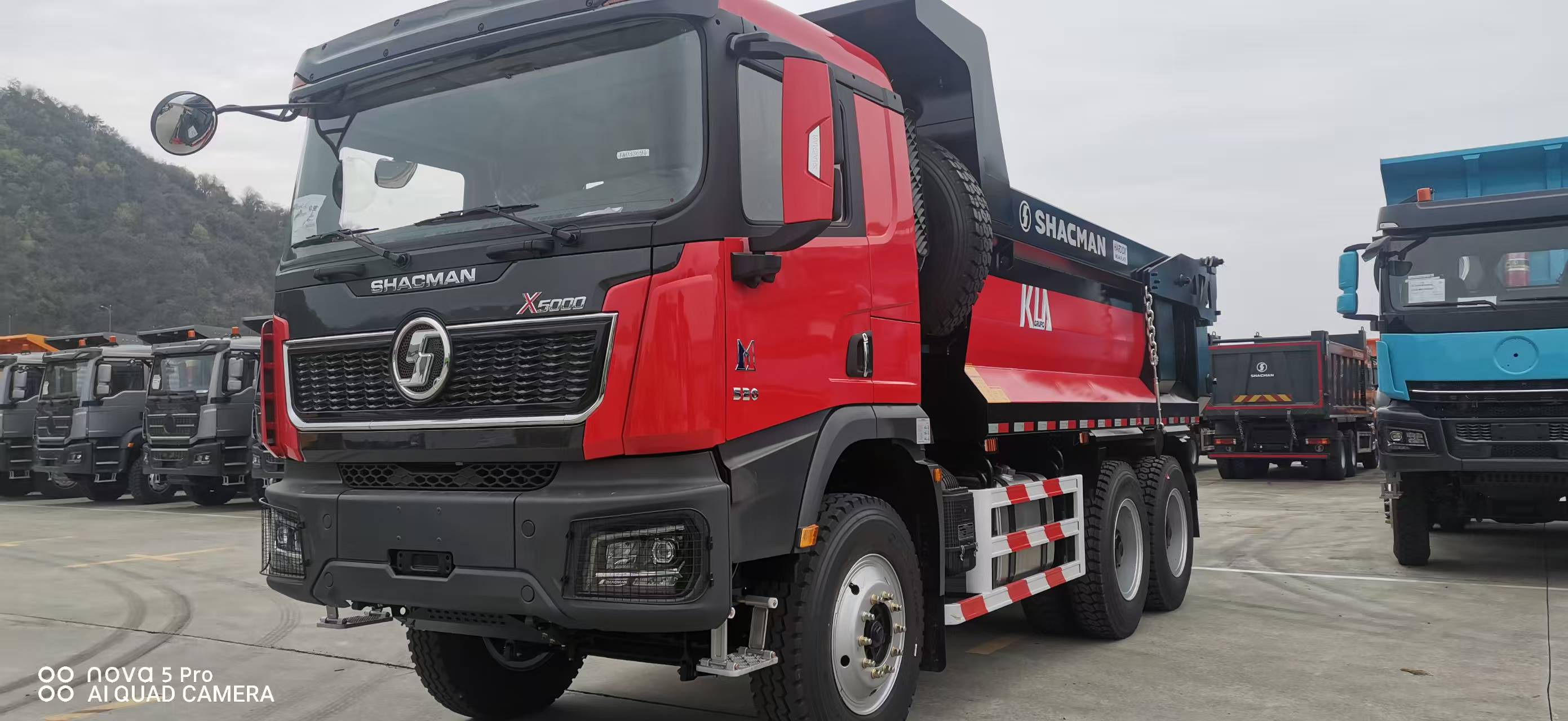

Heavy Load SHACMAN X5000 Tipper Truck 430HP Euro II For Africa Mining Project
