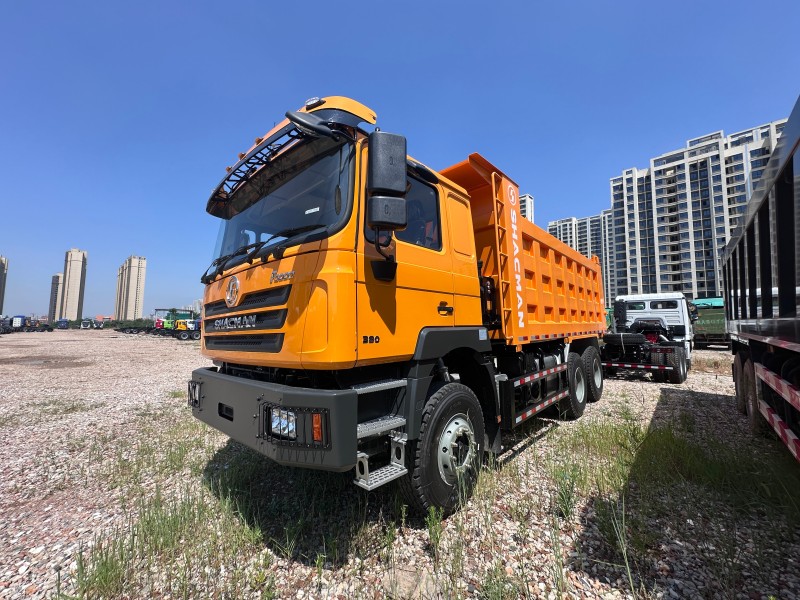

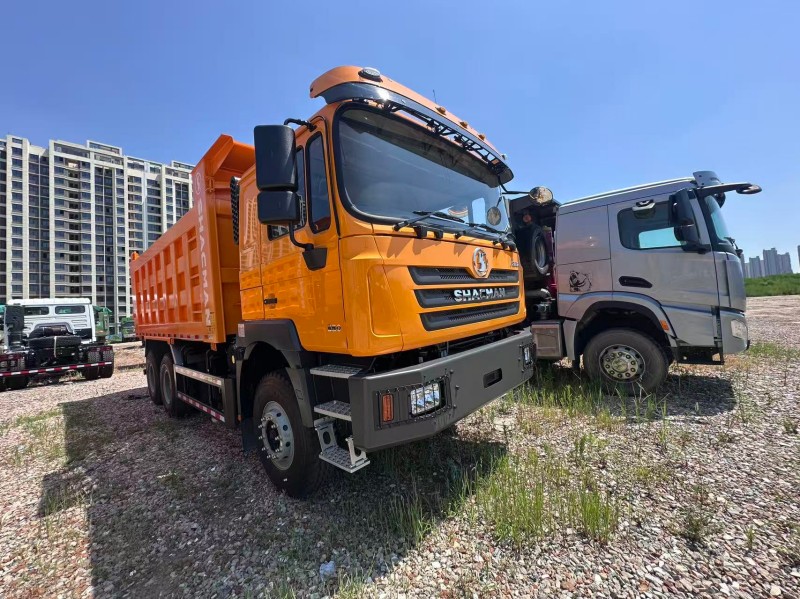

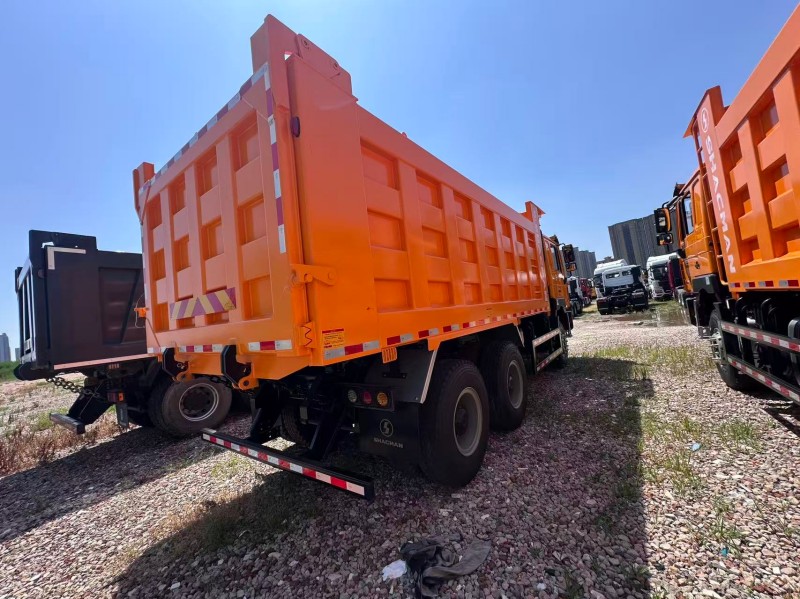

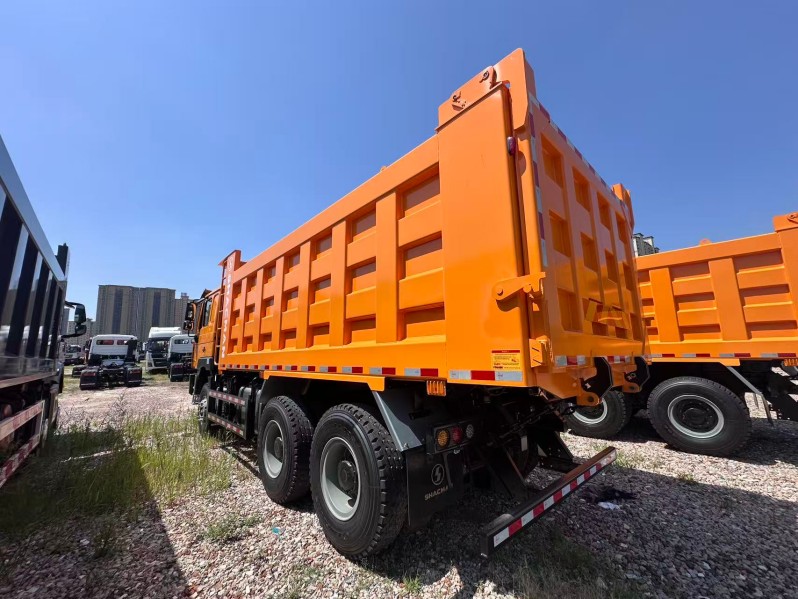

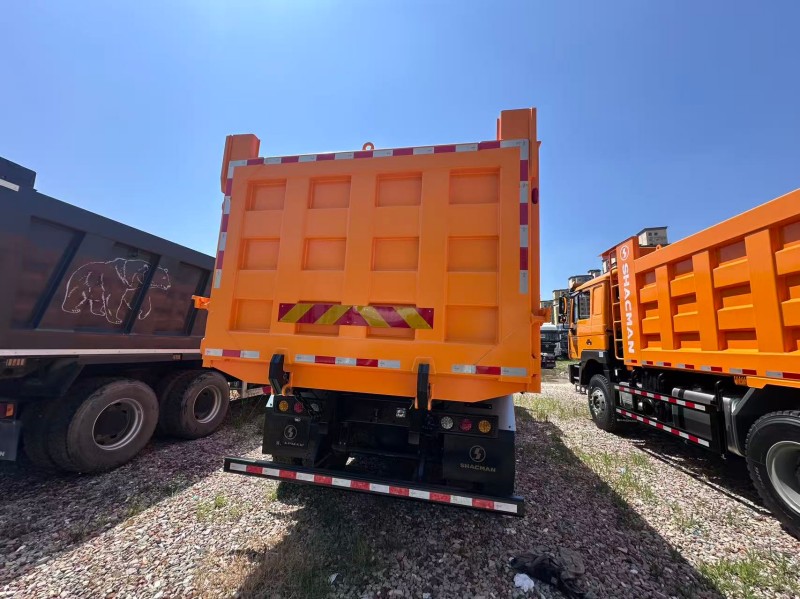

Heavy Duty 6x4 SHACMAN F3000 Dump Truck 10JSD180 Transmission 400L Aluminum Fuel Tank For African Mine

Driving type

6*4

Wheelbase(mm)

3775+1400

Max. Speed/(km/h)

95km/h

Usage Scenario

For urban construction muck, sand and stone material transportation; suitable for mines, construction sites and urban roads, short-distance haulage within 200km, stable running speed 50-65km/h, works well on muddy and rugged road conditions in Africa, Middle East and Southeast Asia.

INQUIRY NOW

PRODUCT DETAILS

1. Product Overview

The SHACMAN F3000 6×4 enhanced tipper truck SX3255DR384 is a heavy-duty mining and construction dump truck designed for overseas markets with Euro II emission standard. Equipped with WP10.340E22 340PS engine and 10JSD180+QH50 transmission, it delivers strong power and stable performance on muddy, rugged mine and urban construction roads. Full export-standard configurations are pre-installed to meet one-stop delivery demand for Africa, Middle East, Southeast Asia clients.

2. Core Parameters

Model: SX3255DR384
Drive: 6×4 rear eight wheels
Engine: WP10.340E22, 340HP, 9.726L displacement, Euro II
Transmission: 10JSD180+QH50 manual gearbox
Axle: 16T HD heavy-duty cast axle, final drive ratio 4.769
Wheelbase: 3775+1400mm
Cargo box: 5600×2300×1500mm front tipping bucket
Fuel tank: 400L aluminum alloy tank
Tire: 12.00R20 mixed pattern tire
Total GVW: 26065kg

3. Export Standard Configuration (One-country One-set)

Four-point hydraulic suspension cab
Original SHACMAN silver logo & full English exterior marking
Extra heavy-duty primary fuel filter
Iron air storage tank
50T hydraulic jack
Telescopic control rod for transmission
Anti-theft covers for fuel tank & battery box
2kg fire extinguisher
600mm reserved chassis space
Complete export tool kit

4. Optional Upgrade Package

Super version optional package 1
Three-step anti-slip boarding steps

5. Application Scenarios

Mainly used for urban construction muck, sand, stone and mineral transportation. Adaptable to construction sites, city roads and muddy mine terrain. Short transport distance ≤200km, stable full-load speed 50-65km/h, widely exported to Africa, Middle East, Southeast Asia and South America.

6. Product Advantages

Strong power & low fuel consumption, perfect for Euro II restricted regions
Reinforced 850×300mm frame, multi-leaf spring suspension, excellent load-bearing capacity
Complete pre-assembled export accessories, no extra modification needed for overseas customs clearance
Spare parts supply chain covers global markets, convenient after-sales maintenance
Flat-top comfortable cab with air conditioning, electric windows and hand crank turnover mechanism

7. After-sales Service

We provide one-year factory warranty for the whole vehicle. Professional overseas technical support and spare parts supply service are available for all customers.

This SHACMAN F3000 tipper truck is specially designed for muck, sand, stone and mineral transportation.

Suitable for mine sites, construction yards, urban roads and muddy rugged terrain.

Transport range within 200km, full load stable speed 50-65km/h.

Widely exported to Africa, Middle East, Southeast Asia and South America markets.

MAIN PARAMETER

Item	Parameter
Model	SX3255DR384
Drive Type	6×4 (LHD, Left Hand Drive)
Engine Model	WP10.340E22
Power / Emission	340HP, Euro II
Displacement	9.726L
Transmission	10JSD180+QH50 Manual
Rear Axle	16T HD Cast Axle, Ratio 4.769
Wheelbase	3775+1400mm
Cargo Box	5600×2300×1500mm Front Tipping
Fuel Tank	400L Aluminum Alloy
Tire	12.00R20 Mixed Pattern
Total GVW	26065kg

1. Terms of payment: TT, 30% deposit, balance before delivery from factory.

2. Delivery at China port period: 55 working days after advance payment.

3. Vehicle warranty period: 12 months from the date of bill of lading.
