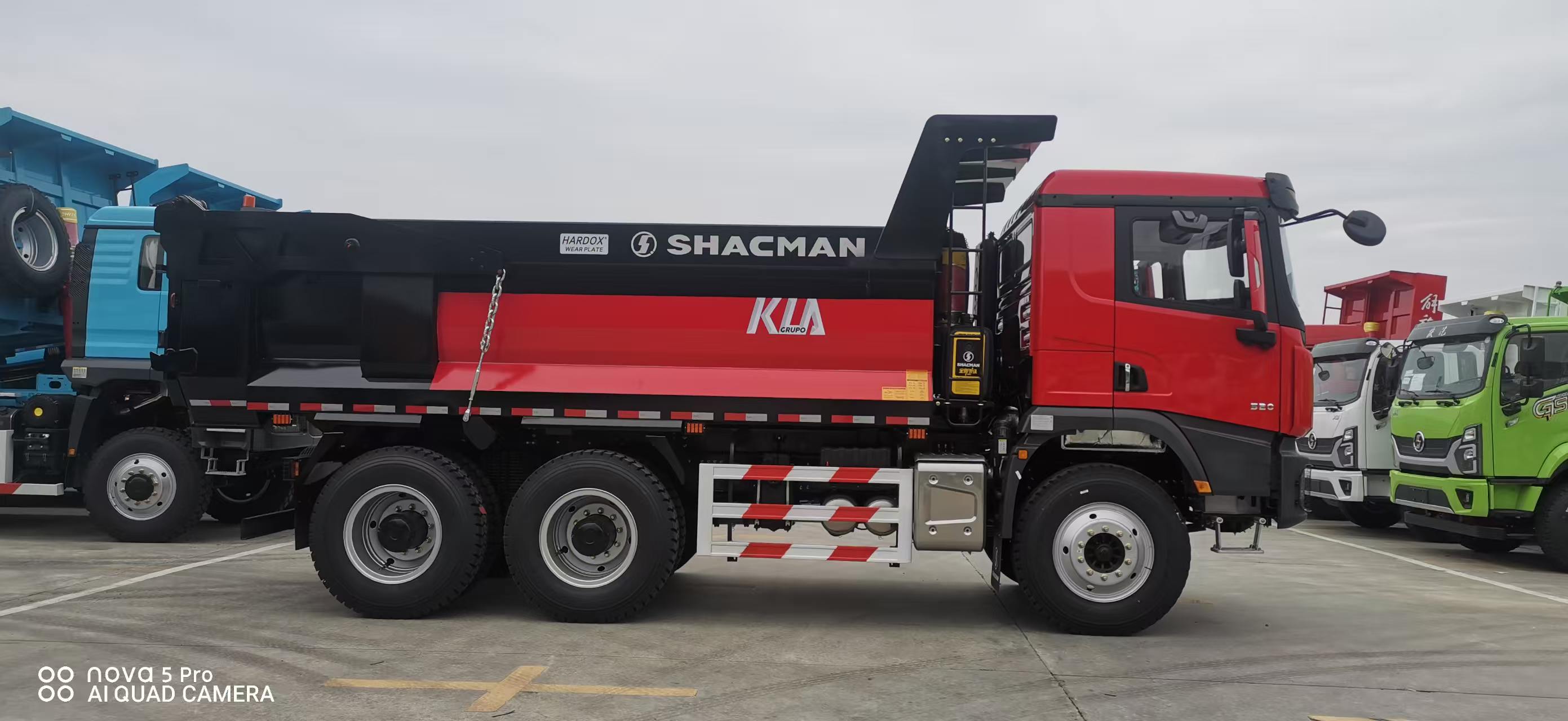

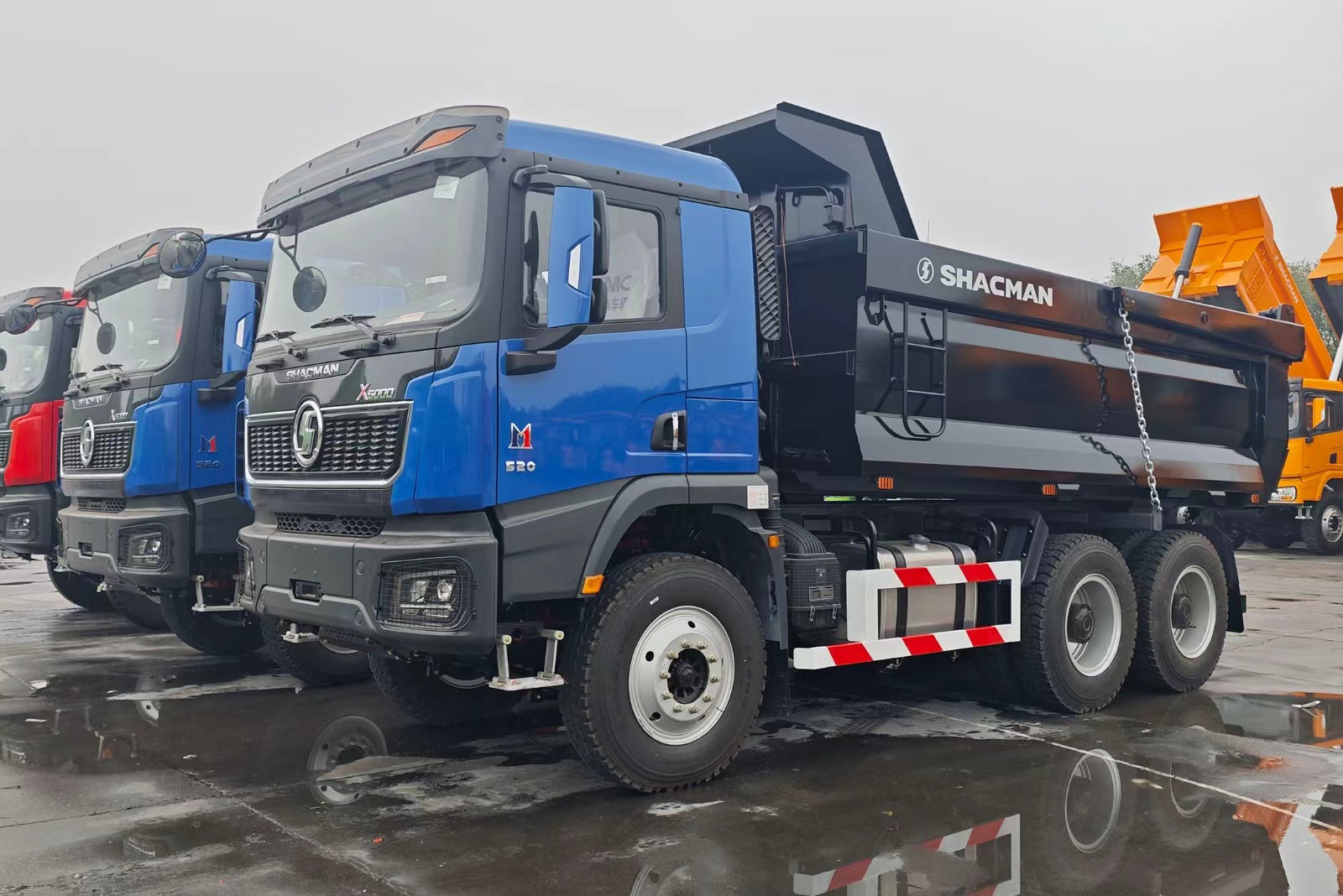

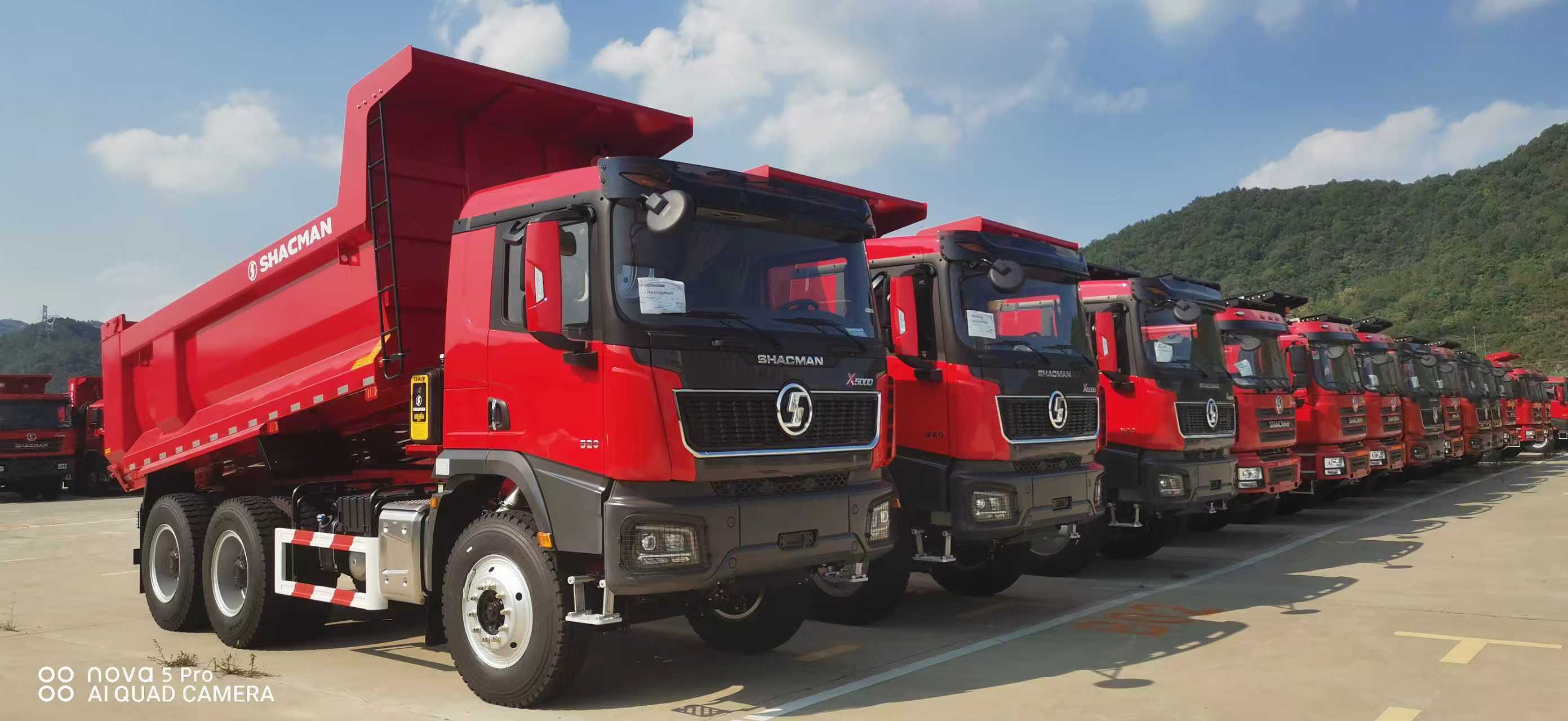

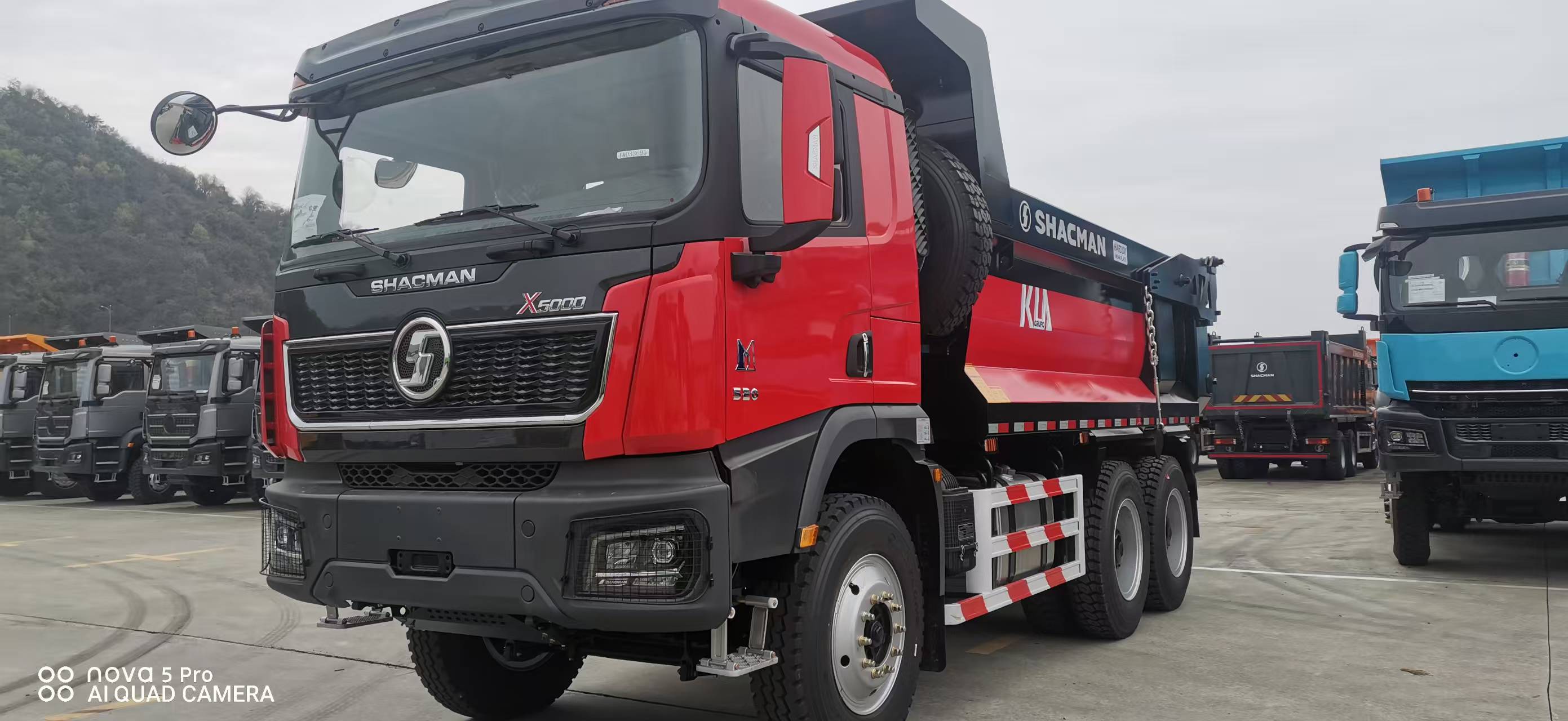

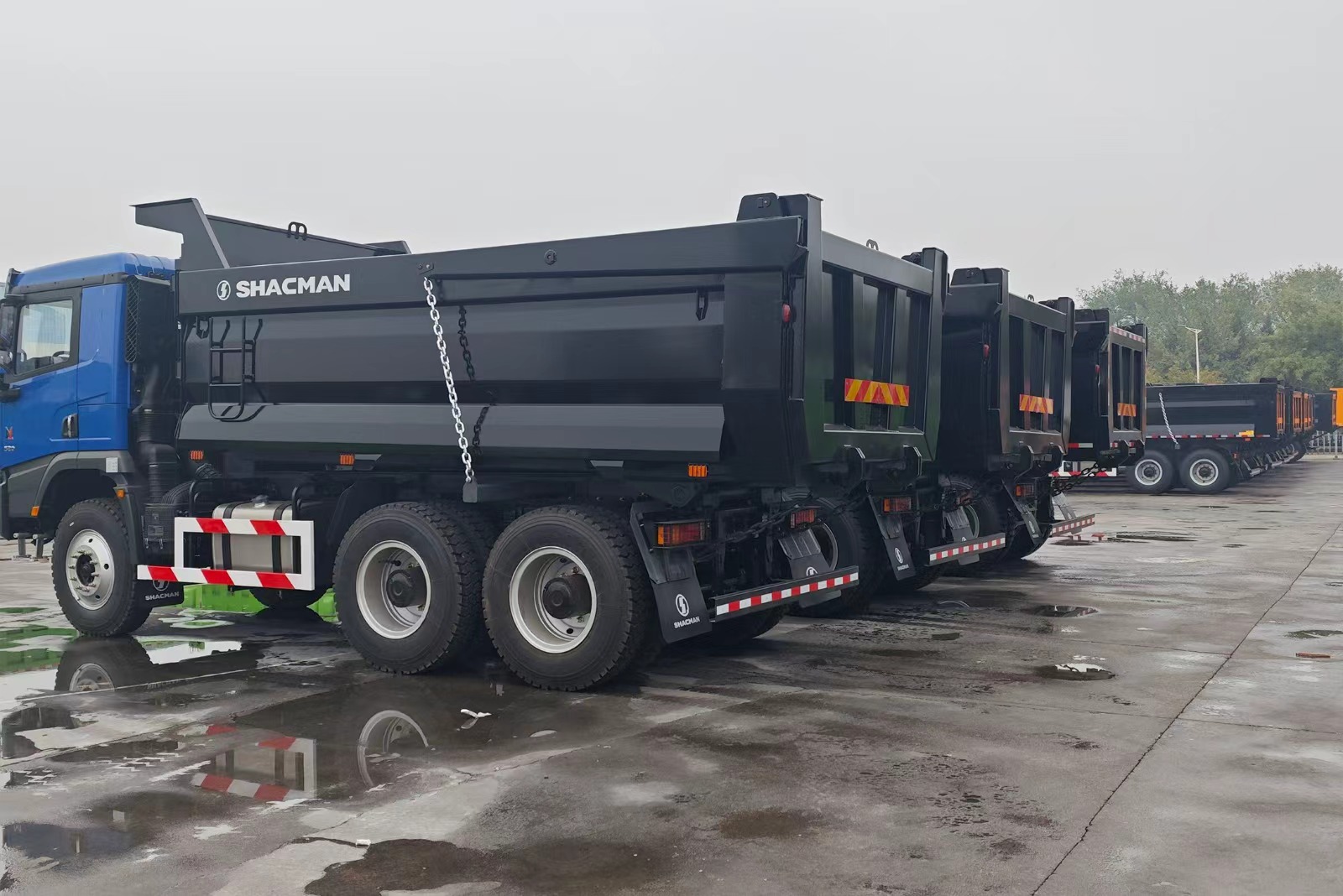

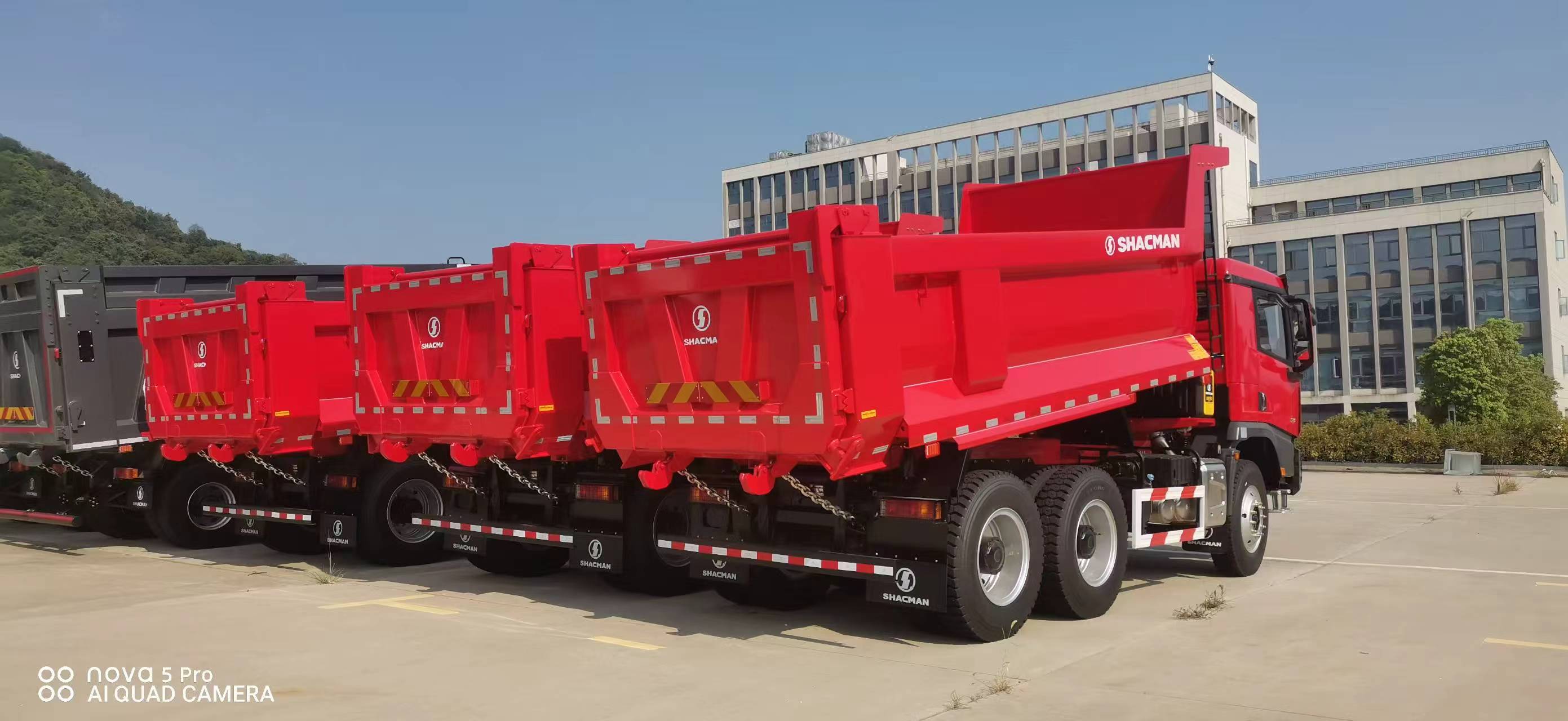

Heavy Load SHACMAN X5000 Tipper Truck 430HP Euro II For Africa Mining Project

Driving type

6*4

Wheelbase(mm)

3975+1400

Max. Speed/(km/h)

65km/h

Usage Scenario

Mainly used for mine mining, quarry transportation, highway infrastructure, earthmoving works and construction residue transport. High strength structure adapts to rugged road conditions, perfectly matches overseas engineering procurement and bulk material transportation demands.

INQUIRY NOW

PRODUCT DETAILS

Product Advantages

Power & Reliable Power Assembly
Equipped with WP12 430 horsepower Euro II emission engine, matched with 12JSD200T-B manual transmission. Strong power output, low fuel consumption and stable performance, fully adapt to long-term high-load operation in mining areas. The 16-ton double reduction heavy-duty drive axle greatly improves load capacity and climbing ability.
Reinforced Bearing Structure
Adopt 850mm thickened frame beam + multi-leaf heavy-duty spring suspension, high-strength cargo box resistant to impact and abrasion. Optimized structural welding process, effectively resist the impact of ore, gravel and bulk materials, reduce frame deformation and failure rate under harsh road conditions.
Humanized Driving Experience
Long-distance flat-top cab with air suspension shock absorption seat, equipped with automatic constant temperature air conditioning, electric rearview mirror and central control reversing image. The overall sealing performance is excellent, which can isolate dust and noise in the construction site and reduce driver fatigue during long working hours.
Rich Optional Configurations
Support hydraulic retarder, 360° panoramic monitoring system, mining anti-skid tires, 4kW independent warm air system and other accessories. Export standard complete configuration, equipped with fire extinguisher, warning light, emergency tool kit, which meets the access standards of Africa, Central Asia and other overseas markets.
Complete After-sales Support System
Global spare parts supply warehouse layout, provide long-term technical guidance, maintenance training and remote fault diagnosis services. Standardized packaging and container transportation scheme, shorten the delivery cycle for overseas engineering procurement customers.

Main Technical Parameters

Model: SX3255X504
Drive form: 6×4
Rated power: 430HP
Emission standard: Euro II
Transmission model: 12JSD200T-B
Rear axle load: 16T heavy-duty double reduction axle
Fuel tank capacity: 400L aluminum alloy fuel tank
Cargo box size: customizable according to customer transportation demand

Application Scenarios

It is widely used in open-pit mining ore transportation, quarry aggregate hauling, highway foundation earthwork, urban construction muck transportation and large infrastructure projects. It can stably run on muddy roads, gravel roads and rugged mountain roads, being the mainstream heavy transport vehicle for overseas engineering contractors.

SHACMAN X3000 Heavy Truck Reliable Logistics Transport Vehicle

SHACMAN X3000 series heavy truck is a mature mass-produced transport vehicle launched for global engineering and bulk cargo transportation markets.

✅ Strong Power Assembly

Matches high-torque diesel engine and multi-speed manual gearbox, stable power output under full-load climbing and continuous driving conditions, effectively cutting comprehensive fuel consumption for long-distance transportation.

✅ Reinforced Chassis & Carrying Capacity

Thickened main frame plus heavy-duty suspension system, with high load-bearing limit. Wear-resistant cargo compartment adapts to ore, sand, construction slag and other abrasive materials transportation.

✅ Comfortable & Safe Driving Environment

Air suspension damping cab with good sealing performance, equipped with constant temperature air conditioner, reversing monitoring and multiple active safety configurations, easing driver fatigue during long shifts.

✅ Diversified Customization & Global Service

Supports emission standards of Euro II/Euro III/Euro V, customizable cargo box size, tires and auxiliary devices. Global spare parts warehouse and after-sales technical service cover most overseas construction markets.

✅ Wide Application Range

Serves mine haulage, road construction bulk transport, urban muck delivery, freight logistics and large infrastructure projects, being a cost-effective mainstream model for overseas purchasers.

MAIN PARAMETER

Parameter Item	Specific Specification
Truck Model	SX3255X504 X3000 6×4 Tipper Truck
Driving Form	6 wheels 4 drive (6×4)
Rated Engine Power	430 HP
Emission Standard	Euro 2 / Euro 3 (optional)
Gearbox Model	12JSD200T-B Manual Transmission
Rear Axle	16 Ton Heavy-duty Double Reduction Axle
Fuel Tank	400L Aluminum Alloy Fuel Tank
Cargo Box	Customizable Size, Wear-resistant High-strength Plate
Suspension	Multi-piece Heavy-duty Leaf Spring Suspension
Cab Configuration	Air Suspension Seat, Constant Temperature Air Conditioner, Rearview Monitor
Optional Parts	Hydraulic Retarder, 360° Panoramic Camera, Mining Anti-slip Tires
Main Application	Mining Transportation, Engineering Earthwork, Muck & Bulk Cargo Logistics

1. Terms of payment: TT, 30% deposit, balance before delivery from factory.

2. Delivery at China port period: 55 working days after advance payment.

3. Vehicle warranty period: 12 months from the date of bill of lading.
