Home > Products > Dump Truck > SHACMAN F3000 6×4 Compactor Garbage Truck SX5255ZYSDR434C, 345HP Euro III 20 Cubic Meter Waste Compression Truck

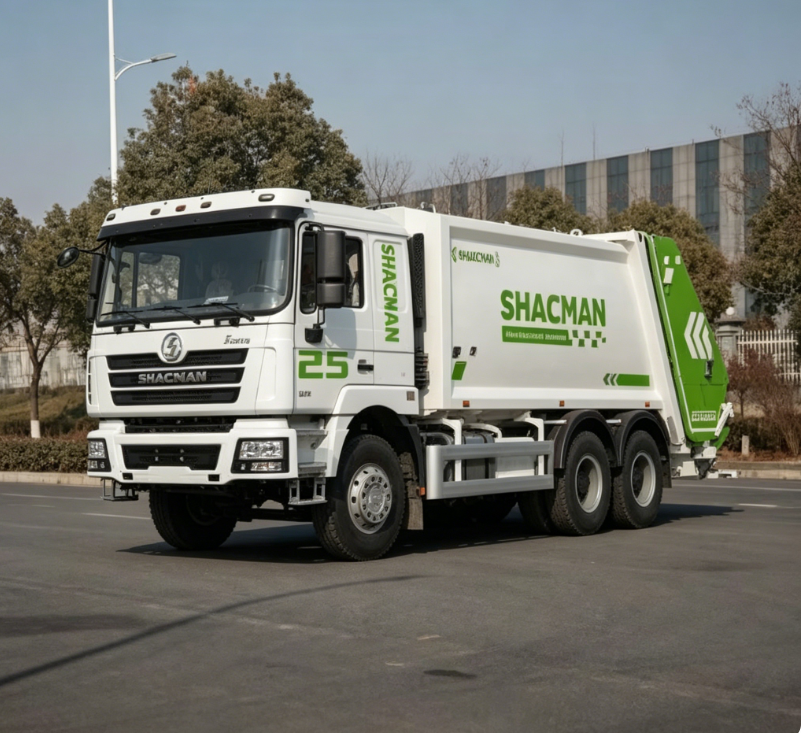

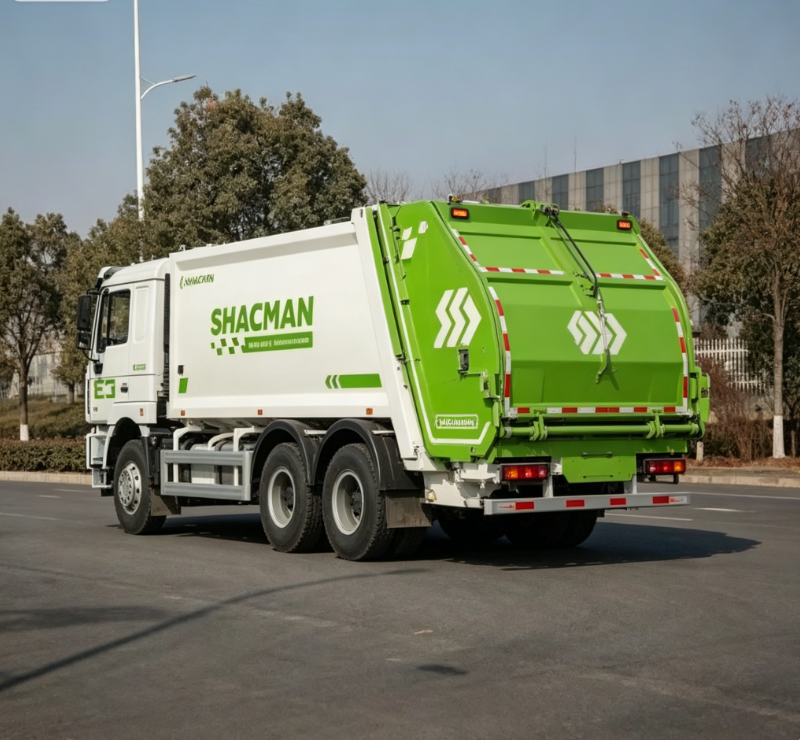

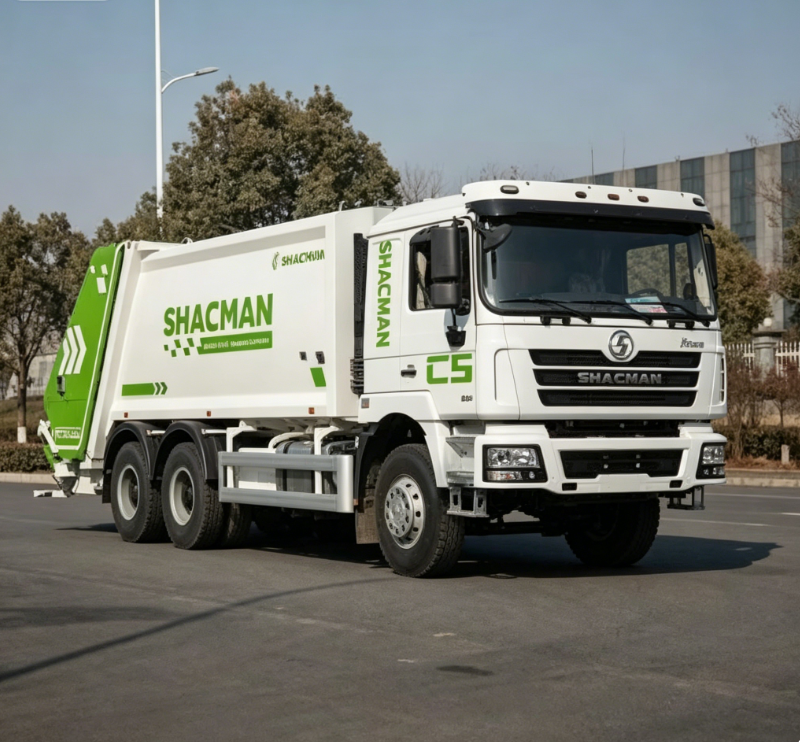

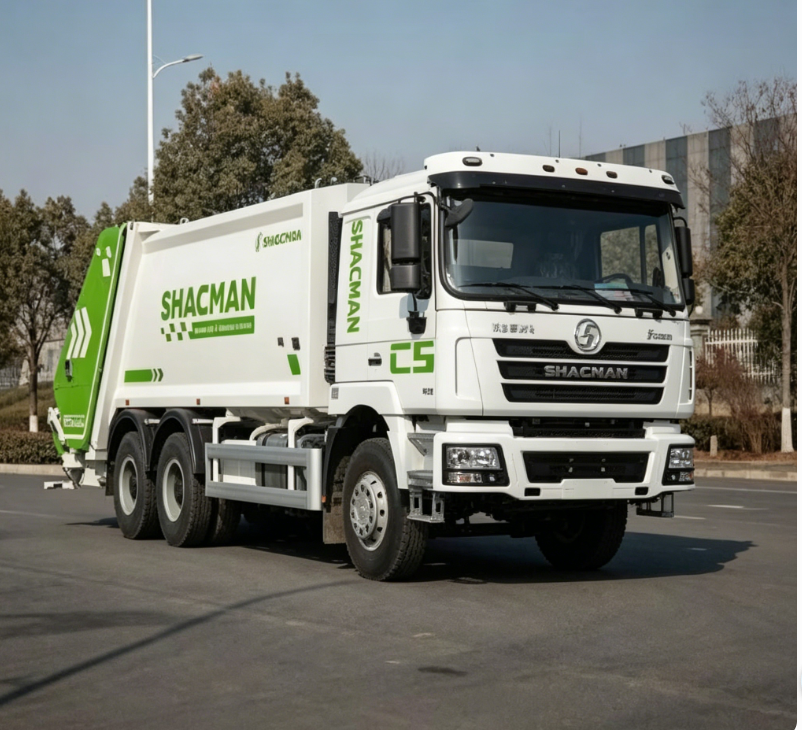

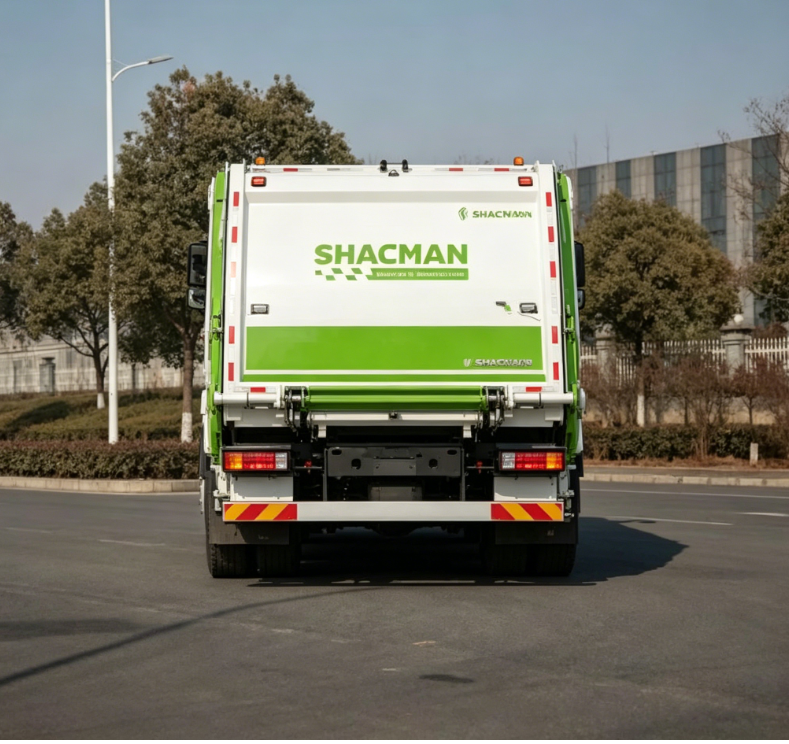

SHACMAN F3000 6×4 Compactor Garbage Truck SX5255ZYSDR434C, 345HP Euro III 20 Cubic Meter Waste Compression Truck

Driving type

6*4

Wheelbase(mm)

4375+1400

Max. Speed/(km/h)

80km/h

Usage Scenario

This F3000 6×4 compactor truck collects and compresses municipal waste for urban sanitation, communities and industrial parks with high loading efficiency.

INQUIRY NOW

PRODUCT DETAILS

Powerful Powertrain
Equipped with ISME345 30 engine, 345 horsepower Euro III emission, matched with 10JSD180 transmission with PTO, powerful output for heavy-duty waste collection work.

Rugged Heavy Chassis
850×300mm multi-layer reinforced frame, 13-ton double reduction rear axle, stable load-bearing and reliable long-term full-load operation.

Efficient Compression System
Adopts Jacobs compression technology for high compaction rate, 20m³ large bin to boost loading volume and cut transport frequency.

Comfortable F3000 Cab
Hydraulic driver seat, single cooling air conditioner, manual tilting design and complete basic configurations for long-shift driving comfort.

Full Export Package
Complete one-country-one-package fittings, Spanish cab-tilting marking, warning lamps, fire extinguisher, remote PTO and anti-theft parts to meet global customs clearance demands.

Main Technical Parameters

Vehicle Model	SX5255ZYSDR434C, F3000 Composite Version 6×4 Compactor Garbage Truck
Platform	F3000
Drive Type	6×4
Version	Composite Version
Engine Model	ISME345 30 (with JACOB)
Power	345 PS
Emission Standard	Euro III
Transmission	10JSD180 Iron Housing Gearbox with QH70 PTO
Rear Axle & Ratio	13T Heavy-Duty Double Reduction Axle, Final Ratio 4.769
Frame Specification	850×300mm, 8+5 Layers Thickened High-Strength Frame
Wheelbase	4375+1400mm
Rear Overhang	1000mm
Cab Type	Mid-length Flat Roof Cab
Front Axle	HD 7.5T Front Axle
Suspension	Front & Rear Multi-leaf Spring Suspension (2 main & 2 auxiliary leaves)
Fuel Tank	600L Aluminum Alloy Fuel Tank
Tire Spec	12.00R22.5, front longitudinal pattern, rear block pattern, wheel rim decorative cover
Garbage Bin Volume	20 Cubic Meter
GVW	28.168 Ton
Upper Chassis Code	DH95354832N8

MAIN PARAMETER

Base Configuration	F3000 mid-long flat roof cab without top deflector, hydraulic main seat, ordinary rearview mirror, single cooling air conditioner, electric window regulator, manual tilting structure, metal bumper with lamp protective mesh, three-step boarding steps, common air filter, standard exhaust, radiator guard, imported clutch, domestic steering gear, taillight protective plate, 180Ah maintenance-free battery.
One-Country-One-Package Export Configuration	Four-point hydraulic suspension, third seat, cab curtains, manual sunroof, yellow sun visor lamp, two pre-installed domestic high-brightness LED hazard warning lamps, SHACMAN logo, Spanish cab tilting marking, left & right cab sound insulation plates, aluminum air reservoir, reverse buzzer, 5-ton jack, 8KG fire extinguisher, wheel chocks, remote PTO function, anti-theft fuel cap, anti-theft battery box, LED taillights, step lamps, chassis fenders same color as cab, Jacobs technology compression unit.
Optional Extras	No optional items listed

1. Terms of payment: TT, 30% deposit, balance before delivery from factory.

2. Delivery at China port period: 55 working days after advance payment.

3. Vehicle warranty period: 12 months from the date of bill of lading.

RELATED PRODUCTS

X3000 Heavy Duty 6x4 Tractor Truck SHACMAN 430HP Euro 2 Prime Mover For Container Transport

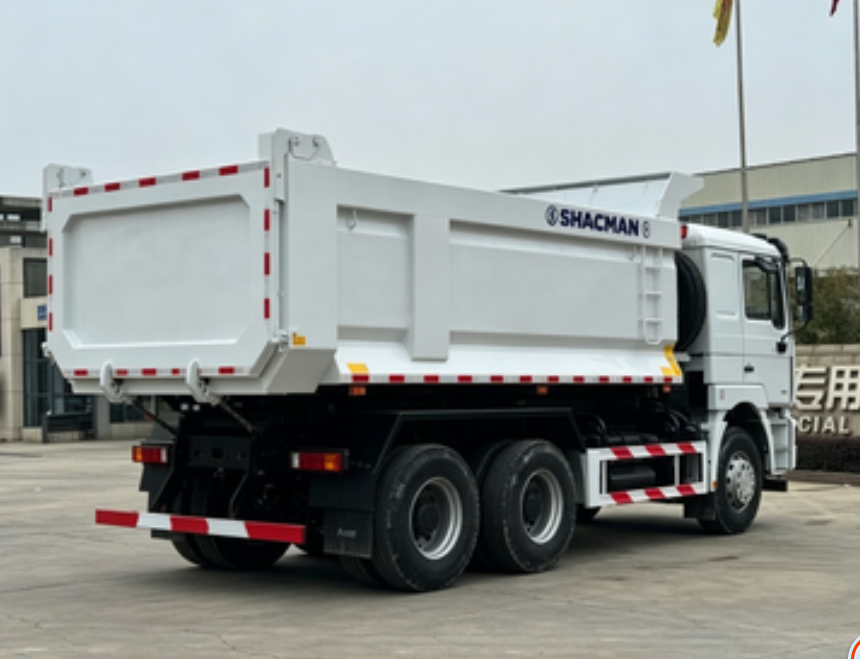

SHACMAN F3000 6x4 380HP Heavy Duty Dump Truck for Mining Construction
