Home > Products > Dump Truck > SHACMAN F3000 8X4 Dump Truck 420HP Heavy Duty Tipper Truck with 35 Ton Payload for Construction & Mining

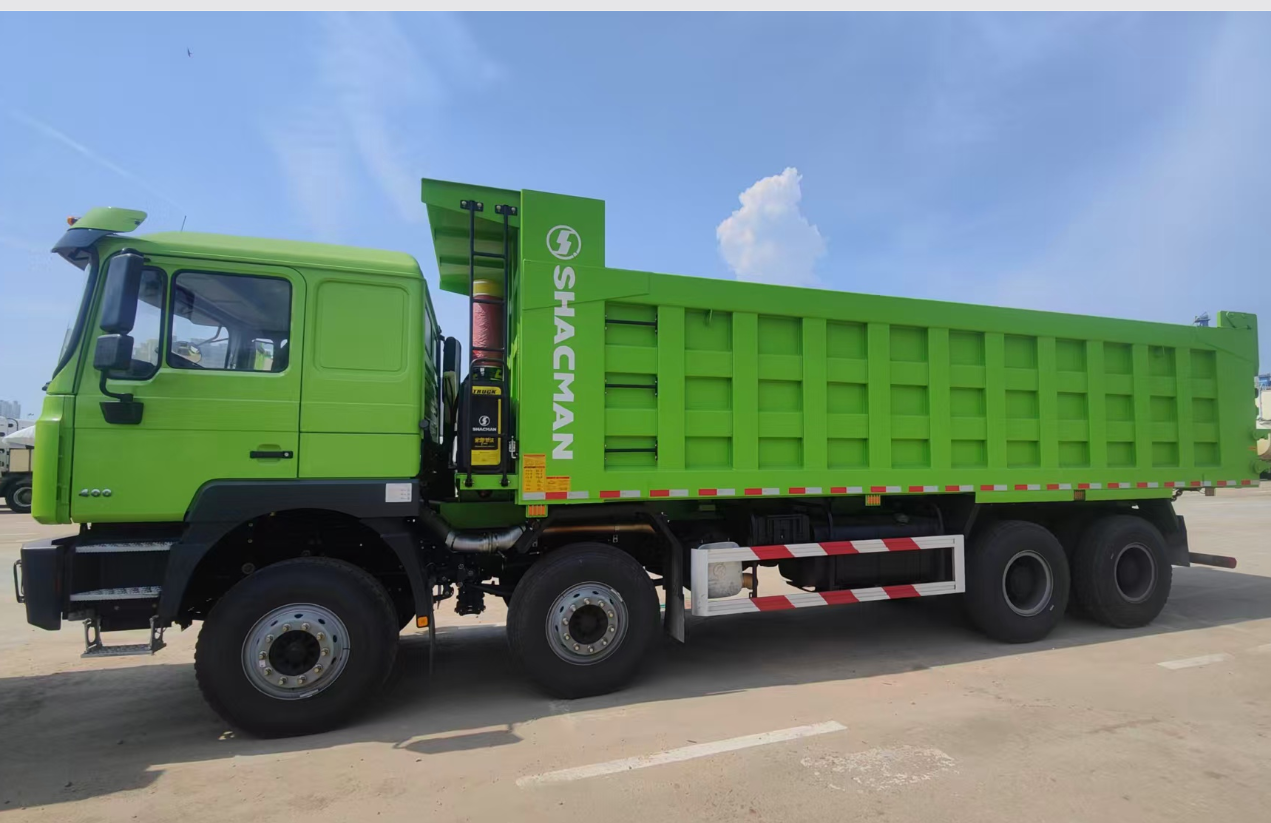

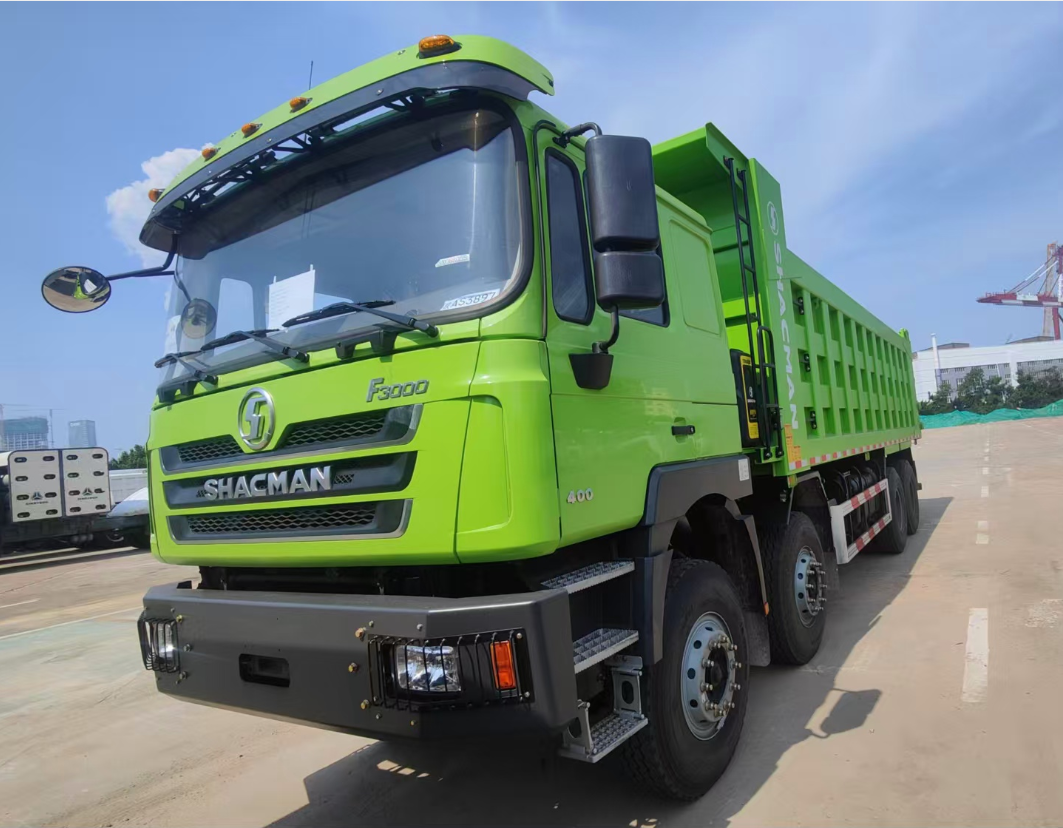

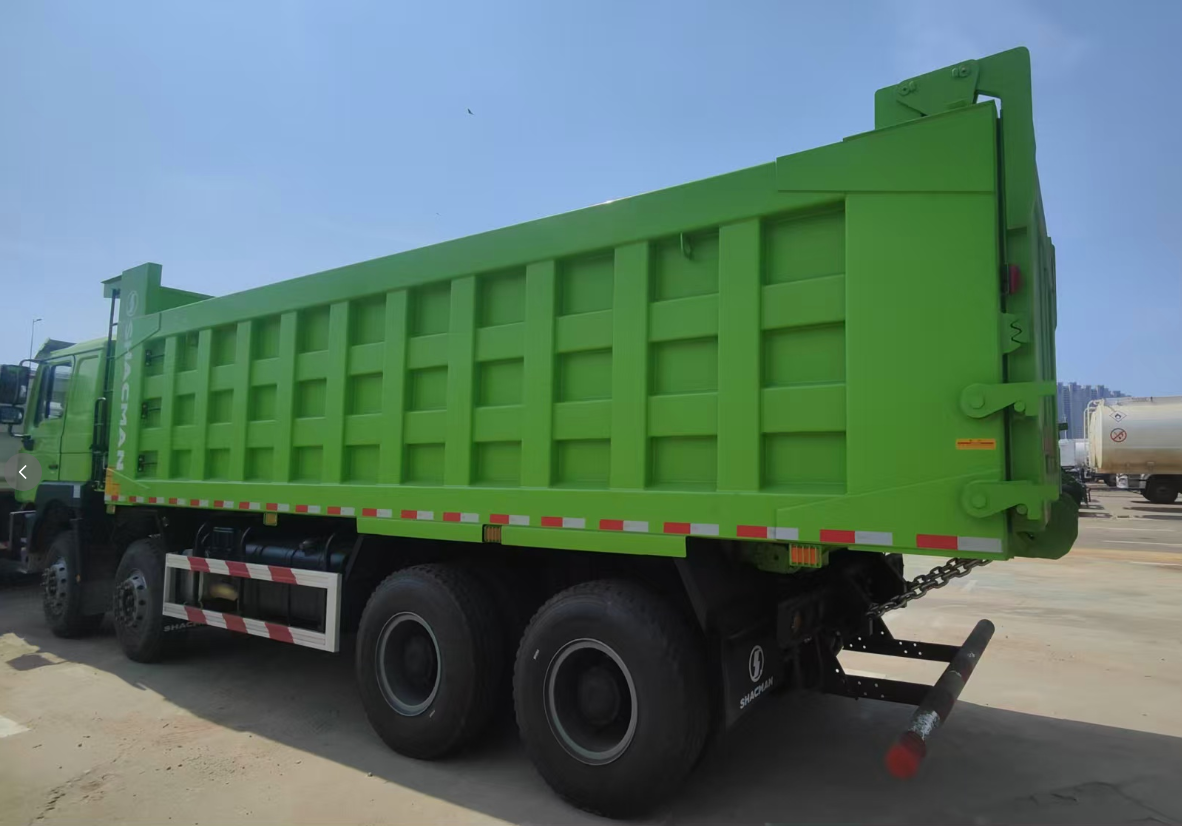

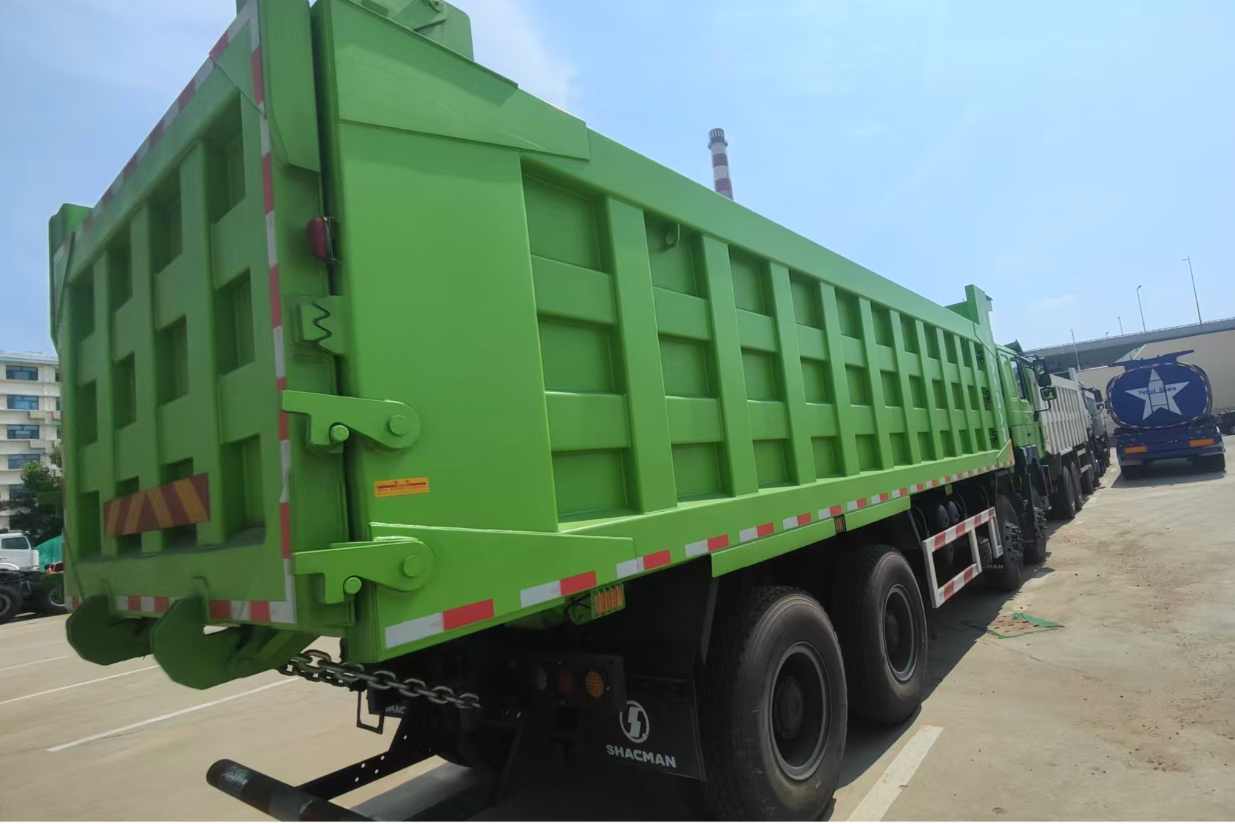

SHACMAN F3000 8X4 Dump Truck 420HP Heavy Duty Tipper Truck with 35 Ton Payload for Construction & Mining

Driving type

8*4

Wheelbase(mm)

1800+3975+1400

Max. Speed/(km/h)

75km/h

Usage Scenario

Widely used in construction,mining,quarry and road construction projects,for transporting sand,gravel,rock and other bulk loose materials,heavy‑duty off‑road working conditions.

INQUIRY NOW

PRODUCT DETAILS

The Shacman F3000 8x4 Dump Truck is designed for high-volume, heavy-duty operations in construction, mining, and large-scale infrastructure projects. With a powerful engine, reinforced chassis, and large cargo capacity, this truck maximizes efficiency and durability while reducing operational costs.

Shacman dump trucks are widely used in Southeast Asia, Africa, the Middle East, and South America, praised for their durability, efficiency, and affordability. With an extensive after-sales service network, we ensure quick access to spare parts and maintenance support.

Customer Testimonials

“The F3000 8x4 dump truck has been a game changer for our mining operations—reliable, powerful, and cost-effective.” – Mining Contractor, Indonesia

“Shacman trucks offer incredible value. The durability and fuel efficiency are unmatched.” – Construction Manager, Nigeria

Features

1. High-Performance Engine & Transmission

Weichai WP12.430E201 Engine – 430 HP output, Euro II/III emission standard, delivering outstanding power and fuel efficiency.

FAST 12-speed transmission – Smooth shifting and optimal power distribution for different terrains.

Robust rear axle – Features a 16T HANDE MAN axle with a gear ratio of 5.262, ensuring superior load-bearing capacity.

2. Heavy-Duty Build for Extreme Conditions

Reinforced high-strength steel frame – Ensures superior durability and impact resistance.

Large cargo box – 7500 x 2300 x 1500 mm (bottom 8mm, side 6mm) for enhanced load capacity.

Advanced hydraulic lifting system – Quick unloading with stable operation.

3. Cost-Effective & Fuel-Saving Design

500L fuel tank – Enables long-haul efficiency with fewer refueling stops.

Streamlined aerodynamics – Reduces air resistance, improving fuel efficiency.

Low maintenance requirements – Built for durability, reducing downtime and repair costs.

4. Driver Comfort & Safety Features

Spacious, air-conditioned cabin – Designed for long-hour operations with ergonomic seating.

Enhanced braking system – Equipped with ABS and engine exhaust brakes for improved safety.

Advanced LED lighting system – Ensures superior visibility in all working conditions.

MAIN PARAMETER

MODEL		SX3315DU406
Driver position		Left Hand
Driving type		8*4
Wheelbase/(mm)		1800+3975+1400
Max. Speed/(km/h)		75km/h
Engine	Brand	WEICHAI
	Model	WP12.400E201
	Emission Standard	EURO II
	Rated output power/（PS）	294KW/400HP
	Displacement(L)	11.596L
Transmission	Brand	FAST
	Model	10JSD180+QH50
Front axle	Brand	HANDE
	Model	MAN 9.5T
Rear axle	Brand	HANDE
	Model	16T MAN Speed ratio: 5.92
Clutch		￠430 diaphragm clutch
Steering		ZF technology
Frame		850×300（8+7）
Suspension		Front and rear multi leaf springs, four main plates+four saddle bolts
Fuel tank		380L
Wheels and tires		13R22.5 12+1
Brakes		Running brake:Dual circuit compressed air brake
		Parking brake:Air discharging with spring control
		Auxiliary brake:Engine exhaust brake
		F3000 medium length flat top cab without top air deflector, hydraulic main seat, four point hydraulic suspension, single refrigeration air conditioning, manual window rocking machine, manual flipping, steel plate bumper, three-level boarding pedal, oil bath air filter, ordinary exhaust, oil pan protection grille, tail light protection grille, 165Ah maintenance free battery, fender and muffler casting bracket, 2 hazard warning lights, SHACMAN logo, full English logo, additional long-acting coarse filter, iron air storage cylinder, 9.0 wheel rims, reverse buzzer, 50T jack, 2KG fire extinguisher, fuel system anti-theft, battery box anti-theft, LED large bumper reserved for installation on the bumper Lamp installation hole position, X3000 intake flat pipe
Upbody		780023001700（mm）Bottom 10 sides 8

* Description：

1. Terms of payment: T/T, 30% deposit, balance before delivery from factory.

2. Delivery at China port period: 55 working days after advance payment.

3. Vehicle warranty period: 12 months from the date of bill of lading.
