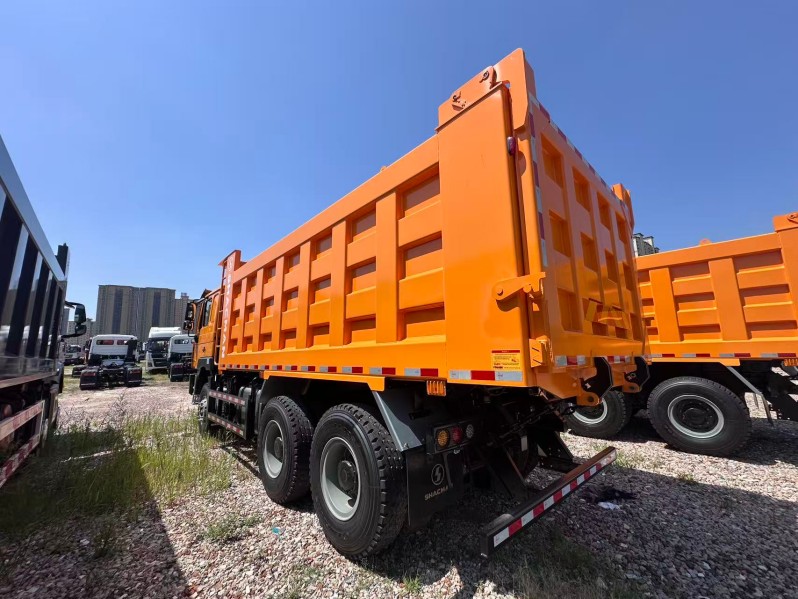

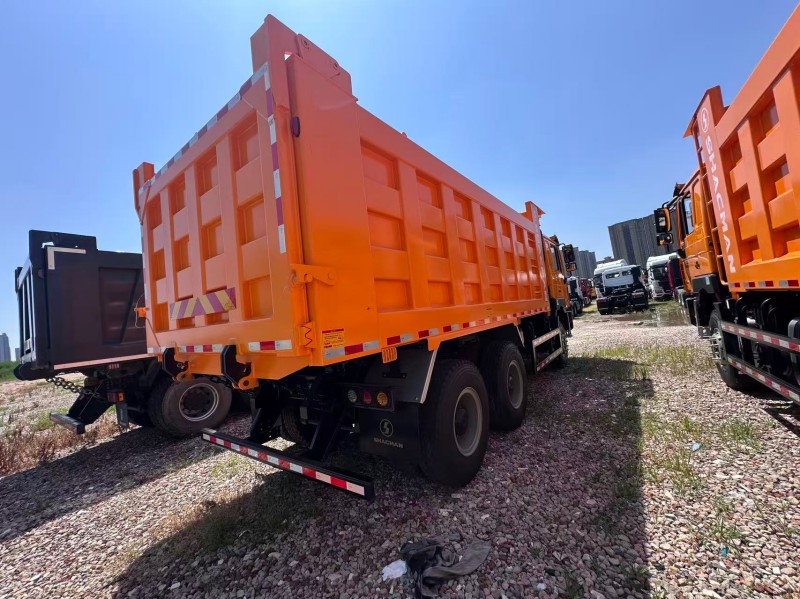

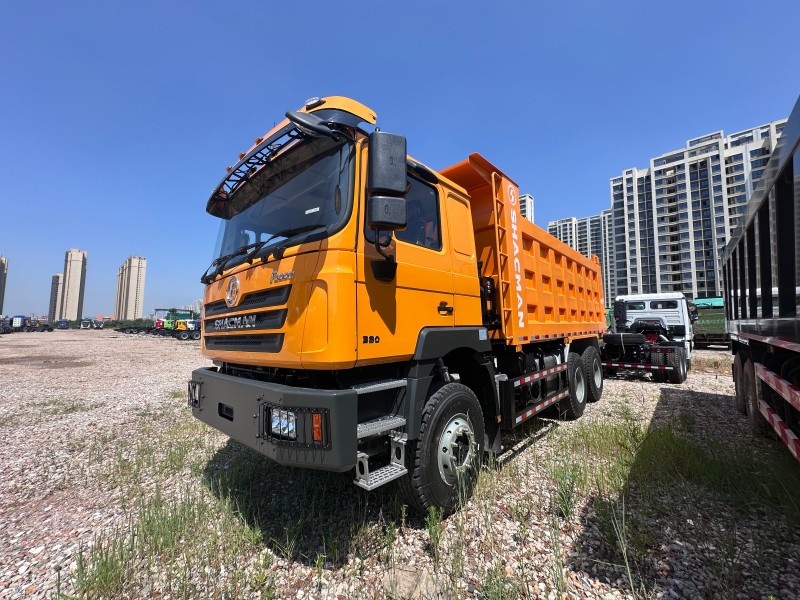

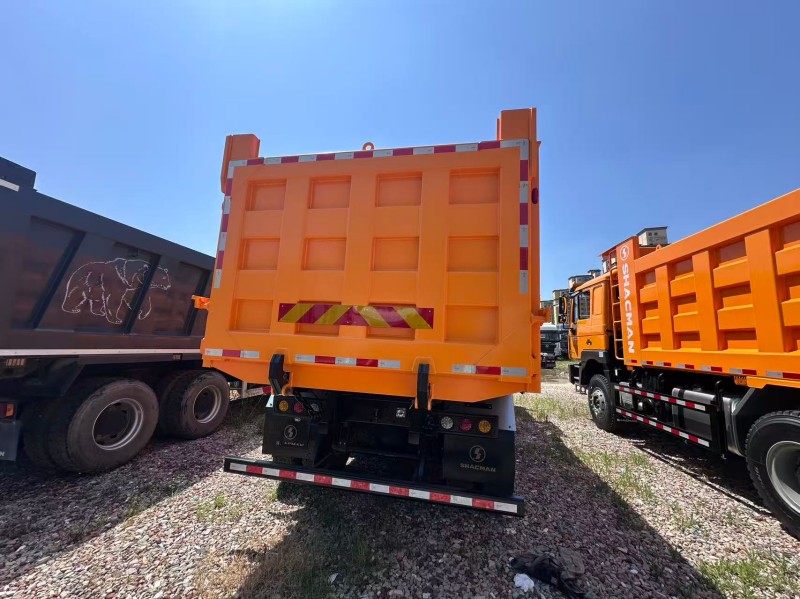

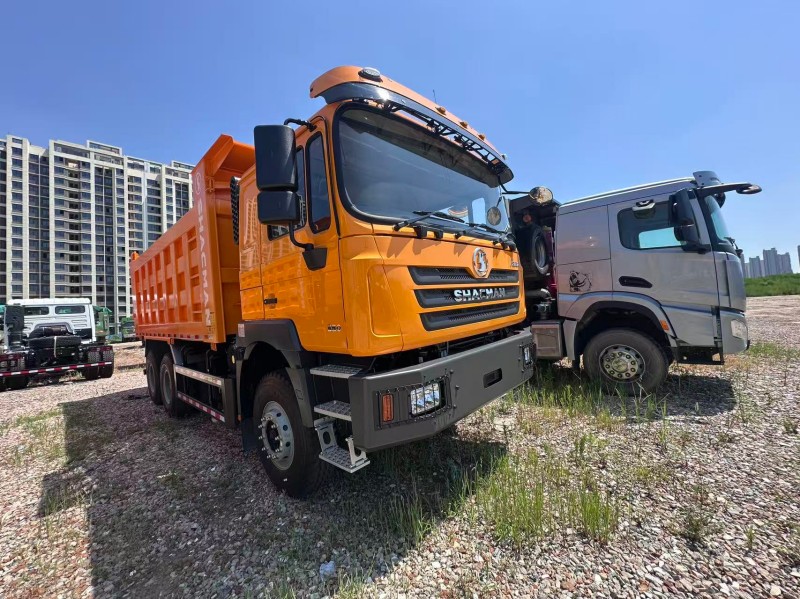

Home > Products > Dump Truck > SHACMAN F3000 Enhanced 6×4 Dump Tipper Truck 340HP Euro II WP10 Engine Mining Construction Dumper For Africa Central Asia Export
Driving type
6*4
Wheelbase(mm)
3975+1400
Max. Speed/(km/h)
75km/h
Usage Scenario
It is widely applied in open-pit mine haulage, construction site earthwork transportation, road and bridge engineering bulk material delivery, and short-distance material transportation for infrastructure projects in Africa, Central Asia and other developing regions.
PRODUCT DETAILS
Main Technical Parameters
| Item | Parameter |
|---|---|
| Model Number | SX3255DR404 |
| Drive Configuration | 6×4 |
| Engine Model | WP10.340E22 |
| Rated Power | 340 PS |
| Emission Standard | Euro II |
| Transmission | 12JSD200T-B Iron Shell Gearbox with QH50 |
| Rear Axle | 16T HD Double Reduction Axle, Final Drive Ratio 5.92 |
| Frame Size | 850×300mm (8+7 Layers) |
| Wheelbase | 3975+1400 mm |
| Rear Suspension Overhang | 1000 mm |
| Cabin Type | Medium Long Flat Roof Cabin |
| Front Axle | HD 9.5T |
| Suspension | Multi-leaf Spring (4 Main Leaves + 4 Auxiliary Leaves) |
| Fuel Tank | 400L Aluminum Alloy Fuel Tank |
| Tire Specification | 12.00R20 Mixed Pattern Tire with Stainless Steel Rim Cover |
| Tipper Body Dimension | Front Tipping, 5800×2300×1300 mm |
MAIN PARAMETER
| Optional Item | Specific Description |
|---|---|
| Super Edition Optional Package 1 | Steel Bumper + Reinforced Leaf Spring + Full LED Taillights (For Model 2 & Model 5) |
| Mining Pattern Tire | 12.00R20 Heavy Mining Tire (For Model 2 & Model 3) |
| Seat & Air Filter Upgrade | Air Suspension Driver Seat, Bath Type Air Intake Filter |
| Rear Axle Option | 16T HD Double Reduction Axle with Final Drive Ratio 5.262 |
| Combined Upgrade Kit | Steel Bumper, Reinforced Suspension, Independent LED Taillights, 3-Step Steps, Front & Rear Stabilizer Bars |
| Fuel Tank Option | 400L Aluminum Alloy Fuel Tank |
| Cargo Box Accessory | Cargo Box Bottom Heating Device |
| Chassis Stabilizer | Rear Axle Stabilizer Bar |
| Protection & Control Upgrade | Adjustable Rear Underrun Protection + Manual Throttle Kit |
| Front Underrun Guard | Front Lower Protection Assembly Combined with Super Edition Package 1 |
1. Terms of payment: TT, 30% deposit, balance before delivery from factory.
2. Delivery at China port period: 55 working days after advance payment.
3. Vehicle warranty period: 12 months from the date of bill of lading.
RELATED PRODUCTS
X3000 Heavy Duty 6x4 Tipper Truck SHACMAN 380HP Euro 2 Dumper For Bulk Material Transportation

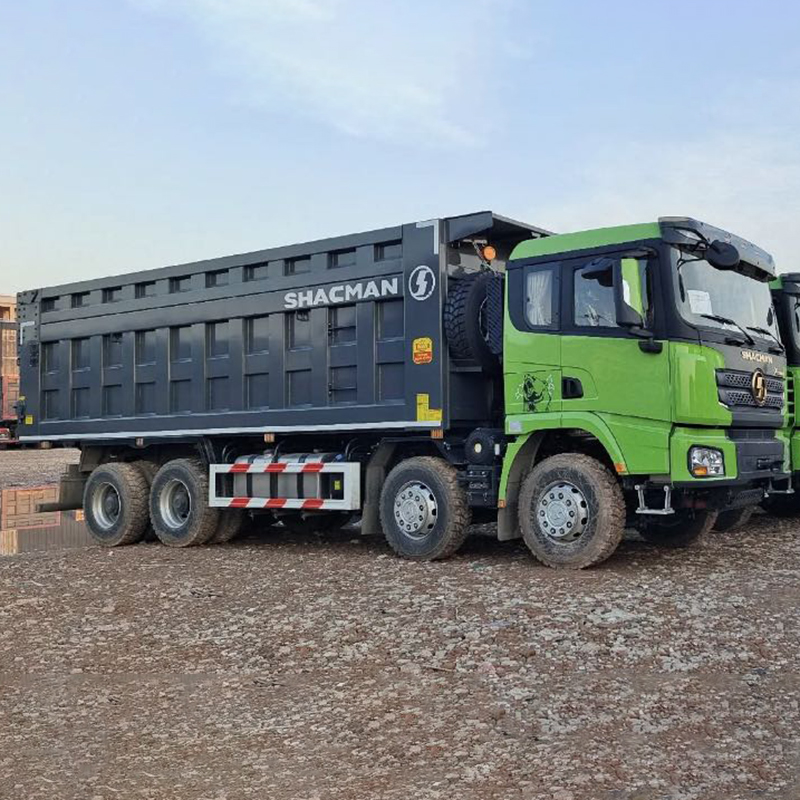

SHACMAN X3000 6x4 Mining Dump Truck 340 HP Euro II Construction Tipper Vehicle

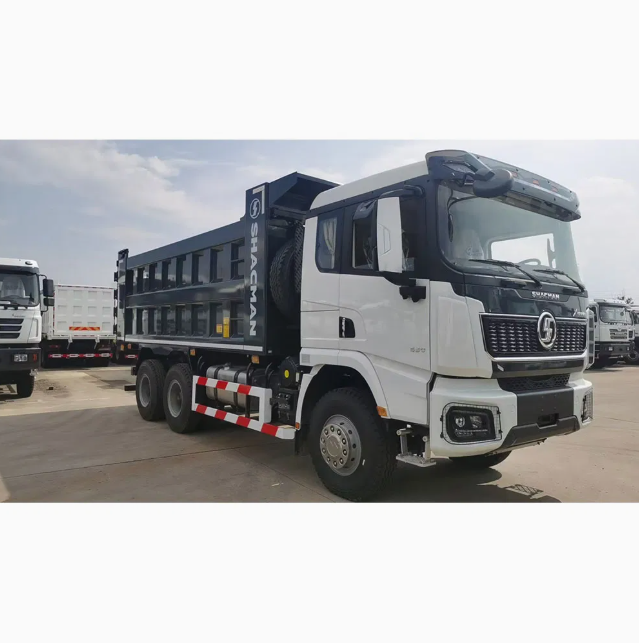

380HP Shacman X5000 Tipper Truck 16T HD Double Reduction Axle 400L Aluminum Fuel Tank For Earthmoving
SHACMAN L3000 Lightweight 6×4 Dump Truck 300HP Euro V Tipper Truck
X3000 Heavy Duty 8x4 Tipper Truck SHACMAN 400HP Euro 2 Dumper For Bulk Material Haulage
F3000 Enhanced Version 6x4 Heavy Duty Dump Truck SHACMAN 380HP Euro 2

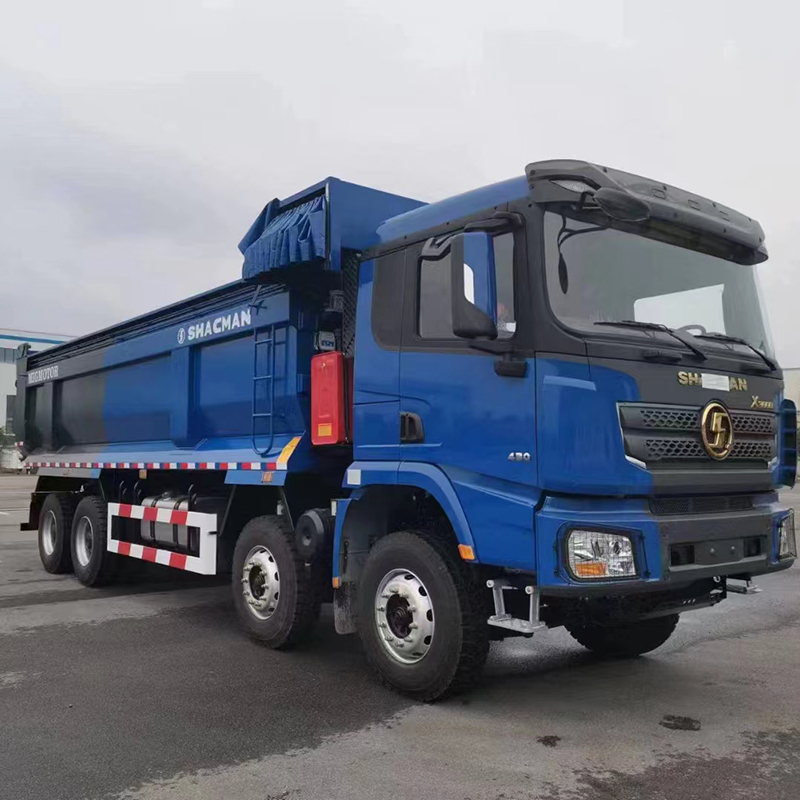

SHACMAN X3000 8*4 Enhanced Dump Truck 400 Horsepower Hydraulic Rear Tipping Tipper For Earthmoving & Construction Works
SHACMAN X3000 6×4 Heavy-Duty Tractor Truck
SHACMAN H3000 8X4 DUMP Truck

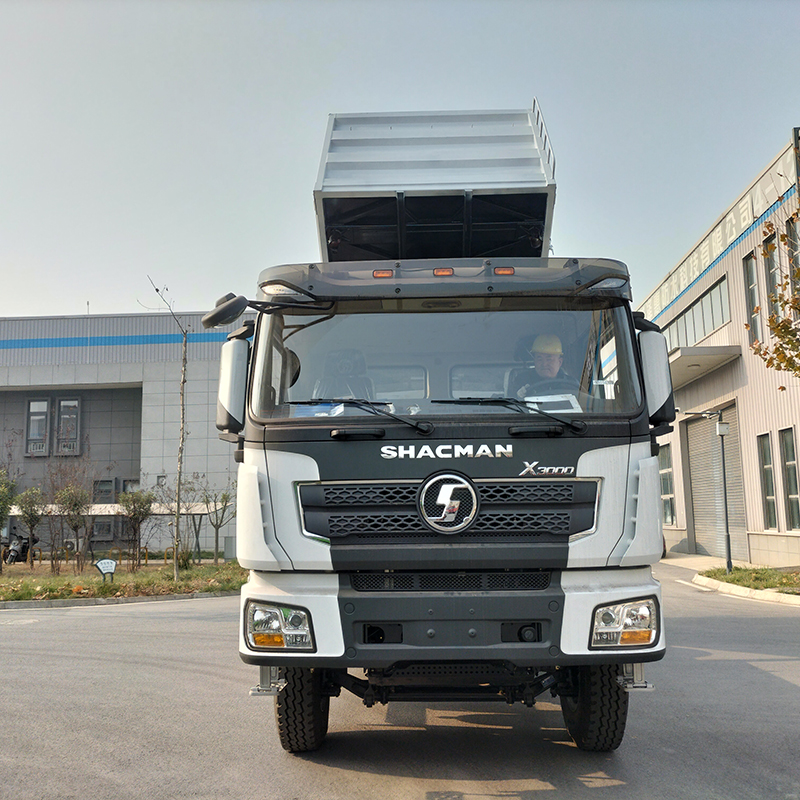

SHACMAN X3000 6x4 Heavy Duty Tipper Truck 340HP Euro II WP10 Engine 16T Cast Axle Mining Dump Truck
