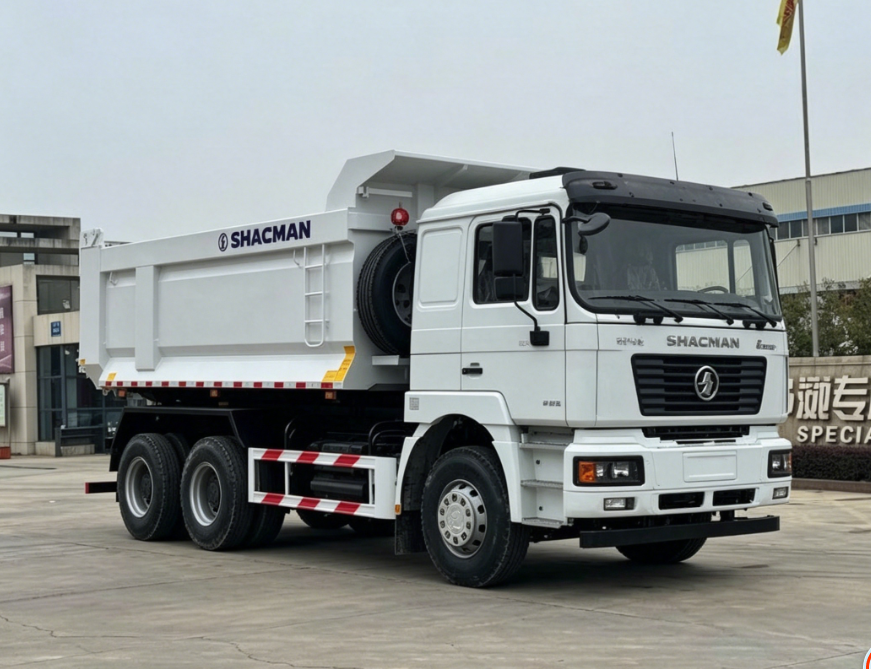

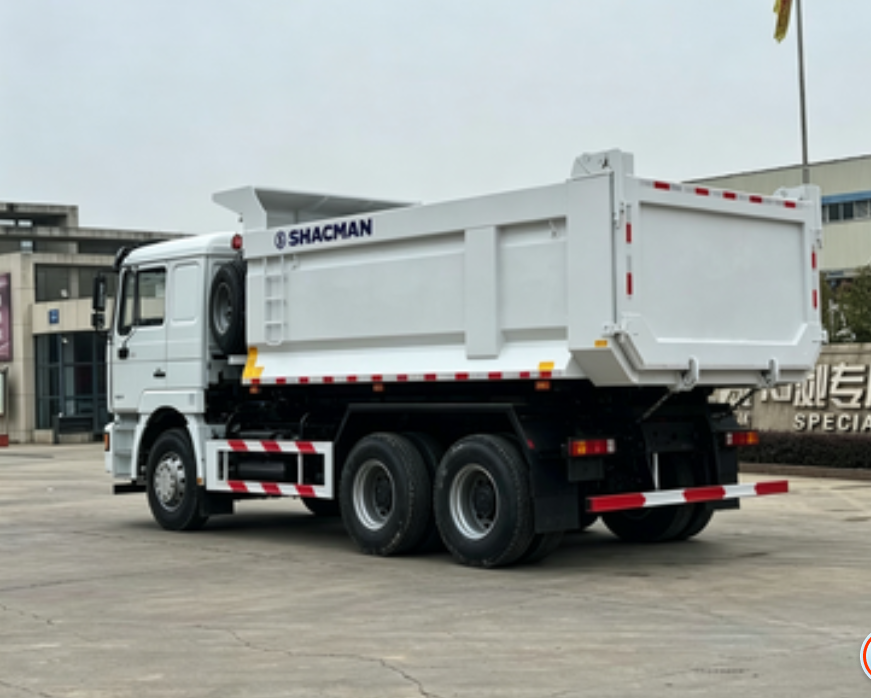

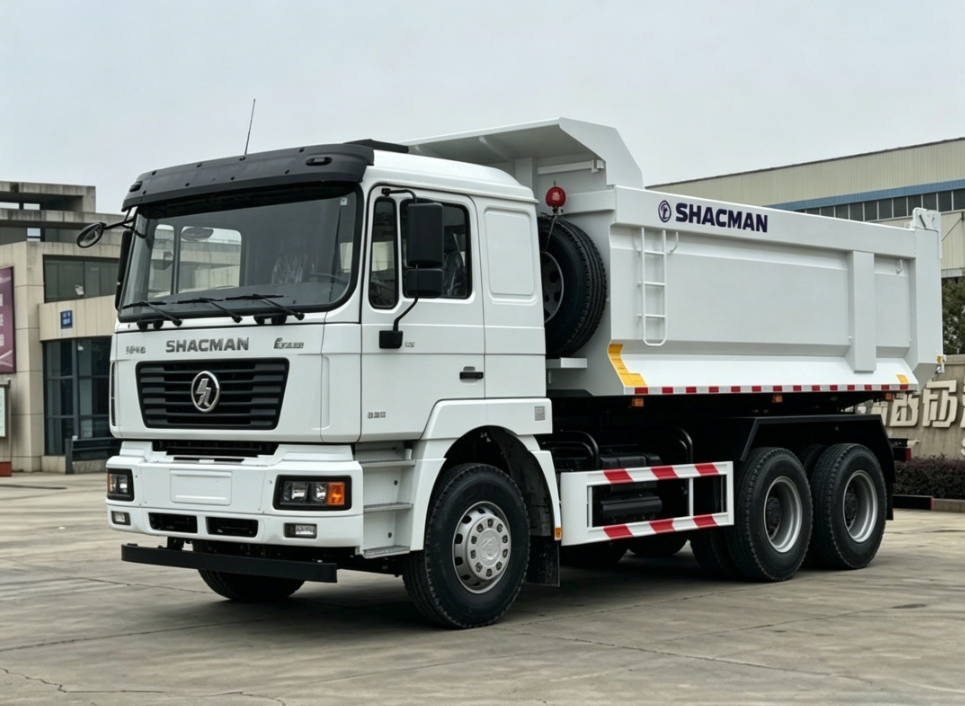

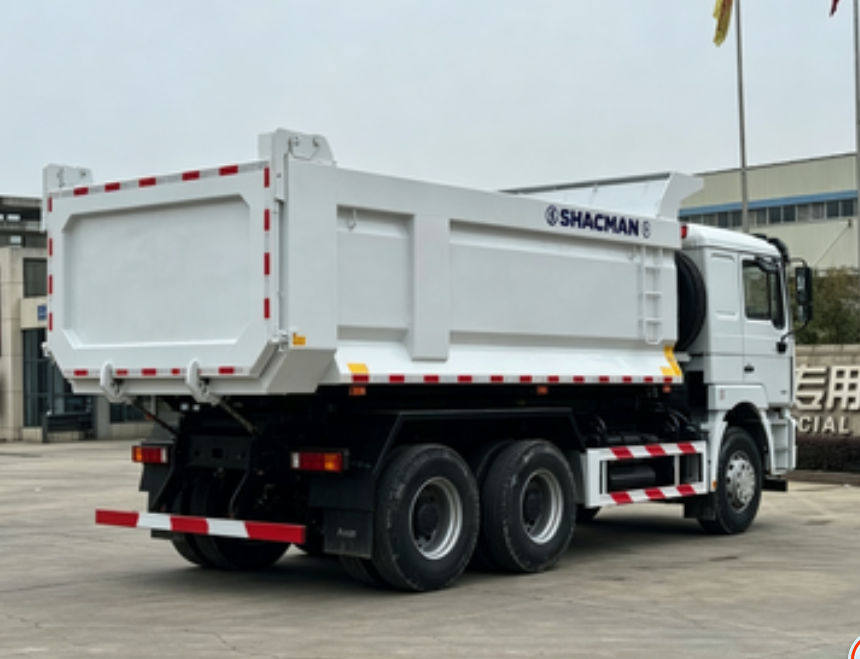

Home > Products > Dump Truck > SHACMAN F3000 Heavy Duty 6×4 Tipper Truck 380HP Euro II For Construction Mining
Driving type
6*4
Wheelbase(mm)
3775+1400
Max. Speed/(km/h)
60km/h
Usage Scenario
Suitable for mine quarry material haulage, highway construction, urban infrastructure projects, earthmoving excavation work, transporting sand, gravel, ore and construction waste; reliable performance under harsh off-road and rugged road conditions for long-term heavy-duty operation.
PRODUCT DETAILS
Engine: WP10, 380HP, Euro 2 emission standard
Transmission: 10-speed manual transmission
Drive form: 6×4
Axle: 16 tons heavy-duty widened rear axle, axle ratio 4.76
Suspension: Multi-leaf spring reinforced suspension for heavy load
Cargo box size: 5800×2300×1500mm
Fuel tank: 400L large capacity aluminum fuel tank
Tire specification: 12.00R20 heavy-duty mining tire
Reinforced chassis frame with high torsional strength, resistant to deformation under long-time bumpy road conditions.
Water tank and radiator fitted with protective grille, preventing stone impact during mine transportation.
Cab with air suspension seat, effective vibration reduction to ease long-distance driving fatigue.
Full set of export standard configuration, including first-aid kit, fire extinguisher, reflective warning plates, meeting overseas transport regulations.
Product Advantages
| Parameter | Details |
|---|---|
| Drive Mode | 6×4 |
| Engine | WP10, 380HP, Euro 2 |
| Transmission | 10-speed manual gearbox |
| Rear Axle | 16T widened heavy-duty axle |
| Cargo Box Size | 580023001500 mm |
| Fuel Tank | 400L aluminum tank |
| Tire | 12.00R20 mining tire |
MAIN PARAMETER
| Item | Specification |
|---|---|
| Vehicle Model | SHACMAN F3000 6x4 Dump Truck |
| Engine Model | WP10 Diesel Engine |
| Rated Horsepower | 380 HP |
| Emission Standard | Euro 2 |
| Gearbox | 10 Forward Speed Manual Transmission |
| Drive Type | 6×4 (6 wheels, 4 driving wheels) |
| Rear Axle | 16 Ton Widened Heavy Duty Axle |
| Axle Gear Ratio | 4.76 |
| Cargo Body Dimension | 5800mm × 2300mm × 1500mm |
| Fuel Tank Capacity | 400L Aluminum Alloy Fuel Tank |
| Tire Specification | 12.00R20 Heavy Mining Tire |
| Main Application | Mining Transport, Construction Site Haulage, Earthwork Projects |
1. Terms of payment: TT, 30% deposit, balance before delivery from factory.
2. Delivery at China port period: 55 working days after advance payment.
3. Vehicle warranty period: 12 months from the date of bill of lading.
