Home > Products > Dump Truck > SHACMAN F3000 Reinforced 6x4 Tipper Dump Truck 10 Wheels Mining Construction Dumper Truck

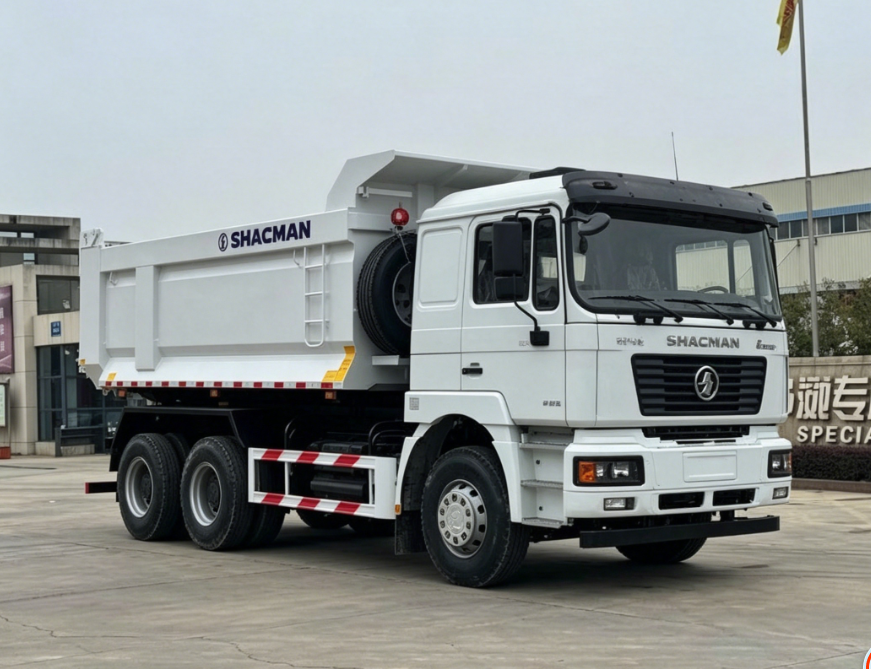

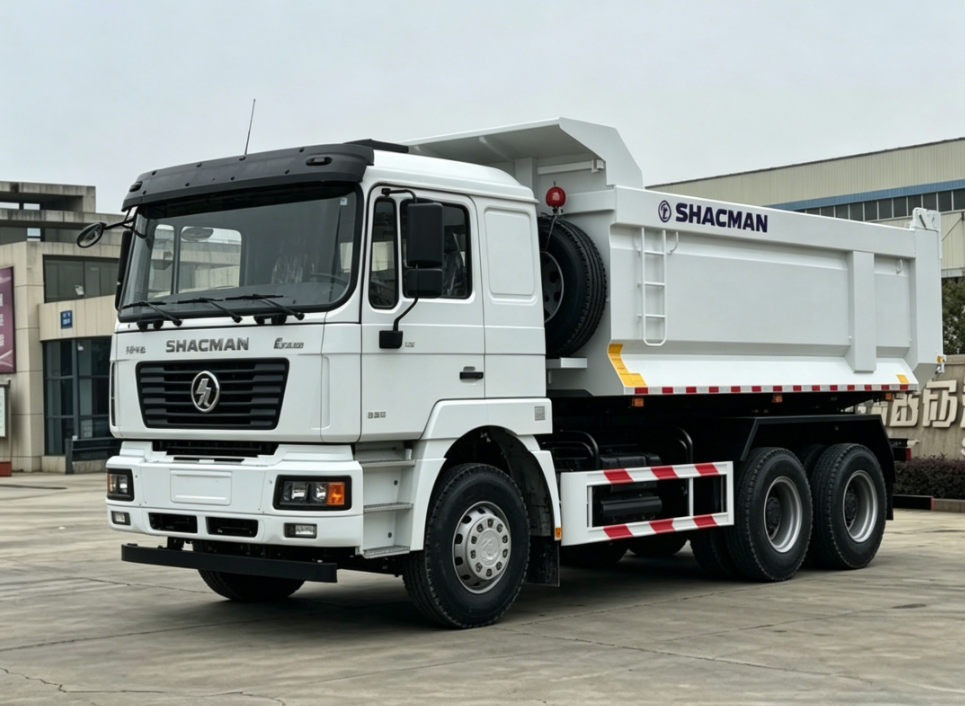

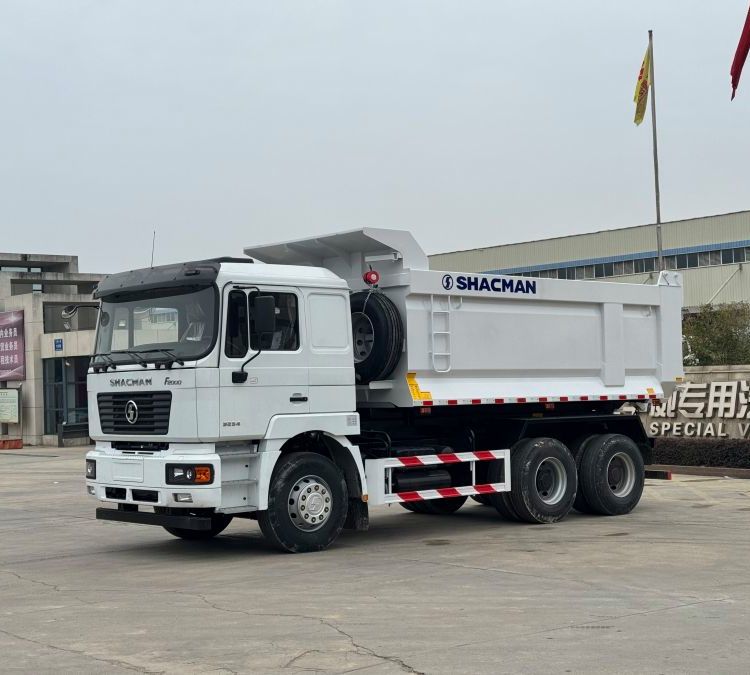

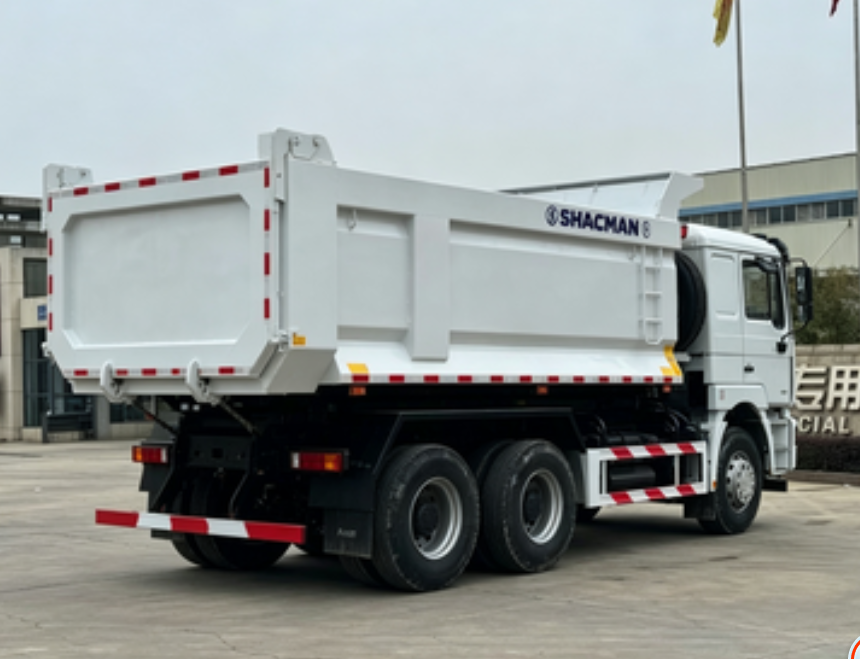

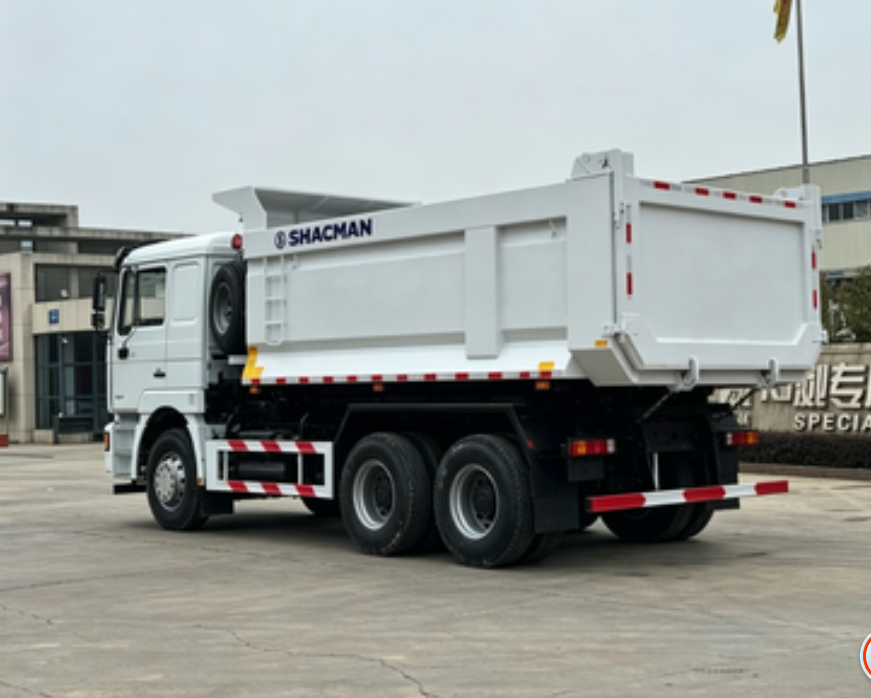

SHACMAN F3000 Reinforced 6x4 Tipper Dump Truck 10 Wheels Mining Construction Dumper Truck

Driving type

6*4

Wheelbase(mm)

4375+1400

Max. Speed/(km/h)

75km/h

Usage Scenario

Mainly used for mine mining, quarry material transportation, construction earthmoving, sand and stone bulk material delivery, municipal construction and road engineering, adapting to complex road conditions like mountainous areas and deserts.

INQUIRY NOW

PRODUCT DETAILS

Product Introduction

This SHACMAN F3000 Enhanced Version 6×4 dump truck is a heavy-duty engineering transport vehicle specially customized for overseas export business. It adopts a reinforced frame and robust bearing structure, matched with Weichai WP10 340 horsepower Euro II emission engine, featuring strong power output and outstanding adaptability to complex and harsh road conditions such as mountain areas, deserts and mining areas.

The whole vehicle is equipped with one-country-one-set export exclusive configurations including four-point hydraulic suspension, full English brand logo, reverse reminder device and fire extinguisher, which fully meets the inspection standards and usage habits of overseas markets. It is widely applied to mine exploitation, quarry stone transportation, infrastructure earthwork construction, sand and gravel bulk cargo hauling, municipal road renovation and other scenarios, with reliable durability and cost-effective after-sales maintenance advantages, being a mainstream high-quality tipper truck choice for engineering and mineral logistics in Central Asia, Africa and other regions.

Main Technical Parameters

Basic Item	Detailed Parameter
Product Model	SX3255DR404
Driving Mode	6×4
Product Version	F3000 Enhanced Version
Engine Model	WP10.340E22
Rated Horsepower	340 PS
Emission Standard	Euro II
Gearbox Model	12JSD200T-B Iron Shell + QH50
Rear Axle & Speed Ratio	16T HD Double Reduction Axle, Ratio 5.92
Frame Specification	850×300mm (8+7 layers)
Wheelbase	3975+1400 mm
Frame Rear Overhang	1000 mm
Cab Type	Medium & Long Flat Roof Cab
Front Axle Load	HD 9.5T Front Axle
Suspension Structure	Front & Rear Multi-leaf Spring (4 Main Leaves + 4 Auxiliary Leaves)
Fuel Tank	400L Aluminum Alloy Fuel Tank
Tire Configuration	12.00R20 Mixed Pattern Tire with Steel Rim Decorative Cover
Cargo Box Size	5800×2300×1300 mm, Front Tipping Type
Standard Basic Configuration	Hydraulic Main Seat, Automatic Constant Temperature Air Conditioner, Electric Window Lifter, Manual Cab Tilt, Metal Bumper with Lamp Protection Net, Desert Air Filter, Radiator Protection Grille, Tail Light Protection Grille, 165Ah Maintenance-free Battery
Export Custom Configuration	4-point Hydraulic Suspension, Sun Visor Decorative Lamp, Rear Enclosure Guard Plate, Sound Insulation Board, Full English SHACMAN Logo, Iron Air Reservoir, Reverse Buzzer, Wheel Chock, 2KG Fire Extinguisher, Telescopic Shaft Control

MAIN PARAMETER

Core Advantages	Detailed Introduction
Powerful Powertrain	Equipped with Weichai WP10 340PS Euro II engine, matched with heavy-duty manual transmission and 16-ton double reduction rear axle, strong climbing ability and stable power output for heavy-load transportation.
Reinforced Load-bearing Chassis	850×300mm thickened multi-layer frame, multi-leaf spring suspension structure, strong anti-torsion and impact resistance, suitable for mining, mountain road and other harsh working conditions.
Export Dedicated Customization	Adopt one-country-one-batch exclusive configuration: four-point hydraulic suspension, full English SHACMAN logo, reverse warning buzzer, fire extinguisher, wheel chock and other safety accessories, fully comply with overseas market access standards.
Comfortable & Practical Cab	Medium-long flat roof cab with hydraulic main seat, automatic constant temperature air conditioning, electric window lift and manual cab flipping system, bringing long-distance driving comfort and convenient maintenance.
Durable & Easy Maintenance	Equipped with desert air filter, water tank & taillight protection grille to reduce component damage under complex environment; mature after-sales spare parts system reduces later use cost and maintenance difficulty.
Large Capacity Cargo Box	5800×2300×1300mm front tipping cargo compartment, large loading volume, efficient unloading, widely used in sand, gravel, ore and earthwork bulk material transportation.

1. Terms of payment: TT, 30% deposit, balance before delivery from factory.

2. Delivery at China port period: 55 working days after advance payment.

3. Vehicle warranty period: 12 months from the date of bill of lading.
