Driving type
6*4
Email: shacman@shacman-truck.com
Tel.: +86 135 7927 1170
Email: shacman@shacman-truck.com
Tel.: +86 135 7927 1170
Driving type
6*4
Wheelbase(mm)
3375+1400
Max. Speed/(km/h)
83km/h
Usage Scenario
This 6×4 lightweight tipper truck adapts to low-temperature environments in Russia and northern areas, mainly applied in mining transportation, construction muck removal, sand & gravel bulk transport and highway engineering projects. With cold-proof configuration and reserved trailer interface, it meets short-distance on-site haulage and long-distance c
PRODUCT DETAILS

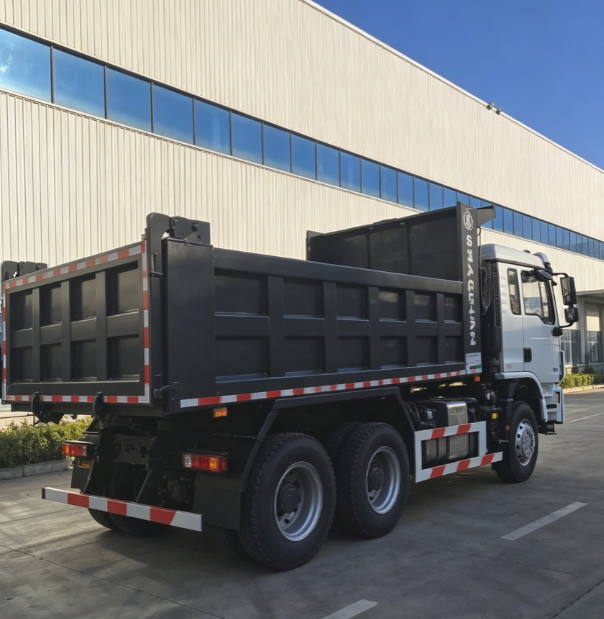

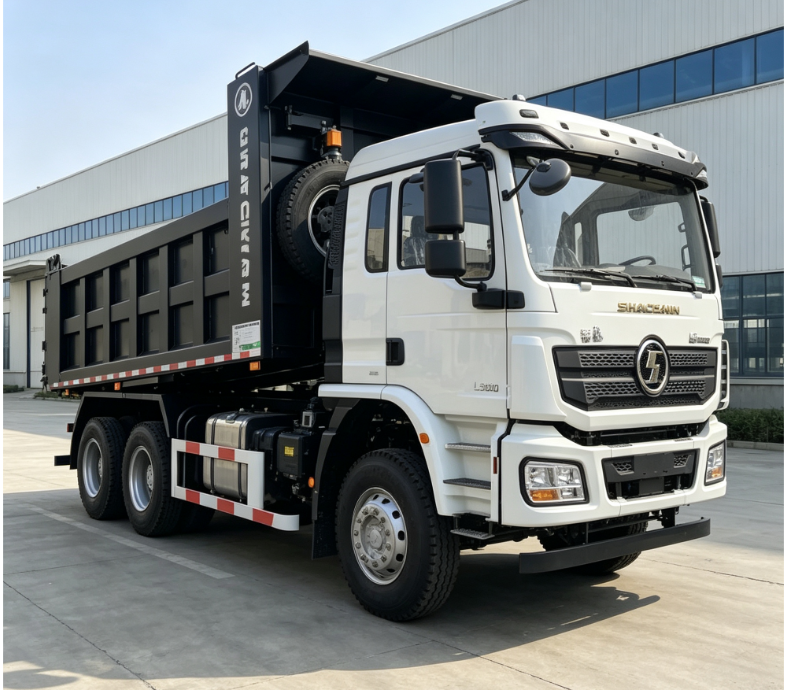

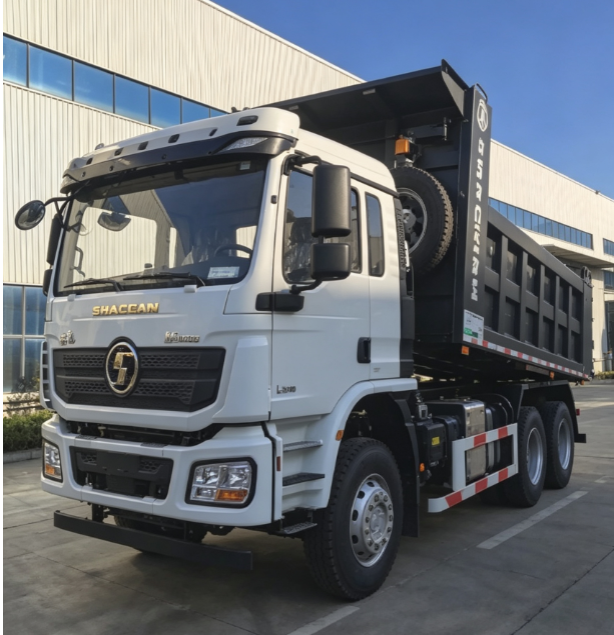

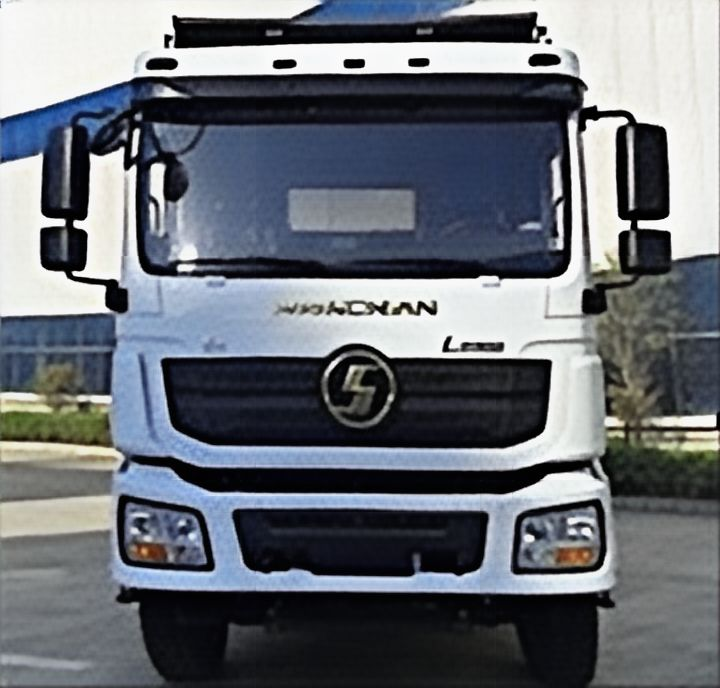

This SHACMAN L3000 6×4 lightweight dump truck is specially customized for Russia and other cold northern regions. It is widely used in earthwork engineering, mine material transportation, construction site residue hauling, bulk sand and gravel cargo delivery, as well as road infrastructure construction. Equipped with low-temperature resistant pipelines and heating devices, it can operate stably under frigid weather conditions, and supports semi-trailer connection for long-distance bulk goods transportation.
Model Core Technical Parameters
| Item | Parameter |
|---|---|
| Drive Form | 6×4 |
| Engine | ISD300 50 / 300PS / Euro V |
| Gearbox | 9JS135T-B Iron Shell |
| Rear Axle Ratio | 5.286 |
| Wheelbase | 3375+1400mm |
| Fuel Tank | 300L Aluminum Alloy |
| Tire | 11R22.5 Mixed Pattern |
| Cargo Body Size | 4800×2300×1100mm |
MAIN PARAMETER
| Category | Item | Detailed Parameter |
|---|---|---|
| Basic Info | Platform | L3000 |
| Drive Form | 6×4 | |
| Version | Lightweight Edition | |
| Model No. | SX32588N344C | |
| Engine | Model | ISD300 50 |
| Horsepower | 300 PS | |
| Emission Standard | Euro V | |
| Transmission | Gearbox Model | 9JS135T-B Iron Shell + QH50 Spline |
| Axle System | Rear Axle Type | 11.5T HD Single Reduction Axle |
| Rear Axle Ratio | 5.286 | |
| Front Axle | HD 4.8T Reinforced Brake Front Axle | |
| Frame & Suspension | Frame Size | 850×270mm (8+4 Layers) |
| Wheelbase | 3375+1400mm | |
| Rear Suspension | 7 Pieces Multi-leaf Spring | |
| Whole Vehicle Suspension | Front & Rear Multi-leaf Spring (2 Main Leaf + 4 Auxiliary Leaf) | |
| Auxiliary Parts | Fuel Tank | 300L Aluminum Alloy Fuel Tank |
| Tire Spec | 11R22.5 Mixed Pattern Tire with Rim Decorative Cover | |
| Cargo Body | Body Dimension | 4800×2300×1100mm |
| Body Code | DH982531H5H0 | |
| Standard Extra Configuration | Cabin | L3000 Standard Cabin |
| Core Extra Parts | WABCO 4-Channel ABS, Low Temperature Resistant Pipeline, Heat Preservation Cabin, Russian Language Marking, LED Daytime Running Light | |
| Optional Items | Optional Upgrade | Air Suspension Driver Seat, Electric Cab Tilt, Triangle Brand Tire, Cancel WABCO ABS, Ordinary Exhaust System |
1. Terms of payment: TT, 30% deposit, balance before delivery from factory.
2. Delivery at China port period: 55 working days after advance payment.
3. Vehicle warranty period: 12 months from the date of bill of lading.
RELATED PRODUCTS

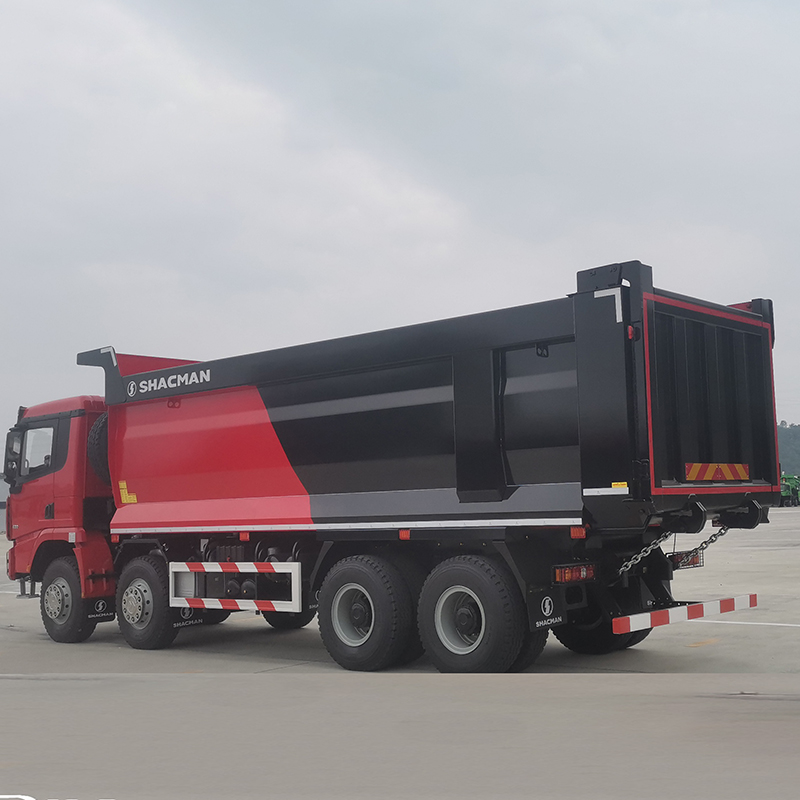

SHACMAN X3000 Enhanced 8×4 Dump Truck 430HP Euro II Weichai Engine Heavy Load Export Tipper Truck
