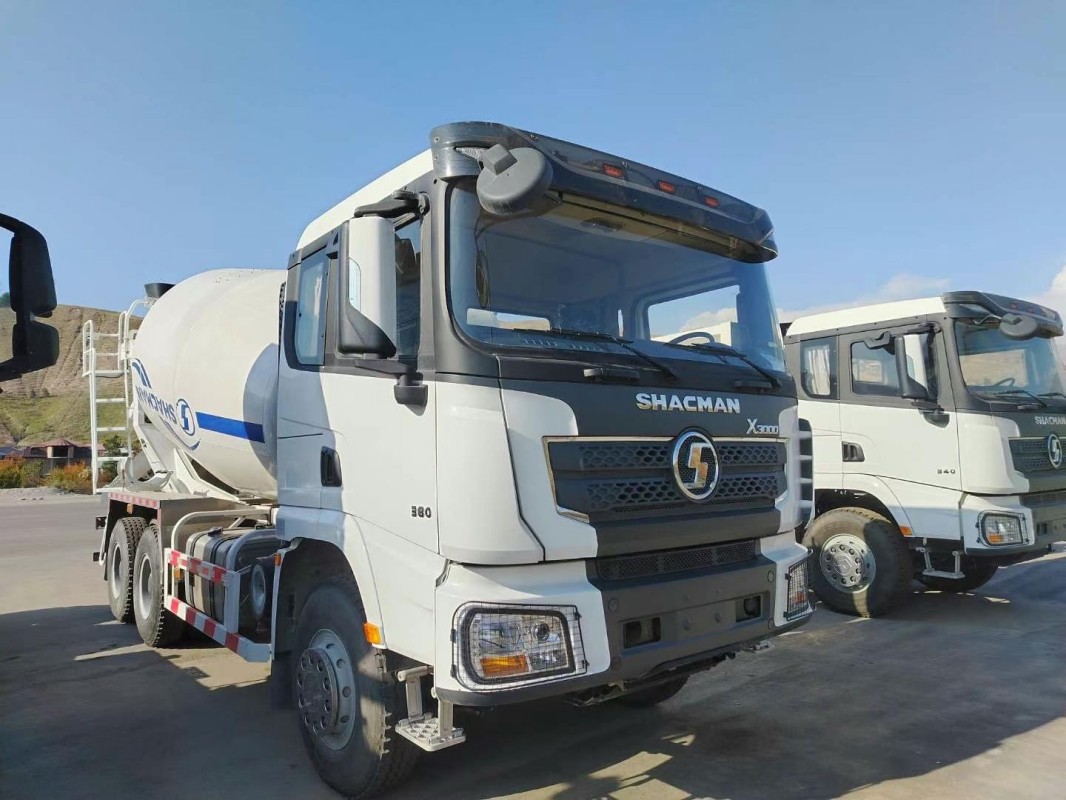

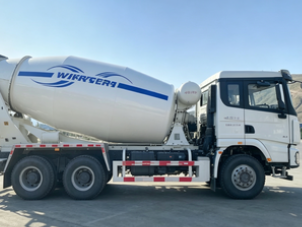

SHACMAN X3000 6×4 Concrete Mixer Truck SX5255GJB6T384C, 385HP Euro III 10CBM Cement Mixing Transport Vehicle

Driving type

6*4

Wheelbase(mm)

Max. Speed/(km/h)

3775+1400

Usage Scenario

This X3000 6×4 cement mixer truck transports fresh concrete for real estate, road, bridge and municipal construction projects. Its mixing tank avoids concrete setting on the way, suitable for city roads and bumpy site pavement.

INQUIRY NOW

PRODUCT DETAILS

Power System Advantage
Equipped with M10E3 385 engine with PTO function, Euro III emission standard, stable power output and strong torque, fully meeting heavy-load driving demands on construction sites and complex roads.

Reinforced Load-Bearing Chassis Structure
Adopts 8+7 thickened high-strength frame, matched with 16-ton heavy-duty double-reduction casting rear axle and multi-leaf spring suspension, excellent torsion resistance and bearing capacity for frequent bumpy-site operation.

Reliable Transmission System
Fitted with 10JSD180 iron-shell heavy-duty transmission, mature and durable structure with low failure rate. Global complete spare parts supply effectively reduces overseas after-sales maintenance cost.

Practical Cab & Protective Design
Mid-length flat-roof cab with hydraulic four-point suspension, independent heating system, anti-theft protection for fuel tank and battery box, as well as guard grilles for water tank and taillight to avoid collision damage on construction sites.

Complete Export Standard Configuration
Comes with full one-country-one-package export accessories, multi-language marking, fire extinguisher, emergency warning lights, remote throttle controller and other fittings, complying with customs clearance regulations for overseas market shipment.

### 标题填入：Main Technical Parameters ### 下方HTML表格内容（直接复制粘贴） ```html

Vehicle Model	SX5255GJB6T384C, X3000 Reinforced 6×4 Concrete Mixer Truck
Platform	X3000
Drive Type	6×4
Version	Reinforced Version
Engine Model	M10E3 385 with PTO
Power	385 PS
Emission Standard	Euro III
Transmission	10JSD180 Iron Housing Gearbox
Rear Axle & Ratio	16T Heavy-Duty Double Reduction Cast Axle, Ratio 5.262
Frame Dimension	850×300mm (8+7 layers thickened high-strength frame)
Wheelbase	3775+1400mm
Rear Overhang	1500mm
Cab Type	Mid-length Flat Roof Cab
Front Axle	HD 9.5T Front Axle
Suspension	Front & Rear Multi-leaf Spring Suspension
Fuel Tank	400L Aluminum Alloy Fuel Tank
Tire Spec	12.00R22.5, mixed pattern front tires, block pattern rear & spare tires, wheel rim & decorative cover
Mixing Drum Volume	10 Cubic Meter
GVW	32.177 Ton
Upper Chassis Code	DH79258SH3W0

``` 整套适配你独立站分组模块，格式规整，PC/手机自适应展示。需要我顺便帮你备好第2组备用配置文案吗？

MAIN PARAMETER

Base Configuration	Mid-length flat roof cab without top deflector, air driver seat, ordinary rearview mirror, single cooling air conditioner, electric window regulator, manual tilting system, metal bumper with lamp protective mesh, three-level boarding steps, central door locking, single oil-bath air filter, standard exhaust system, domestic steering gear, multifunctional steering wheel with cruise control, imported clutch, front and rear stabilizer bars, water tank protective grille, taillight protective grille, 180Ah maintenance-free battery.
One-Country-One-Package Export Configuration	Four-point hydraulic suspension, cab curtains, yellow sun visor lamp, two pre-installed high-brightness LED hazard warning lamps, SHACMAN logo, Spanish marking for cab tilting, emission reduction M label, aluminum air reservoir, reverse buzzer, spare tire bracket, 5-ton jack, wheel chocks, 2KG fire extinguisher, swing-type remote throttle controller, daytime running lights, LED taillights, rear crossmember lighting, step lamps, anti-theft fuel tank cap, anti-theft battery box, Jocksel-type compressor, rear cab guard plate, left and right cab sound insulation panels, partial chassis fenders painted in the same color as cab, engine PTO function.
Optional Configuration	Various customized optional accessories are available. Please contact our sales representative to check detailed optional items and corresponding quotations.

1. Terms of payment: TT, 30% deposit, balance before delivery from factory.

2. Delivery at China port period: 55 working days after advance payment.

3. Vehicle warranty period: 12 months from the date of bill of lading.
