Driving type
6x4
Email: shacman@shacman-truck.com
Tel.: +86 135 7927 1170
Email: shacman@shacman-truck.com
Tel.: +86 135 7927 1170
Driving type
6x4
Wheelbase(mm)
4375+1400
Max. Speed/(km/h)
70km/h
PRODUCT DETAILS
| MODEL | SX32556T384C | |
| Driver position | Left Hand/Right hand | |
| Driving type | 6*4 | |
| Wheelbase(mm) | 3775+1400 | |
| Max. Speed(km/h) | 90km/h | |
Engine | Brand | CUMMINS |
| Model | ISME 385 30 | |
| Emission Standard | EURO III | |
| Rated output power（PS） | 283KW/385HP | |
| Displacement(L) | 10.8L | |
| Transmission | Brand | FAST |
| Model | 10JSD180+QH50 | |
| Front axle | Brand | HANDE |
| Model | MAN 9.5T | |
| Rear axle | Brand | HANDE |
| Model | 16T MAN double bridgeSpeed ratio ：5.92 | |
| Clutch | ￠430 diaphragm clutch￠430 | |
| Steering | ZF technology/ ZF | |
| Frame | 850x300(8+7) | |
| Suspension | Multiple front and rear springs, four main springs+four horseback riding | |
| Fuel tank | 400L Aluminum alloy | |
| Wheels and tires | 12.00R20 10+1 | |
| Brakes | Running brake:Dual circuit compressed air brake | |
| Parking brake:Air discharging with spring control | ||
| Auxiliary brake:Engine exhaust brake | ||
| Cabin | ||
| X3000 medium length flat top cab without top side air deflector, hydraulic master seat, four point hydraulic suspension, ordinary rearview mirror, electric window rocking machine, single refrigeration air conditioning, electric flipping, metal bumper, three-level boarding pedal, ordinary air filter, ordinary exhaust, water tank protection grille, tail light protection grille, 165Ah maintenance free battery, central locking (dual remote control), with circular curtains, sleeper curtain, with rear window, SHACMAN logo, full English logo, golden logo, reverse buzzer, 32T jack, transmission telescopic shaft control, Jack Sail technology compressor, chassis reserved 900mm position to add spray water tank | ||
| Upbody | 5600x2300x1500(mm) Bottom 10 sides 8 U-shaped bucket | |
RELATED PRODUCTS
SHACMAN F3000 Enhanced 6×4 Dump Tipper Truck 340HP Euro II WP10 Engine Mining Construction Dumper For Africa Central Asia Export
X3000 Heavy Duty 6x4 Tipper Truck SHACMAN 380HP Euro 2 Dumper For Bulk Material Transportation
SHACMAN X3000 6×4 Concrete Mixer Truck SX5255GJB6T384C, 385HP Euro III 10CBM Cement Mixing Transport Vehicle
SHACMAN L3000 4×2 Sprinkler Truck SX5185GSS8J451C, 210HP Euro III 10 Cubic Meter Water Sprinkler Truck
340HP SHACMAN 6x4 Dump Tipper Truck SX32556R404 Euro2 Engine For Mining Construction Transport

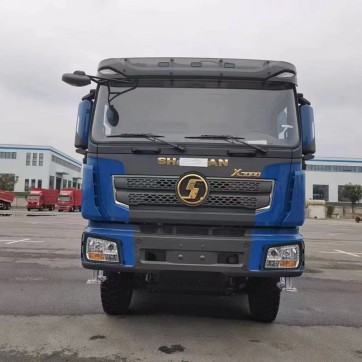

SHACMAN X3000 Reinforced Version 8×4 Tipper Truck 430HP WP12 Engine Euro II For Heavy Duty Construction Mining
SHACMAN F3000 6×4 Compactor Garbage Truck SX5255ZYSDR434C, 345HP Euro III 20 Cubic Meter Waste Compression Truck
SHACMAN H3000 6X4 DUMP Truck
SHACMAN F3000 Heavy Duty 6×4 Tipper Truck 380HP Euro II For Construction Mining

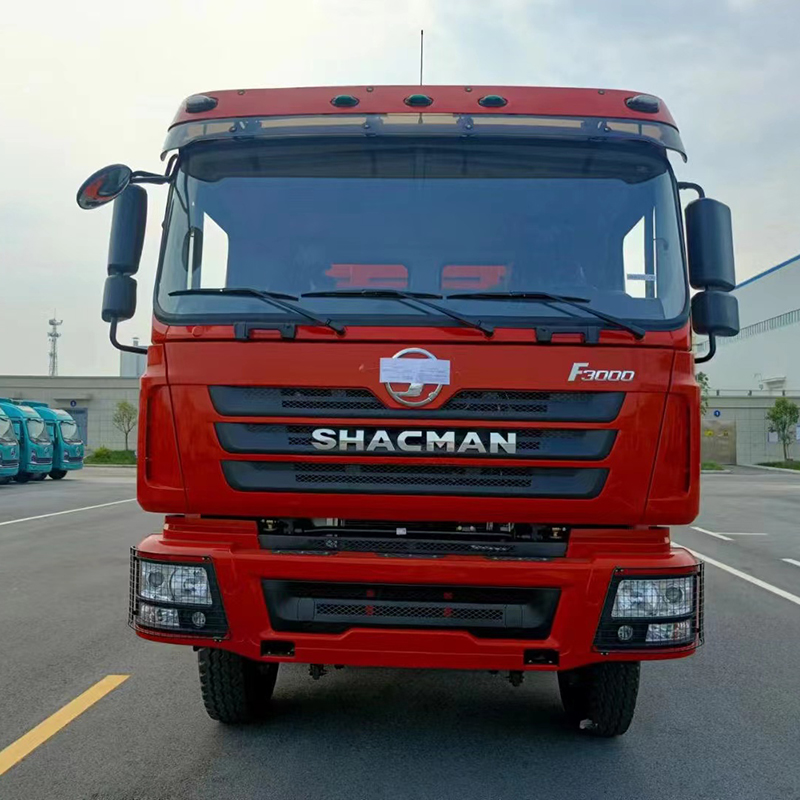

SHACMAN F3000 8×4 Heavy Duty Dump Truck | Mining & Construction Tipper Truck
