Home > Products > Dump Truck > SHACMAN X3000 6x4 Heavy Duty Tipper Truck 340HP Euro II WP10 Engine 16T Cast Axle Mining Dump Truck

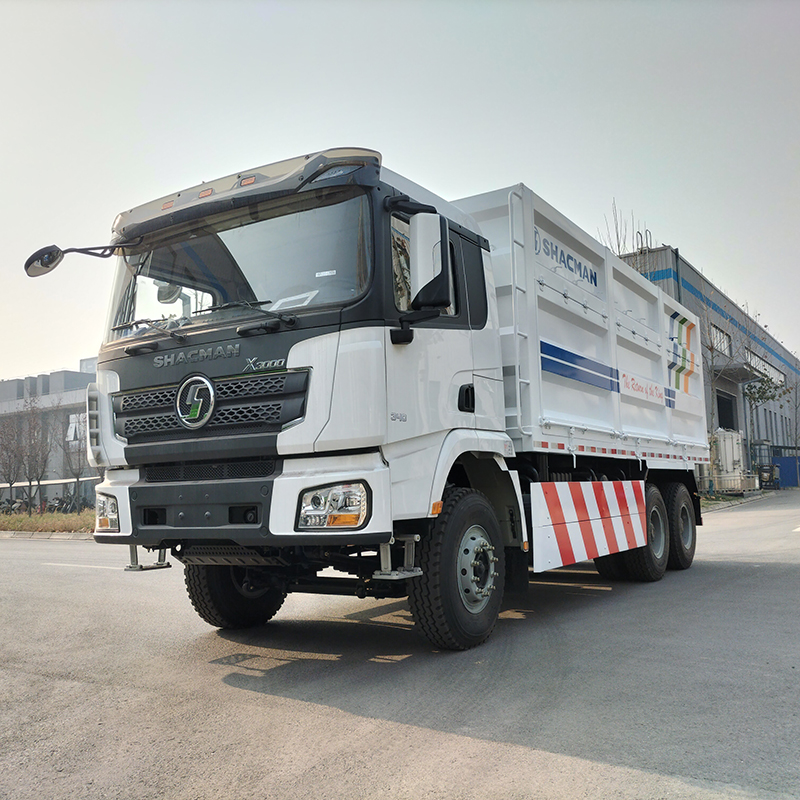

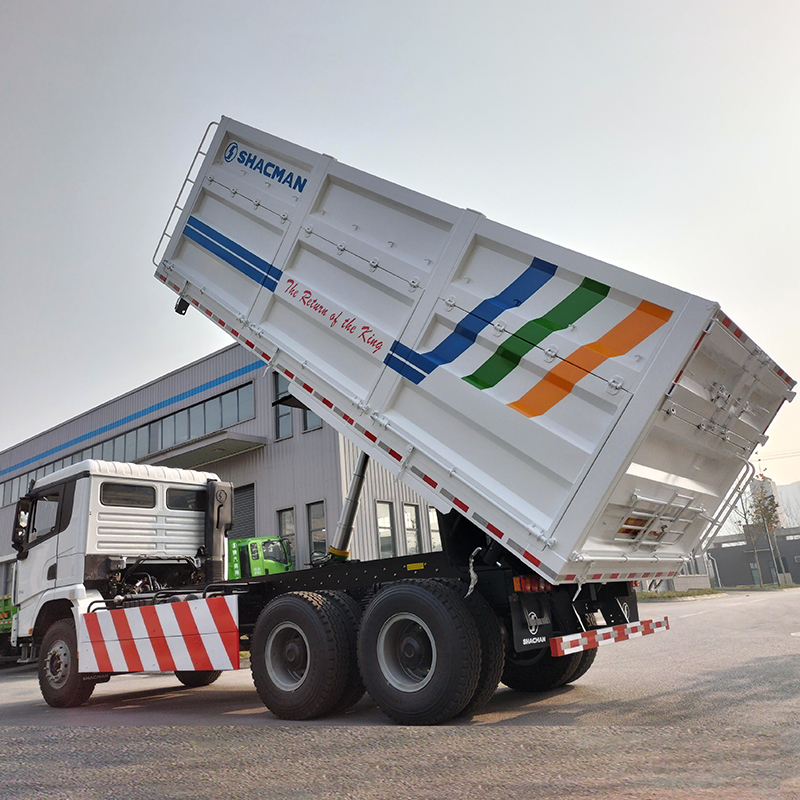

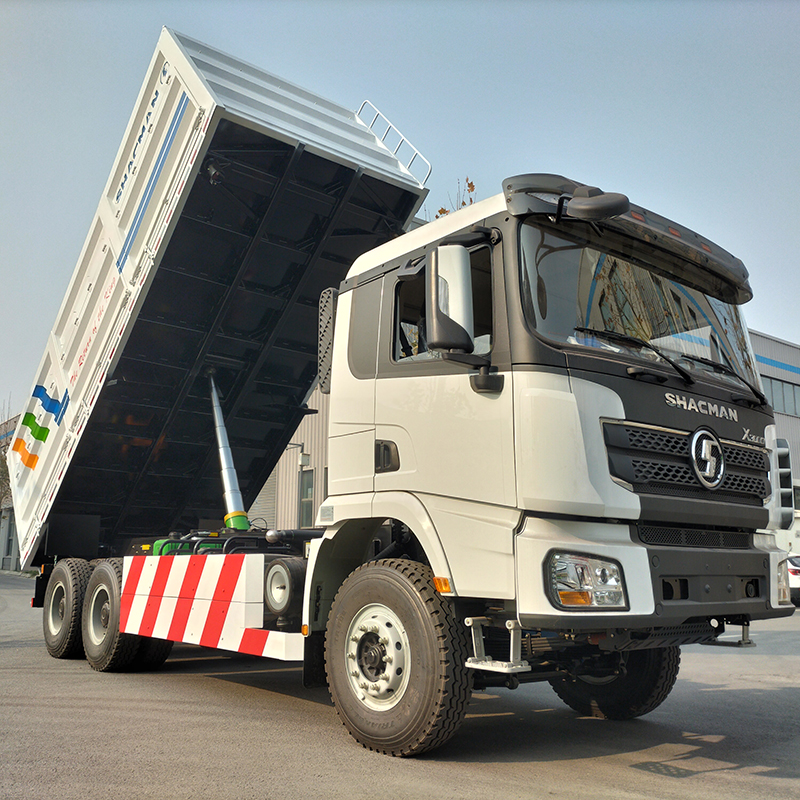

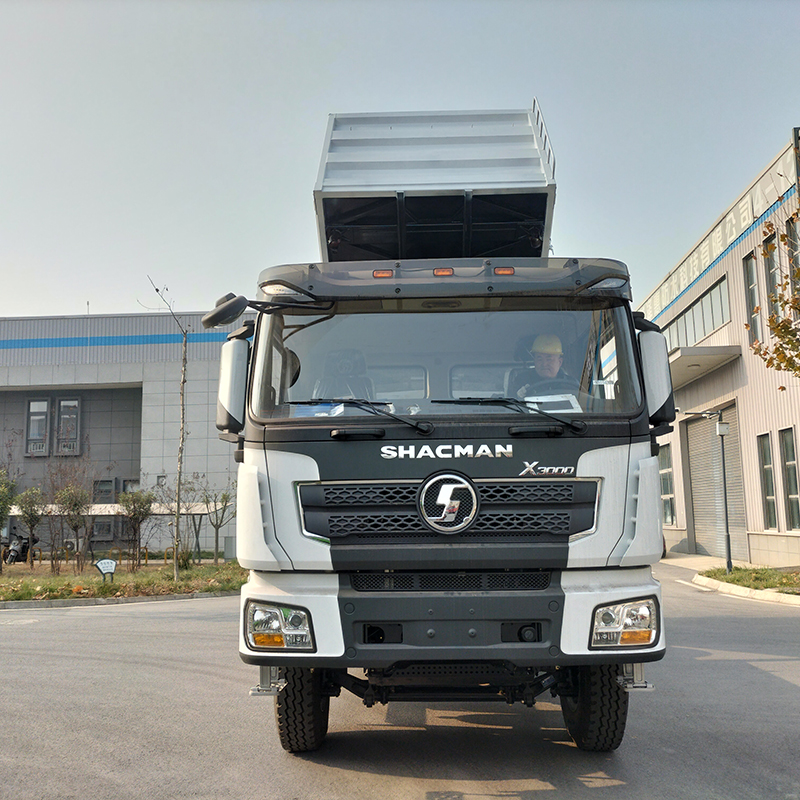

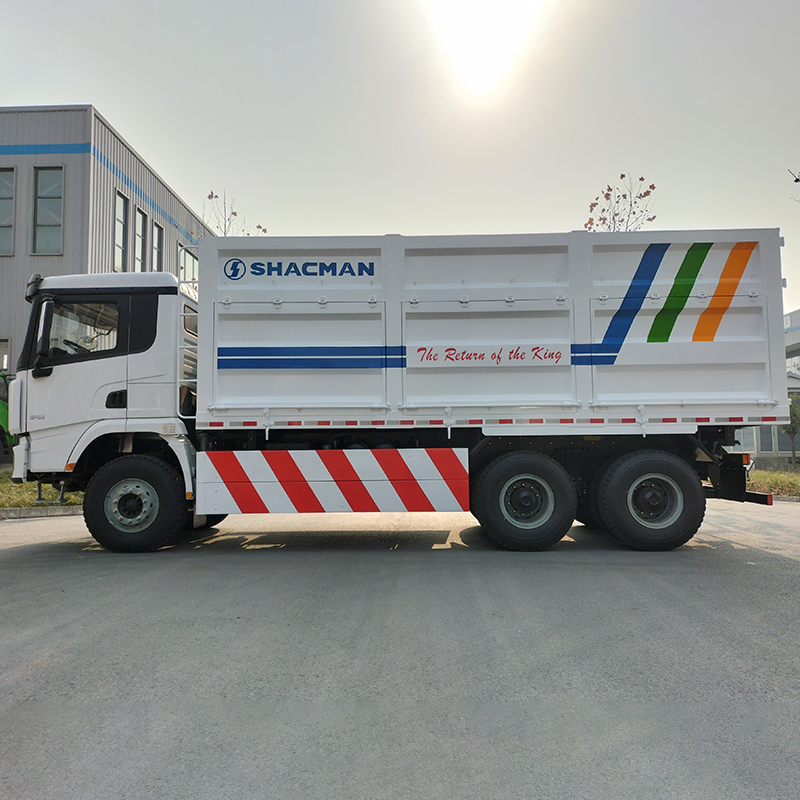

SHACMAN X3000 6x4 Heavy Duty Tipper Truck 340HP Euro II WP10 Engine 16T Cast Axle Mining Dump Truck

Driving type

6*4

Wheelbase(mm)

3975+1400

Max. Speed/(km/h)

65km/h

Usage Scenario

Ideal for mine mining, earthwork excavation, gravel transportation and infrastructure construction, fits rugged road conditions in Africa and Central Asia for bulk material hauling.

INQUIRY NOW

PRODUCT DETAILS

1. Product Overview

SHACMAN X3000 6×4 reinforced dump truck is specially developed for mining, earthmoving and construction transportation. It is equipped with WP10.340E22 340 horsepower Euro II engine, matched with 12JSD200T-B transmission and 16T HD double-stage cast drive axle (speed ratio 5.92). The whole vehicle adopts thickened frame and multi-leaf spring suspension structure, which owns strong bearing capacity and outstanding road adaptability for harsh working conditions.

2. Core Configuration Advantages

Cabin & Driving Comfort

It adopts extended flat-top cabin with electric heating rearview mirror, constant temperature air conditioner and electric cabin tilting system. The air suspension main seat effectively reduces driving fatigue during long-hour operation, while the 7-inch intelligent display together with rearview camera greatly improves driving safety.

Reliable Chassis Structure

850×300mm thickened frame structure, HD 9.5T front axle + 16T heavy-duty cast rear axle bring excellent load resistance. Equipped with 400L aluminum alloy fuel tank and 12.00R20 mine-pattern tires, the vehicle realizes stable driving under heavy load and rugged roads.

Standard Export Configuration

Complete one-country-one-set export configuration including four-point hydraulic suspension, full English exterior logo, fire extinguisher, wheel chock and anti-theft battery box. It meets the market access standards of Africa, Central Asia and other overseas regions, supporting whole vehicle export delivery with complete formal documents.

Optional Upgraded Parts

Optional 315-80R22.5 tubeless tires, independent 4kW warm air system, aluminum alloy air reservoir and hazard warning lights to satisfy different working environment demands.

3. Application Scenarios

This dump truck is widely applied in open-pit mining, infrastructure construction, gravel transportation, municipal earthwork and bulk material haulage. Its durable chassis and powerful power system can cope with muddy, bumpy and complex outdoor road conditions stably.

4. Our Service

We supply brand-new original SHACMAN dump trucks with factory direct price. We can provide customized configuration according to local emission and road rules, together with full set of export certificates, long-term spare parts supply and professional overseas after-sales guidance.

Model Core Technical Parameters

Item	Specific Parameter
Model Code	SX32556R404
Drive Configuration	6×4
Engine Model	WP10.340E22
Rated Power	340 HP
Emission Standard	Euro II
Transmission	12JSD200T-B (Iron Housing with QH50 PTO)
Drive Axle	16T HD Double Stage Cast Axle, Final Drive Ratio 5.92
Frame Dimension	850×300mm (8 layers)
Wheelbase	3975+1400 mm
Frame Rear Overhang	1000 mm
Cabin Type	Extended Flat-top Cabin
Front Axle	HD 9.5T
Suspension System	Front & Rear Multi-leaf Spring
Fuel Tank	400L Aluminum Alloy Fuel Tank
Standard Tire	12.00R20 Mixed Pattern Tire
Battery	165Ah Maintenance-free Battery

MAIN PARAMETER

Advantage Module	Detailed Description
Powerful Power System	Equipped with WP10 340HP Euro II engine + 12JSD200T-B transmission, matched with 5.92 ratio 16T heavy-duty cast axle, strong climbing and heavy-load capacity for mine and earthwork transportation.
Durable Heavy-duty Chassis	Thickened 850×300mm frame, 9.5T front axle & 16T rear axle, plus multi-leaf spring suspension structure. Wear-resistant 12.00R20 mining tires adapt to muddy, bumpy harsh road conditions.
Comfortable Driving Experience	Extended flat-top cabin with electric heating rearview mirror, constant temperature air conditioner and electric turnover system. Air suspension driver seat effectively reduces fatigue during long-time operation.
Complete Export Standard Configuration	Four-point hydraulic suspension, full English exterior logos, 7-inch display + rear view camera, fire extinguisher, wheel chock and anti-theft battery box, fully meeting overseas market access standards.
Diversified Optional Accessories	Optional tubeless tires, 4kW independent warm air system, aluminum air storage cylinder and hazard warning lights to satisfy different working environment demands.
Stable & Cost-effective	400L aluminum fuel tank reduces overall vehicle weight and fuel consumption. Reliable chassis parts bring low failure rate and long service life, lowering later maintenance cost.

1. Terms of payment: TT, 30% deposit, balance before delivery from factory.

2. Delivery at China port period: 55 working days after advance payment.

3. Vehicle warranty period: 12 months from the date of bill of lading.
