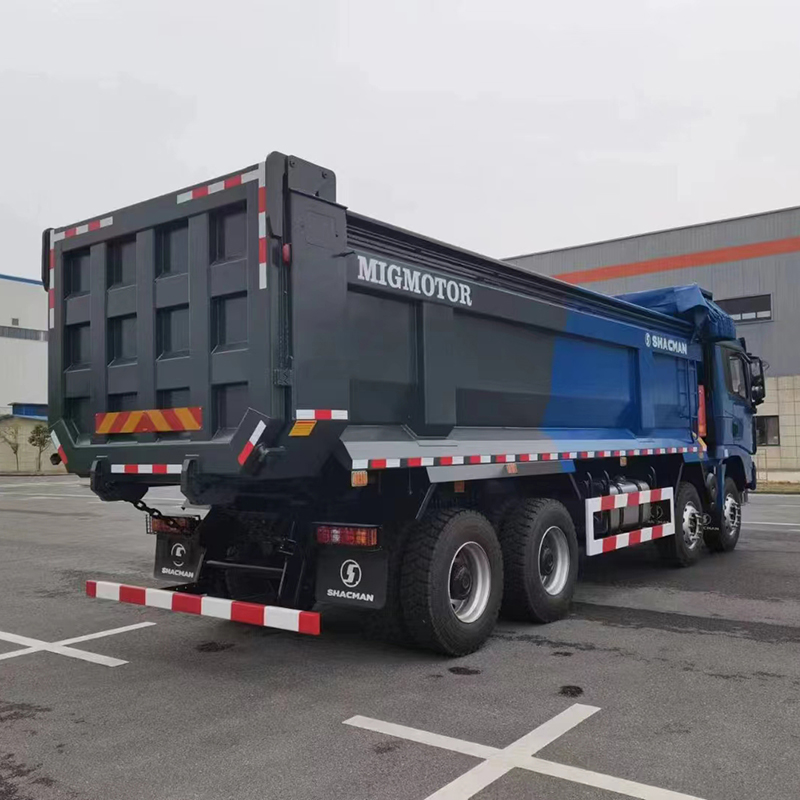

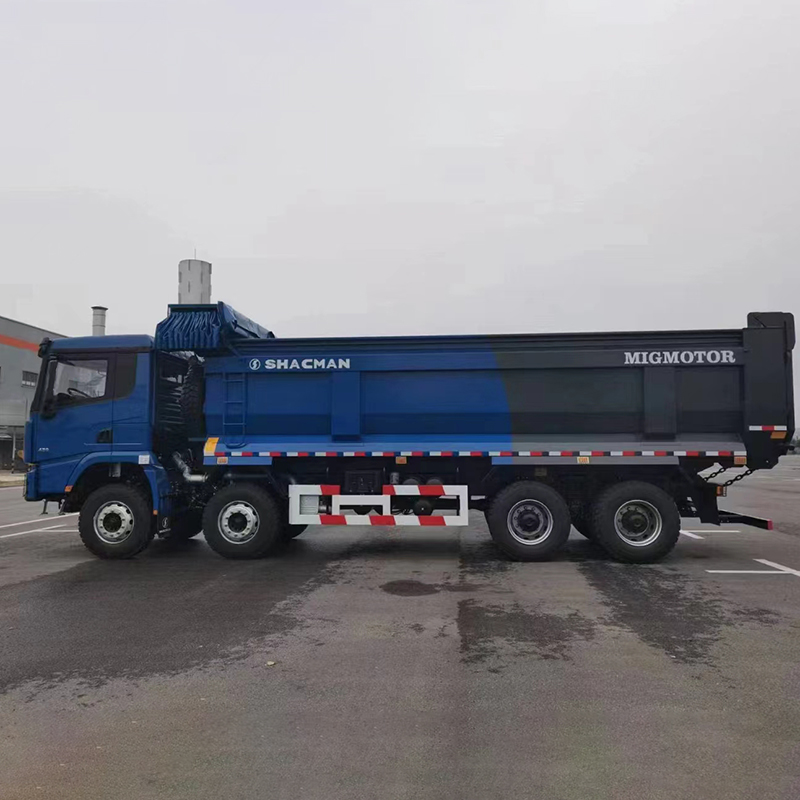

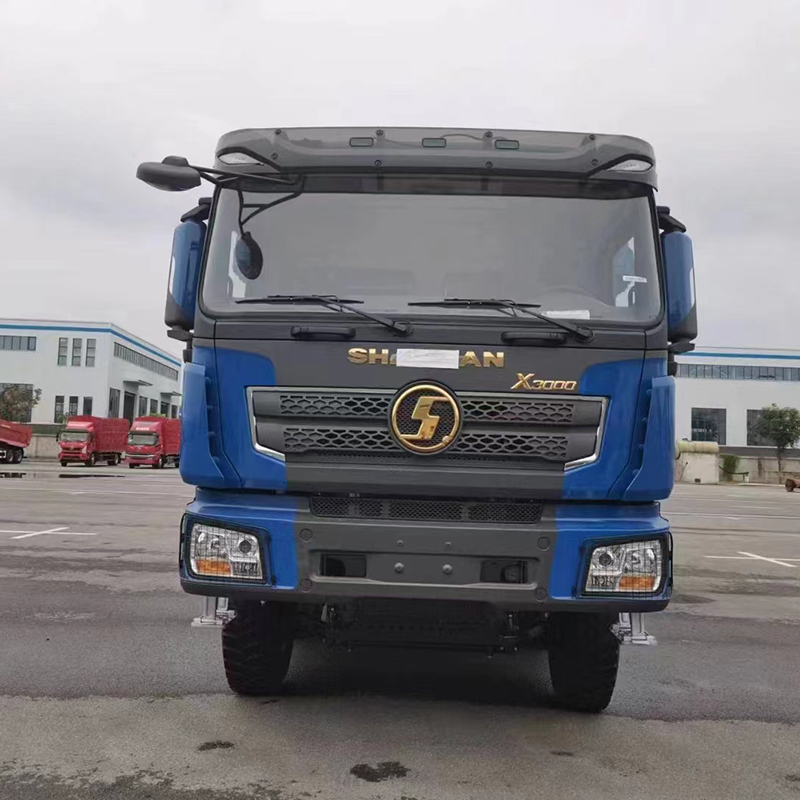

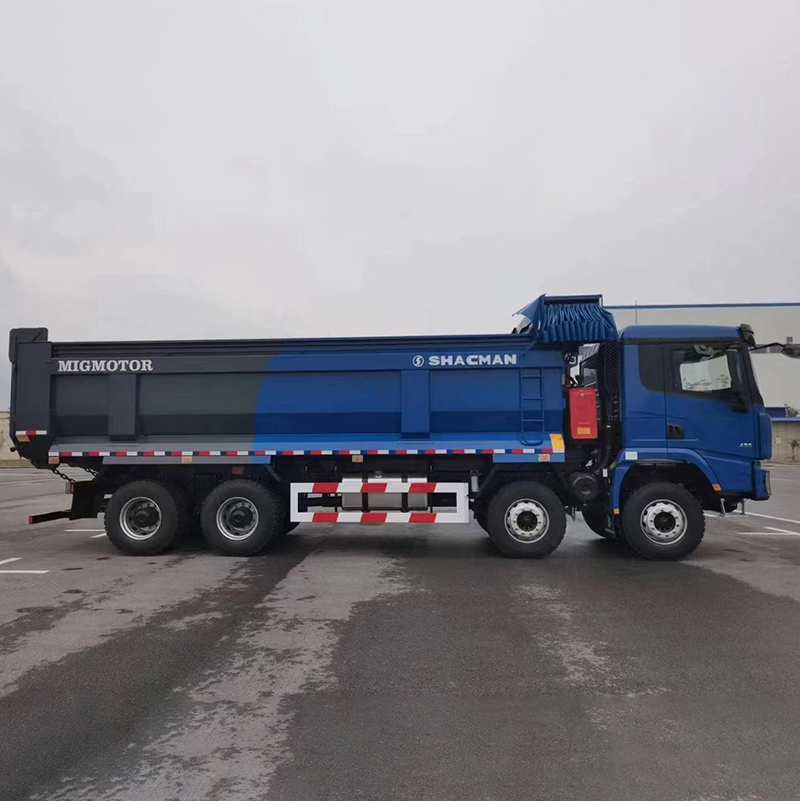

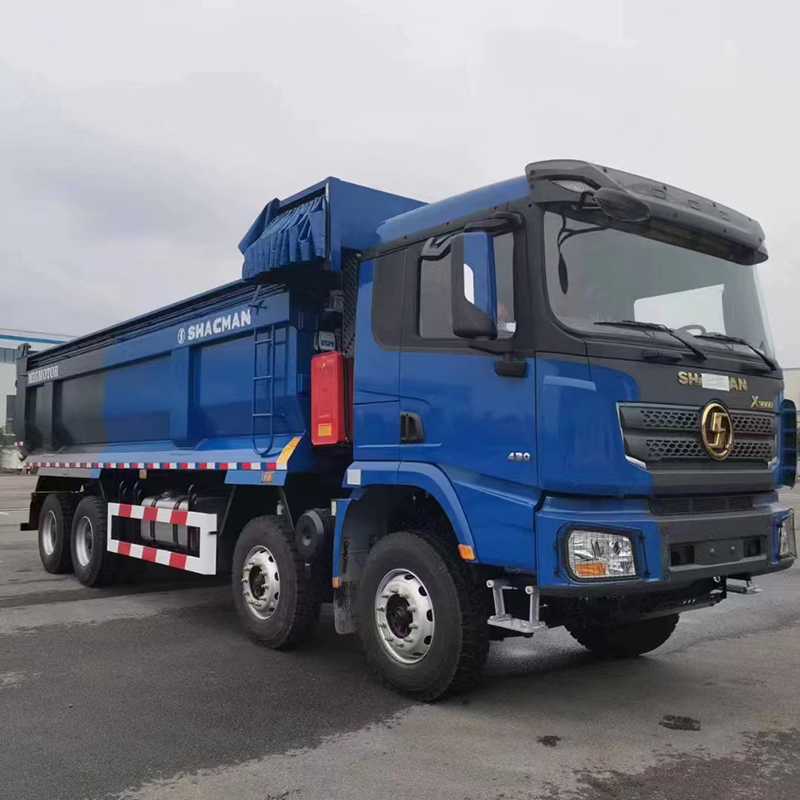

SHACMAN X3000 8*4 Enhanced Dump Truck 400 Horsepower Hydraulic Rear Tipping Tipper For Earthmoving & Construction Works

Driving type

8*4

Wheelbase(mm)

1800+3775+1400

Max. Speed/(km/h)

75km/h

Usage Scenario

Used for mining transportation, construction muck haulage, sand and gravel delivery. Perfect for cold regions, desert and rugged road conditions across Africa and Central Asia, widely adopted in quarry, infrastructure and earthwork projects.

INQUIRY NOW

PRODUCT DETAILS

Product Overview

The SHACMAN X3000 8×4 enhanced version dump truck is a heavy-duty rear-tipping tipper specially developed for overseas mining, construction earthmoving and bulk cargo transportation projects. Powered by reliable Weichai WP12 400PS Euro II diesel engine, this vehicle boasts outstanding power performance and excellent low-temperature resistance, perfectly adapting to cold plateau, dusty desert and rugged complex road conditions in Central Asia, Russia and Africa.

Adopting 8×4 four-axle drive layout, reinforced heavy-duty chassis and 16-ton double reduction casting rear axle, it owns strong load-bearing capacity and durable structural performance, which can stably transport sand, ore, muck and gravel materials for a long time under harsh working environments.

Parameter Item	Detailed Specification
Product Model	SX33155U386 SHACMAN X3000 Enhanced 8×4 Dump Truck
Drive Form	8×4 Four Axle Rear Drive
Engine Model	WP12.400E201 With Intake Heating & Water Cold Treasure
Rated Power	400 HP
Emission Standard	Euro II
Transmission Gearbox	12JSD200T-B Manual Transmission
Rear Axle	16T HD Double Reduction Cast Axle, Final Drive Ratio 5.92
Wheelbase	1800mm+3775mm+1400mm
Cab Type	Extended Flat Top Cab
Front Axle Load	HD 9.5 Ton
Suspension System	Multi-leaf Spring Suspension, Four-point Hydraulic Suspension
Fuel Tank	400L Aluminum Alloy Fuel Tank
Tire Specification	12.00R20 Mixed Pattern All Steel Radial Tire
Cargo Box Dimension	7600×2300×1500mm
Cold-resistant Battery	180Ah Low Temperature Storage Battery

MAIN PARAMETER

Configuration Category	Detailed Accessories List
Basic Factory Standard Configuration	Extended flat-top cab without side deflector, air suspension driver seat, electrically heated rearview mirror, electronic constant temperature air conditioner, electric window lifter, manual cab tilting system, metal bumper with lamp protective net, 3-stage boarding steps, central locking, oil bath air filter, water tank protection grille, rear axle stabilizer bar, tail light protection grille, 180Ah low-temperature maintenance-free storage battery
Overseas Export Configuration (One Country One Set)	Four-point hydraulic suspension, cab sunroof (without rear window), sun visor decorative lamps, daytime running lights, SHACMAN exterior logo & full English marking, sound insulation panels, rear surrounding guard plates, reversing buzzer, wheel chocks, telescopic shaft control mechanism, deluxe portable vehicle toolbox
Optional Upgraded Accessories	Rear view reversing camera, SHACMAN intelligent telematics terminal (display screen + vehicle monitoring host), full trailer electrical interface, floor heating interface, 16T HD double reduction cast axle (speed ratio 5.92), dual independent heating system (air heating + water heating)

1. Terms of payment: TT, 30% deposit, balance before delivery from factory.

2. Delivery at China port period: 55 working days after advance payment.

3. Vehicle warranty period: 12 months from the date of bill of lading.

RELATED PRODUCTS

X3000 Heavy Duty 6x4 Tipper Truck SHACMAN 380HP Euro 2 Dumper For Bulk Material Transportation

6×4 SHACMAN X3000 Heavy Duty Tipper Truck 340HP Euro II | Reinforced Chassis 16T Double Reduction Cast Axle

Shacman X3000 8×4 Dump Truck for Heavy-Duty Mining & Construction

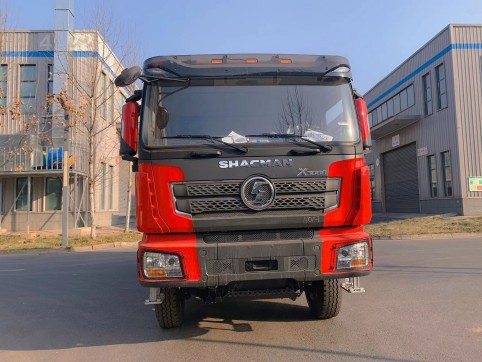

340HP SHACMAN 6x4 Dump Tipper Truck SX32556R404 Euro2 Engine For Mining Construction Transport

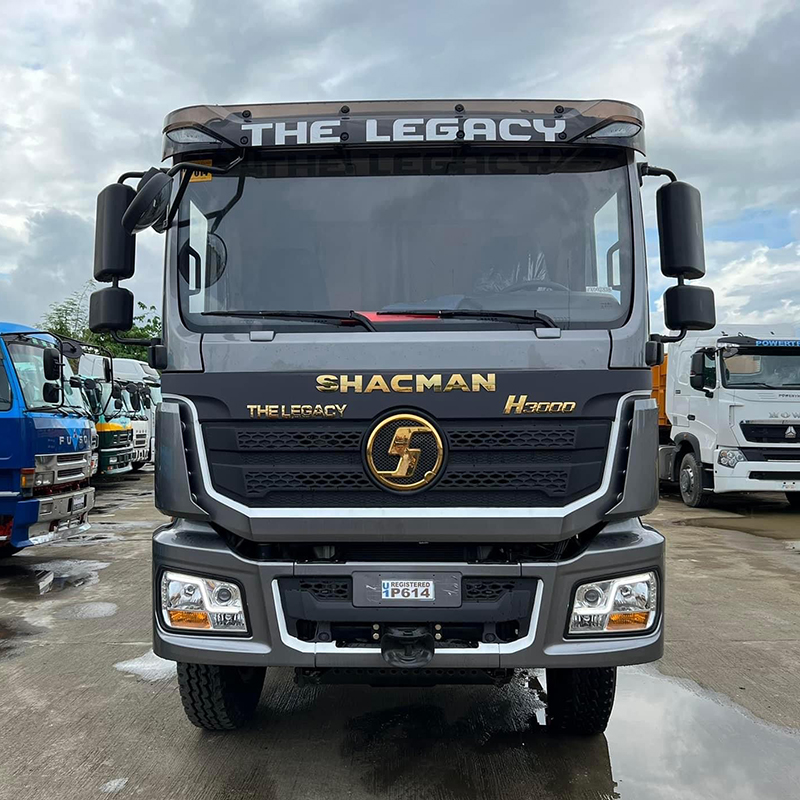

SHACMAN H3000 6X4 DUMP Truck
