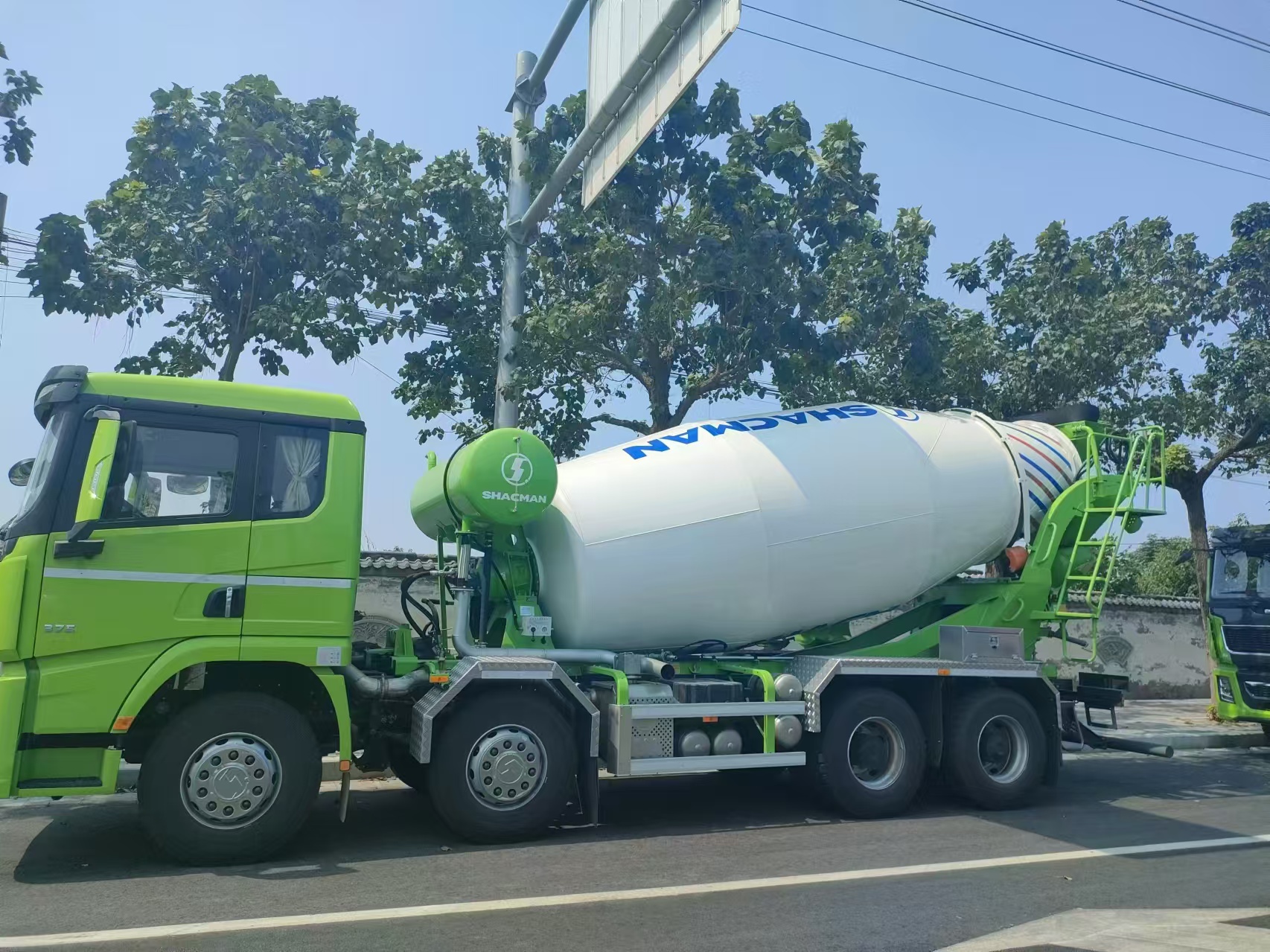

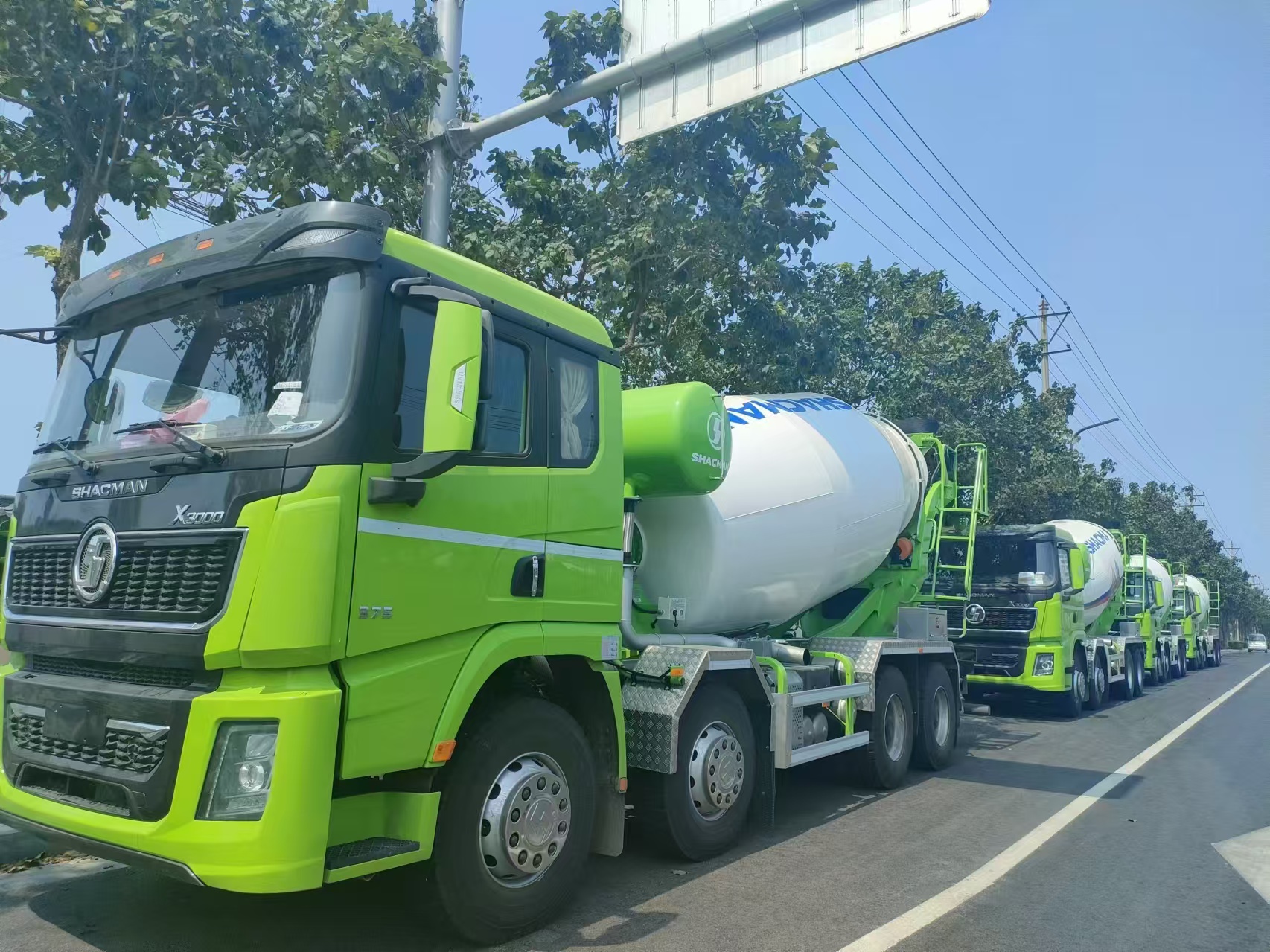

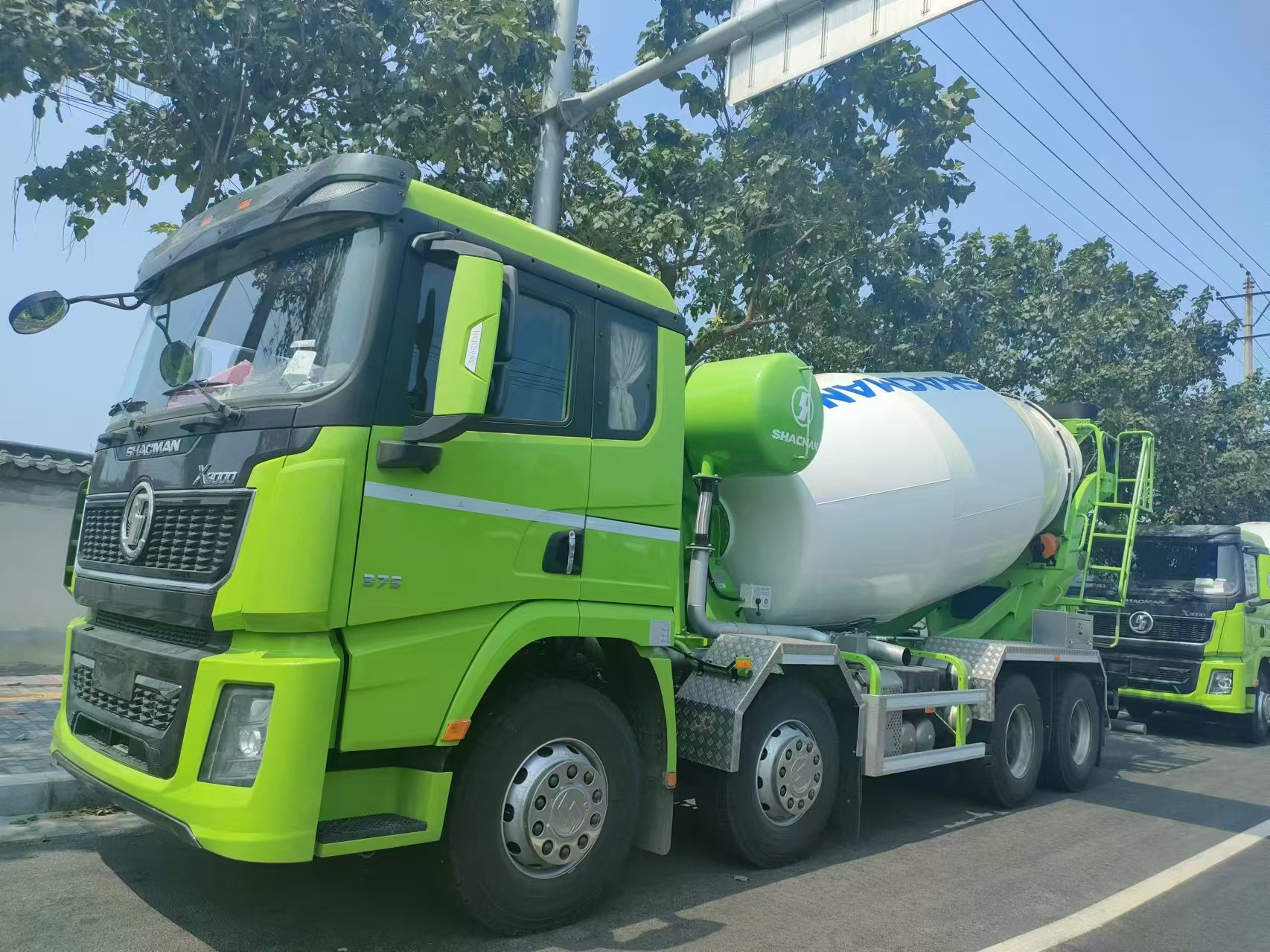

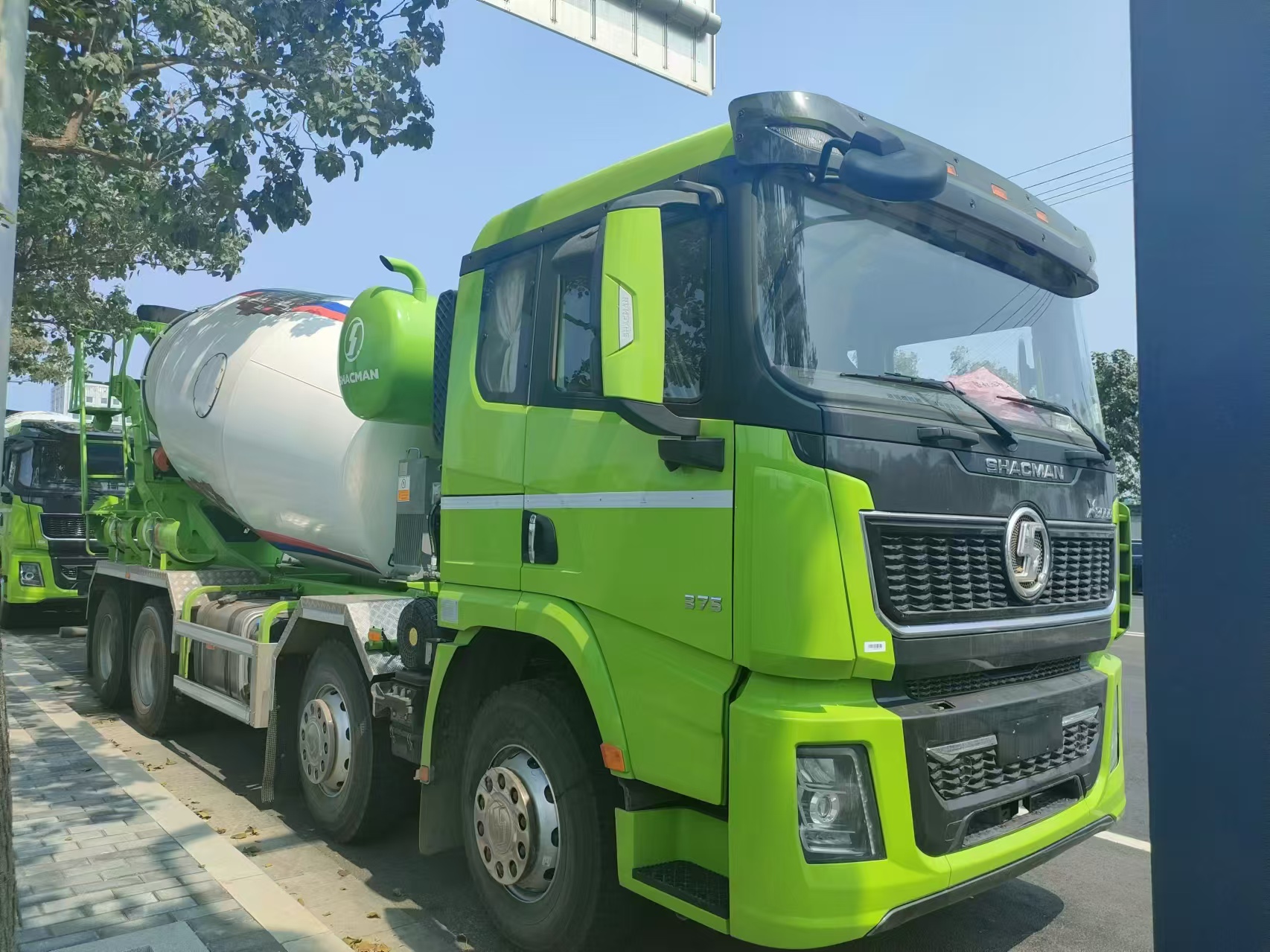

SHACMAN X3000 8×4 Concrete Mixer Truck SX5315GJB6T306C, 385HP Euro III 12CBM Cement Mixing Transport Vehicle

Driving type

8*4

Wheelbase(mm)

Max. Speed/(km/h)

1800+2975+1400

Usage Scenario

This X3000 8×4 mixer truck transports fresh concrete for real estate, road, bridge and municipal projects. Its rotating drum avoids concrete setting, fitting urban roads and rugged construction site roads.

INQUIRY NOW

PRODUCT DETAILS

Power System Advantage
Equipped with M10E3 385 engine with PTO function, Euro III emission standard, stable power output and strong torque, fully meeting heavy-load driving demands on construction sites and complex roads.

Reinforced Load-Bearing Chassis Structure
Adopts 8+7 thickened high-strength frame, matched with 16-ton heavy-duty double-reduction casting rear axle and multi-leaf spring suspension, excellent torsion resistance and bearing capacity for frequent bumpy-site operation.

Reliable Transmission System
Fitted with 10JSD180 iron-shell heavy-duty transmission, mature and durable structure with low failure rate. Global complete spare parts supply effectively reduces overseas after-sales maintenance cost.

Practical Cab & Protective Design
Mid-length flat-roof cab with hydraulic four-point suspension, independent heating system, anti-theft protection for fuel tank and battery box, as well as guard grilles for water tank and taillight to avoid collision damage on construction sites.

Complete Export Standard Configuration
Comes with full one-country-one-package export accessories, multi-language marking, fire extinguisher, emergency warning lights, remote throttle controller and other fittings, complying with customs clearance regulations for overseas market shipment.

Vehicle Model	SX5315GJB6T306C, X3000 Reinforced 8×4 Concrete Mixer Truck
Platform	X3000
Drive Type	8×4
Version	Reinforced Version
Engine Model	M10E3 385 with PTO
Power	385 PS
Emission Standard	Euro III
Transmission	10JSD180 Iron Housing Gearbox
Rear Axle & Ratio	16T Heavy-Duty Double Reduction Cast Axle, Final Ratio 5.262
Frame Specification	850×300mm, 8+7 Layers Thickened High-Strength Frame
Wheelbase	1800+2975+1400mm
Rear Overhang	1600mm
Cab Type	Mid-length Flat Roof Cab
Front Axle	HD 9.5T Front Axle
Suspension	Front & Rear Multi-leaf Spring Suspension (4 main leaves & 4 auxiliary leaves)
Fuel Tank	400L Aluminum Alloy Fuel Tank
Tire Spec	12.00R22.5, mixed pattern front tires, block pattern rear & spare tires, wheel rim & decorative cover
Mixing Drum Volume	12 Cubic Meter
GVW	33.4657 Ton
Upper Chassis Code	DH793183HN3W0

MAIN PARAMETER

Base Configuration	Mid-length flat roof cab without top deflector, air driver seat, ordinary rearview mirror, single cooling air conditioner, electric window regulator, manual tilting system, metal bumper with lamp protective mesh, three-level boarding steps, central door locking, single oil-bath air filter, standard exhaust system, domestic steering gear, multifunctional steering wheel with cruise control, imported clutch, front and rear stabilizer bars, water tank protective grille, taillight protective grille, 180Ah maintenance-free battery.
One-Country-One-Package Export Configuration	Four-point hydraulic suspension, cab curtains, yellow sun visor lamp, two pre-installed high-brightness LED hazard warning lamps, SHACMAN logo, Spanish marking for cab tilting, emission reduction M label, aluminum air reservoir, reverse buzzer, spare tire bracket, 5-ton jack, wheel chocks, 8KG fire extinguisher, swing-type remote throttle controller, daytime running lights, LED taillights, rear crossmember lighting, step lamps, anti-theft fuel tank cap, anti-theft battery box, Jocksel-type compressor, rear cab guard plate, left and right cab sound insulation panels, partial chassis fenders painted the same color as the cab, engine PTO function.
Optional Configuration	Various customized optional accessories are available. Please contact our sales representative to check detailed optional items and corresponding quotations.

1. Terms of payment: TT, 30% deposit, balance before delivery from factory.

2. Delivery at China port period: 55 working days after advance payment.

3. Vehicle warranty period: 12 months from the date of bill of lading.
