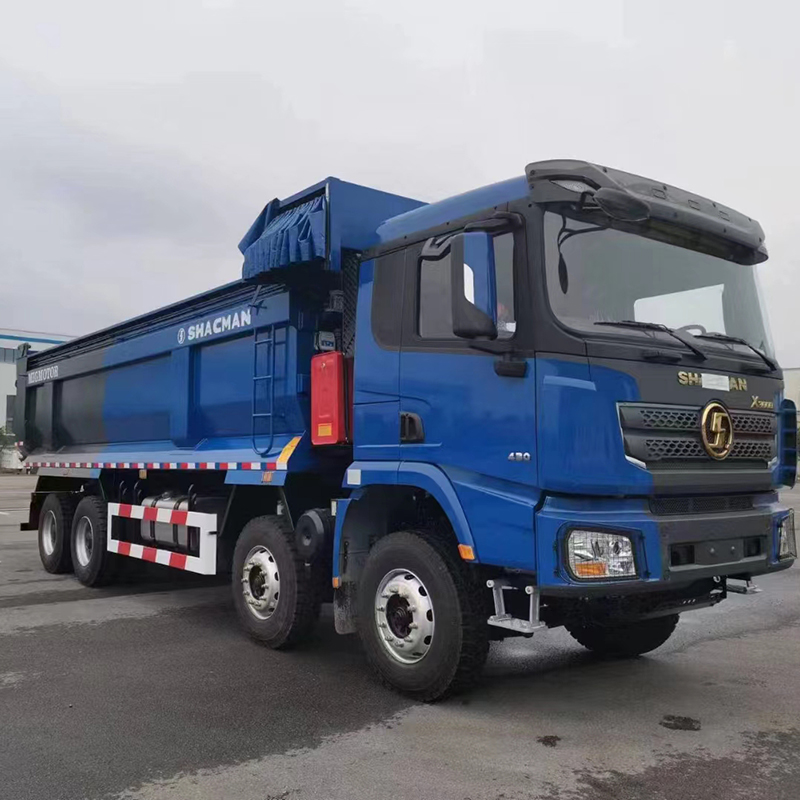

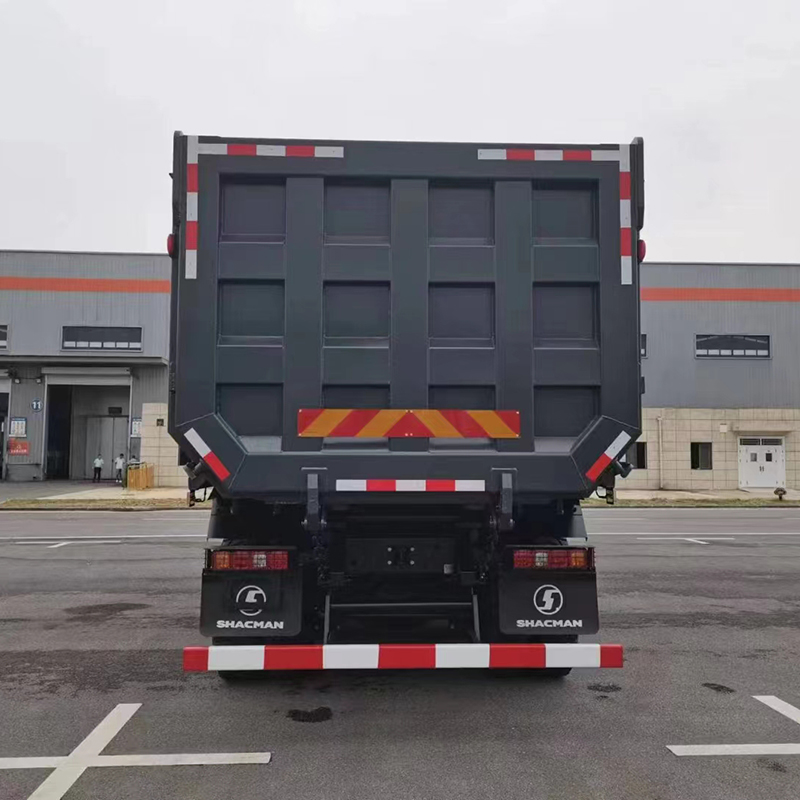

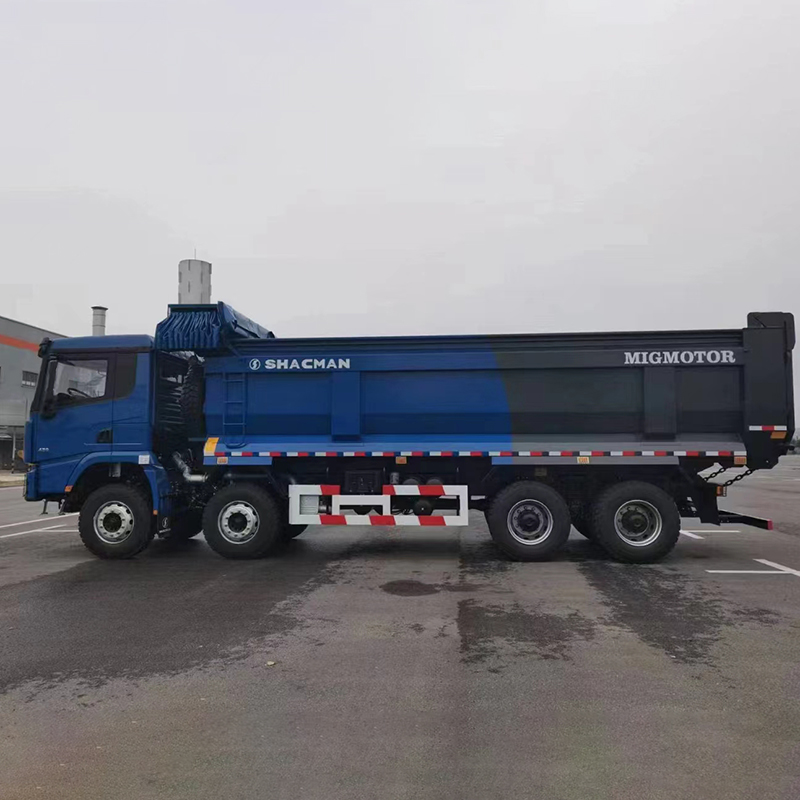

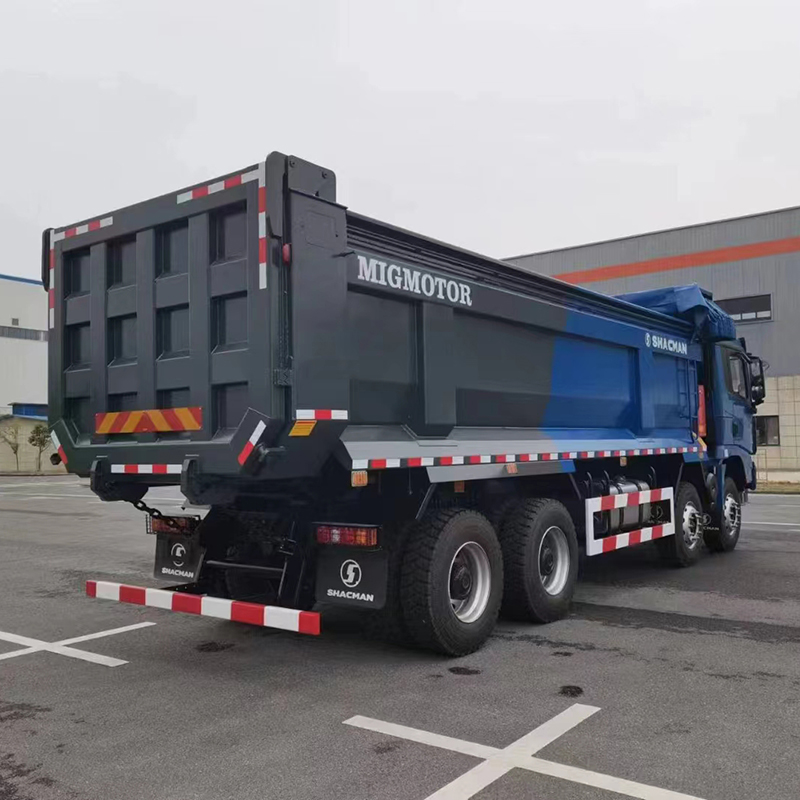

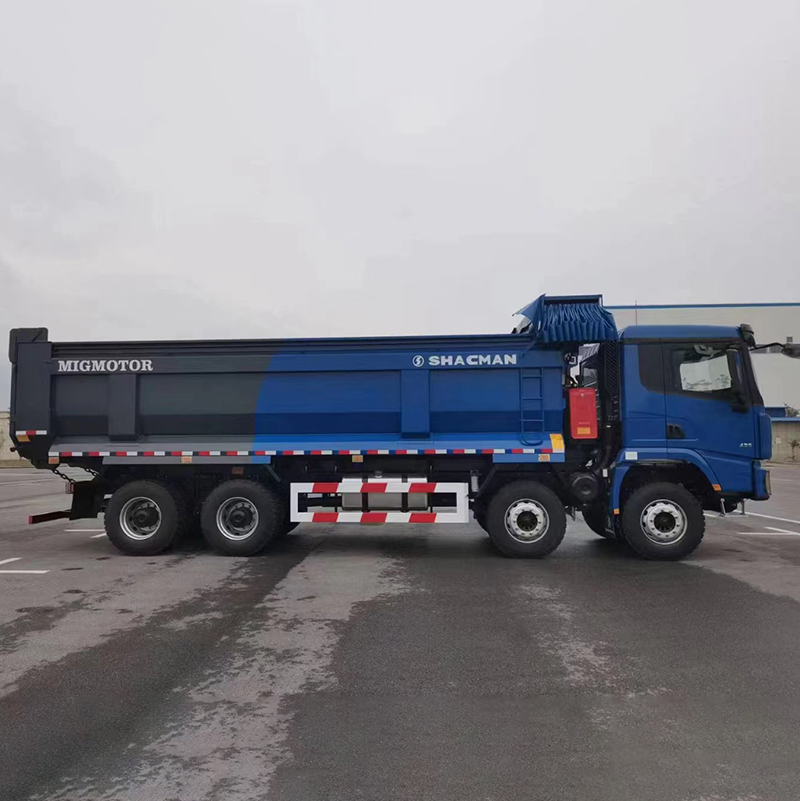

Home > Products > Dump Truck > SHACMAN X3000 8×4 Heavy Duty Reinforced Dump Tipper Truck 400HP Euro II WP12 Engine Mining Dumper With Cargo Box Bottom Heating & Multilateral Custom Options
Driving type
8*4
Wheelbase(mm)
1800+3775+1400
Max. Speed/(km/h)
73km/h
Usage Scenario
Mainly used for mining material transportation, construction earthwork, sand stone and muck haulage, road & bridge engineering, urban construction waste transfer. Customized Russian configuration is available to fit project transportation demands in Russia, Central Asia and African countries.
PRODUCT DETAILS
This 8×4 heavy-duty tipper truck belongs to the classic X3000 product line of SHACMAN, specially upgraded to reinforced configuration for harsh working conditions. Model No. SX33156U386, equipped with WP12.400E201 400 horsepower Euro II emission engine, matched with 12JSD180T manual transmission and 16T HD double-stage cast drive axle with speed ratio 5.262, featuring strong climbing ability and overload resistance.
Vehicle Basic Technical Parameters
| Platform | X3000 | Drive Mode | 8×4 |
| Version | Reinforced Edition | Model No. | SX33156U386 |
| Engine Model | WP12.400E201 | Horsepower | 400 PS |
| Emission Standard | Euro II | Gearbox | 12JSD180T-Iron Housing-QH50 |
| Rear Axle | 16T HD Double-stage Cast Axle | Axle Ratio | 5.262 |
| Frame Size | 850×300mm (8+7 layers) | Wheelbase | 1800+3775+1400 mm |
| Rear Overhang | 1000 mm | Front Axle | HD 9.5T |
| Cab | Medium-long Flat Roof Cab | Standard Fuel Tank | 400L Aluminum Alloy |
| Standard Tire | 12.00R20 Mixed Pattern | Cargo Body | 7600×2300×1500 mm |
MAIN PARAMETER
| Category | Configuration Content |
|---|---|
| Standard Basic Configuration | X3000 medium-long flat roof cab without top deflector, hydraulic main seat, electric window, manual tilting cab, Jacksel compressor automatic constant temperature air conditioner, metal bumper, 3-level boarding steps, remote control central lock, oil bath air filter, cargo box bottom heating, domestic clutch, radiator grille, front & rear stabilizer bar, 180Ah maintenance-free battery |
| Russia Market Custom Configuration | 4-point cab hydraulic suspension, SHACMAN logo + full Russian markings, X5000 front face & same-color exterior kit, cab rear window, iron air tank, reverse alarm, 22kg fire extinguisher, parking wedge, telescopic shaft control, integrated DRL, extra long-life fuel primary filter, 4-channel domestic ABS, electric heating fuel sensor |
| Optional Upgrade Items | Extended flat roof cab; 12JSD200T-B iron shell QH50 gearbox; air suspension driver seat; electric cab tilting; 500L aluminum fuel tank; 315/80 R22.5 Triangle tires |
1. Terms of payment: TT, 30% deposit, balance before delivery from factory.
2. Delivery at China port period: 55 working days after advance payment.
3. Vehicle warranty period: 12 months from the date of bill of lading.
RELATED PRODUCTS
X3000 Heavy Duty 6x4 Tractor Truck SHACMAN 430HP Euro 2 Prime Mover For Container Transport
SHACMAN F3000 6×4 Truck with XCMG Crane | 340HP Heavy Duty Crane Truck for Cargo Handling
SHACMAN X3000 6×4 Concrete Mixer Truck SX5255GJB6T384C, 385HP Euro III 10CBM Cement Mixing Transport Vehicle

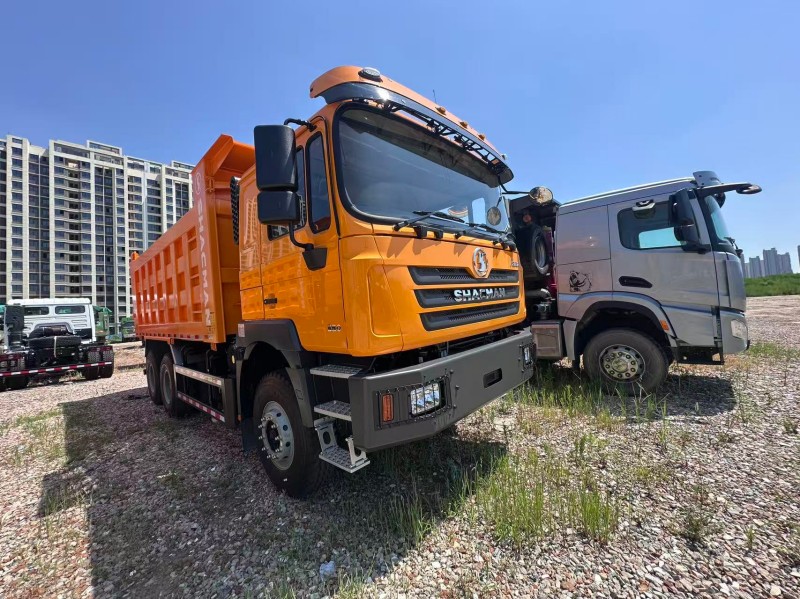

Heavy Duty 6x4 SHACMAN F3000 Dump Truck 10JSD180 Transmission 400L Aluminum Fuel Tank For African Mine
