Home > Products > Dump Truck > Shacman X3000 8×4 Tipper Dump Truck Heavy Duty for Mining Quarry Construction Haulage

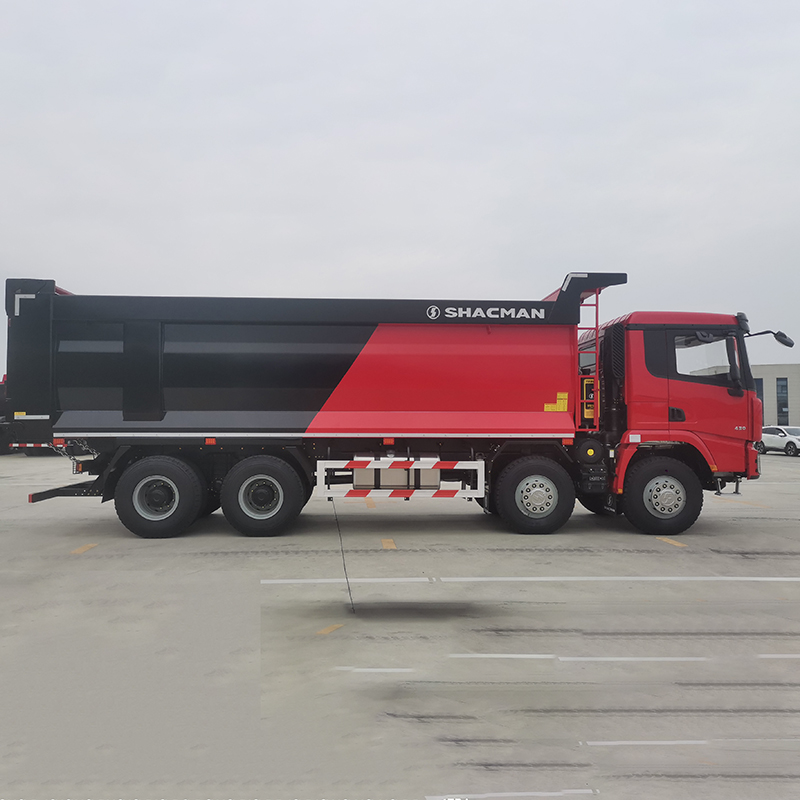

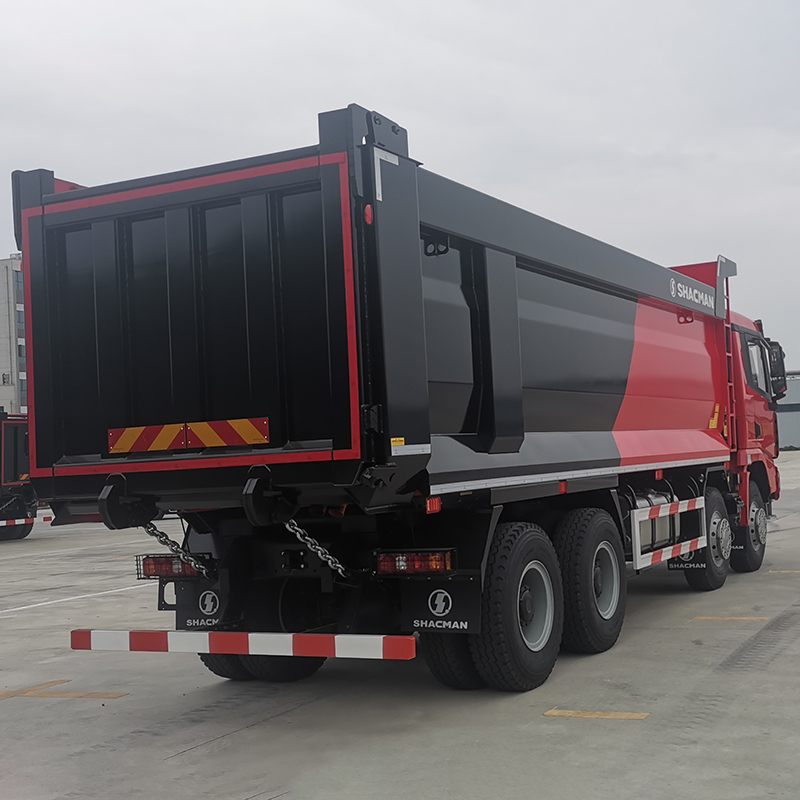

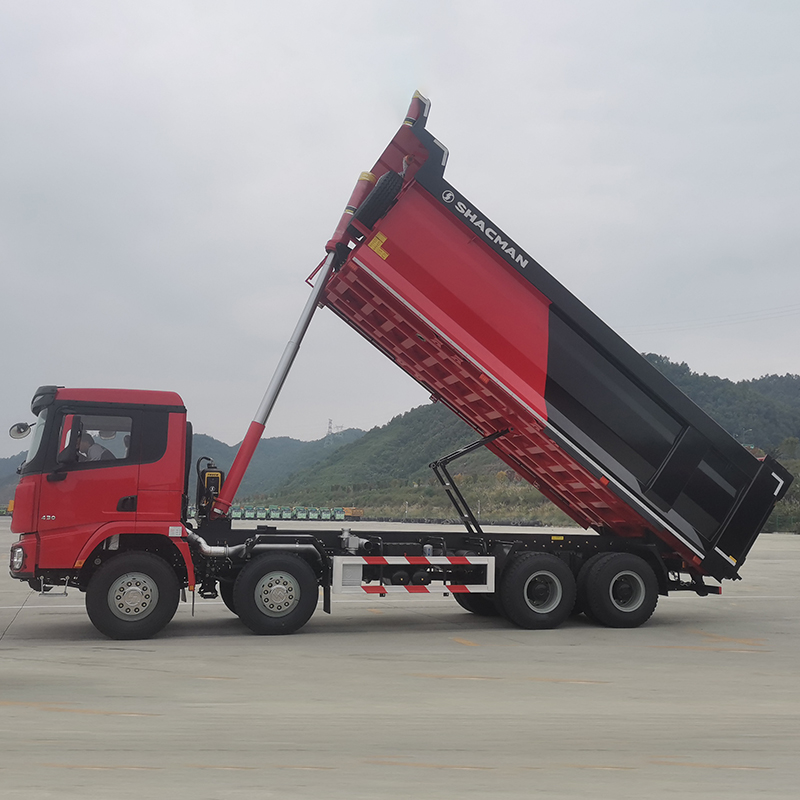

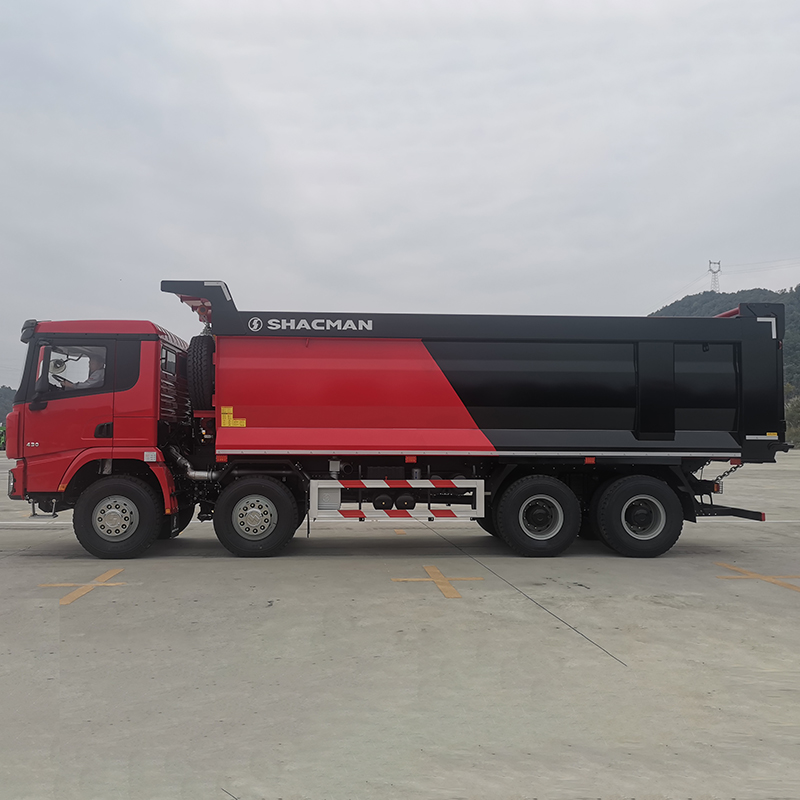

Shacman X3000 8×4 Tipper Dump Truck Heavy Duty for Mining Quarry Construction Haulage

Driving type

8*4

Wheelbase(mm)

1800+3775+1400

Max. Speed/(km/h)

75km/h

Usage Scenario

Engineering construction, Logistics transportation, Mining operations.

INQUIRY NOW

PRODUCT DETAILS

The Shacman X3000 8x4 Dump Truck is engineered for heavy-duty performance, making it an ideal choice for construction and mining operations.

430HP Weichai Engine | U-shape High Volume Body | Heavy Duty MAN Axle | Fast Delivery within 25 Days

Suitable for Africa, Central Asia, Southeast Asia market. Available for Bulk Purchase with Factory Direct Pricing.

MAIN PARAMETER

MODEL		SX33186V386
Driver position		Left Hand
Driving type		8*4
Wheelbase/(mm)		1800+3775+1400
Max. Speed/(km/h)		75km/h
Engine	Brand	WEICHAI
	Model	WP12.430E50
	Emission Standard	EURO V
	Rated output power/（PS）	316KW/430HP
	Displacement(L)	11.926L
Transmission	Brand	FAST
	Model	12JSDX220TA-B--QH50
Front axle	Brand	HANDE
	Model	MAN 9.5T
Rear axle	Brand	HANDE
	Model	16T MAN double reduction driving axle Speed ratio: 5.262
Clutch		￠430 diaphragm clutch
Steering		ZF technology
Frame		850x300(8+7)
Suspension		Front and rear multi-leaf spring four main flims+four horse riding bolts
Fuel tank		500L Aluminum alloy
Wheels and tires		315-80R22.5 TR918 20
Brakes		Running brake: Dual circuit compressed air brake
		Parking brake: Air discharging with spring control
		Auxiliary brake: Engine exhaust brake
Cabin		X3000 medium length flat top cab without top air deflector, hydraulic main seat, four point hydraulic suspension, ordinary rearview mirror, electrically controlled automatic constant temperature air conditioning (Jack's compressor), electric window rocking machine, manual flipping, metal bumper, three-level boarding pedal, central lock (with remote control), ordinary steering wheel, oil bath air filter, heated exhaust pipe for large box bottom plate, water tank protective grille, domestic steering gear, domestic clutch, front and rear stabilizer bar, 180Ah maintenance free battery, rear window of the cab, door guard plate, no side toolbox, no reserved electrical circuit interface for full trailer, iron air reservoir, no need to add 2 air cylinders, WABCO six channel ABS, no rear protection 2 kg fire extinguisher, parking wedge, cancellation of the eight shaped tail beam, ordinary towing hook, electric heating oil level sensor, no emergency call Gronas system, no reserved wiring harness, integrated daytime running lights with E-mark, low-temperature pipe wiring harness, installation of a first level long-lasting fuel coarse filter
Upbody		760023001500+500 (mm)Bottom 8 sides 6

* Description:

1. Terms of payment: T/T, 30% deposit, balance before delivery from factory.

2. Delivery at China port period: 55 working days after advance payment.

3. Vehicle warranty period: 12 months from the date of bill of lading.
