Home > Products > Dump Truck > SHACMAN X3000 8x4 Heavy‑Duty Dump Truck

SHACMAN X3000 8x4 Heavy‑Duty Dump Truck

Driving type

8*4

Wheelbase(mm)

1800+4575+1400

Max. Speed/(km/h)

70km/h

Usage Scenario

Mining & quarry ore transportation, construction site sand gravel stone hauling, infrastructure engineering bulk material delivery, earthwork project & construction waste removal, mountain area heavy-load transport.

INQUIRY NOW

PRODUCT DETAILS

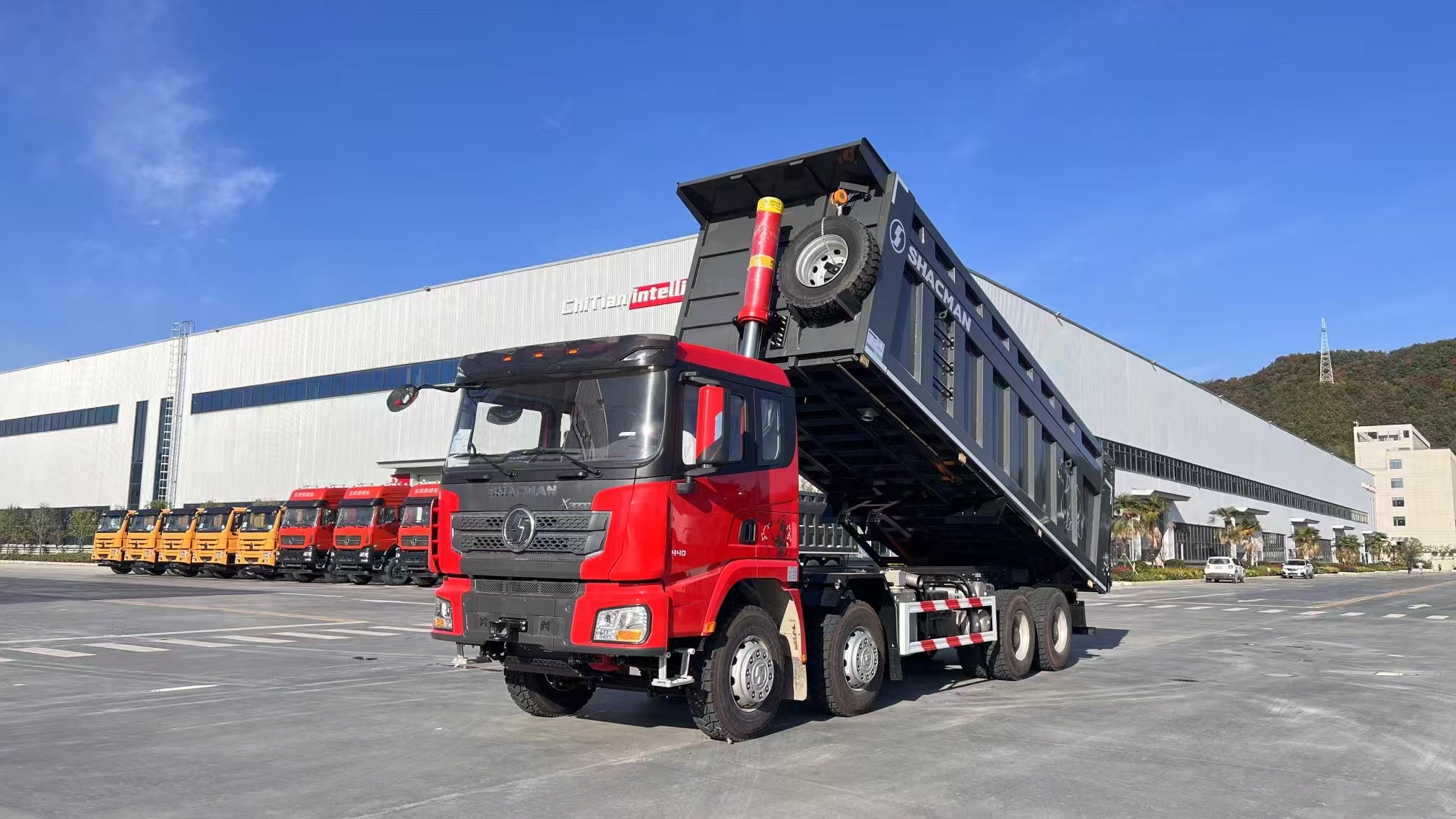

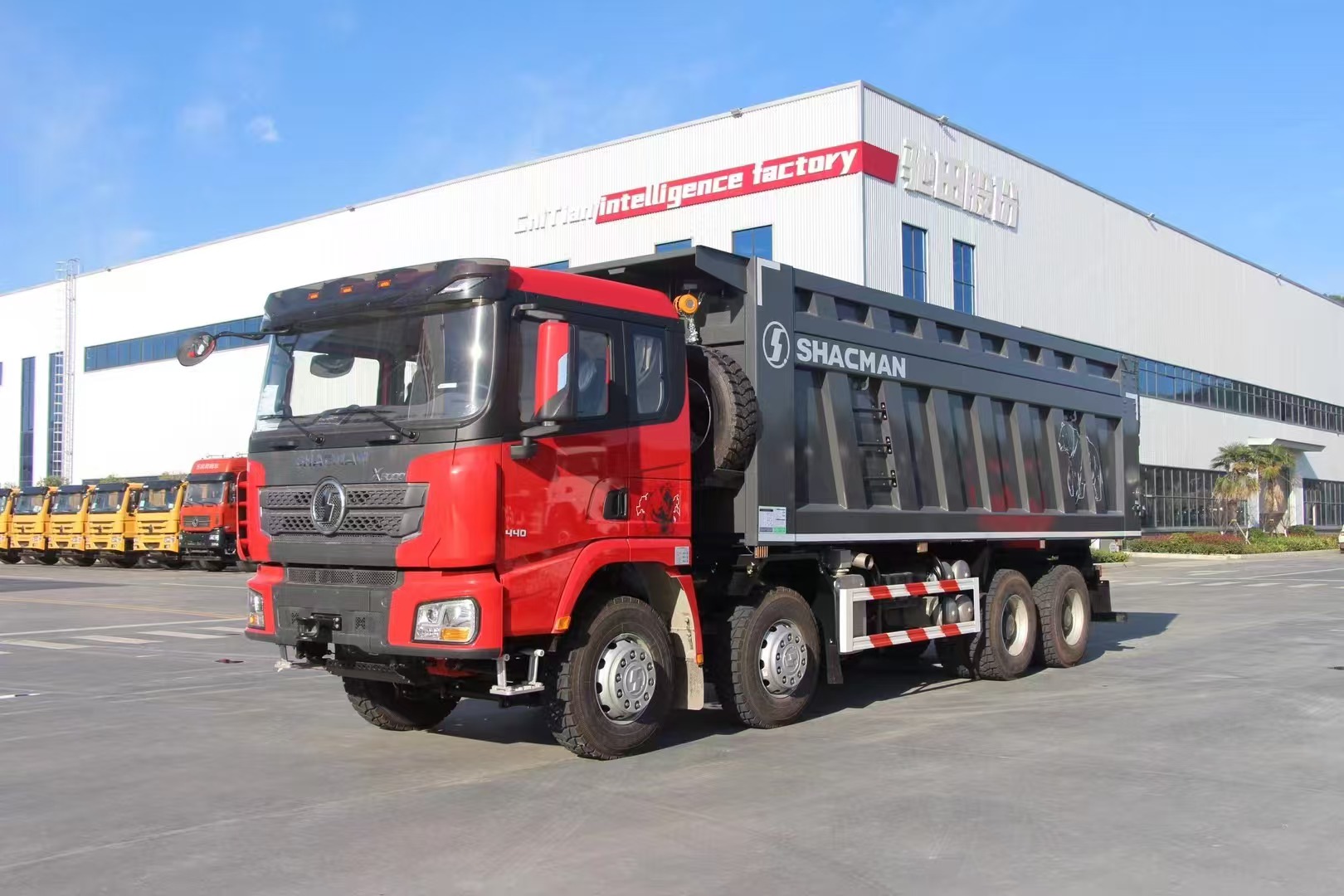

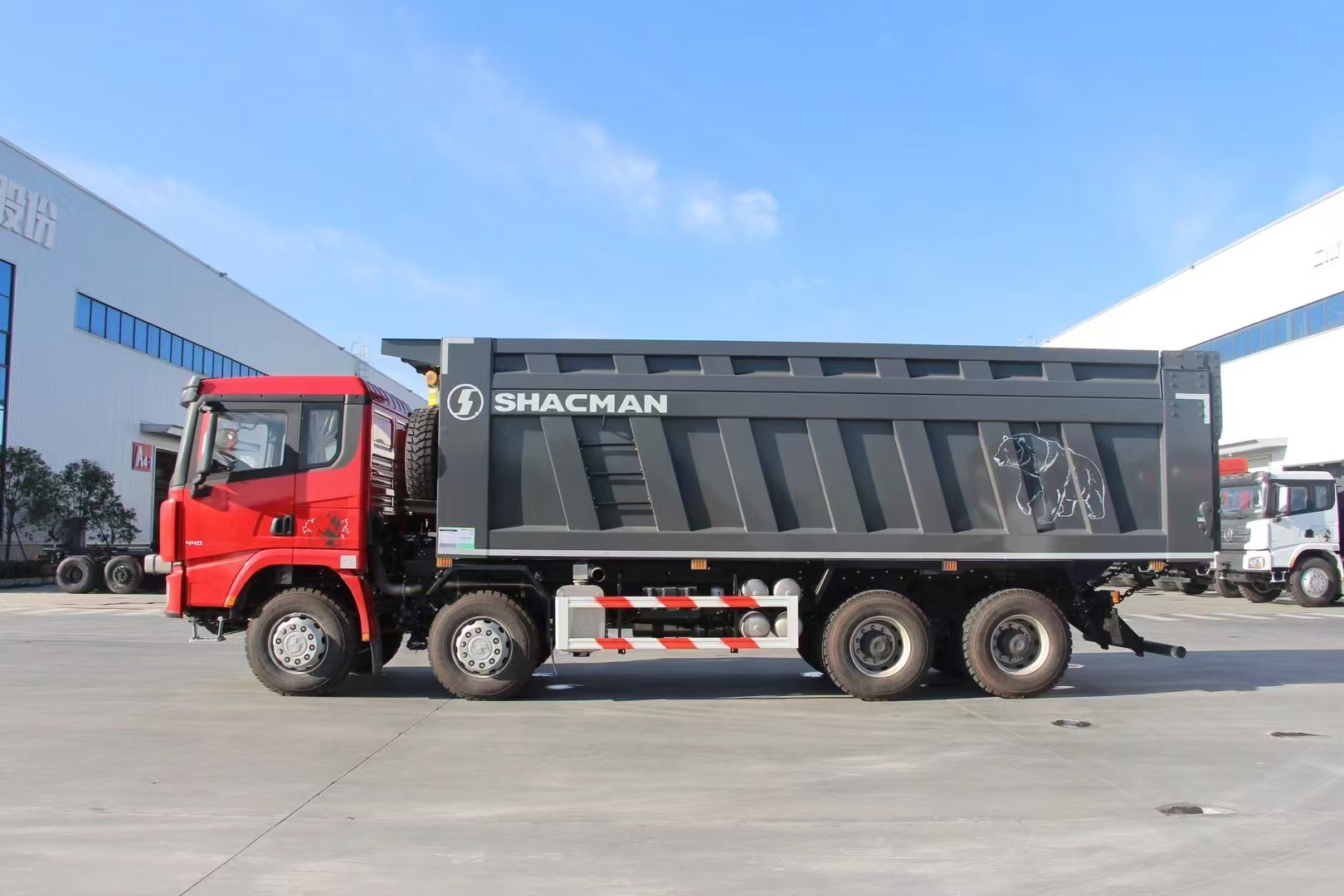

SHACMAN X3000 8x4 Heavy‑Duty Dump Truck

SHACMAN X3000 8x4 dump truck is a heavy‑duty tipper built on genuine SHACMAN X3000 chassis, specially developed for heavy‑load bulk cargo transportation in mining, quarry and large‑scale construction projects. Equipped with high‑power Weichai diesel engine, reliable Fast gearbox and heavy‑duty HanDe axles, this dump truck delivers strong power, stable performance and outstanding durability even under harsh working conditions.

The cargo box adopts high‑strength wear‑resistant steel plate, effectively resisting impact and abrasion from ore, stones and gravel. The stable hydraulic lifting system realizes fast and smooth dumping discharge, improving site operation efficiency. Multiple cargo box sizes and thickness options are available to satisfy different payload and local market requirements.

Global spare‑parts supply support guarantees convenient after‑sales service for overseas fleet buyers.

Parameter Item	Detailed Specification
Product Model	SX33155U386 SHACMAN X3000 Enhanced 8×4 Dump Truck
Drive Form	8×4 Four Axle Rear Drive
Engine Model	WP12.400E201 With Intake Heating & Water Cold Treasure
Rated Power	400 HP
Emission Standard	Euro II
Transmission Gearbox	12JSD200T-B Manual Transmission
Rear Axle	16T HD Double Reduction Cast Axle, Final Drive Ratio 5.92
Wheelbase	1800mm+3775mm+1400mm
Cab Type	Extended Flat Top Cab
Front Axle Load	HD 9.5 Ton
Suspension System	Multi-leaf Spring Suspension, Four-point Hydraulic Suspension
Fuel Tank	400L Aluminum Alloy Fuel Tank
Tire Specification	12.00R20 Mixed Pattern All Steel Radial Tire
Cargo Box Dimension	7600×2300×1500mm
Cold-resistant Battery	180Ah Low Temperature Storage Battery

MAIN PARAMETER

Configuration Category	Detailed Accessories List
Basic Factory Standard Configuration	Extended flat-top cab without side deflector, air suspension driver seat, electrically heated rearview mirror, electronic constant temperature air conditioner, electric window lifter, manual cab tilting system, metal bumper with lamp protective net, 3-stage boarding steps, central locking, oil bath air filter, water tank protection grille, rear axle stabilizer bar, tail light protection grille, 180Ah low-temperature maintenance-free storage battery
Overseas Export Configuration (One Country One Set)	Four-point hydraulic suspension, cab sunroof (without rear window), sun visor decorative lamps, daytime running lights, SHACMAN exterior logo & full English marking, sound insulation panels, rear surrounding guard plates, reversing buzzer, wheel chocks, telescopic shaft control mechanism, deluxe portable vehicle toolbox
Optional Upgraded Accessories	Rear view reversing camera, SHACMAN intelligent telematics terminal (display screen + vehicle monitoring host), full trailer electrical interface, floor heating interface, 16T HD double reduction cast axle (speed ratio 5.92), dual independent heating system (air heating + water heating)

1. Terms of payment: TT, 30% deposit, balance before delivery from factory.

2. Delivery at China port period: 55 working days after advance payment.

3. Vehicle warranty period: 12 months from the date of bill of lading.

RELATED PRODUCTS

X3000 Heavy Duty 8x4 Tipper Truck SHACMAN 400HP Euro 2 Dumper For Bulk Material Haulage

SHACMAN L3000 Lightweight 6×4 Dump Truck 300HP Euro V Tipper Truck

380HP Shacman X5000 Tipper Truck 16T HD Double Reduction Axle 400L Aluminum Fuel Tank For Earthmoving

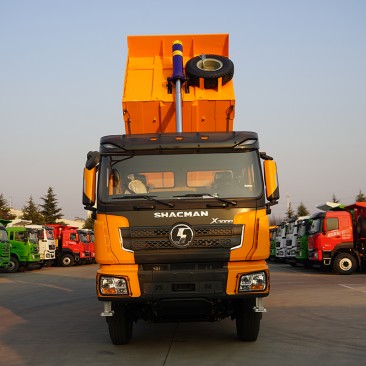

SHACMAN X3000 6*4 380PS dump truck Construction waste trucks

SHACMAN F3000 Enhanced 6×4 Dump Tipper Truck 340HP Euro II WP10 Engine Mining Construction Dumper For Africa Central Asia Export

SHACMAN F3000 Reinforced 6x4 Tipper Dump Truck 10 Wheels Mining Construction Dumper Truck

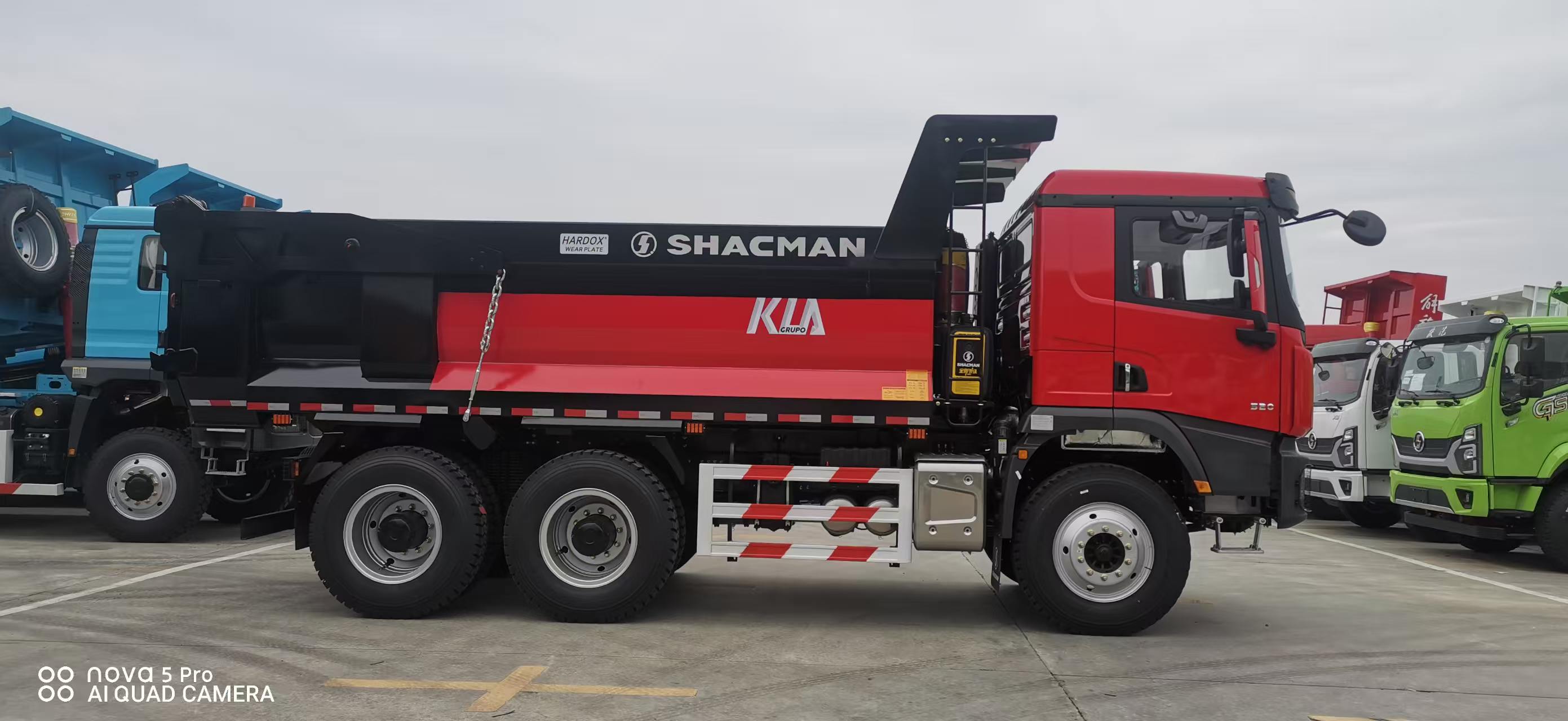

SHACMAN X5000 6×4 430HP Dump truck
