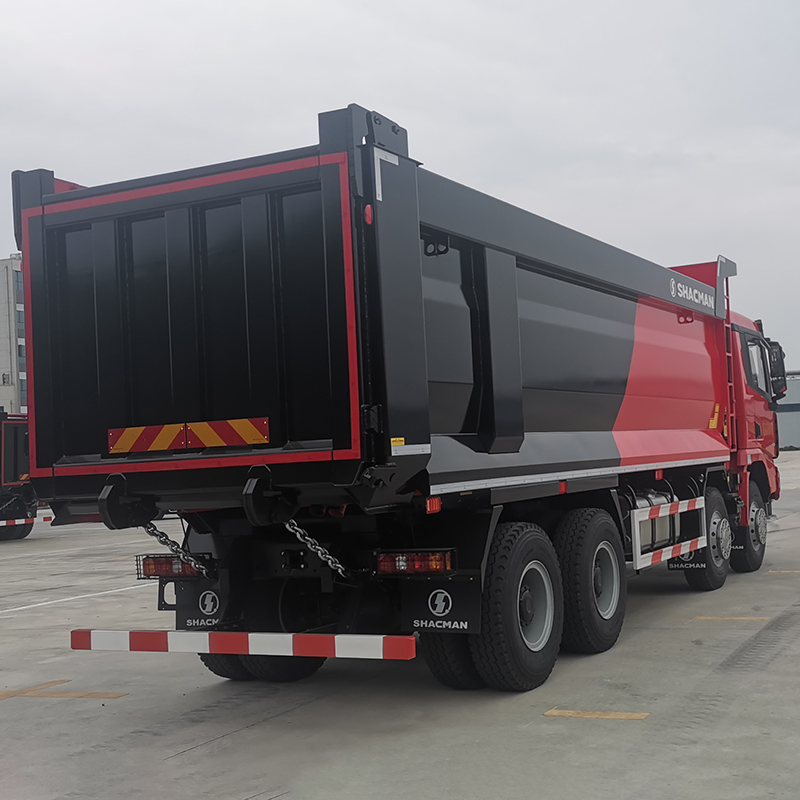

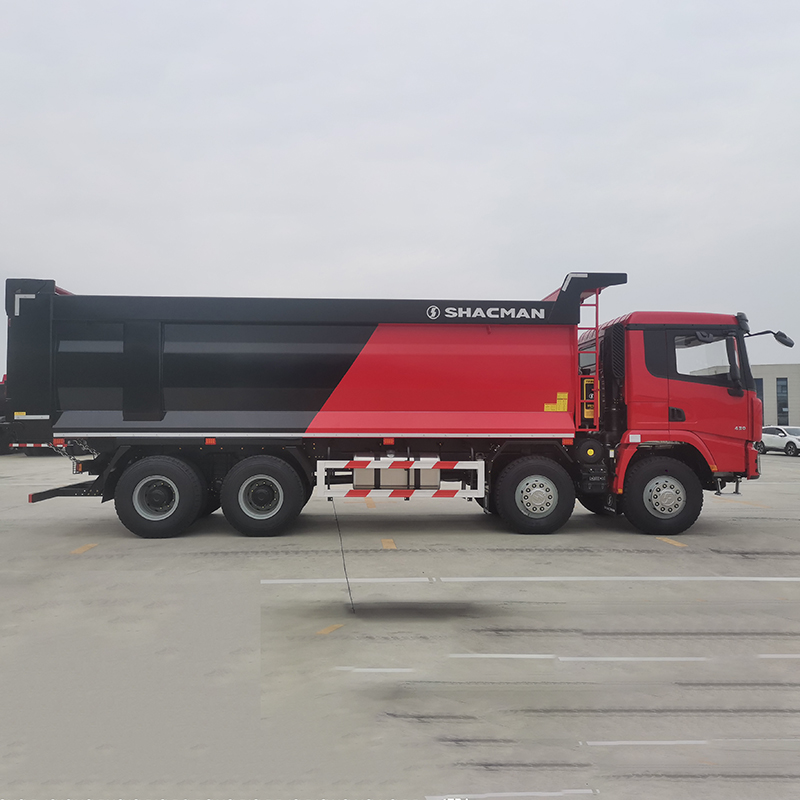

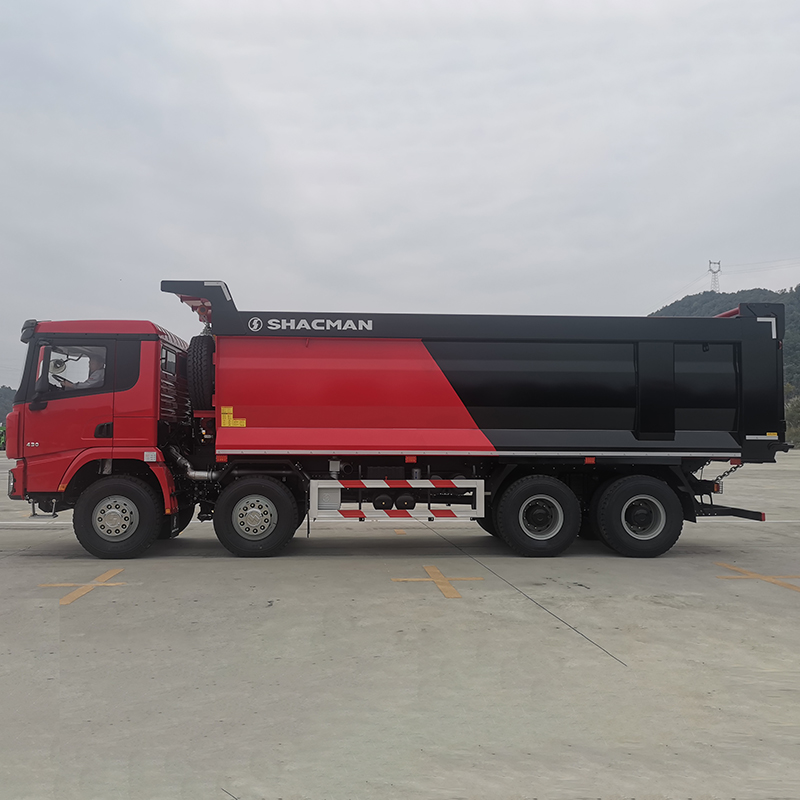

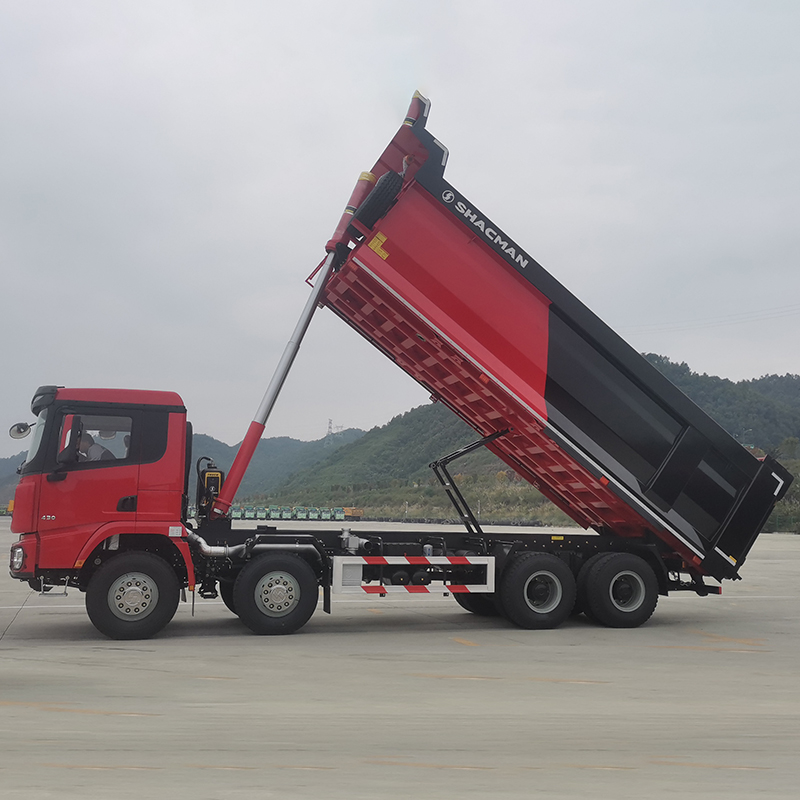

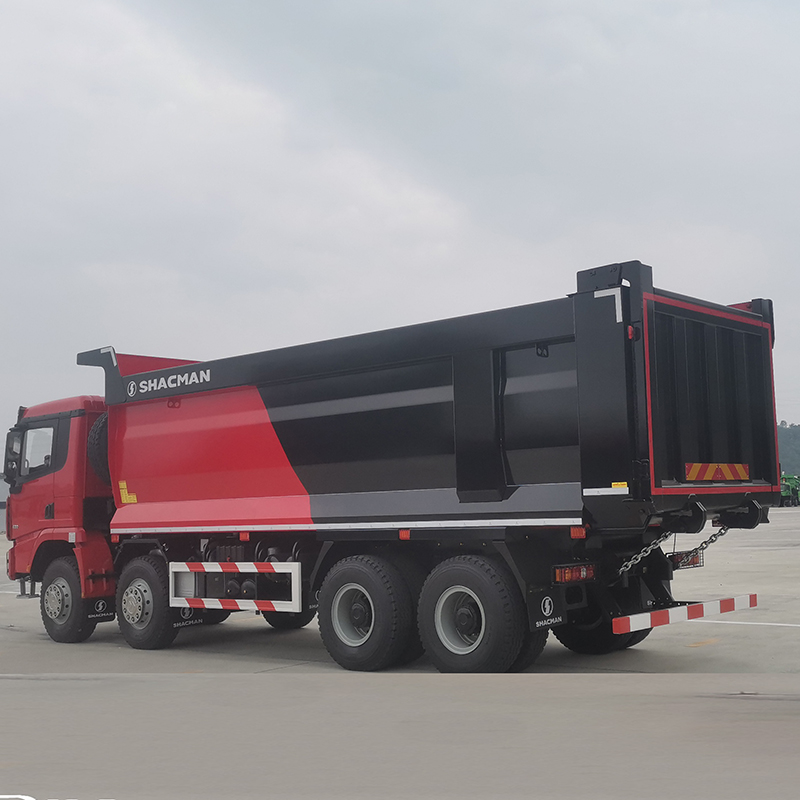

SHACMAN X3000 Enhanced 8×4 Dump Truck SX33156V386 430HP Euro II Weichai Engine Heavy Load Export Tipper Truck

Driving type

8*4

Wheelbase(mm)

1800+3775+1400

Max. Speed/(km/h)

80km/h

Usage Scenario

Suitable for large mine mining, quarry transportation, infrastructure earthwork and bulk material haulage; the cargo box heating system prevents materials from freezing and sticking, ideal for heavy-load transport under harsh road conditions.

INQUIRY NOW

PRODUCT DETAILS

Product Introduction

SHACMAN X3000 Enhanced 8×4 Dump Truck is a heavy-duty bulk transport vehicle tailored for overseas export projects. It is powered by WP12.430E22 430PS Euro II engine, matched with heavy-duty manual transmission and 16-ton double reduction cast rear axle, delivering strong climbing torque and stable power output for long-distance heavy-load hauling.

This model adopts thickened 850×300mm multi-layer reinforced frame and full leaf spring suspension with front & rear stabilizer bars, greatly improving torsion resistance and durability to adapt to mining zones, muddy roads and mountainous complex pavements. The extended flat roof cab is equipped with air suspension main seat, electric heated rearview mirror, automatic constant temperature air conditioner and electric cab tilting system, bringing comfortable driving experience and convenient daily maintenance.

For export compliance, it is equipped with exclusive one-country-one-batch configurations: four-point hydraulic suspension, full English SHACMAN logo, iron air reservoir, cargo box bottom heating device, daytime running lights, reverse buzzer, anti-theft battery box, 7-inch smart display plus rear view camera and 2kg fire extinguisher. The cargo box heating function effectively prevents materials from freezing and sticking during transportation, which is ideal for open-pit mining, quarry stone delivery, large infrastructure earthwork and municipal engineering bulk material transportation.

Main Technical Parameters

Item	Parameter Detail
Product Model	SX33156V386
Driving Type	8×4
Version	X3000 Enhanced Dump Truck
Engine Model	WP12.430E201
Rated Power	430 PS
Emission Standard	Euro II
Transmission Gearbox	12JSD200T-B Iron Shell + QH50
Rear Axle & Speed Ratio	16T HD Double Reduction Cast Axle, Ratio 5.262
Frame Specification	850×300mm (8+7 Layers)
Wheelbase	1800+3775+1400 mm
Frame Rear Overhang	1000 mm
Cab Type	Extended Flat Roof Cab
Front Axle	HD 9.5T Front Axle
Suspension System	Front & Rear Multi-leaf Spring (4 Main Leaves + 4 Auxiliary Leaves)
Fuel Tank	400L Aluminum Alloy Fuel Tank
Tire Configuration	12.00R20 Mixed Pattern Tire with Stainless Steel Rim Decorative Cover
Cargo Box Dimension	7600×2300×1500 mm
Standard Basic Configuration	Air Suspension Main Seat, Electric Heated Rearview Mirror, Auto Constant Temperature A/C, Electric Window Lifter, Electric Cab Tilt, Metal Bumper with Lamp Protection Net, 3-step Access Step, Central Lock, Oil Bath Air Filter, Multi-function Steering Wheel, Radiator & Taillight Protection Grille, 180Ah Maintenance-free Battery, Front & Rear Stabilizer Bars
Export Exclusive Configuration	4-point Hydraulic Suspension, SHACMAN & Full English Logo, Iron Air Reservoir, Cargo Box Bottom Heating, Daytime Running Light, Reverse Buzzer, 2kg Fire Extinguisher, Wheel Chock, Telescopic Shaft Control, Anti-theft Battery Box, 7-inch Smart Display + Rear View Camera

MAIN PARAMETER

Advantage Item	Detailed Description
Strong Power System	Equipped with WP12 430PS Euro II emission engine, matched with heavy-duty 12-speed manual transmission and 16-ton double reduction cast rear axle. It delivers powerful torque output, excellent climbing performance and stable power supply for long-distance heavy-load transportation.
Reinforced Load-bearing Chassis	Adopts 850×300mm thickened multi-layer frame plus front and rear stabilizer bars and multi-leaf spring suspension. The whole chassis features high torsion resistance and impact resistance, adapting to complex working conditions such as mines, muddy roads and mountain routes.
Export Customized Configuration	One-country-one-batch exclusive fittings include four-point hydraulic suspension, full English SHACMAN marking, anti-theft battery box, 7-inch intelligent display with rear view camera, cargo box bottom heating device and complete safety accessories, fully meeting overseas market access requirements.
Comfortable & Humanized Cab	Extended flat roof cab with air suspension main seat, electric heated rearview mirror, automatic constant temperature air conditioner and electric cab flip structure. It effectively reduces driving fatigue and simplifies daily inspection and maintenance work.
Anti-adhesion Cargo Box Design	The cargo box bottom heating system prevents materials from freezing and sticking during low-temperature transportation, ensuring smooth unloading and greatly improving operation efficiency in cold climate areas.
Durable & Low Maintenance Cost	Standard oil bath air filter, water tank and taillight protective grille reduce component wear under harsh environments. Mature global spare parts supply system shortens maintenance cycle and cuts later use expenses.
Large Volume Transport Capacity	7600×2300×1500mm oversized cargo compartment with large single loading capacity, which is perfectly suitable for bulk transportation of ore, gravel, earthwork and construction materials in large-scale engineering and mining projects.

1. Terms of payment: TT, 30% deposit, balance before delivery from factory.

2. Delivery at China port period: 55 working days after advance payment.

3. Vehicle warranty period: 12 months from the date of bill of lading.
