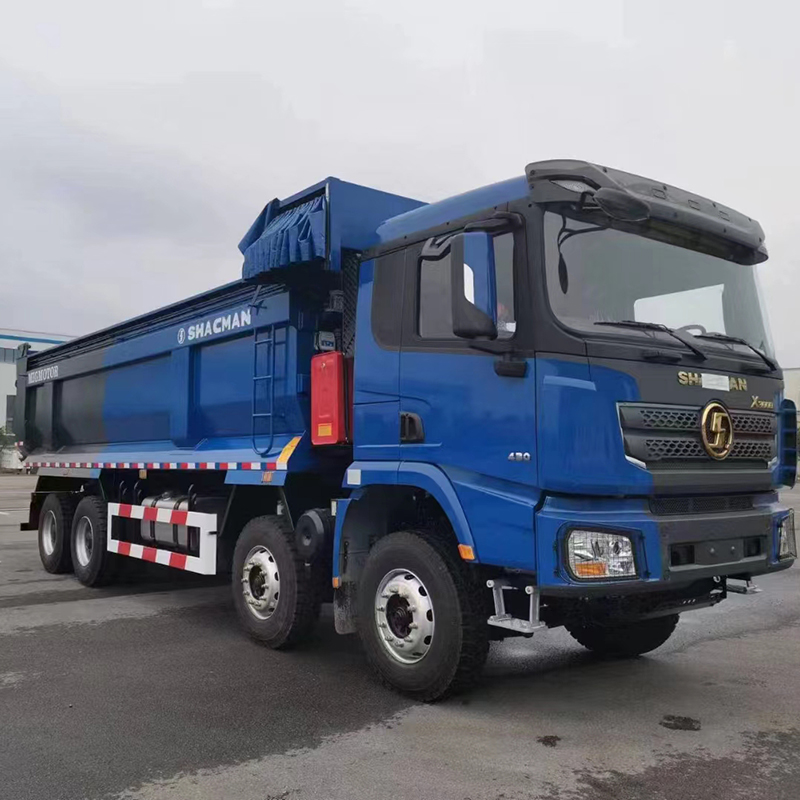

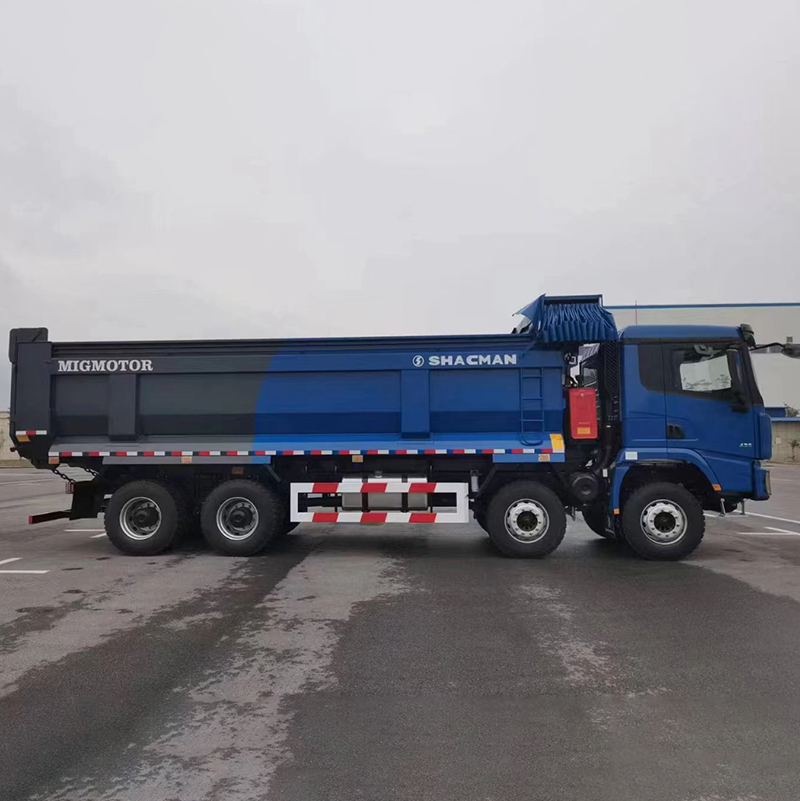

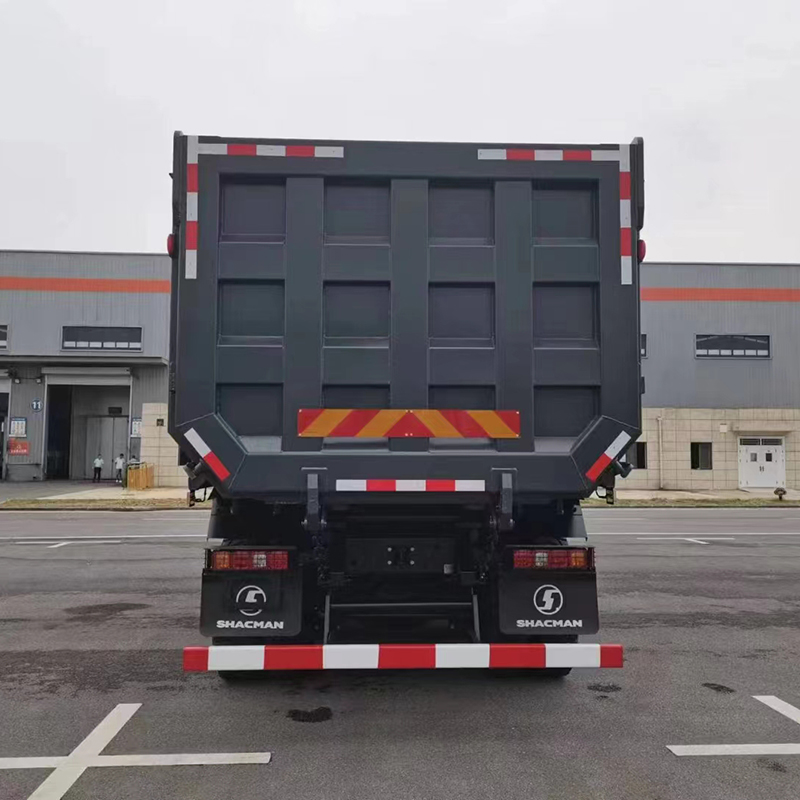

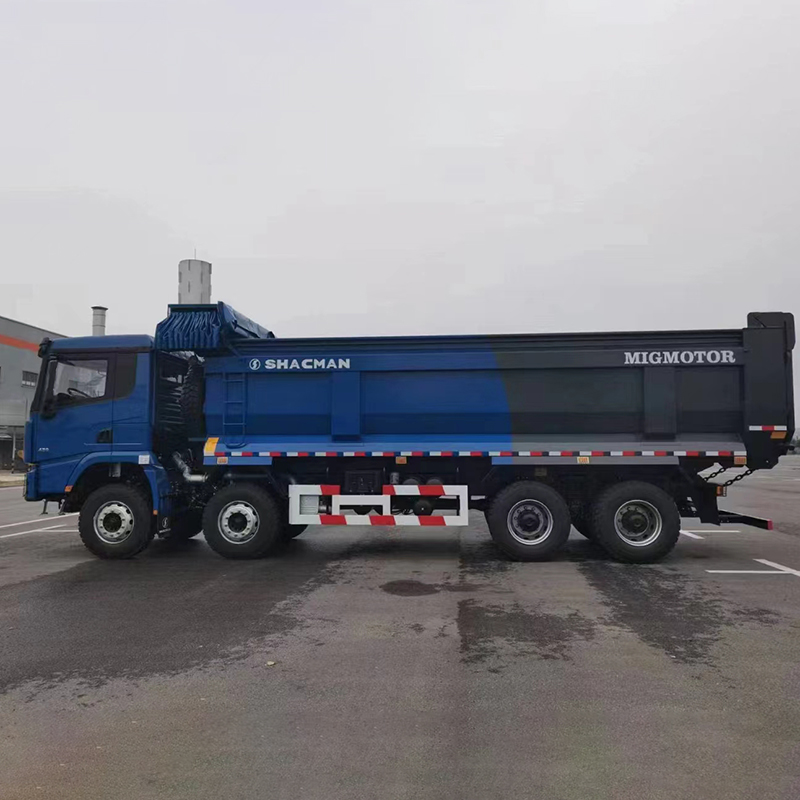

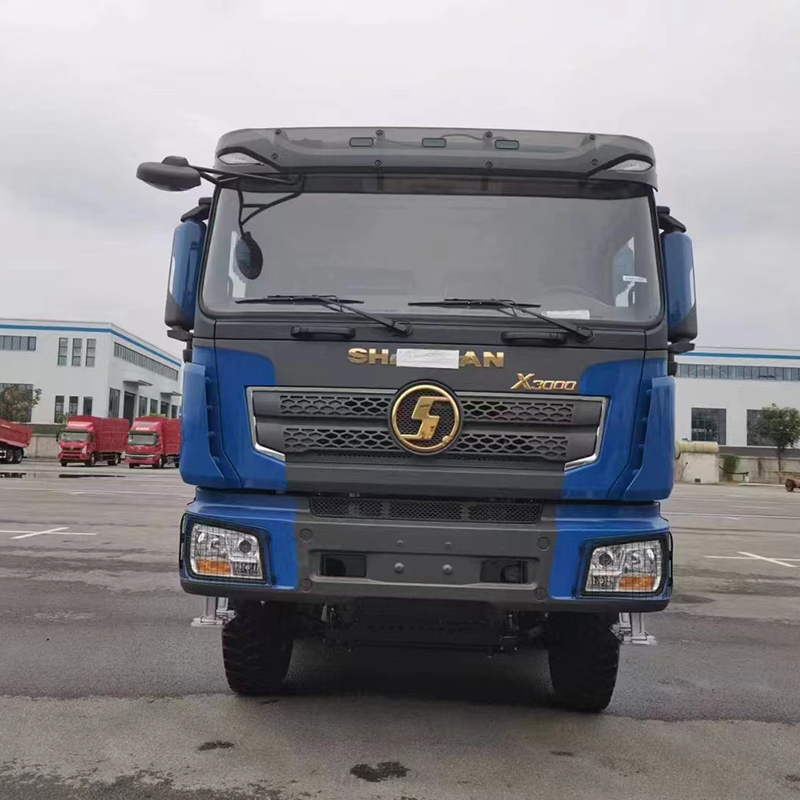

SHACMAN X3000 Reinforced Version 8×4 Tipper Truck 430HP WP12 Engine Euro II For Heavy Duty Construction Mining

Driving type

8*4

Wheelbase(mm)

1800+3775+1400

Max. Speed/(km/h)

80km/h

Usage Scenario

Suitable for mining sites,quarry operation,large‑scale earth‑moving works,road construction project,dam engineering and heavy‑duty material transportation.It can haul gravel,ore,rock,construction waste and bulk cargo.Adapt to complex and harsh working conditions with strong bearing capacity.

INQUIRY NOW

PRODUCT DETAILS

Product Highlights

Powerful Engine Performance

Equipped with Weichai WP12.430E201 diesel engine, delivering 430 HP power output, providing strong power support for heavy-duty transportation and challenging road conditions.

Heavy Duty 8×4 Chassis

The reinforced 8×4 drive system features a high-strength frame structure and heavy-duty axles, ensuring excellent load capacity and durability.

Reliable Transmission System

Matched with 12JSD200T-B manual transmission, offering smooth shifting performance, high transmission efficiency, and long service life.

Reinforced Frame Design

850×300mm high-strength frame design improves torsional resistance and adapts to harsh working environments.

Comfortable Driving Environment

The extended flat-roof cab provides:

Air suspension driver seat
Electric adjustable heated mirrors
Automatic climate control air conditioning
Electric windows
Multifunction steering wheel
Intelligent display system

Standard Configuration

The SHACMAN X3000 8×4 dump truck is equipped with:

X3000 extended flat roof cab

Hydraulic four-point cab suspension

Air suspension seat

Electric heated rearview mirrors

Automatic constant temperature air conditioner

Electric cab tilting system

Electric windows

Multifunction steering wheel

Daytime running lights

Reverse alarm

Fire extinguisher

Parking module

7-inch intelligent display

High-strength steel frame

Heavy-duty suspension system

MAIN PARAMETER

Item	Specification
Vehicle Model	SHACMAN X3000 Dump Truck
Drive Type	8×4
Version	Reinforced Edition
Model Number	SX33156V386
Engine Model	WP12.430E201
Engine Power	430 HP
Emission Standard	Euro II
Transmission	12JSD200T-B
Rear Axle Ratio	5.262
Frame Size	850×300mm
Wheelbase	1800+3775+1400mm
Rear Overhang	1000mm
Front Axle	HD 9.5T Heavy Duty Axle
Suspension	Multi-leaf Spring Suspension
Fuel Tank	400L Aluminum Fuel Tank
Tire Size	12.00R20 Steel Tire
Dump Body Size	7600×2300×1500mm

1. Terms of payment: TT, 30% deposit, balance before delivery from factory.

2. Delivery at China port period: 55 working days after advance payment.

3. Vehicle warranty period: 12 months from the date of bill of lading.

RELATED PRODUCTS

SHACMAN F3000 6×4 Compactor Garbage Truck SX5255ZYSDR434C, 345HP Euro III 20 Cubic Meter Waste Compression Truck

Heavy Duty 6x4 SHACMAN F3000 Dump Truck 10JSD180 Transmission 400L Aluminum Fuel Tank For African Mine

Heavy Duty SHACMAN X3000 6x4 Tractor Head 430HP WP12 Euro2 Engine For Long Distance Transportation

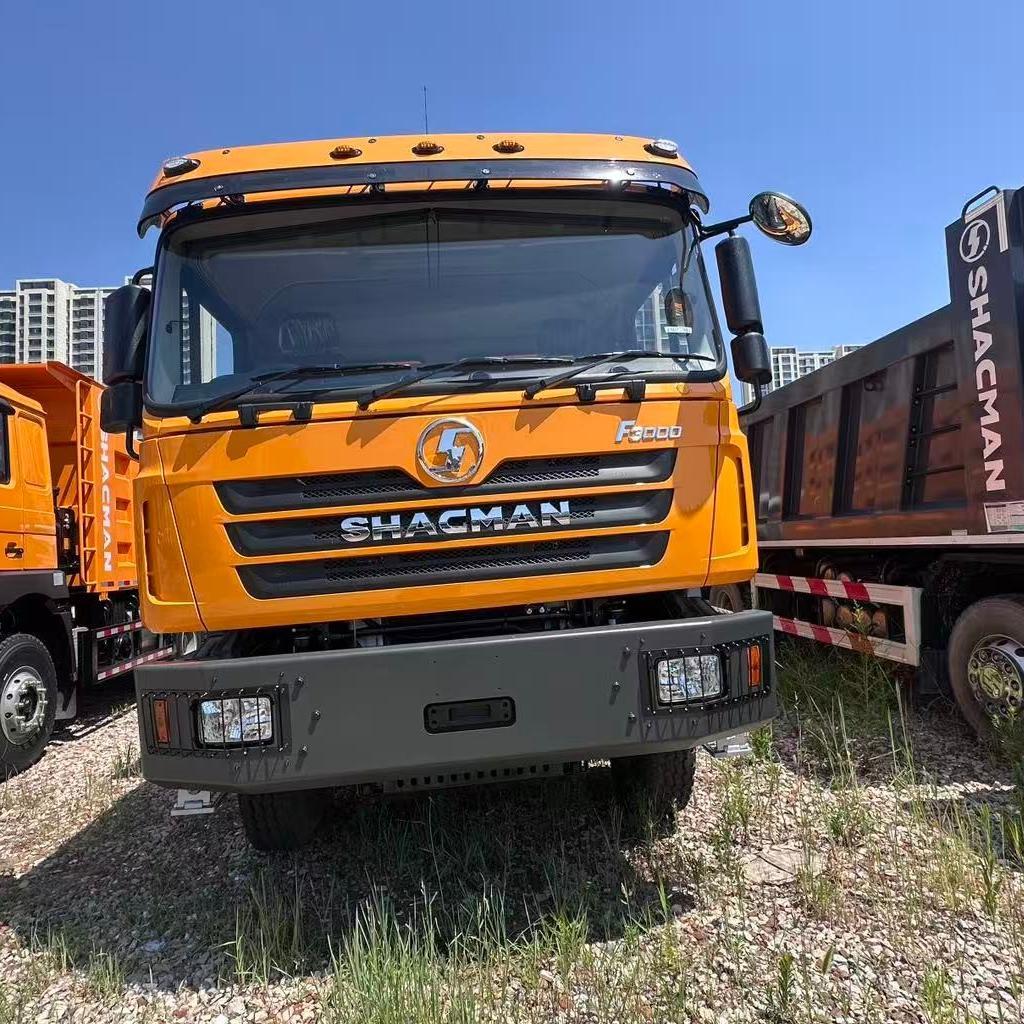

SHACMAN F3000 6x4 380HP Heavy Duty Dump Truck for Mining Construction
