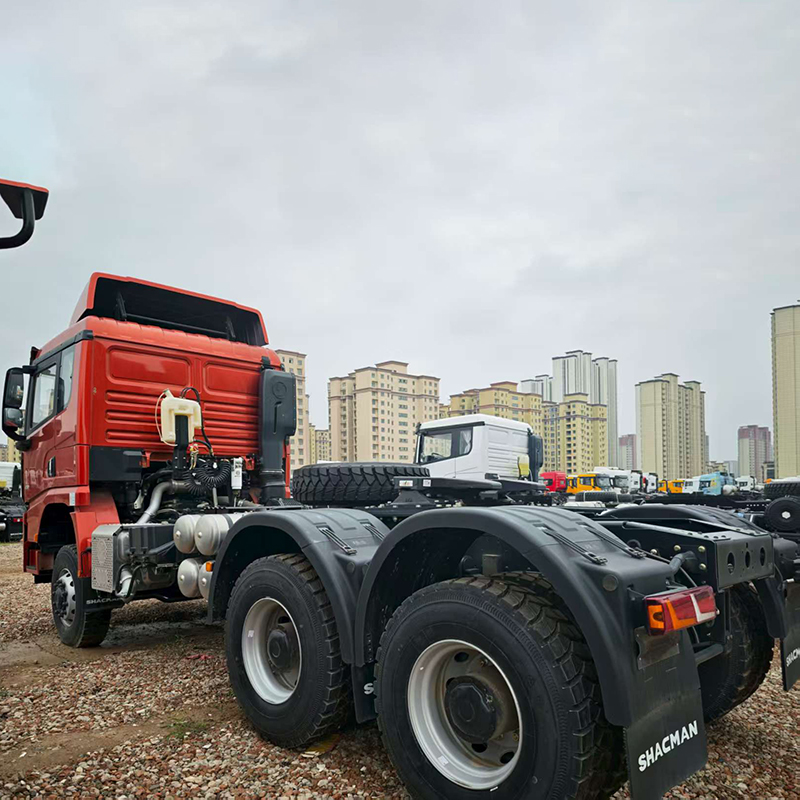

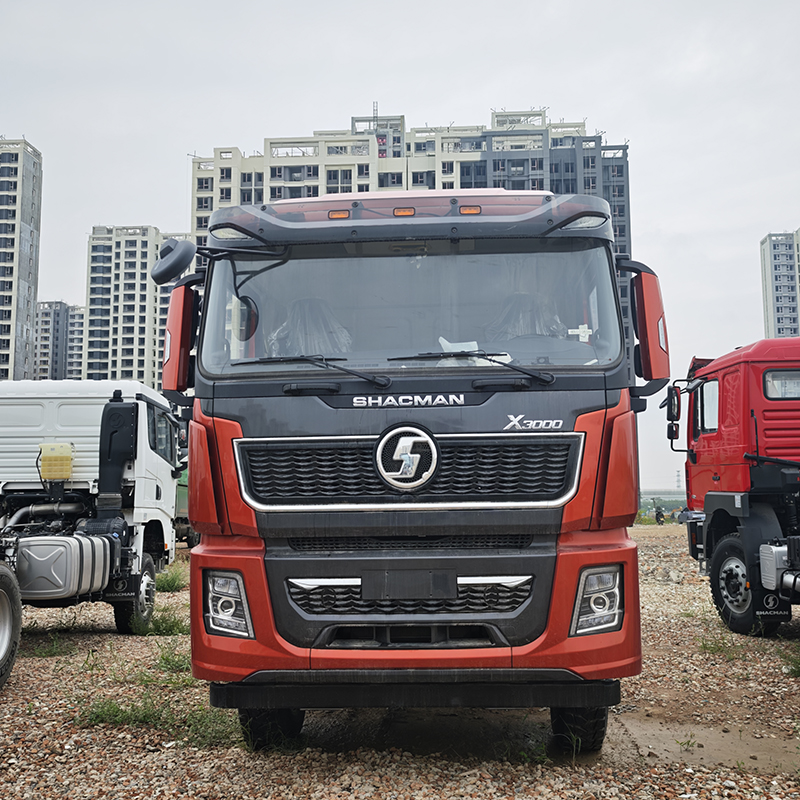

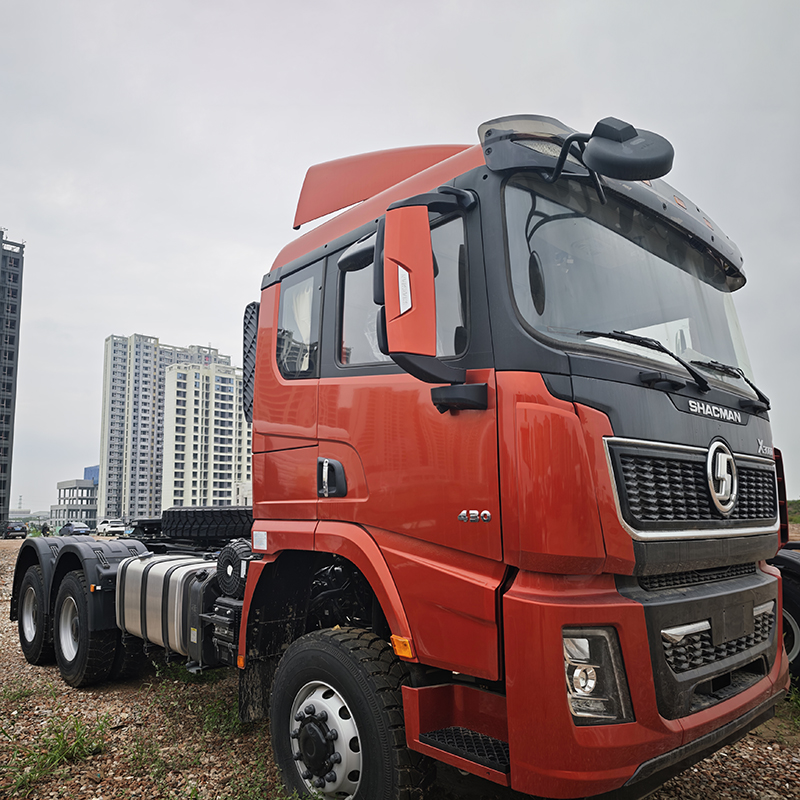

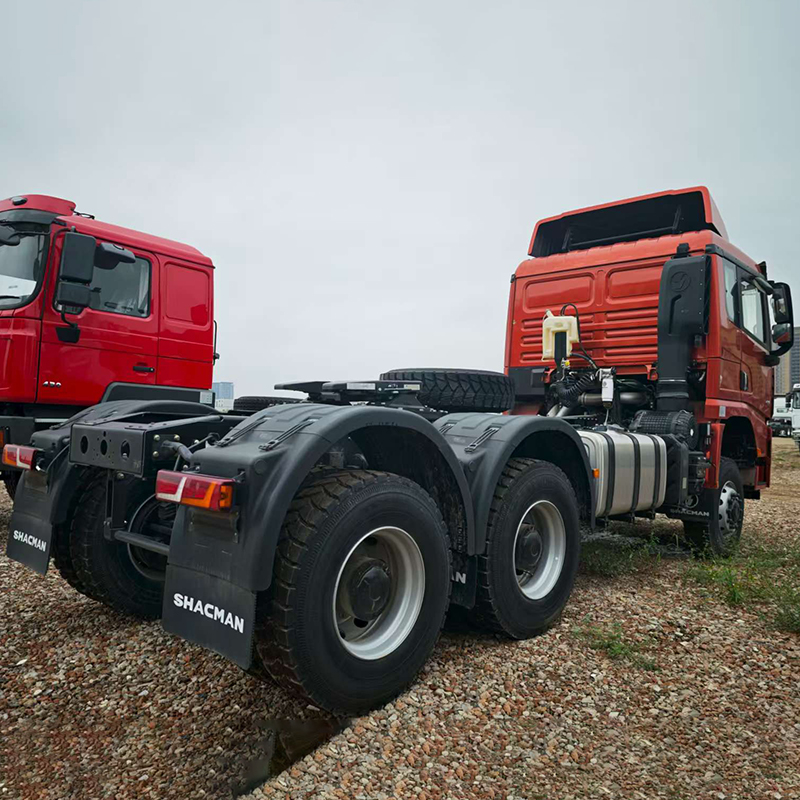

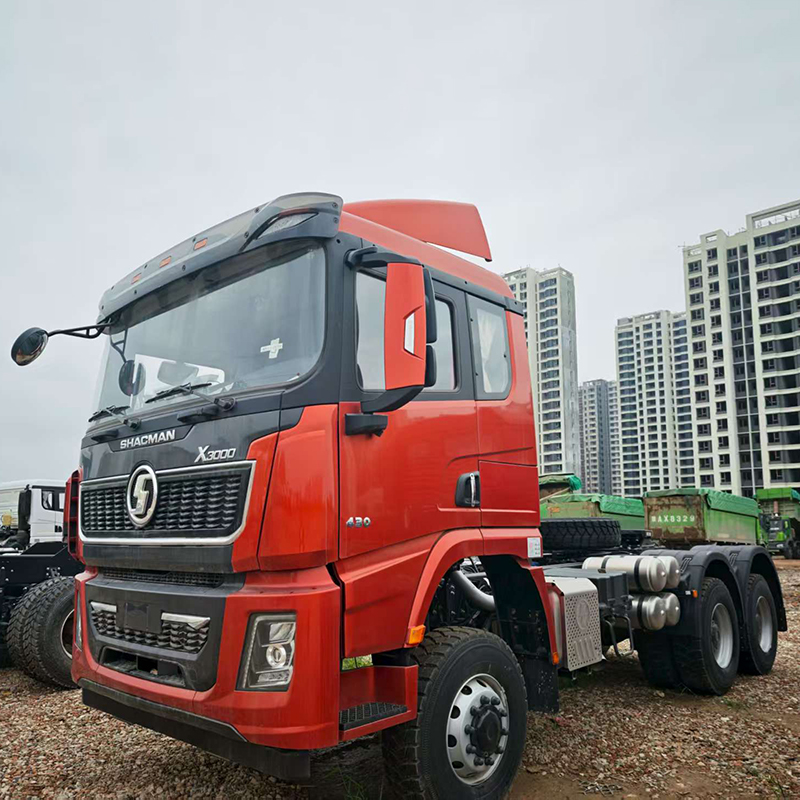

Home > Products > Lorry Truck > SHACMAN X3000 6×4 Enhanced Version Tractor Head 430HP Euro II WP12 Engine Heavy Duty Semi Trailer Truck For Cross-border Logistics Export
Driving type
6*4
Wheelbase(mm)
3175+1400
Max. Speed/(km/h)
65km/h
Usage Scenario
It is widely used in long-distance highway freight, container semi-trailer traction, intercity bulk cargo transportation, and cross-border logistics business for Central Asia, Africa and Southeast Asia coun
PRODUCT DETAILS
Main Technical Parameters
| Item | Parameter |
|---|---|
| Model Number | SX42554V324 |
| Drive Type | 6×4 |
| Engine Model | WP12.430E201 |
| Max Horsepower | 430 PS |
| Emission Standard | Euro II |
| Transmission | 12JSD200T-B Iron Shell Manual Gearbox |
| Rear Axle | 16T HD Double Reduction Axle, Final Drive Ratio 4.266 |
| Frame Dimension | 850×300mm (8+5 Layers) |
| Wheelbase | 3175+1400 mm |
| Front Axle | HD 7.5T |
| Suspension | Front & Rear Multi-leaf Spring (4 Main + 4 Auxiliary Leaves) |
| Fuel Tank | 400L Aluminum Alloy Flat Fuel Tank |
| Tire Spec | 12.00R20 Mixed Pattern Tire with Stainless Steel Rim Cover |
| Cabin | Extended High Roof Cabin |
MAIN PARAMETER
| Optional Item | Specific Description |
|---|---|
| Rear Axle | 16T HD Double Reduction Cast Axle, Final Drive Ratio 4.769 |
| Fifth Wheel | Reinforced 90 Type Fifth Wheel / JOST 50 Type Fifth Wheel |
| Fuel Tank | 700L Large Capacity Aluminum Alloy Fuel Tank |
| Air Reservoir | Aluminum Alloy Air Storage Cylinder |
| Brake System | WABCO 4-Channel ABS Anti-lock Braking System |
| Tire | 315/80R22.5 Tubeless Tire Made in China |
| Transmission Accessory | Gearbox with PTO + FHB400 Hydraulic Retarder |
1. Terms of payment: TT, 30% deposit, balance before delivery from factory.
2. Delivery at China port period: 55 working days after advance payment.
3. Vehicle warranty period: 12 months from the date of bill of lading.
RELATED PRODUCTS

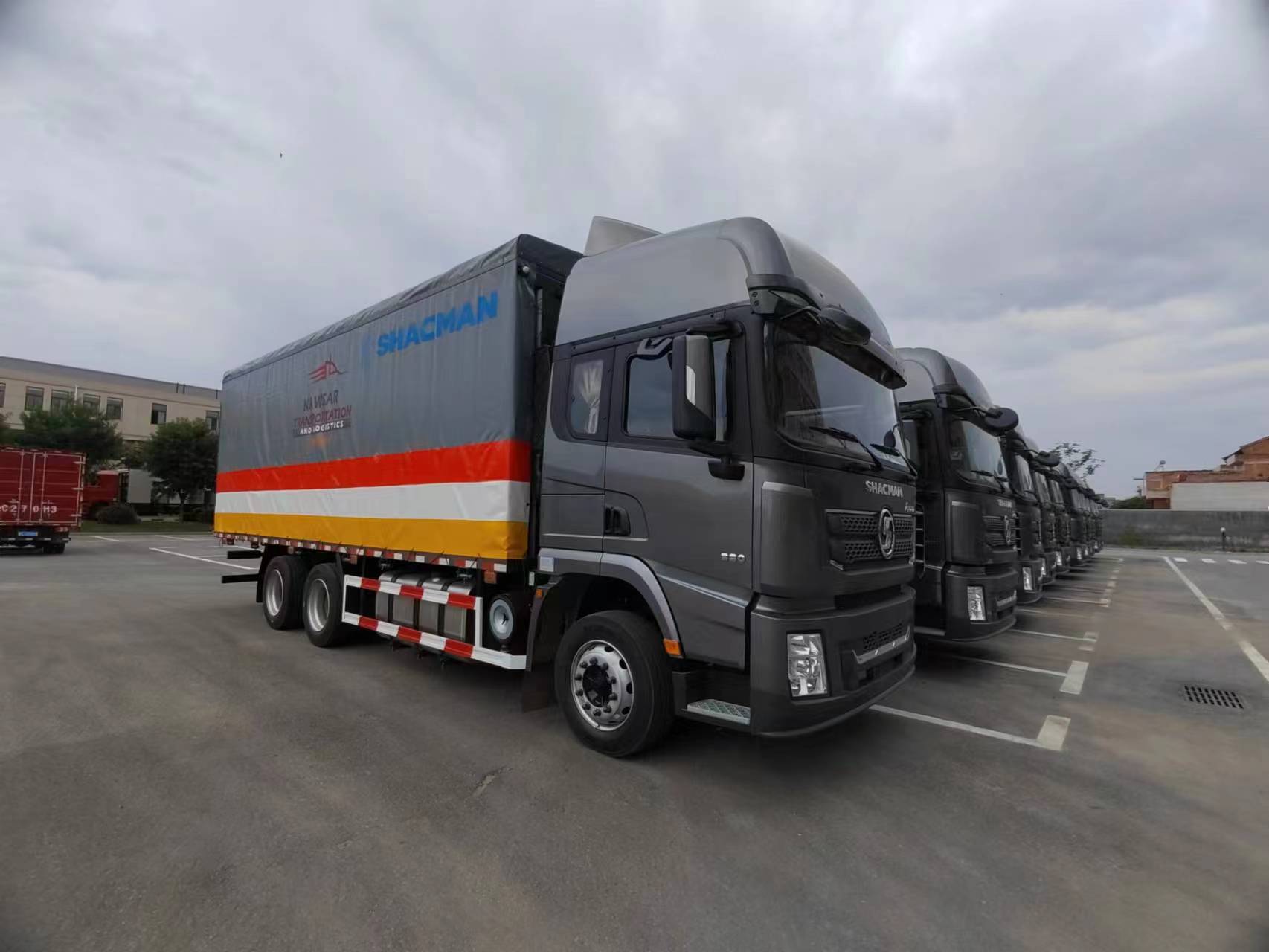

SHACMAN X3000 6×4 Composite Freight Truck, equipped with WP12.430E201 engine (Euro II emission standard), suitable for long-distance transportation of daily fresh food and agricultural products.
