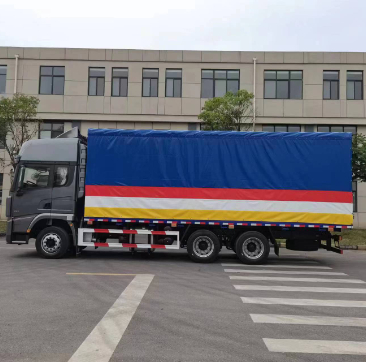

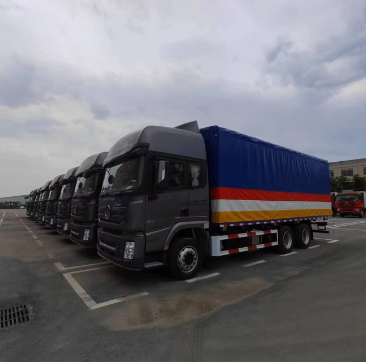

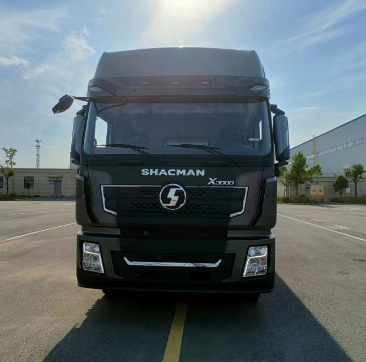

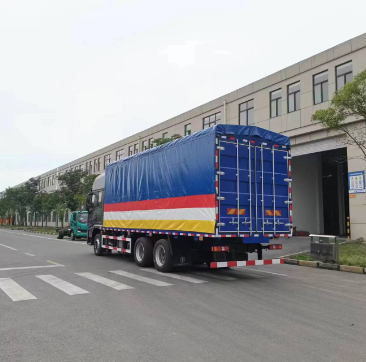

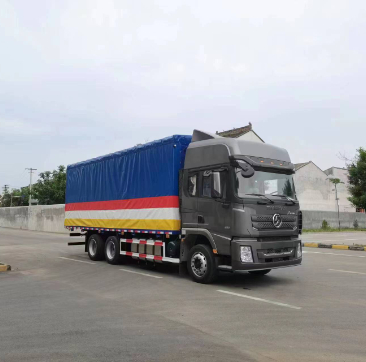

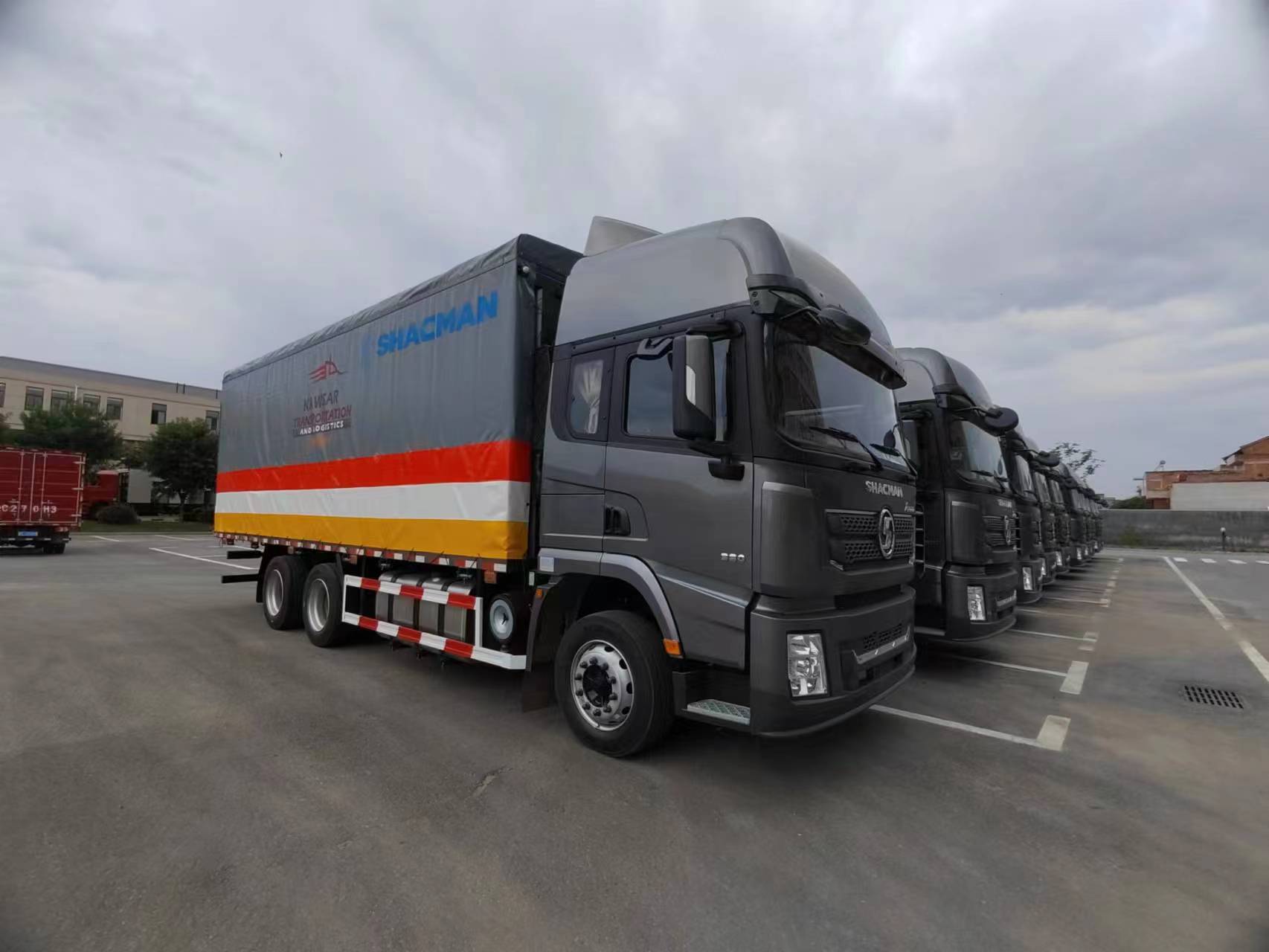

SHACMAN X3000 6x4 Lorry Truck

Driving type

6x4

Wheelbase(mm)

4375+1400

Max. Speed/(km/h)

70km/h

INQUIRY NOW

PRODUCT DETAILS

MODEL		SX12554V434
Driver position		左舵left Hand
Driving type		6*4
Wheelbase(mm)		4375+1400
Max. Speed(km/h)		90km/h
Engine	Brand	WEICHAI
	Model	WP12.430E201
	Emission Standard	EURO II
	Rated output power（PS）	430HP
	Displacement(L)	11.596L
Transmission	Brand	FAST
	Model	12JSD200TA-B-
Front axle	Brand	HANDE
	Model	MAN 7.5T
Rear axle	Brand	HANDE
	Model	11.5T MAN single reduction driving axle Speed ratio ：5.286
Clutch		￠430 diaphragm clutch￠430
Steering		ZF technology/ ZF
Suspension		Front less rear composite air suspension (ECAS standard in China)
Fuel tank		(600L+400L) Aluminum alloy
Wheels and tires		315/70R22.5 domestic tubeless longitudinal pattern (stainless steel wheel rim decorative cover)
Brakes		Running brake:Dual circuit compressed air brake
		Parking brake:Air discharging with spring control
		Auxiliary brake:Engine exhaust brake
Cabin		X3000 extended high roof cab with roof deflector, air main seat, four point air suspension cab, electric heated rearview mirror, electrically controlled automatic constant temperature air conditioning, electric window shaking machine, manual flip, fiberglass bumper, fixed boarding pedal, central locking (dual remote control), multifunctional steering wheel (without cruise control, only retaining buttons), ordinary side air filter, ordinary exhaust, domestic steering gear, domestic clutch, tail light protection grille, 165Ah maintenance free battery, daytime running lights, SHACMAN logo, full English logo, chrome plated horsepower logo on both sides of the car door, aluminum alloy air storage cylinder, spare tire rack, reverse buzzer, 2KG fire extinguisher, reserved electrical interface for full trailer, fuel tank buzzer Ground clearance height 430mm
