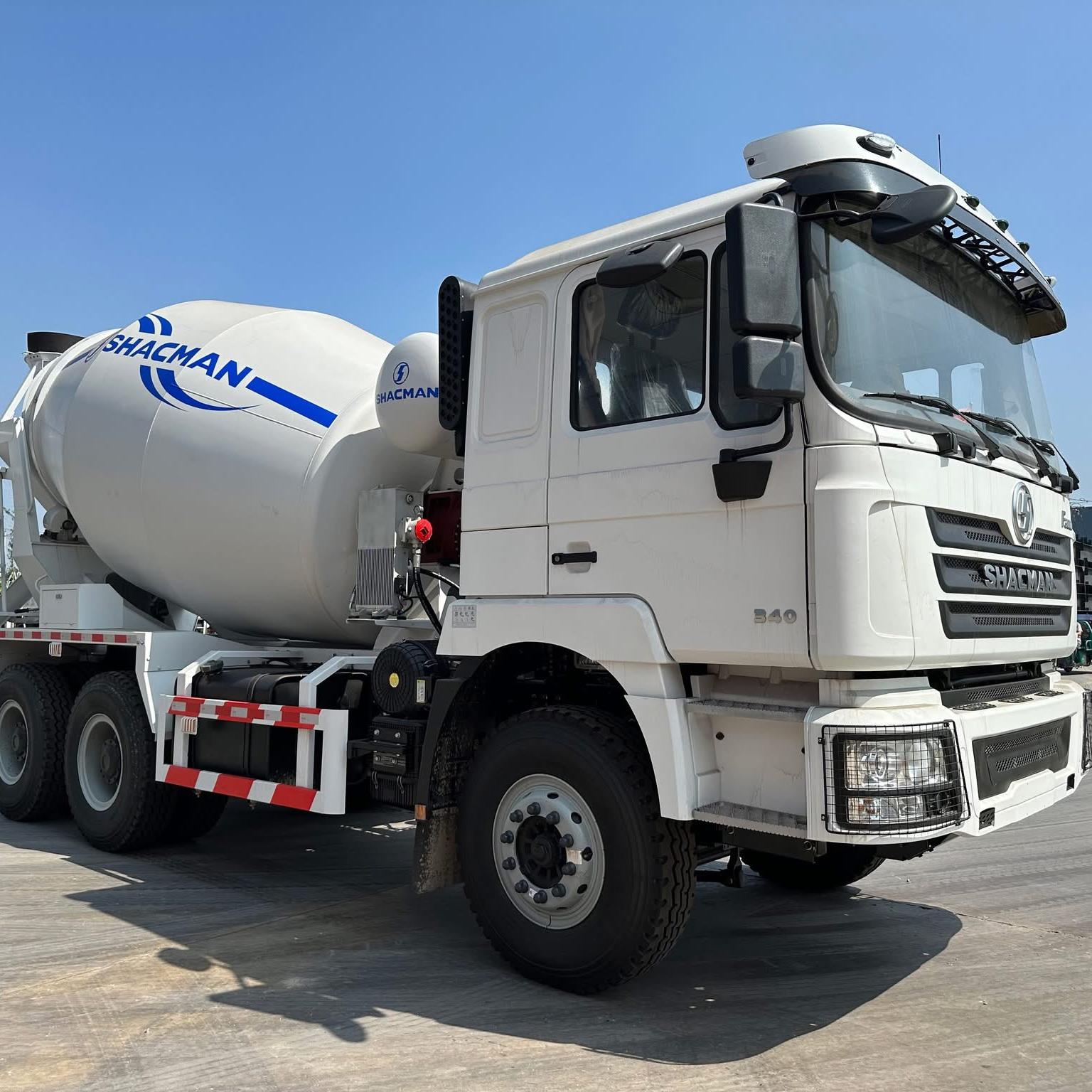

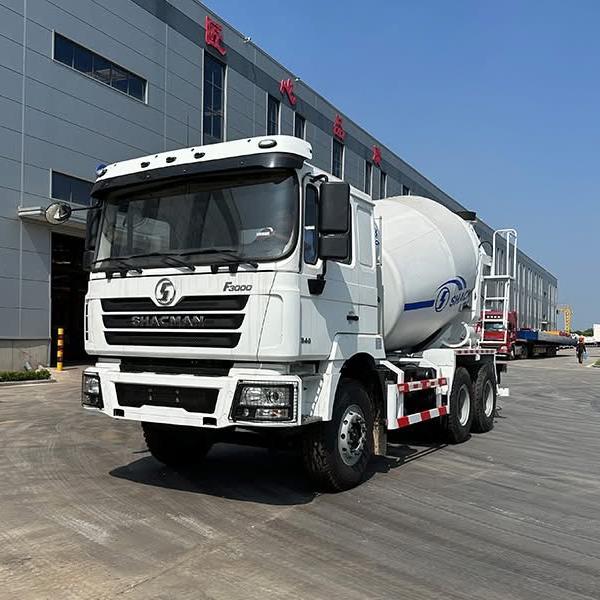

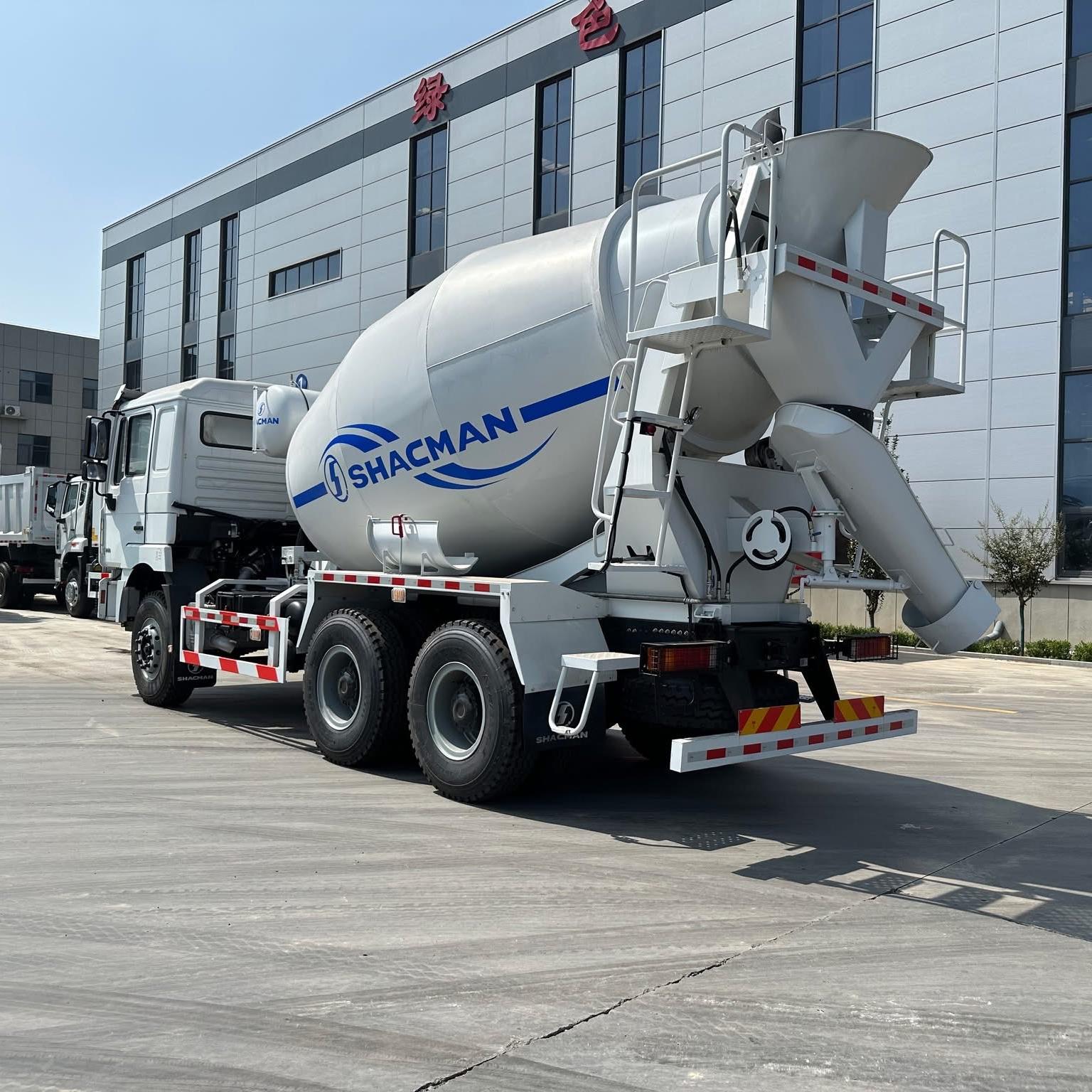

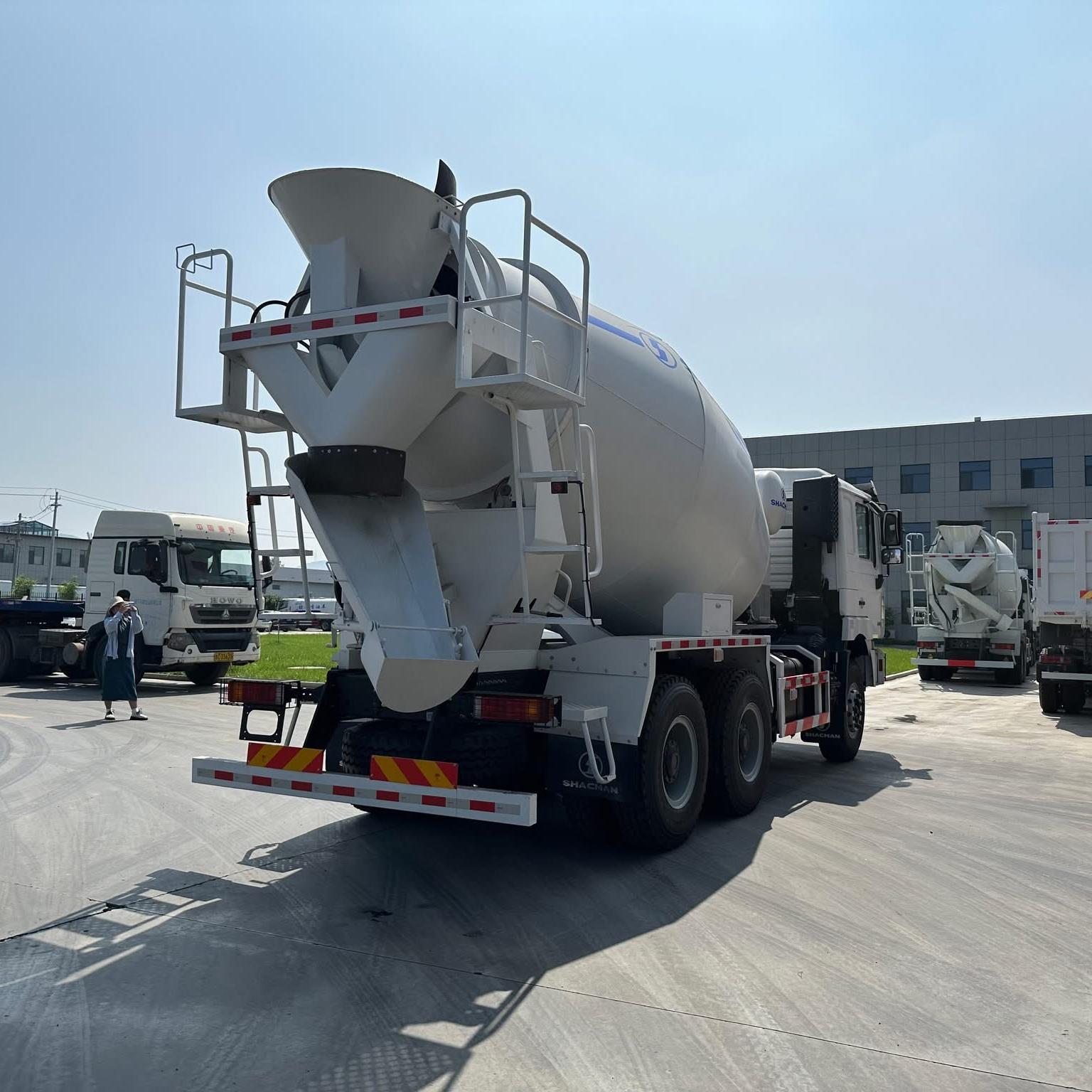

SHACMAN F3000 Enhanced 6×4 Concrete Mixer Truck 340HP Euro II SX5255GBJBR384 10CBM Cement Mixer Vehicle For Construction

Driving type

6*4

Wheelbase(mm)

3775+1400

Max. Speed/(km/h)

80km/h

Usage Scenario

This 10 cubic meter concrete mixer truck is widely used in urban municipal engineering, highway paving, bridge engineering, real estate construction, water conservancy projects and other concrete conveying work. It can run stably on standard pavement and simple rough construction roads, perfectly matching the construction demands 。

INQUIRY NOW

PRODUCT DETAILS

Product Overview

SHACMAN F3000 enhanced 6×4 concrete mixer truck (Model: SX5255GBJBR384) is equipped with WP10 340PS engine with PTO function and Euro II emission standard, matched with 12JSD200T-B manual transmission and 16T HD double reduction axle (speed ratio 5.92). This vehicle is fitted with a standard 10 cubic meter mixing tank, total vehicle mass ≤35 tons, perfectly designed for concrete transportation in highway roads and simple paved construction sites.

Standard Factory Configuration

Basic Cab & Chassis Configuration

Extended flat-top cab without top side deflector, hydraulic main seat, ordinary rearview mirror, electronically controlled automatic constant temperature air conditioner, electric window lifter, manual cab tilting structure. It adopts metal bumper with lamp protective net, two-stage boarding steps, side-mounted air filter, conventional exhaust system, water tank & tail lamp protective grille, 165Ah maintenance-free storage battery.

Export Standard Configuration (One Country One Policy)

Four-point hydraulic suspension system, cab curtains and bunk curtains, sun visor decorative lights, standard SHACMAN logo & full English exterior marks, chrome horsepower badges on both doors, rear enclosure guard plate, sound insulation panels, iron air storage tank, reverse buzzer, spare tire bracket, wheel chocks and telescopic shaft control mechanism.

Optional Upgrade Parts

Air suspended driver seat, three-stage boarding steps, 16T HD double reduction axle with 5.262 speed ratio, 10JSD180 iron-shell transmission without power take-off device.

Power & Carrying Performance

The whole vehicle is equipped with 3775+1400mm wheelbase, 850×300mm (8+7) frame, 1500mm frame rear suspension, HD 9.5T front axle, multi-leaf spring suspension structure, 400L aluminum alloy fuel tank and 12.00R20 mixed pattern tires. The sturdy chassis structure brings stable bearing capacity and durable running performance under heavy-load working conditions.

Application Scenarios

Mainly used for concrete delivery of infrastructure projects, building construction, road engineering and municipal works. It adapts to heavy-load transportation demands on common pavement and temporary construction access roads in Africa, Central Asia and other overseas markets.

Model Core Technical Parameters

Item	Specific Parameter
Model Number	SX5255GBJBR384 SHACMAN F3000 Enhanced Version
Drive Mode	6×4
Engine Model	WP10.340E22 (With PTO), 340PS, Euro II Emission Standard
Transmission	12JSD200T-B
Rear Axle & Ratio	16T HD Double Reduction Axle, Final Drive Ratio 5.92
Frame Dimension	850×300 (8+7) mm
Wheelbase	3775+1400 mm
Frame Rear Overhang	1500 mm
Cab Type	Extended Flat-top Cab
Front Axle	HD 9.5T Front Axle
Suspension	Front & Rear Multi-leaf Spring, 4 Main Leaves + 4 Auxiliary Spring Saddles
Fuel Tank	400L Aluminum Alloy Fuel Tank
Tire Spec	12.00R20 Mixed Pattern Tire
Mixing Drum Volume	10 Cubic Meter
Total Gross Vehicle Mass	≤35 Ton

Item	Specific Parameter
Model Number	SX5255GBJBR384 SHACMAN F3000 Enhanced Version
Drive Mode	6×4
Engine Model	WP10.340E22 (With PTO), 340PS, Euro II Emission Standard
Transmission	12JSD200T-B
Rear Axle & Ratio	16T HD Double Reduction Axle, Final Drive Ratio 5.92
Frame Dimension	850×300 (8+7) mm
Wheelbase	3775+1400 mm
Frame Rear Overhang	1500 mm
Cab Type	Extended Flat-top Cab
Front Axle	HD 9.5T Front Axle
Suspension	Front & Rear Multi-leaf Spring, 4 Main Leaves + 4 Auxiliary Spring Saddles
Fuel Tank	400L Aluminum Alloy Fuel Tank
Tire Spec	12.00R20 Mixed Pattern Tire
Mixing Drum Volume	10 Cubic Meter
Total Gross Vehicle Mass	≤35 Ton

MAIN PARAMETER

Category	Detailed Configuration
Cab & Interior	Extended flat-top cab without top spoiler, hydraulic driver seat, standard rearview mirror, automatic constant temperature air conditioner, electric window regulator, manual cab tilting mechanism
Exterior & Protection	Metal bumper with lamp protective net, two-stage access steps, side-mounted air filter, conventional exhaust system, water tank & tail light protective grille
Electrical System	165Ah maintenance-free lead-acid storage battery

1. Terms of payment: TT, 30% deposit, balance before delivery from factory.

2. Delivery at China port period: 55 working days after advance payment.

3. Vehicle warranty period: 12 months from the date of bill of lading.
