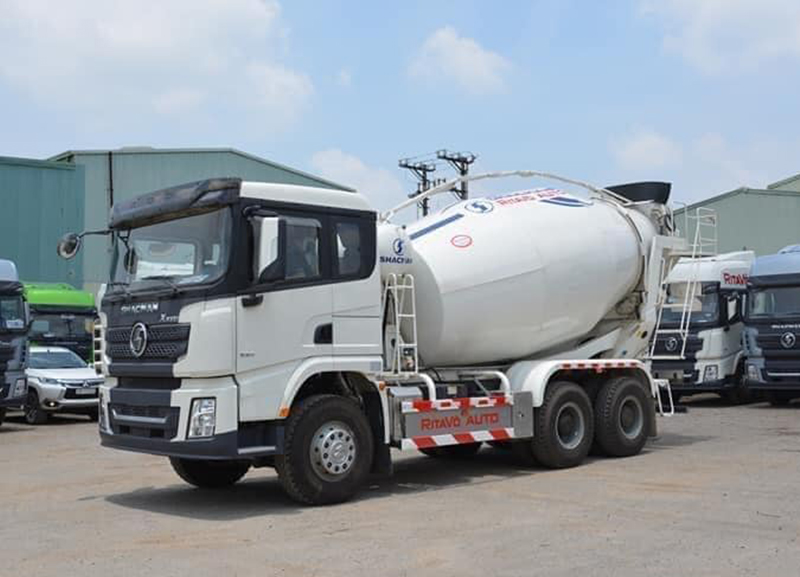

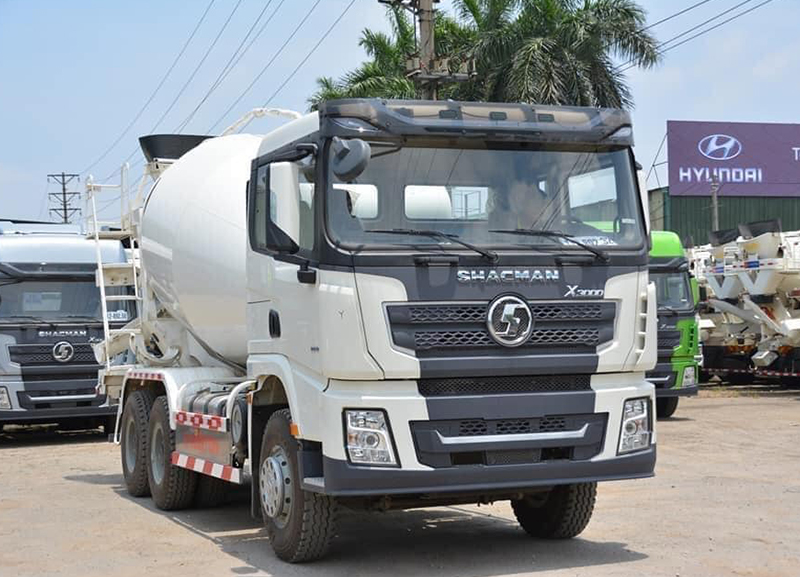

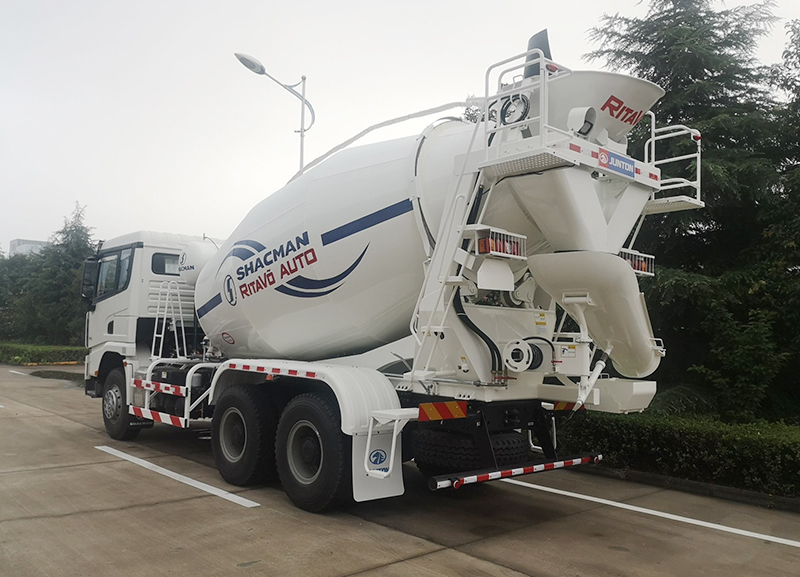

SHACMAN X3000 6X4 Mixer Truck

Driving type

6*4

Wheelbase(mm)

3575+1400

Max. Speed/(km/h)

75km/h

Usage Scenario

Engineering construction, Logistics transportation

INQUIRY NOW

MAIN PARAMETER

MODEL		SX5258GJB6R364C
Driver position		Left Hand
Driving type		6*4
Wheelbase/(mm)		3575+1400
Max. Speed/(km/h)		75km/h
Engine	Brand	CUMMINS
	Model	ISM11E5 345 +PTO（JACOB）
	Emission Standard	EURO V
	Rated output power/（PS）	253KW/345HP
	Displacement(L)	10.8L
Transmission	Brand	FAST/
	Model	10JSD180T
Front axle	Brand	HANDE
	Model	MAN 7.5T
Rear axle	Brand	HANDE
	Model	16T MAN Double speed reduction bridge<br>Speed ratio: 5.262
Clutch		￠430 diaphragm clutch
Steering		ZF technology
Frame		850x300 (8+7)
Suspension		Front and rear multi-leaf spring four main flims+four horse riding bolts
Fuel tank		300L Aluminum alloy
Wheels and tires		12.00R20 10+1
Brakes		Running brake: Dual circuit compressed air brake
		Parking brake: Air discharging with spring control
		Auxiliary brake: Engine exhaust brake
Cabin		X3000 medium length flat top cab without air deflector, air main and auxiliary seats, four point hydraulic suspension, ordinary rearview mirrors, electrically controlled automatic temperature control air conditioning, electric window rocking machine (March motor), manual flipping, metal bumper with light protection net, three-level boarding pedal, multifunctional steering wheel (with cruise control), ordinary air filter, ordinary exhaust, water tank protection grille, imported clutch, rear axle stabilizer bar, tail light protection grille, 180Ah maintenance free battery, Shacman telematics (with screen but no terminal), yellow illuminated sunshade light, cab flipping Spanish logo, SHACMAN logo, all English logo, aluminum alloy air storage tank. Special rear protection, reverse buzzer, 2kg fire extinguisher, remote throttle controller, telescopic shaft control, rear beam lighting (with protective net) LED daytime running lights, inverter power supply (300W), Jack Sail compressor (ISM and WP engines only)
Upbody		8

* Description:

1. Terms of payment: T/T, 30% deposit, balance before delivery from factory.

2. Delivery at China port period: 55 working days after advance payment.

3. Vehicle warranty period: 12 months from the date of bill of lading.
