Driving type
6*4
Email: shacman@shacman-truck.com
Tel.: +86 135 7927 1170
Email: shacman@shacman-truck.com
Tel.: +86 135 7927 1170
Driving type
6*4
Wheelbase(mm)
3575+1400
Max. Speed/(km/h)
65km/h
Usage Scenario
Construction sites, infrastructure projects, road construction, bridge building, urban real‑estate development, concrete transportation, municipal engineering
PRODUCT DETAILS

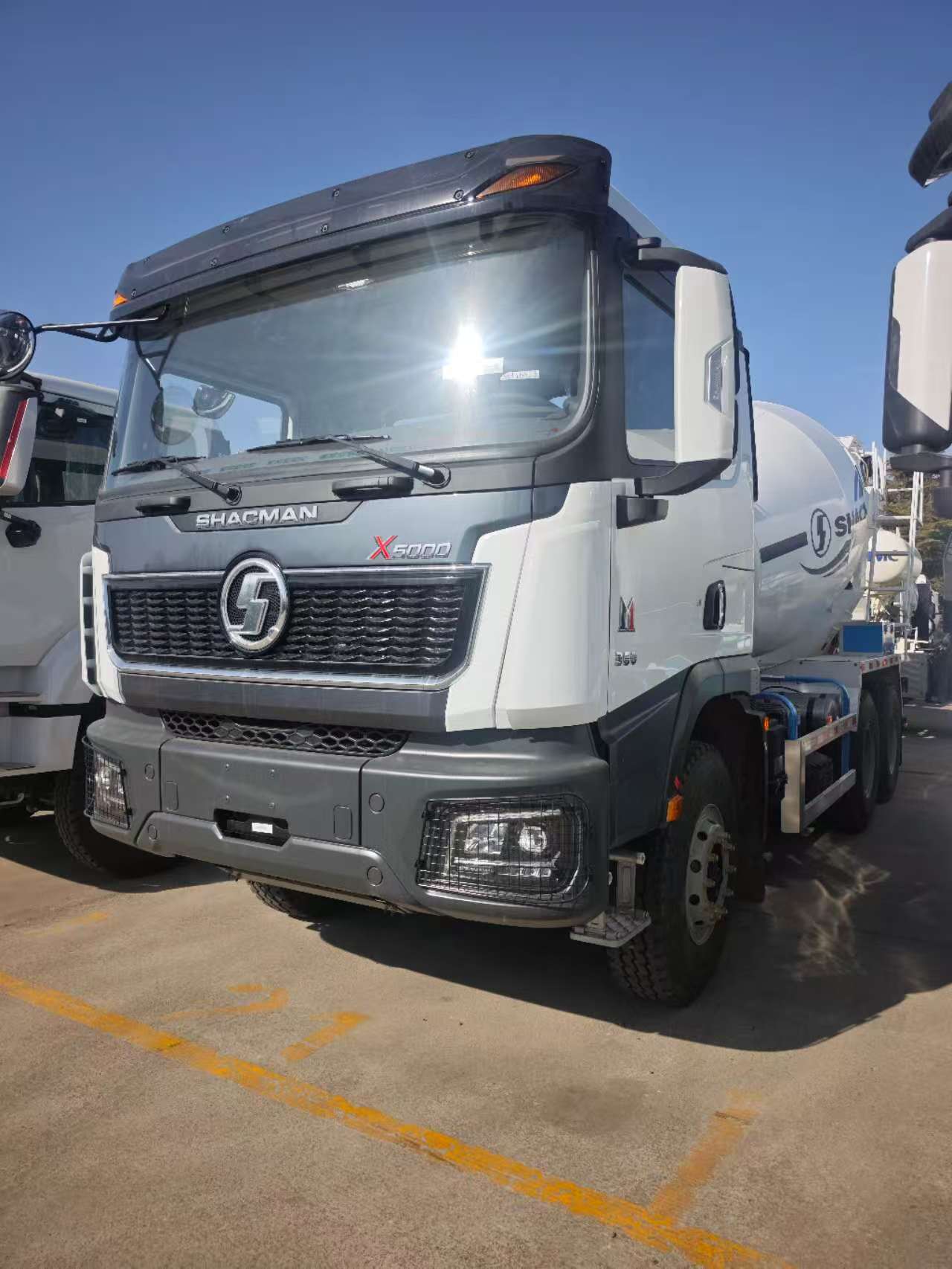

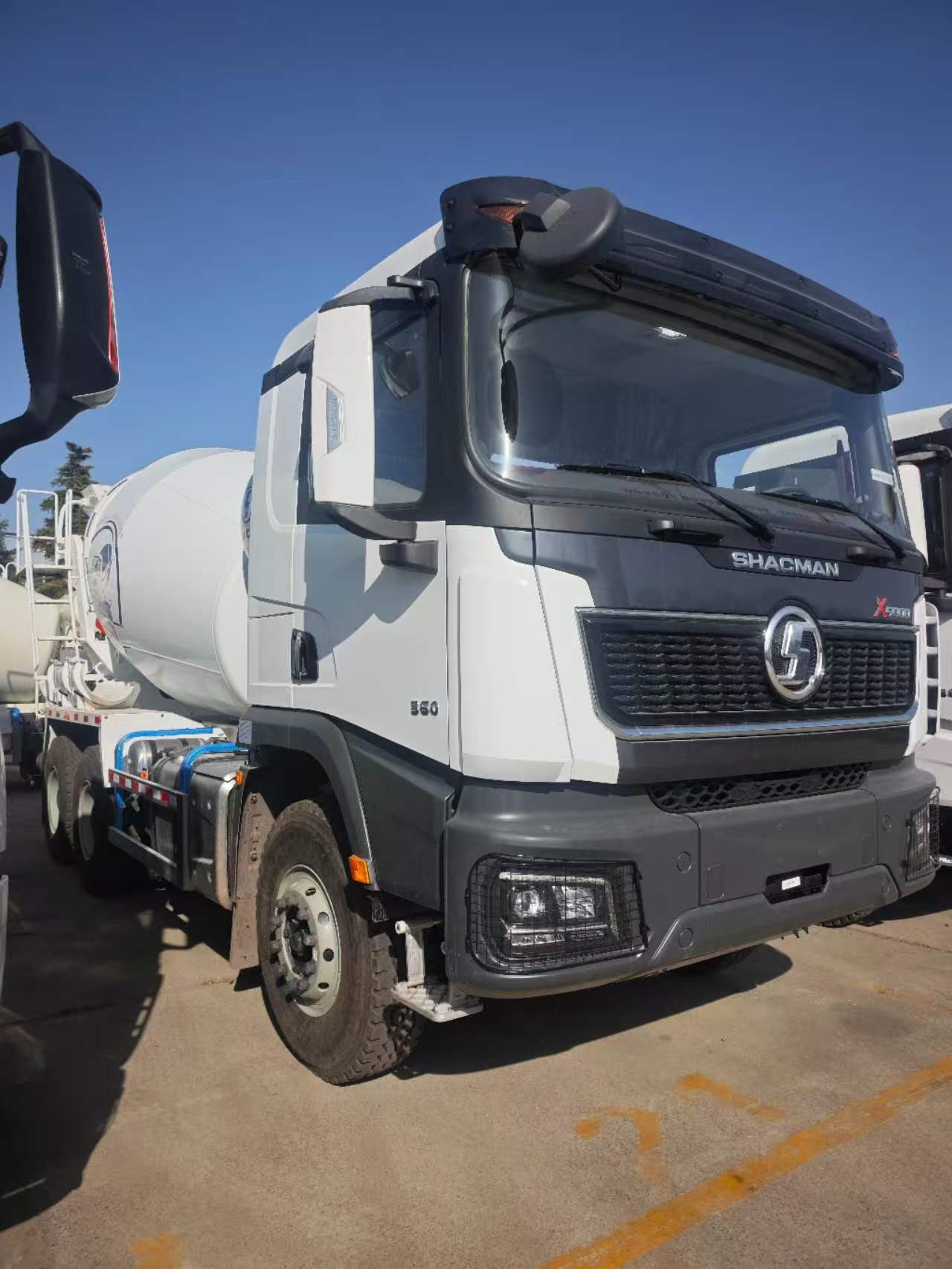

SHAACMAN X5000 6×4 mixer truck adopts WEICHAI WP12 engine, 430HP(316kW), displacement 11.596L, matched with FAST gearbox and 16T HD double reduction axle, final drive ratio 5.92.
The mixer superstructure is CIMC Lingyu 10m³ drum, equipped with PMB7Ysp reducer, ARK90 hydraulic pump & motor. Drum material Q355 steel, 5mm thickness; drum head Q355 steel, 8mm thickness.
Main Features
Extended Flat Roof Cab, without top and side wind deflector
Air suspension driver seat, electric & heated rearview mirror
Electronic automatic thermostatic air conditioner, power window lifter
Electric cab tilt, metal bumper with lamp guard, 3-step entry board
12.00R20 mixed tread tires, stainless steel rim covers
7-inch optimized smart display with rear view camera
This heavy-duty concrete mixer truck is widely used in highway, building construction and other engineering projects. We provide factory direct supply and professional after-sales service. Welcome to contact us for more details and best quotation.
| Item | Specification |
|---|---|
| Truck Model | SHAACMAN X5000 6×4 |
| Engine | WEICHAI WP12, 430HP(316kW), 11.596L |
| Gearbox | FAST Gearbox |
| Rear Axle | 16T Heavy Duty Double Reduction Axle, Final Drive Ratio 5.92 |
| Mixer Volume | 10m³ CIMC Lingyu Mixer Superstructure |
| Reducer | PMB7Ysp |
| Hydraulic Pump & Motor | ARK90 |
| Drum Material | Q355 Steel, Drum Wall 5mm, Drum Head 8mm |
| Tire | 12.00R20 Mixed Tread Tire, Stainless Steel Rim Cover |
| Cab | Extended Flat Roof Cab, Without Wind Deflector |
| Main Application | Concrete transportation for construction, highway projects |
MAIN PARAMETER
Description:
1. Terms of payment: T/T, 30% deposit, balance before delivery from factory.
2. Delivery at China port period: 55 working days after advance payment.
3. Vehicle warranty period: 12 months from the date of bill of lading.
