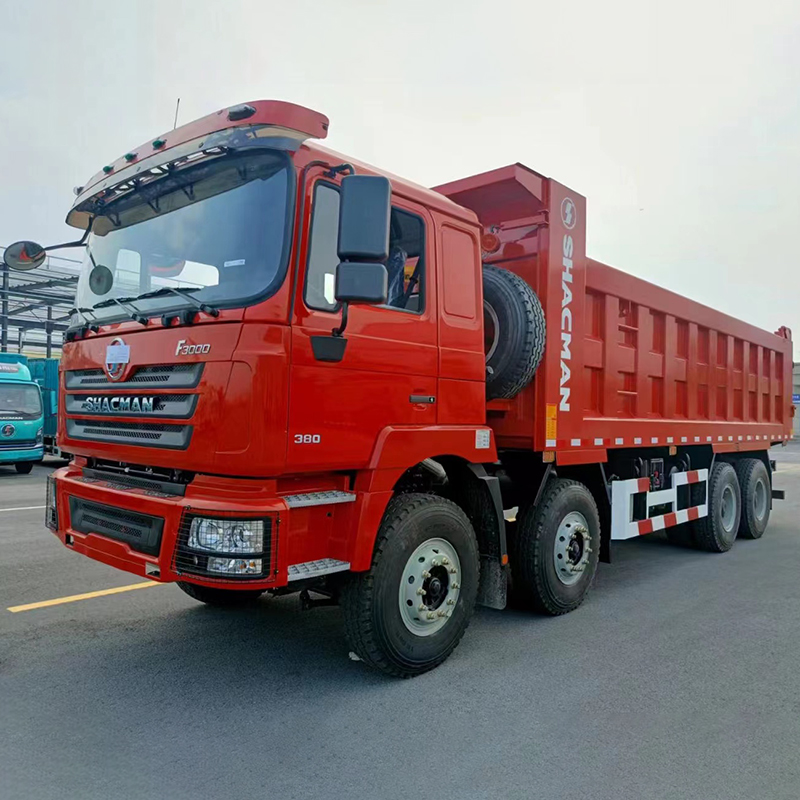

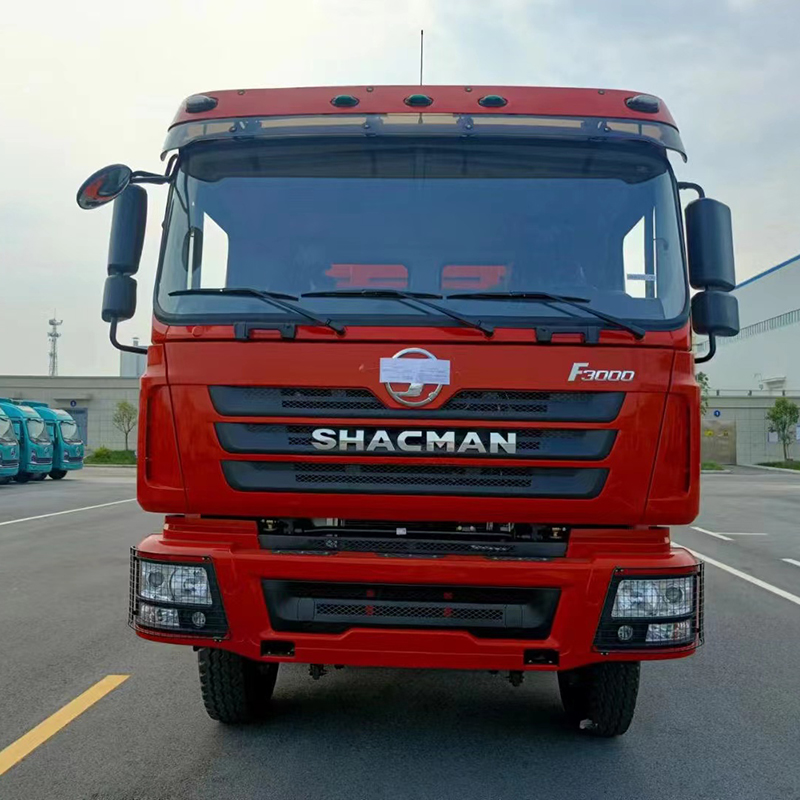

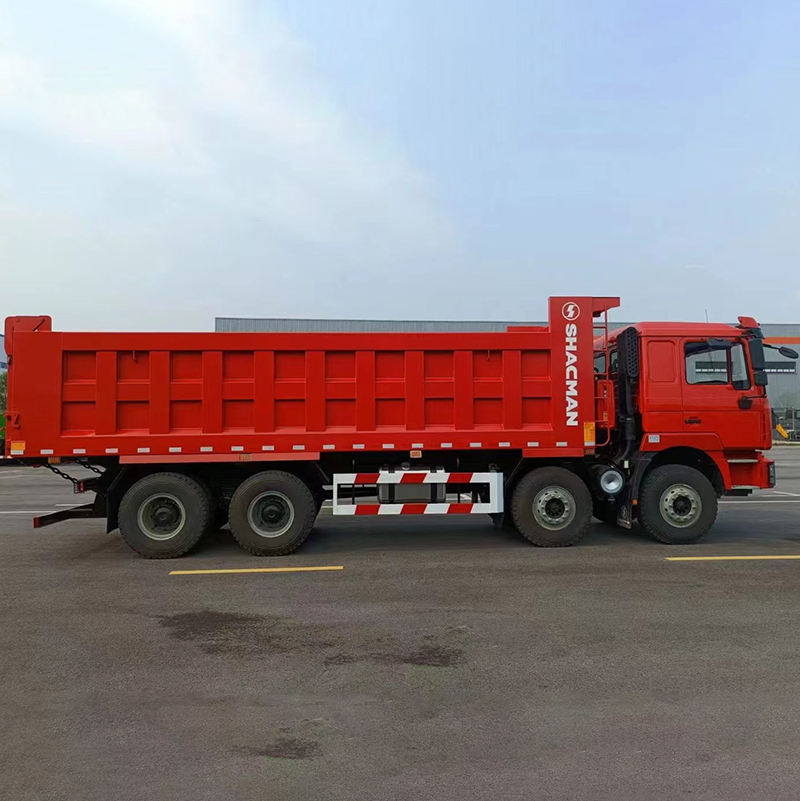

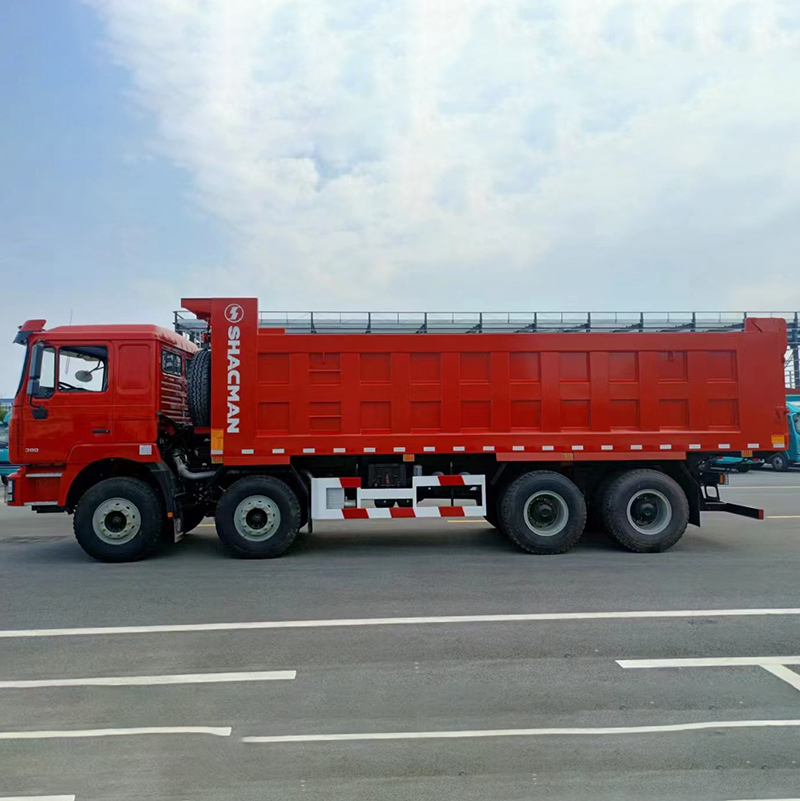

F3000 Model 8×4 Right-Hand Drive Dump Truck, 380 HP WP10 Engine, Euro II Emission Standard, Mining Dump Truck

Driving type

8*4

Wheelbase(mm)

1800+3775+1400

Max. Speed/(km/h)

60km/h

Usage Scenario

Suitable for mine ore transportation, earthwork excavation, construction muck and gravel hauling, also works for road renovation, infrastructure engineering and rugged muddy off-road working conditions.

PRODUCT DETAILS

Basic Chassis Configuration

Platform: F3000 | Drive Mode: 8×4 | Version: Reinforced Version | Model No.: SX3315DT386R

Engine: WP10.380E22, 380HP, Euro II Emission Standard

Transmission: 10JSD180 Iron Shell Gearbox

Rear Axle: 16T HD Double Reduction Cast Axle, Final Drive Ratio 5.262

Frame Size: 850×300mm (8+7 Layer Thickness)

Wheelbase: 1800+3775+1400mm | Rear Overhang: 1000mm

Cab: Medium-long Flat Roof Cab

Front Axle: HD 9.5T Heavy-duty Steer Axle

Suspension: Multi-leaf Spring Suspension (4 Main + 4 Auxiliary)

Fuel Tank: 380L Steel Fuel Tank

Tire Spec: 12.00R20 Mixed Pattern Mining Tire

Gross Vehicle Mass: 30.286 Ton


Applicable Working Conditions

Designed for heavy-load transportation in mining yards, earthwork projects, construction muck and aggregate haulage. Adaptable to rough, muddy, bumpy and steep slope road conditions for long-distance bulk material delivery.


1. Reinforced Heavy-Duty Frame

Adopts thickened multi-layer longitudinal beam structure, high tensile steel welding forming, strong torsion resistance and anti-bending performance, coping with frequent bumpy and overload transportation conditions.


2. Durable Heavy Load Axle Assembly

16-ton double reduction cast rear axle with reasonable speed ratio, strong climbing ability and high bearing capacity, suitable for long-term mine heavy haul operation.


3. Robust Suspension System

Multi-piece thickened leaf spring suspension design, excellent shock absorption and load-bearing performance, stable running under full load on complex rugged roads.


4. Reliable Power Matching

WP10 380HP Euro II mature engine matched with heavy-duty manual transmission, sufficient torque, low fuel consumption, stable output under continuous heavy load.


5. Customized Export Configuration

Right-hand drive layout, one-country-one-certification supporting, optional various tires, ABS and auxiliary configurations to adapt diverse harsh working environments.


MAIN PARAMETER

ItemSpecification
Model No.SX3315DT386R
Platform / VersionF3000 / Reinforced Version
Drive Form8×4
Engine ModelWP10.380E22, 380HP, Euro II
Transmission10JSD180 Iron Shell Gearbox
Rear Axle / Ratio16T HD Double Reduction Axle, 5.262
Frame Dimension850×300mm (8+7 layers)
Wheelbase1800+3775+1400mm
Cab TypeMedium-long Flat Roof Cab
Tire Size12.00R20 Mining Mixed Pattern
Gross Vehicle Mass30.286 Ton


1. Terms of payment: TT, 30% deposit, balance before delivery from factory.

2. Delivery at China port period: 55 working days after advance payment.

3. Vehicle warranty period: 12 months from the date of bill of lading.
