Driving type
4*2
Email: shacman@shacman-truck.com
Tel.: +86 135 7927 1170
Email: shacman@shacman-truck.com
Tel.: +86 135 7927 1170
Driving type
4*2
Wheelbase(mm)
4500
Max. Speed/(km/h)
95
Usage Scenario
Highway construction, road maintenance, urban road projects, and bitumen spraying operations.
PRODUCT DETAILS

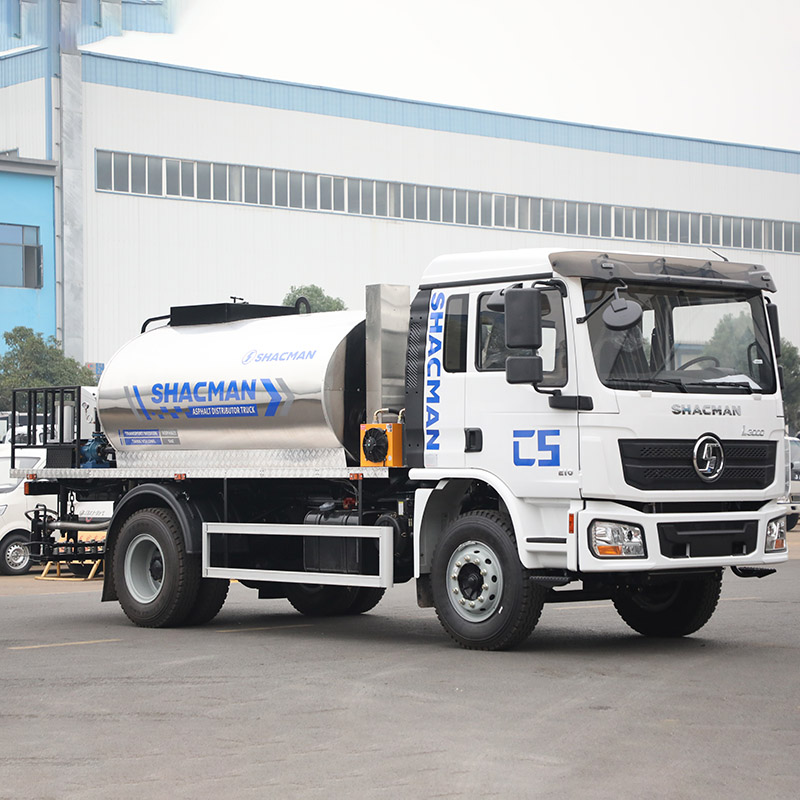

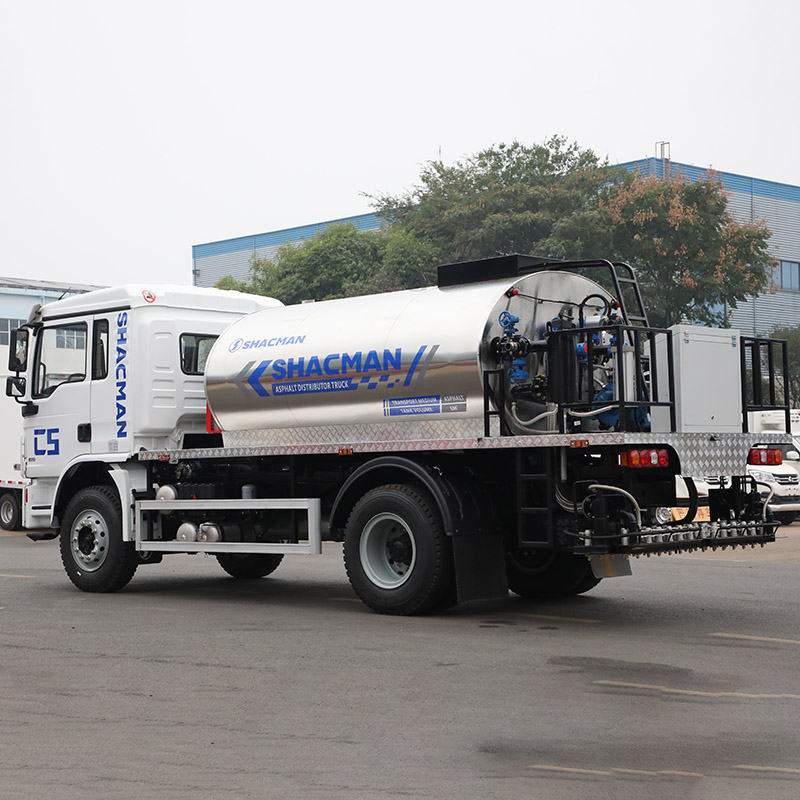

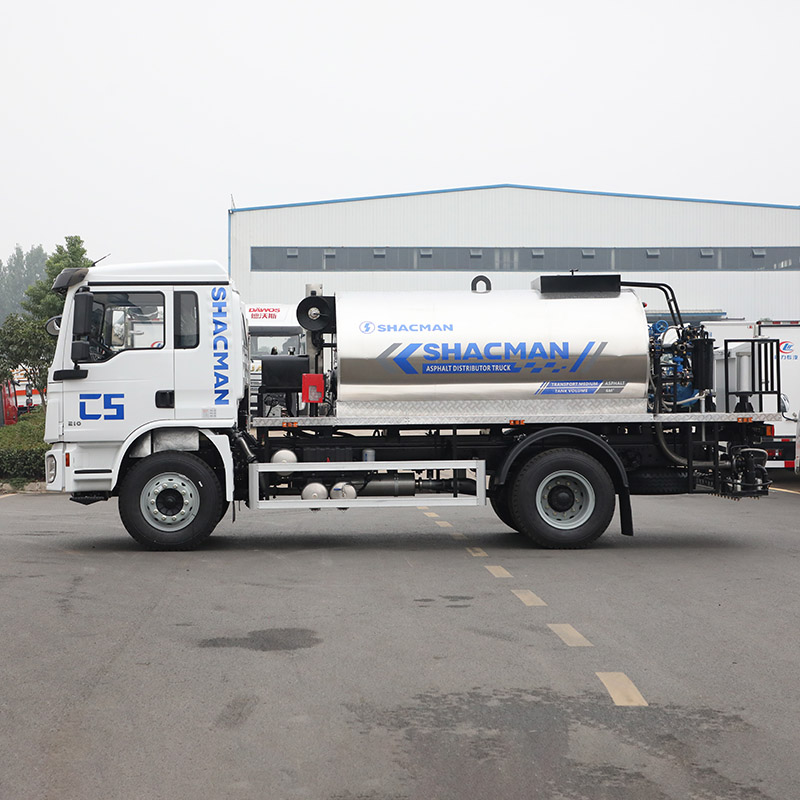

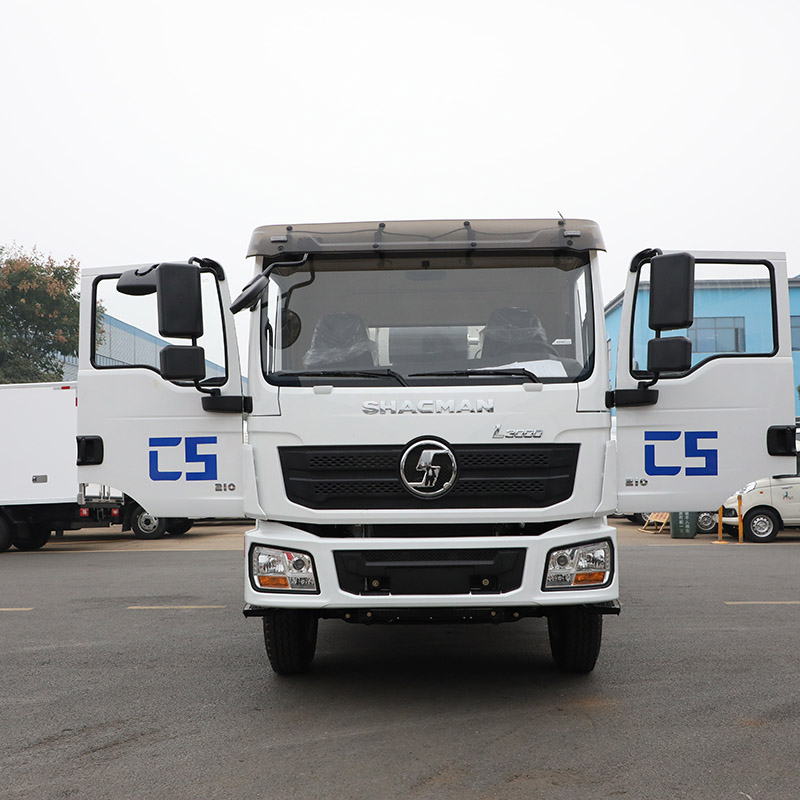

The SHACMAN L3000 asphalt distributor truck is a professional road construction vehicle, designed for high-precision bitumen spraying and distribution in highway construction and road maintenance projects. Equipped with an insulated asphalt tank and advanced spraying system, it ensures uniform and efficient bitumen application.
High Precision Spraying: Computer-controlled bitumen spraying system with adjustable flow rate, ensuring even distribution and reducing material waste.
Insulated Asphalt Tank: 12m³ stainless steel tank with heating and insulation system, maintaining bitumen fluidity even in low-temperature environments.
Reliable Chassis: Built on SHACMAN L3000 chassis with 210HP diesel engine, providing strong power and stable performance on various road conditions.
Easy Operation: User-friendly control panel with real-time monitoring, allowing drivers to adjust spraying parameters conveniently.
Main Technical Specifications
| Brand | SHACMAN |
| Model | L3000 4×2 Asphalt Distributor Truck |
| Engine | WP6.210E32, 210HP |
| Drive Type | 4×2 |
| Asphalt Tank Capacity | 12 m³ |
| Spraying Width | 0.5 - 4.5 m (adjustable) |
| Max. Spraying Amount | 0.2 - 3.0 kg/m² |
| Wheelbase | 4500 mm |
| Max. Speed | 95 km/h |
| Application | Highway construction, road maintenance, bitumen spraying |
MAIN PARAMETER
| Asphalt Tank Capacity | 12 m³ |
| Spraying Width | 0.5 - 4.5 m (adjustable) |
| Spraying Volume | 0.2 - 3.0 kg/m² |
| Tank Heating System | Automatic Diesel Heating System |
| Control Mode | Computer Automatic Control + Manual Control |
| Working Temperature | -10℃ ~ +60℃ |
1. Terms of payment: TT, 30% deposit, balance before delivery from factory.
2. Delivery at China port period: 55 working days after advance payment.
3. Vehicle warranty period: 12 months from the date of bill of lading.
