Home > Products > L3000 4×2 Water Sprinkler Truck 240HP Road Cleaning & Dust Suppression Water Tank Lorry

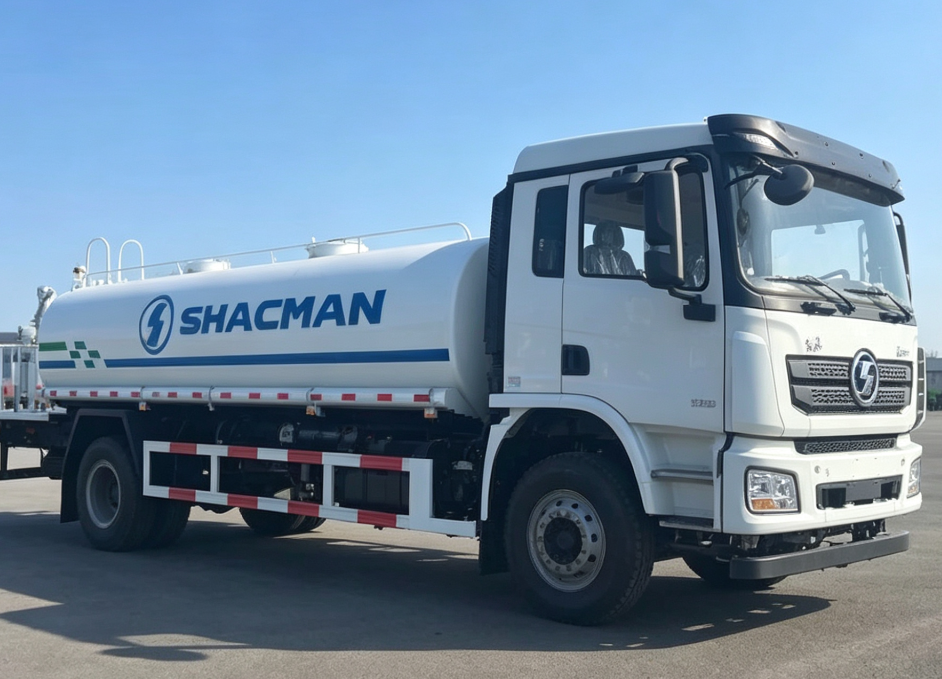

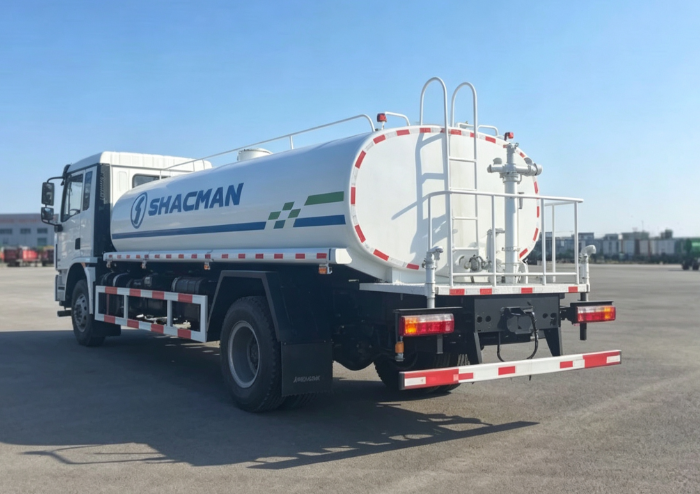

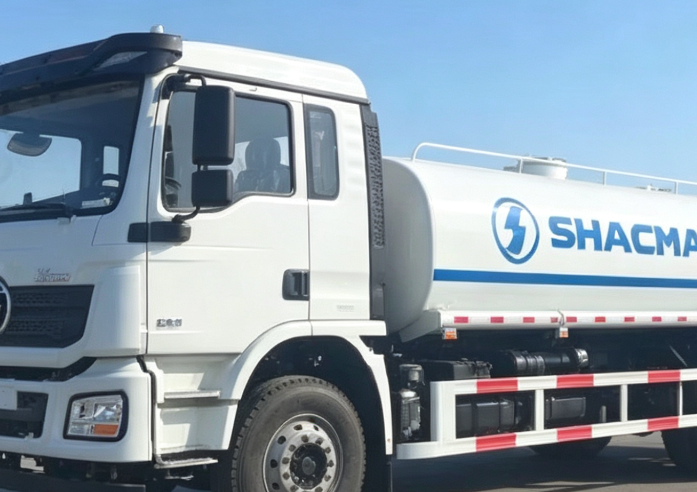

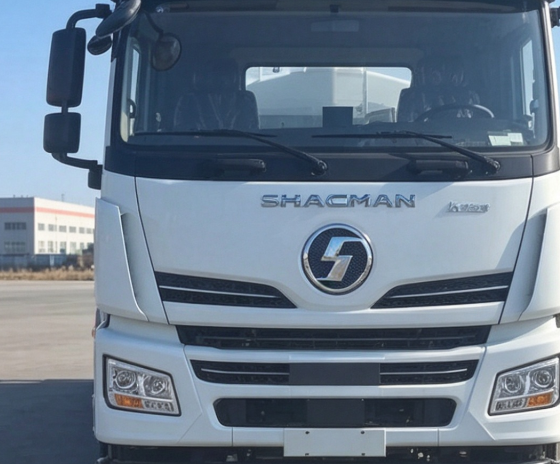

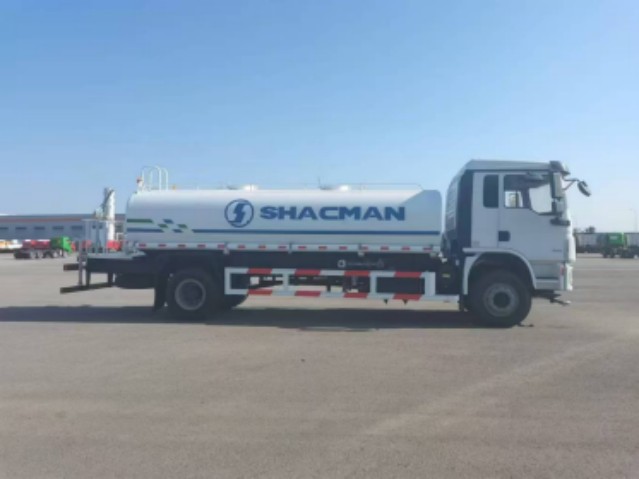

L3000 4×2 Water Sprinkler Truck 240HP Road Cleaning & Dust Suppression Water Tank Lorry

Driving type

4*2

Wheelbase(mm)

4500

Max. Speed/(km/h)

90km/h

Usage Scenario

Suitable for municipal road cleaning, dust suppression, green belt irrigation, construction site watering, road cooling and environmental sanitation spraying work, stable operation on urban roads and ordinary pavement.

INQUIRY NOW

PRODUCT DETAILS

SHACMAN L3000 4×2 water sprinkler truck, model SX12588K43L, is a professional sanitation vehicle fitted with a 240 horsepower WP7 engine and a 15 cubic meter large-capacity water tank. It supports multi-mode spraying including front flushing, rear sprinkling and side spraying, mainly used for road cleaning, dust suppression, garden irrigation and construction site watering. This vehicle can be made in right-hand drive, with flexible optional parts to fit various overseas market demands.

Product Advantages & Structural Strength Design

1. Mature & Stable Power Assembly

Equipped with WP7.240E51 engine matched with 8JS105 transmission, strong power output, low fuel consumption and long service life, suitable for long-time continuous operation.

2. Large Capacity Corrosion Resistant Water Tank

15m³ integrated water tank with anti-rust treatment, equipped with front flushing, rear spraying and side spraying functions, efficient for multi-scene sanitation work.

3. Durable Load-Bearing Chassis

Front drum brake axle + MAN single reduction rear axle design, stable braking performance, strong carrying capacity, adaptable to urban roads and complex working pavements.

4. Comfortable Humanized Cab

L3000 flat roof cab with hydraulic main seat, extra third seat, electric windows, automatic air conditioning and central locking, bringing comfortable driving experience.

5. Customizable Export Configuration

Support right-hand drive conversion, optional tire specifications, exterior color modification and other personalized upgrades to satisfy various overseas certification requirements.

MAIN PARAMETER

Item	Specification
Model No.	SX12588K43L
Vehicle Type	L3000 4×2 Water Sprinkler Truck
Engine Model	WP7.240E51, 240HP
Transmission	8JS105 Manual Gearbox
Front Axle	4.8T Drum Brake Axle
Rear Axle	10T MAN Single Reduction Axle, Ratio 4.625
Water Tank Volume	15 Cubic Meter
Tire Size	10.00R20 Radial Tire
Fuel Tank Capacity	200L Steel Fuel Tank
Cab Configuration	Flat Roof Cab, Extra Third Seat, Electric AC, Electric Windows
Wheelbase	3775+1400 mm
Max Speed	90 km/h

1. Terms of payment: TT, 30% deposit, balance before delivery from factory.

2. Delivery at China port period: 55 working days after advance payment.

3. Vehicle warranty period: 12 months from the date of bill of lading.
