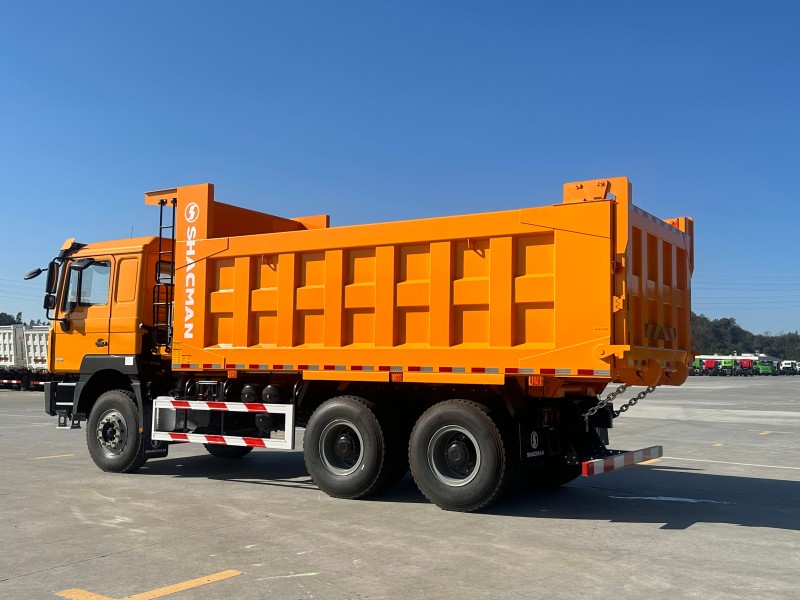

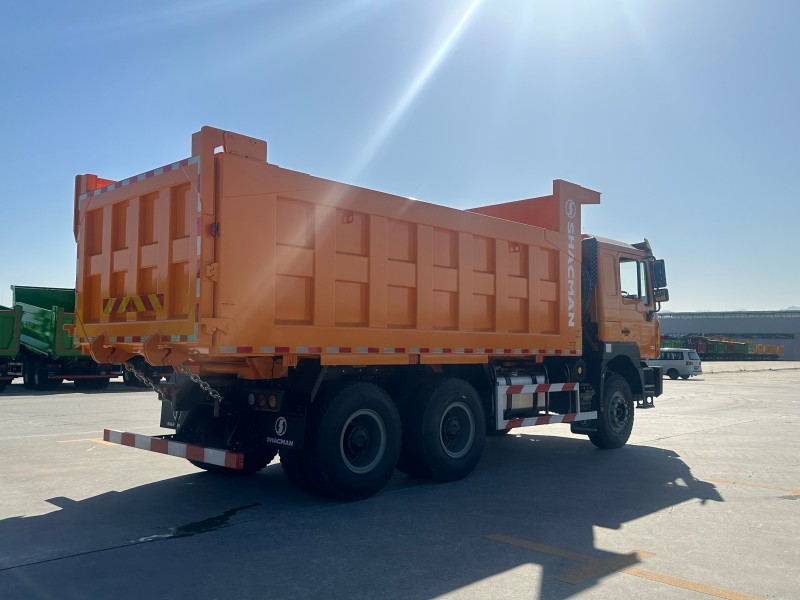

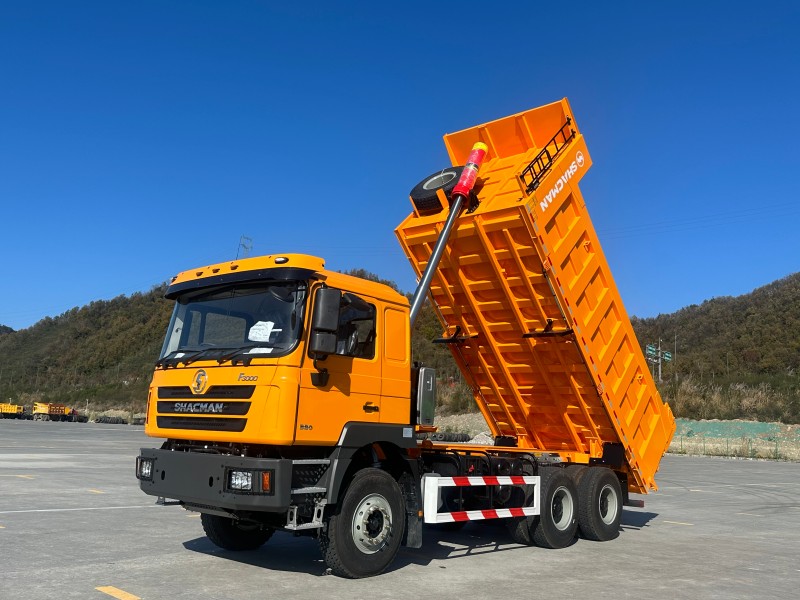

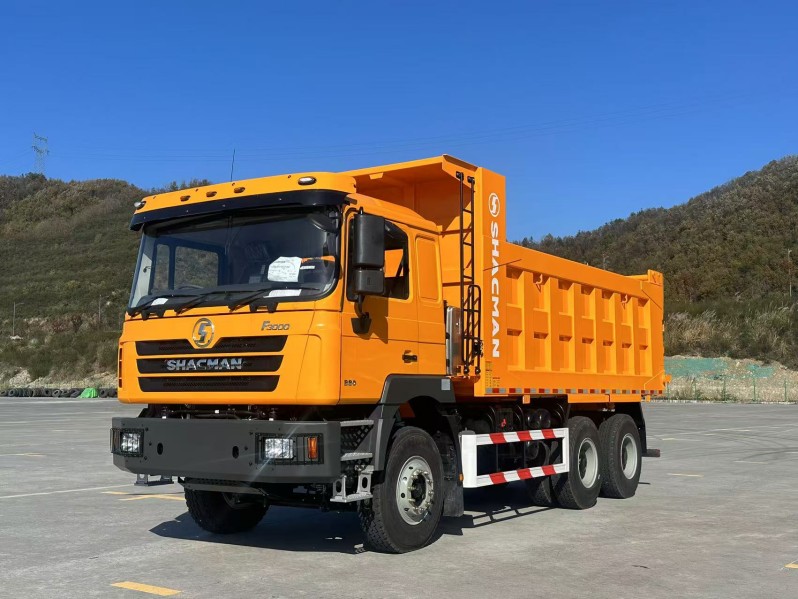

SHACMAN F3000 6×4 Heavy Duty Mining Dump Truck 340HP Euro II SX3255JR404 Tipper Lorry

Driving type

6*4

Wheelbase(mm)

3975+1400

Max. Speed/(km/h)

60km/h

Usage Scenario

This 6×4 heavy-duty dump truck is designed for mining haulage, works on unpaved mine roads, general transport distance ≤100km, full-load normal speed 40-60km/h. Widely used for ore, gravel, earthwork transportation in open pit mines, quarry sites and infrastructure construction projects.

PRODUCT DETAILS

This SHACMAN F3000 enhanced 6×4 dump truck is engineered for heavy-load mining transportation. Total gross vehicle weight ≤50 tons, suitable for unpaved mine roads. Normal transport distance ≤100km, steady driving speed 40~60km/h under full load, widely applied in open-pit mine ore hauling, quarry stone transportation and earthwork construction projects.

Full Chassis Parameters & Application Working Conditions

ItemSpecification Detail
PlatformF3000
Drive Form6×4
VersionEnhanced Version
Model No.SX3255JR404
Engine ModelWP10.340E22 (With air intake heating & water heater preheating)
Engine Power340PS (249.9kW)
Emission StandardEuro II
Transmission10JSD180-Fork + QH50
Axle Speed Ratio5.92 (16T HD Double Reduction Cast Axle)
Frame Size850×300mm (8+7 layers)
Wheelbase3975+1400mm
Rear Overhang1000mm
Cab TypeExtended Flat Roof Cab
Front AxleHD 9.5T Front Axle
SuspensionMulti-leaf spring suspension front & rear (4 main leaves + 4 auxiliary leaves)
Fuel Tank400L Aluminum Alloy Fuel Tank
Tire Spec12.00R20 Mixed Pattern Tire
Cargo Box Dimension5800×2300×1500mm


MAIN PARAMETER

CategoryItemSpecific Parameter
Basic Platform InfoPlatformF3000

Drive Type6×4

VersionEnhanced Version

Model NumberSX3255JR404
Engine SystemEngine ModelWP10.340E22 (with air intake heating & water preheating device)

Rated Power340PS (249.9kW)

Emission StandardEuro II
Transmission SystemGearbox Model10JSD180-Fork + QH50

Rear Axle Type16T HD Double Reduction Cast Axle

Final Drive Ratio5.92 (Optional 5.262)
Chassis DimensionFrame Spec850×300mm (8+7 layers)

Wheelbase3975+1400mm

Frame Rear Overhang1000mm
Cab ConfigurationCab TypeExtended Flat Roof Cab
Front Axle & SuspensionFront Axle LoadHD 9.5T Front Axle

Suspension StructureFront & Rear Multi-Leaf Spring Suspension (4 Main Leaves + 4 Auxiliary Leaves)
Fuel & TireFuel Tank400L Aluminum Alloy Fuel Tank

Tire Specification12.00R20 Mixed Pattern Tire
Cargo BodyCargo Box Size5800×2300×1500mm
Working ConditionMax Gross Vehicle Weight≤50 Ton

Applicable RoadUnpaved Mine Road

Normal Transport Distance≤100km

Full Load Common Speed45~60km/h


1. Terms of payment: TT, 30% deposit, balance before delivery from factory.

2. Delivery at China port period: 55 working days after advance payment.

3. Vehicle warranty period: 12 months from the date of bill of lading.
