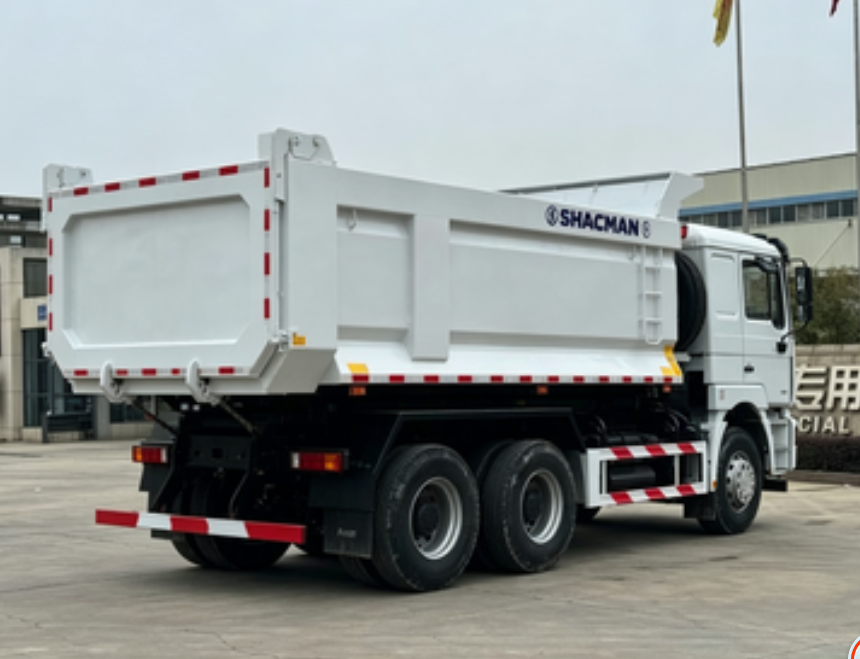

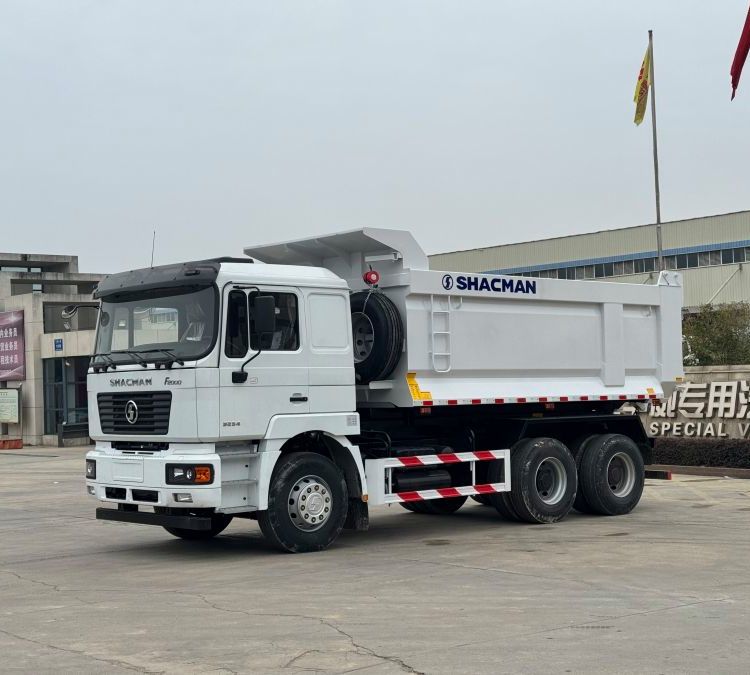

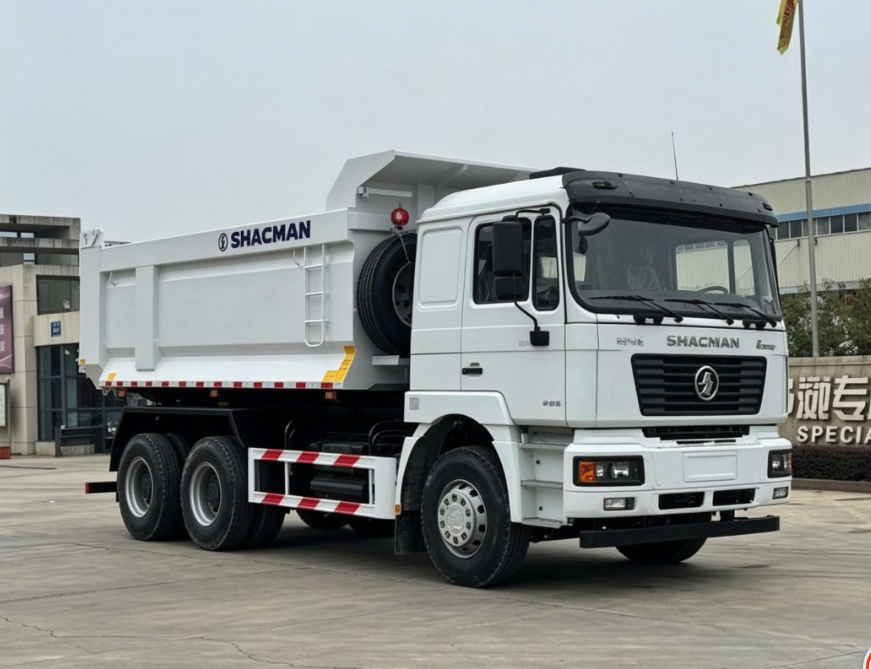

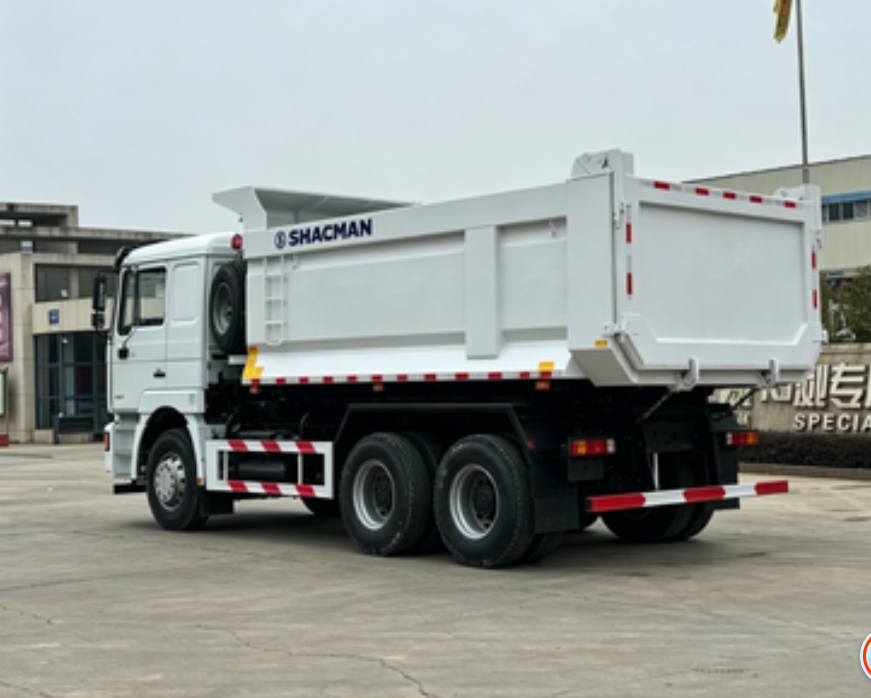

SHACMAN F3000 6x4 Mining Dump Truck Equipped With Desert Air Filter For Harsh Working Site

Driving type

6*4

Wheelbase(mm)

3975+1400

Max. Speed/(km/h)

75km/h

Usage Scenario

SHACMAN F3000 6x4 dump truck fits mine, desert, road construction and urban earthmoving work. It carries ore, sand, coal and muck, suited for rough dusty sites with desert air filter, ideal for overseas engineering bulk transport in Africa and Central Asia.

PRODUCT DETAILS

Brand New SHACMAN F3000 Enhanced 6x4 Dump Truck

SHACMAN F3000 6×4 heavy-duty tipper truck is tailor-made for overseas mining, desert and construction harsh working sites. It adopts thickened double-layer reinforced frame, mature WP10 power assembly and complete export standard configurations, featuring strong load-bearing capacity, powerful climbing torque and low daily maintenance cost, which is ideal for transporting ore, gravel, muck, coal and all kinds of bulk materials.

Equipped with standard desert air filter, 4-point hydraulic suspended cab and full chassis anti-collision guard plates, this three-axle dumper can work stably under dusty, bumpy and rugged mine & desert conditions. It meets Euro II emission standards, matching import rules of Africa, Central Asia and Southeast Asian markets, with full English exterior logos to satisfy "one country one set" export demands.

Core Product Advantages

  • WP10.340E22 340PS Weichai engine, stable power output for long-time heavy load operation

  • 850×300mm double-layer reinforced frame (8+7mm thickness), excellent torsion resistance under full load

  • Standard desert air filter effectively isolates sand and dust to extend engine service life

  • 16T HD double reduction rear axle with 5.92 gear ratio, outstanding climbing performance on mountain roads

  • Complete export configurations: four-point hydraulic cab suspension, 2KG fire extinguisher, reversing buzzer, iron air reservoir

  • Rich optional upgrades: steel bumper, reinforced leaf spring, full LED taillights, 400L aluminum fuel tank with underguard

Main Technical Parameters

Driving Form: 6×4 three axle

Rated Power: 340PS WP10 Weichai Diesel Engine

Emission Standard: EURO II

Standard Cargo Box Size: 5800×2300×1300mm Front Lifting Tipper Body

Fuel Tank: 400L Aluminum Alloy Fuel Tank

Tire Specification: 12.00R20 Mixed Pattern Tire


This SHACMAN F3000 6x4 dump truck applies to multiple bulk material transport scenarios:

  1. Open-pit mine: Transport ore, rock slag and quarry aggregates

  2. Desert construction: Sand & gravel hauling with dedicated desert air filter

  3. Urban earthmoving: Muck, soil and construction waste delivery

  4. Highway & bridge infrastructure: Road construction and foundation excavation

  5. Coal yards & quarries: Coal, stone and mineral bulk cargo transportation

It is widely exported to Africa, Central Asia and related regions, perfectly adapting to rough, dusty and mountainous working environments.


MAIN PARAMETER

Main Technical Parameters

ItemParameter
PlatformF3000
Driving Type6×4
Model No.SX3255DR404
Engine ModelWP10.340E22
Power340PS
Emission StandardEURO II
Transmission12JSD200T-B Iron Shell + QH50 Clutch
Rear Axle Ratio16T HD Double Reduction 5.92
Frame Size850×300mm (8+7mm Double Layer)
Wheelbase3975+1400mm
Cab TypeF3000 Medium Long Flat Roof Cab
Front AxleHD 9.5T Steering Axle
Fuel Tank400L Aluminum Alloy
Tire Spec12.00R20 Mixed Pattern
Cargo Box Dimension5800×2300×1300mm Front Lifting


1. Terms of payment: TT, 30% deposit, balance before delivery from factory.

2. Delivery at China port period: 55 working days after advance payment.

3. Vehicle warranty period: 12 months from the date of bill of lading.
