Home > Products > SHACMAN F3000 6x4 Reinforced Tipper Truck 380HP Euro II RHD Heavy Duty Mining Dump Truck For Construction & Haulage

  • SHACMAN F3000 6x4 Reinforced Tipper Truck 380HP Euro II RHD Heavy Duty Mining Dump Truck For Construction & Haulage

  • SHACMAN F3000 6x4 Reinforced Tipper Truck 380HP Euro II RHD Heavy Duty Mining Dump Truck For Construction & Haulage

  • SHACMAN F3000 6x4 Reinforced Tipper Truck 380HP Euro II RHD Heavy Duty Mining Dump Truck For Construction & Haulage

  • SHACMAN F3000 6x4 Reinforced Tipper Truck 380HP Euro II RHD Heavy Duty Mining Dump Truck For Construction & Haulage

SHACMAN F3000 6x4 Reinforced Tipper Truck 380HP Euro II RHD Heavy Duty Mining Dump Truck For Construction & Haulage

Driving type

6*4

Wheelbase(mm)

3775+1400

Max. Speed/(km/h)

55km/h

Usage Scenario

Suitable for urban road transportation, construction earthwork, muck and gravel hauling, also works for bulk ore transportation in mining yards, stably coping with bumpy, muddy and complex rugged road working conditions.

PRODUCT DETAILS

Product Overview

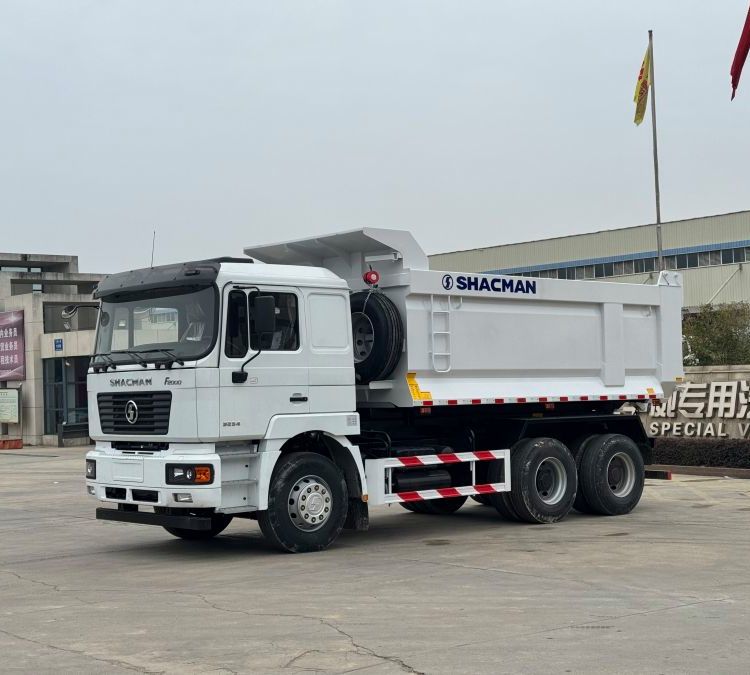

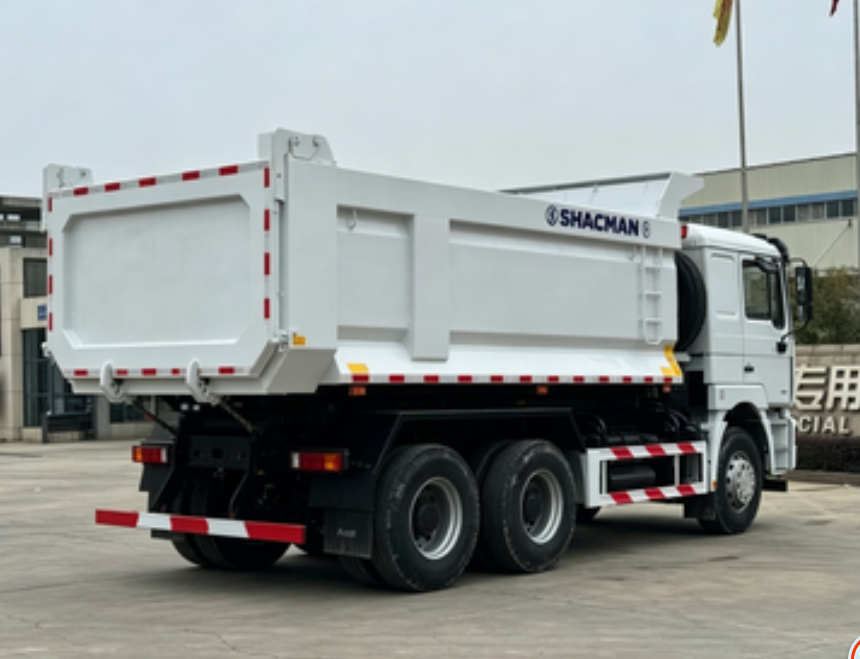

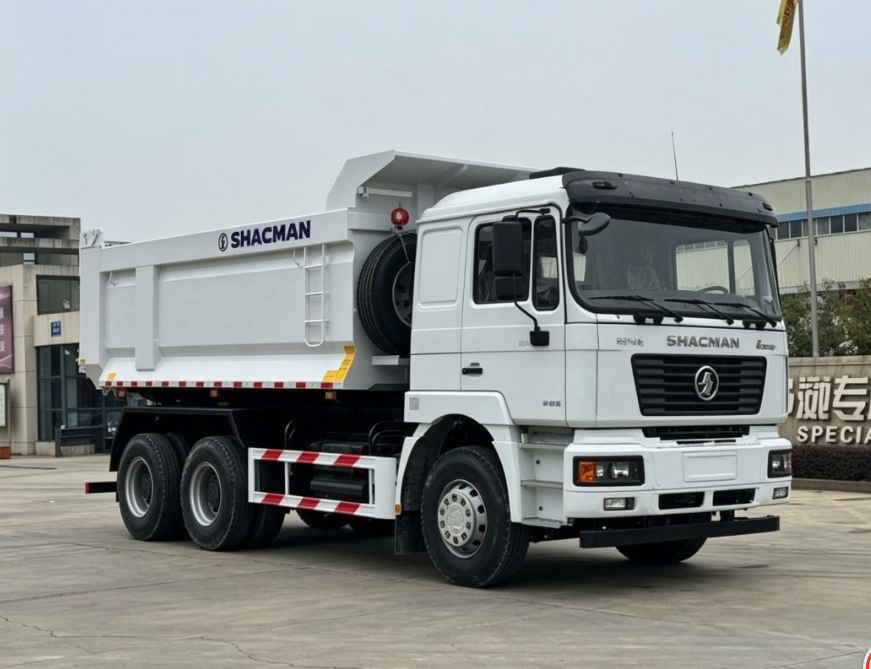

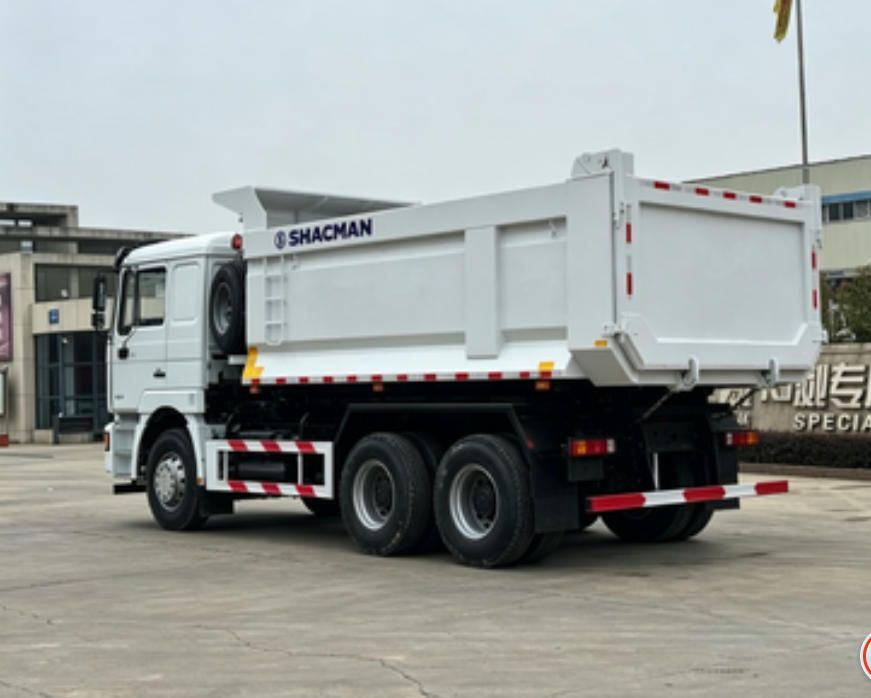

This is SHACMAN F3000 6×4 reinforced dump truck, model SX3255DT384R, designed for heavy-duty bulk material transportation. Equipped with mature 380HP Euro II power assembly and reinforced load-bearing chassis, it features strong carrying capacity, stable performance and outstanding adaptability to complicated road conditions. Right-hand drive layout and personalized optional configurations are available to satisfy diverse overseas operation demands.

Product Advantages & Structural Strength Design

1. Reinforced Heavy-Duty Frame

Adopts thickened multi-layer longitudinal beam structure, high tensile steel welding forming, strong torsion resistance and anti-bending performance, coping with frequent bumpy and overload transportation conditions.


2. Durable Heavy Load Axle Assembly

16-ton double reduction cast rear axle with reasonable speed ratio, strong climbing ability and high bearing capacity, suitable for long-term mine heavy haul operation.


3. Robust Suspension System

Multi-piece thickened leaf spring suspension design, excellent shock absorption and load-bearing performance, stable running under full load on complex rugged roads.


4. Reliable Power Matching

WP10 380HP Euro II mature engine matched with heavy-duty manual transmission, sufficient torque, low fuel consumption, stable output under continuous heavy load.


5. Customized Export Configuration

Right-hand drive layout, one-set-certification supporting, optional various tires, ABS and auxiliary configurations to adapt diverse harsh working environments.


MAIN PARAMETER

ItemSpecification
Model No.SX3255DT384R
Platform & VersionF3000 / Reinforced Version
Drive Layout6×4
EngineWP10.380E22, 380HP, Euro II
Transmission10JSD180 Iron Shell Gearbox
Rear Axle & Ratio16T HD Double Reduction Axle, 5.92
Frame Size850×300mm (8+7 Layers)
Wheelbase3775+1400mm
Cab TypeMedium-long Flat Roof Cab
Tire Size12.00R20 Mining Mixed Pattern
Gross Vehicle Mass27.76 Ton


1. Terms of payment: TT, 30% deposit, balance before delivery from factory.

2. Delivery at China port period: 55 working days after advance payment.

3. Vehicle warranty period: 12 months from the date of bill of lading.
