SHACMAN F3000 Enhanced 8×4 Dump Truck | 380HP Heavy-Duty Tipper for Construction & Mining

Driving type

8*4

Wheelbase(mm)

1800+3575+1400

Max. Speed/(km/h)

70km/h

Usage Scenario

Heavy-load transportation for construction sites, urban infrastructure projects, mining and quarry operations, and bulk material hauling on rugged terrains.

INQUIRY NOW

PRODUCT DETAILS

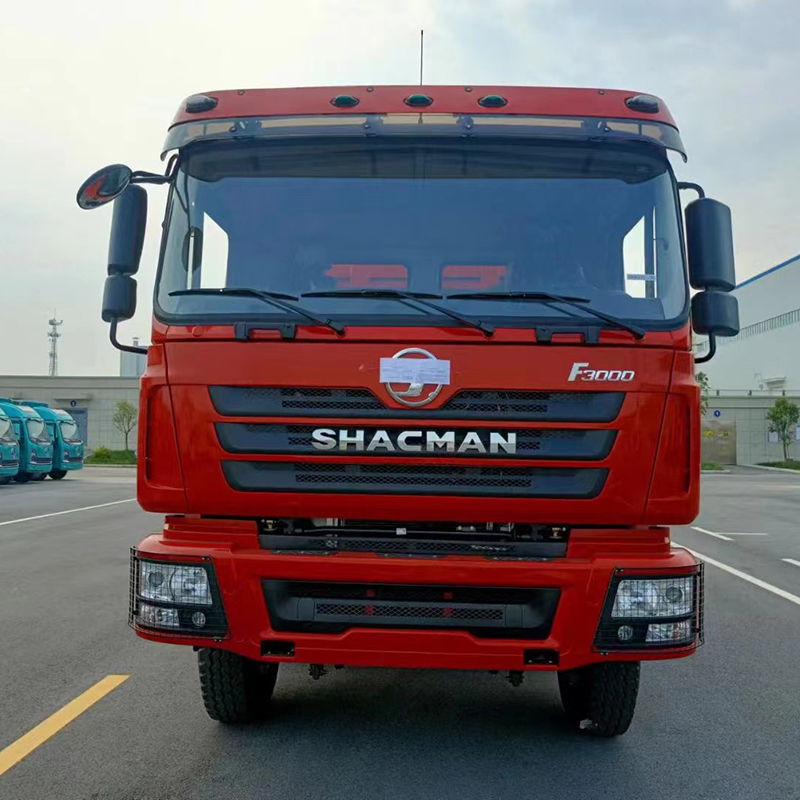

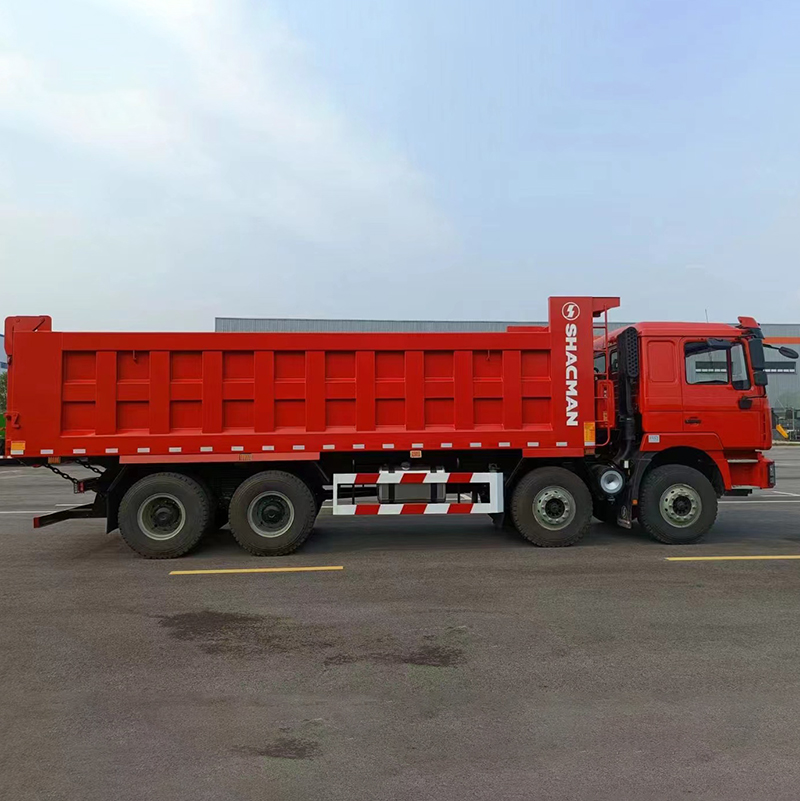

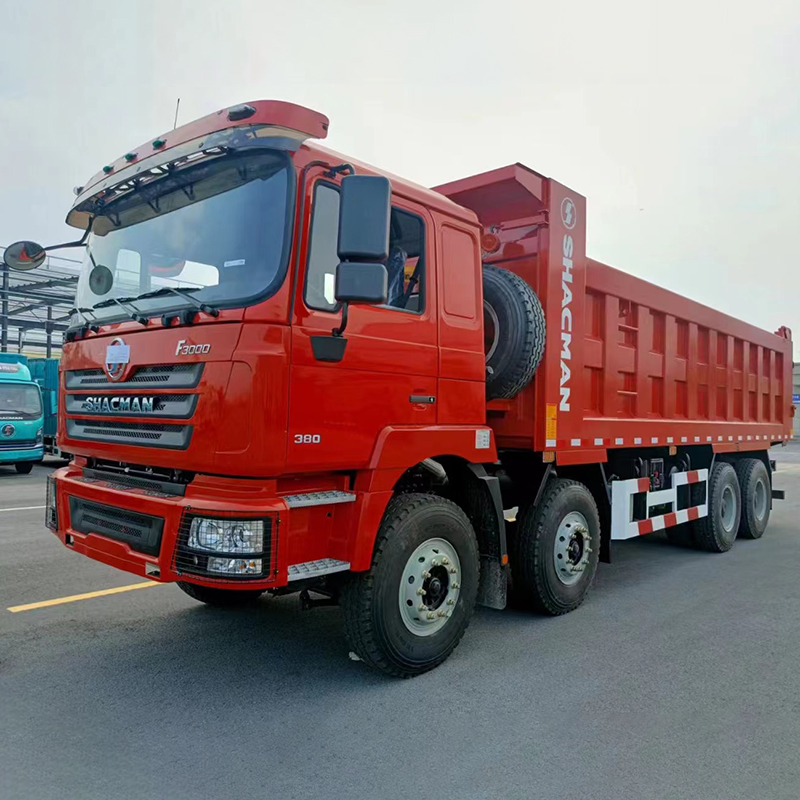

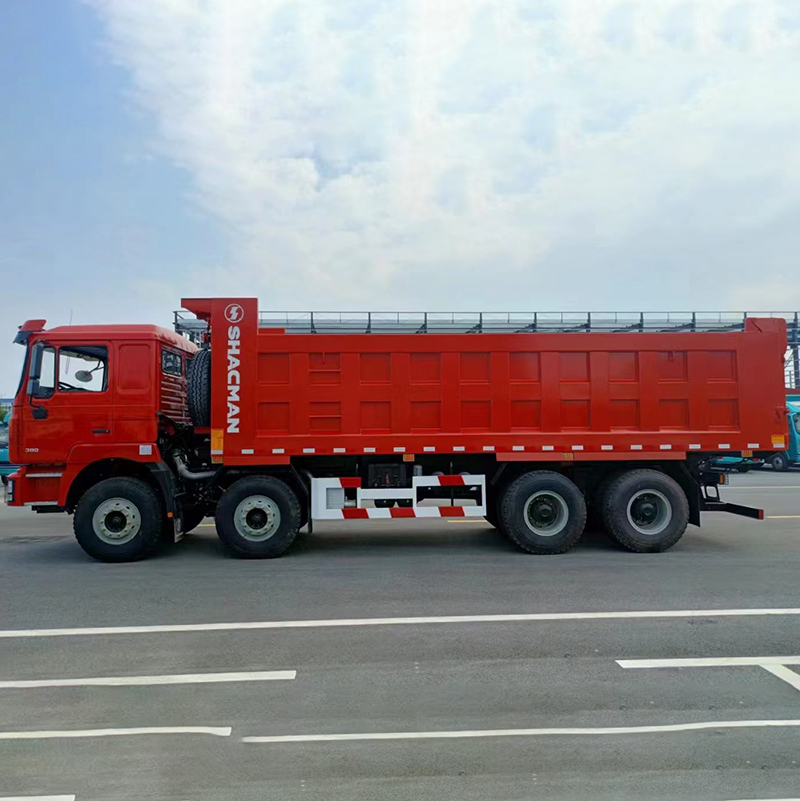

SHACMAN F3000 Enhanced 8×4 Dump Truck | 380HP 70Ton Heavy-Duty Tipper

The SHACMAN F3000 Enhanced 8×4 Dump Truck (Model: SX3315DT366) is a high-performance heavy-duty tipper engineered for extreme heavy-load operations in construction, mining, and bulk material transportation. Powered by a 380HP Weichai WP10.380E22 Euro II engine, paired with a reinforced 8×4 chassis and 16T heavy-duty rear axle, this truck delivers exceptional load capacity (up to 70 tons GVW), durability, and reliability for global infrastructure projects. It is the ideal workhorse for heavy-duty haulage in harsh working environments.

Core Advantages of SHACMAN F3000 Enhanced 8×4 Dump Truck

The SHACMAN F3000 Enhanced 8×4 dump truck is designed to deliver outstanding performance in the harshest working environments, with multiple core advantages that make it the preferred choice for global construction and mining customers:

Powerful & Reliable Powertrain: Equipped with Weichai WP10.380E22 380HP engine (Euro II) and Fast 10-speed gearbox, delivering strong torque and stable power output for heavy-load climbing and long-haul operations.
Extreme Durability & Load Capacity: Reinforced 850×300 (8+7)mm high-strength steel chassis, 16T heavy-duty double reduction rear axle, and multi-leaf spring suspension, supporting a maximum gross weight of 70 tons.
Efficient Unloading System: Large 7.4m front-lifting hydraulic cargo box enables fast, smooth and stable unloading, greatly improving work efficiency and reducing transportation costs.
Driver-Friendly Design: Ergonomic medium-long flat roof cab with hydraulic seat, automatic constant temperature air conditioning, and comprehensive safety protection, ensuring comfortable and safe driving for long hours.
Customizable Configuration: Multiple optional configurations (steel bumper, 400L aluminum alloy fuel tank, 13R22.5 tires, etc.) to meet the specific needs of different regions and projects.

MAIN PARAMETER

table style="width:100%; border-collapse:collapse; font-size:16px; line-height:1.7; margin:15px 0;">

Parameter	Specification
Model	SHACMAN F3000 Enhanced 8×4 Dump Truck (SX3315DT366)
Drive Configuration	8×4
Engine	Weichai WP10.380E22, 380HP, Euro II
Transmission	Fast 10JSD180+QH50 10-speed Manual
Front Axle	9.5T Heavy Duty Axle
Rear Axle	16T Double Reduction Axle, Ratio 5.92
Chassis Frame	850×300 (8+7)mm High-strength Steel
Wheelbase	1800+3575+1400 mm
Cargo Box Size	7400×2300×1400 mm, Front Lifting Hydraulic
GVW	≤70 Tons
Tires	12.00R20 (Optional 13R22.5)
Fuel Tank	300L / 400L Aluminum Alloy
Cab	F3000 Medium-long Flat Roof, A/C, Hydraulic Seat

1. Terms of payment: TT, 30% deposit, balance before delivery from factory.

2. Delivery at China port period: 55 working days after advance payment.

3. Vehicle warranty period: 12 months from the date of bill of lading.

RELATED PRODUCTS

SHACMAN L3000 4×2 Lightweight Cargo Truck 290HP Euro VI

SHACMAN Automobile Heavy-Duty Truck F3000 6×4 Tipper

SHACMAN X5000 6×4 Tractor Truck 520HP Euro VI with FHB400 Retarder for Heavy Duty

SHACMAN X3000 6×4 Concrete Mixer Truck for Construction Sites

SHACMAN F3000 6x4 430HP Tractor Truck - New & Used

HACMAN L5000 4x2 Crane Truck with XCMG 5T Straight Boom Crane

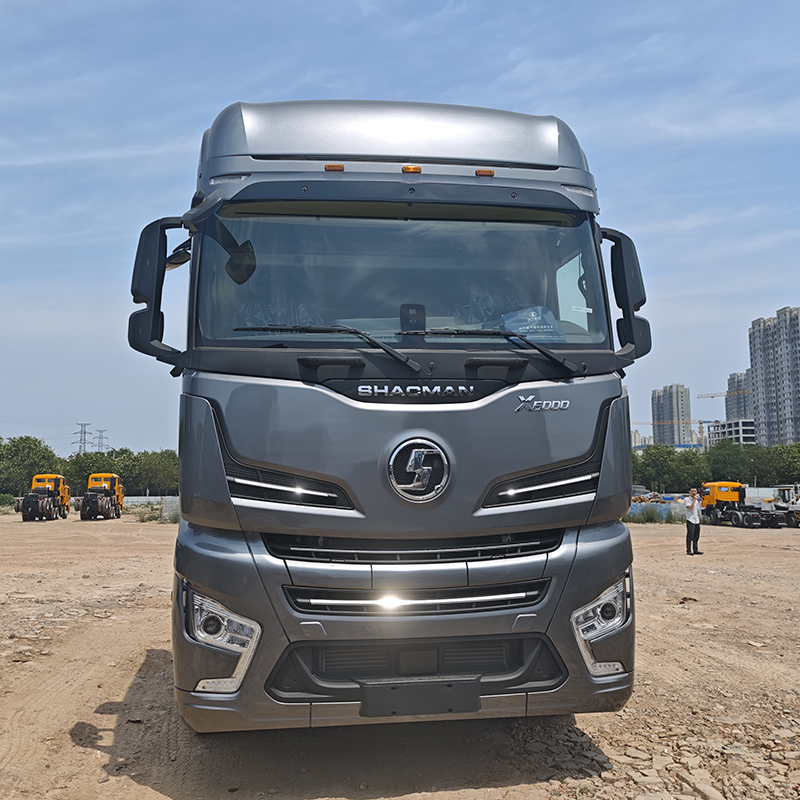

SHACMAN X5000 4x2 460HP Euro V Tractor Truck, Weichai WP12 Long-Haul Prime Mover

shacman H3000 6*4 sprinkler truck exported to Saudi Arabia

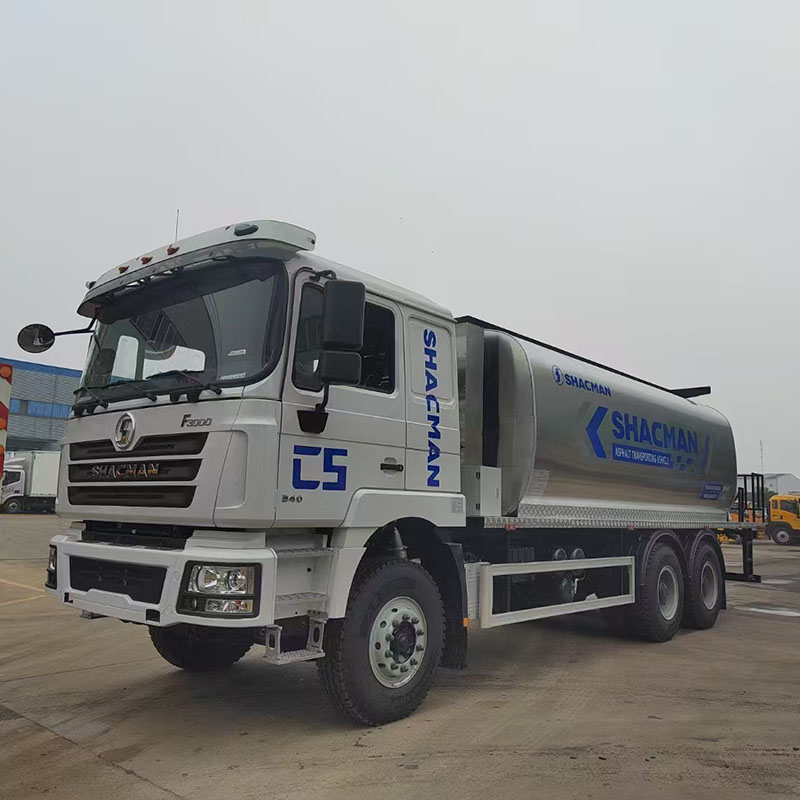

SHACMAN F3000 6x4 340HP Fuel Tank Truck, Euro II, 20CBM Refueling Truck, 16T HD Axle, Export Ready
