SHACMAN F3000 Reinforced 6x4 Tractor Truck 430HP Euro II Heavy Duty Container Semi Trailer Tractor Head

Driving type

6*4

Wheelbase(mm)

3175+1400

Max. Speed/(km/h)

85km/h

Usage Scenario

Ideal for long-distance highway transportation of containers, flatbed semi-trailers and bulk goods. It runs stably on standard asphalt roads, serving as a cost-effective tractor unit for intercity logistics, cross-border freight and daily cargo haulage of logistics enterprises.

INQUIRY NOW

PRODUCT DETAILS

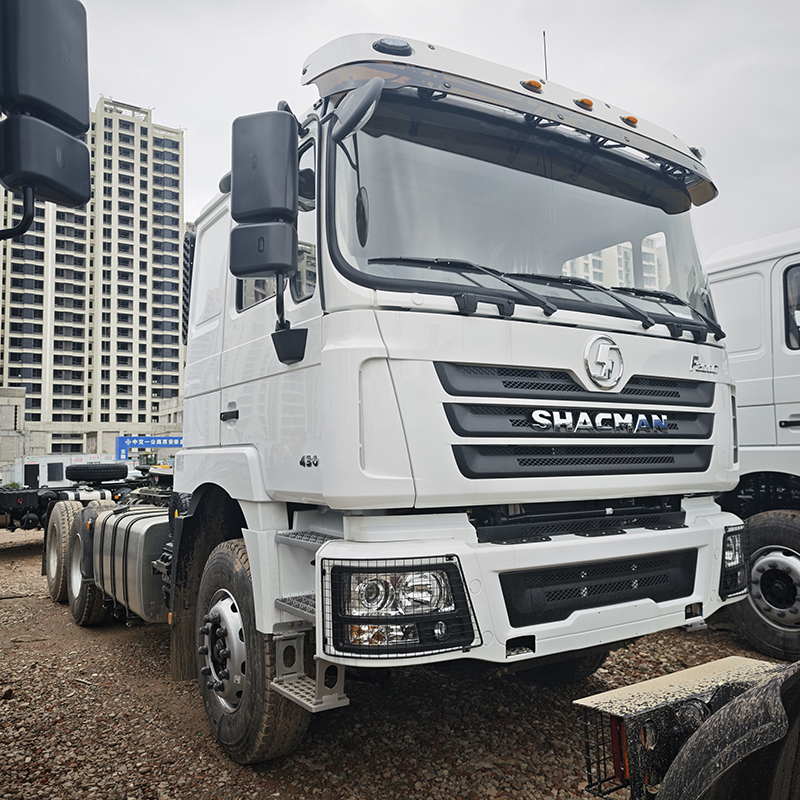

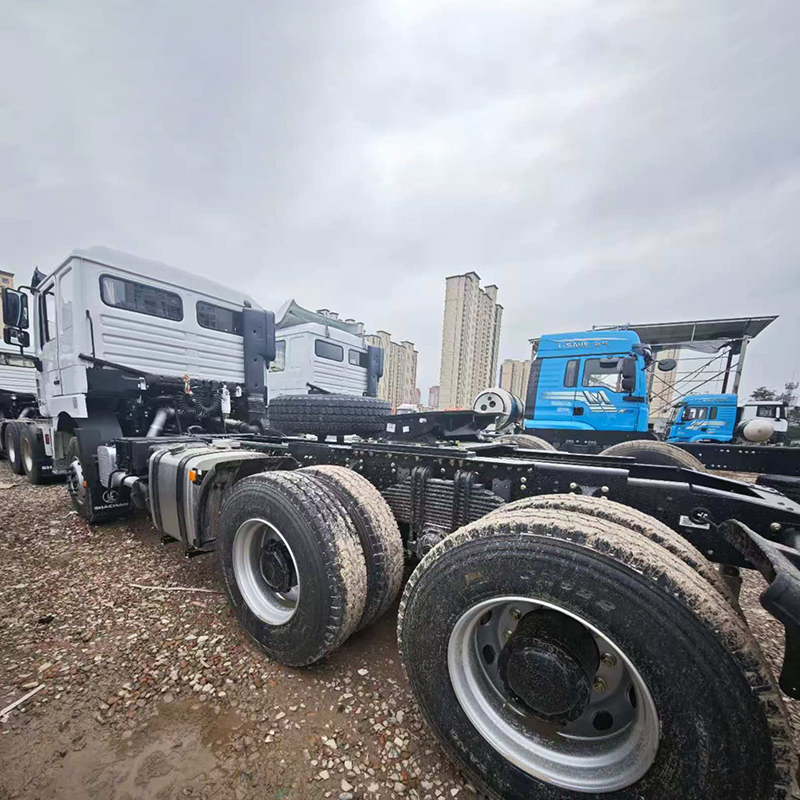

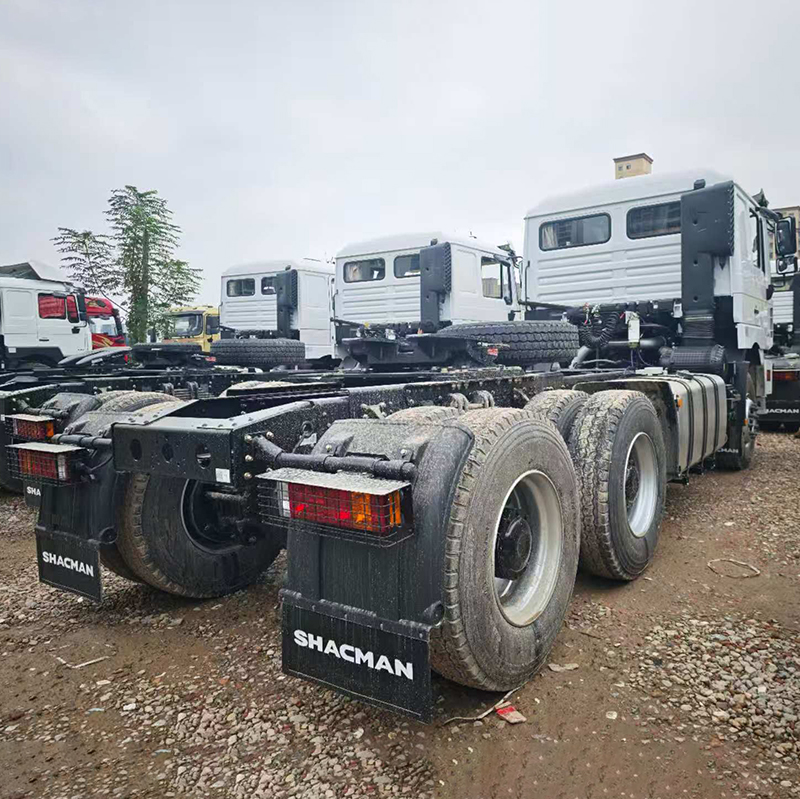

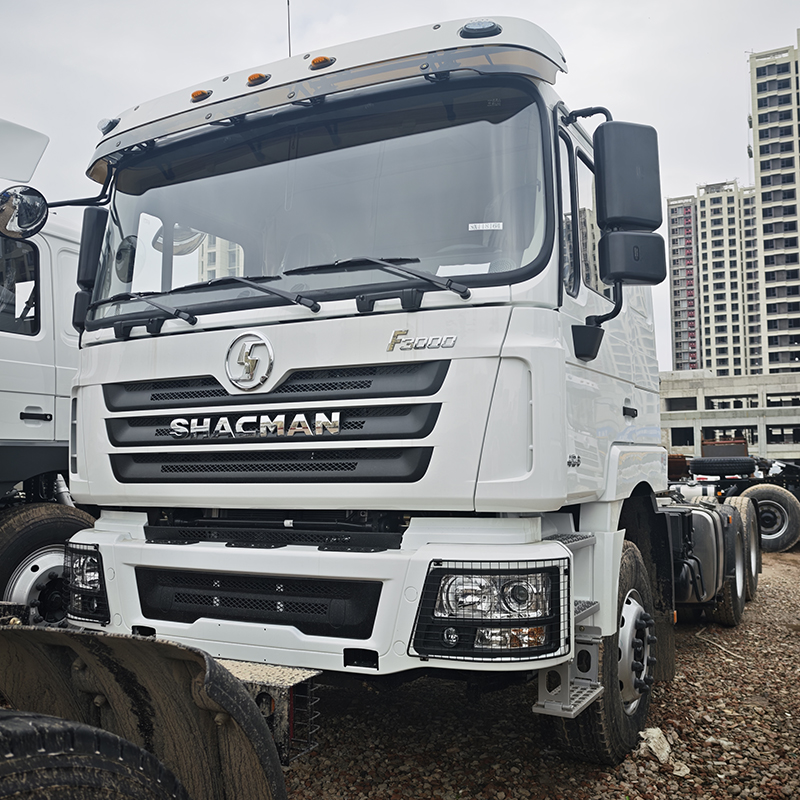

SHACMAN F3000 Reinforced 6x4 Heavy Duty Tractor Truck 430HP Euro II

SHACMAN F3000 reinforced 6×4 tractor unit is a cost-effective heavy logistics vehicle designed for domestic and cross-border highway haulage. It is powered by WP12.430E201 430 horsepower Euro II diesel engine, matched with 12JSD200K iron shell transmission. The thickened 8+5 layers 850×300mm frame delivers stable and strong load-bearing capacity, with a maximum total mass up to 70 tons.

The standard extended flat roof cab is equipped with air suspension driver seat and metal protective bumper. Four-point air suspension, iron air reservoir, anti-theft fuel & battery box and full export one-country-one-set configurations are standard to meet overseas market demands. Multiple optional upgrades including high roof cab, combined large-capacity aluminum fuel tank and different transmission types can satisfy diverse transport scenarios. With an economical speed range of 45-85km/h, this tractor head is widely applied for container, flatbed and bulk cargo long-distance transportation.

Driving Configuration	6×4
Engine Model	WP12.430E201, 430HP, Euro II Emission
Transmission	12JSD200K Iron Shell Gearbox
Rear Axle & Final Ratio	16T Heavy Double Reduction Axle, 4.266
Frame Size	850×300mm, 8+5 Layers Reinforced
Wheelbase	3175+1400 mm
Cab Type	F3000 Extended Flat Roof Cab
Front Axle	7.5T Heavy-duty Front Axle
Suspension System	Multi-leaf Spring (2 Main + 2 Auxiliary Bolts)
Standard Fuel Tank	400L Aluminum Alloy Fuel Tank
Tire Specification	12R22.5 Mixed Pattern Heavy Truck Tire
Max Total Gross Mass	70 Ton
Economic Speed Range	45-85km/h

MAIN PARAMETER

Full Standard & Export Configuration Table of SHACMAN F3000 6x4 Reinforced Tractor Truck

Classification	Detailed Configurations & Technical Parameters
Basic Cab Standard	F3000 Extended Flat Roof Cab without Top Spoiler, Air Suspension Driver Seat, Ordinary Rearview Mirror, Electronic Constant Temperature A/C, Electric Window Lifter, Manual Cab Tilt, Metal Bumper with Light Guard, Three-step Footboard, No Central Lock, Oil Bath Air Filter, Ordinary Exhaust, Domestic Steering Gear, Ordinary Steering Wheel, Standard 90 Fifth Wheel, Split Mudguard, Left Front Draw Pin, Radiator Guard, Oil Sump Guard, Front Stabilizer Bar, Tail Light Guard, 165Ah Maintenance-free Battery
Export One-country-one-set Spec	4-point Air Suspension, SHACMAN Logo, Silver Letter Logo, Full English Markings, Extra Long-life Primary Filter, Iron Air Reservoir, Flat Mounting Plate, 50T Hydraulic Jack, Telescopic Shaft Control, Anti-theft Fuel Cap & Battery Box, 2kg Dry Powder Fire Extinguisher, Economic Trailer Toolkit
Optional Accessories	400L+230L Aluminum Alloy Fuel Tank, Extended High Roof Cab without Spoiler, 12JSD200K Iron Shell QH50 Transmission, 12JSD200K Iron Shell Gearbox without PTO + FHB400, Cancel Rear Window & Sunroof, F3000 Extended Flat Roof Cab with Top Spoiler
Power & Chassis Core Data	6×4 Drive Layout, WP12.430E201 430HP Euro II Engine, 12JSD200K Iron Shell Transmission, 16T HD Double Reduction Rear Axle, Final Ratio 4.266, 850×300mm 8+5 Layers Reinforced Frame, Wheelbase: 3175+1400 mm, Rear Overhang 725mm, HD 7.5T Front Axle, Multi-leaf Spring Suspension (2 Main + 2 Auxiliary Bolts), Standard 400L Aluminum Fuel Tank, 12R22.5 Mixed Pattern Heavy Tires
Application & Limit Parameters	Heavy-duty long-distance highway haulage, container & bulk semi-trailer transport, suitable for standard pavement; Max Total Gross Mass: 70 Ton, Economic Speed Range: 45-85km/h

1. Terms of payment: TT, 30% deposit, balance before delivery from factory.

2. Delivery at China port period: 55 working days after advance payment.

3. Vehicle warranty period: 12 months from the date of bill of lading.
