SHACMAN F3000 Reinforced 8x4 Dump Truck 430HP Euro II 22CBM Heavy Mining Tipper Truck For Muddy Rough Road

Driving type

8*4

Wheelbase(mm)

1800+3775+1400

Max. Speed/(km/h)

80km/h

Usage Scenario

Suitable for open pit mine ore transportation, construction site muck and gravel haulage, earthwork engineering, mountain muddy roads, rough and steep slope pavement, mining area heavy-load short-distance transport; adapt to complex poor road conditions with mud

INQUIRY NOW

PRODUCT DETAILS

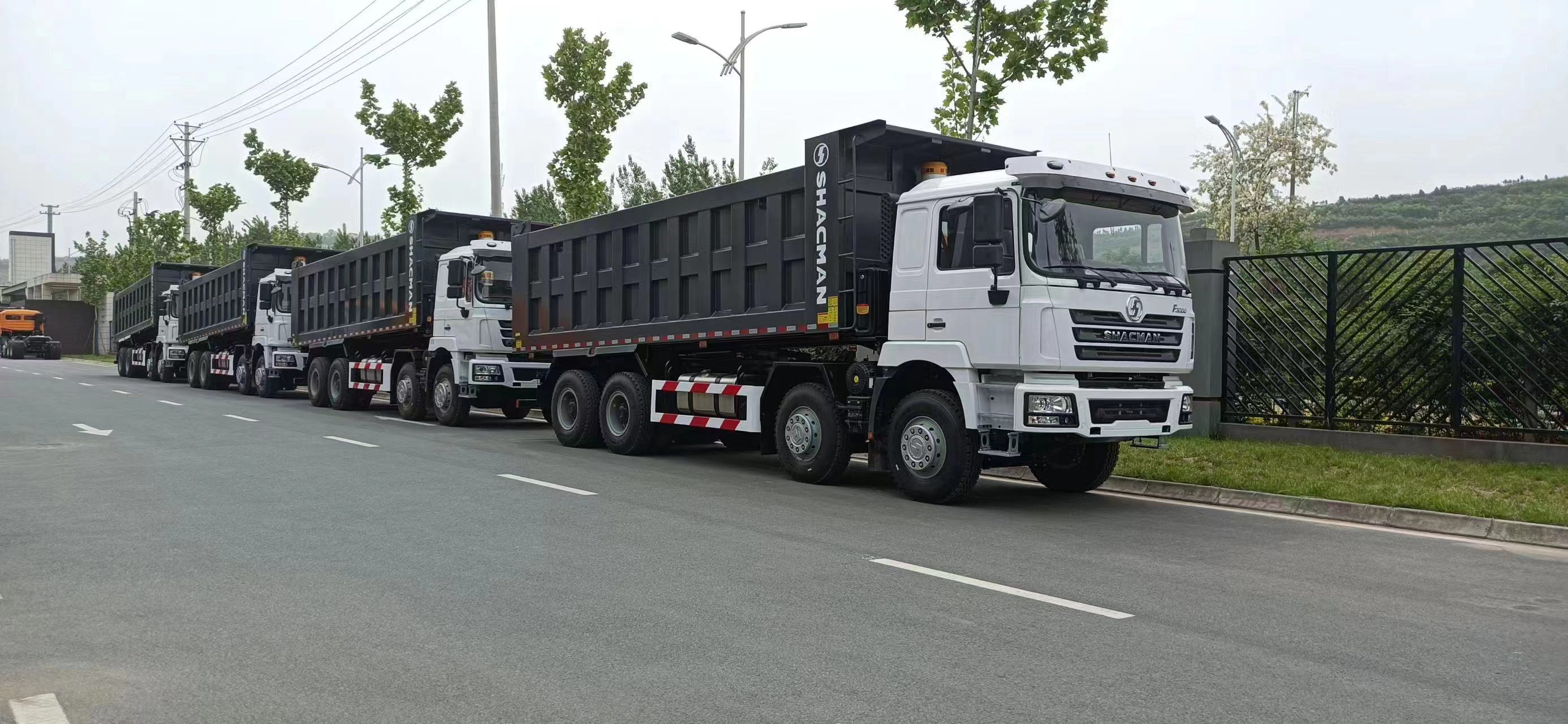

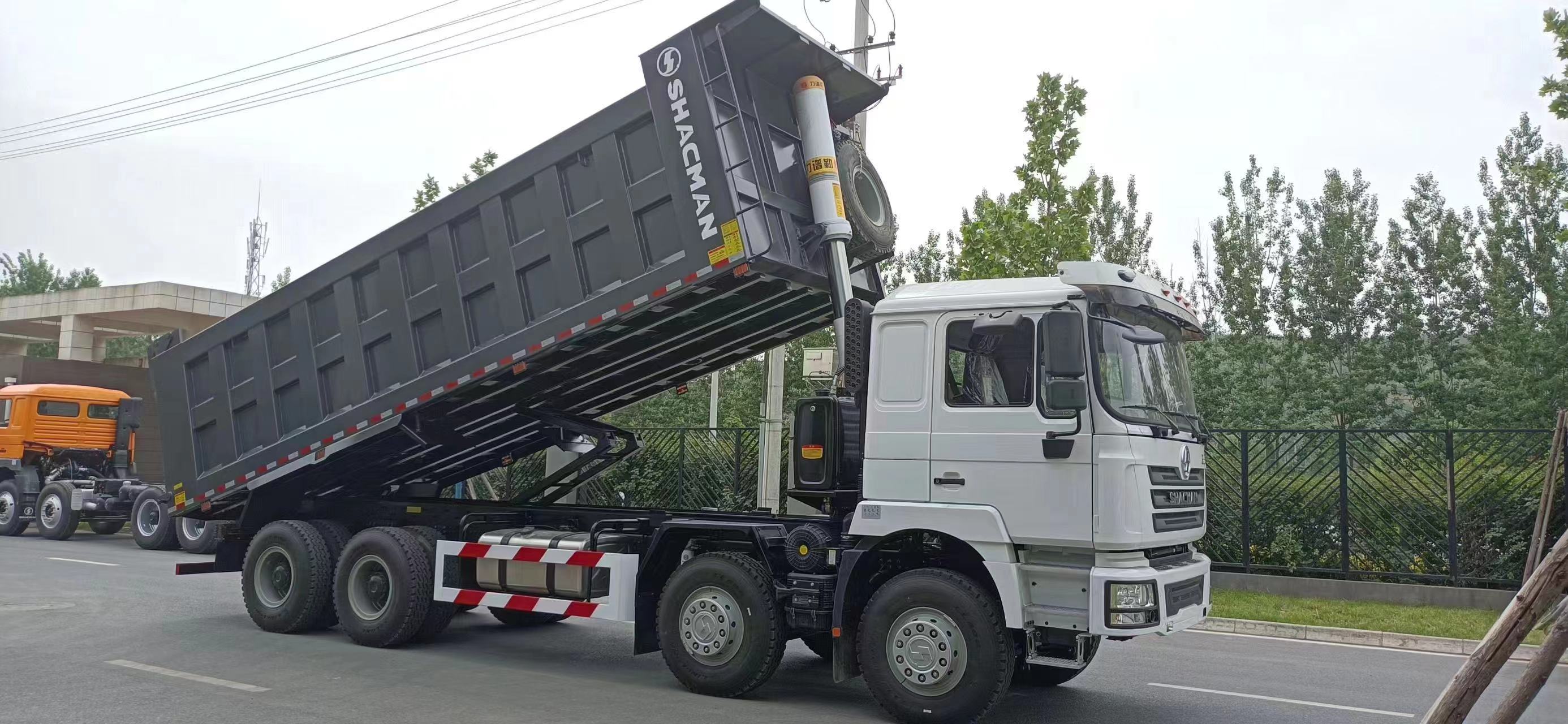

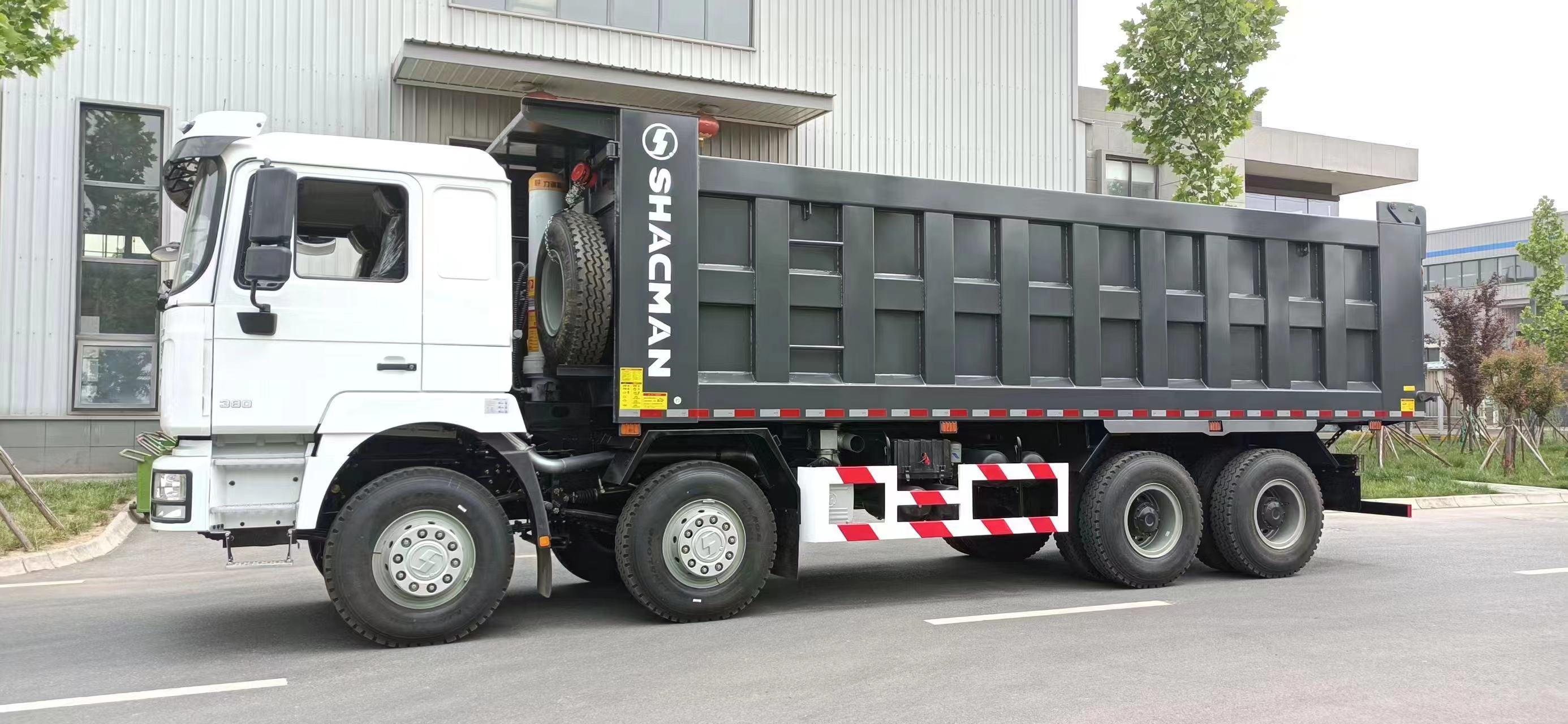

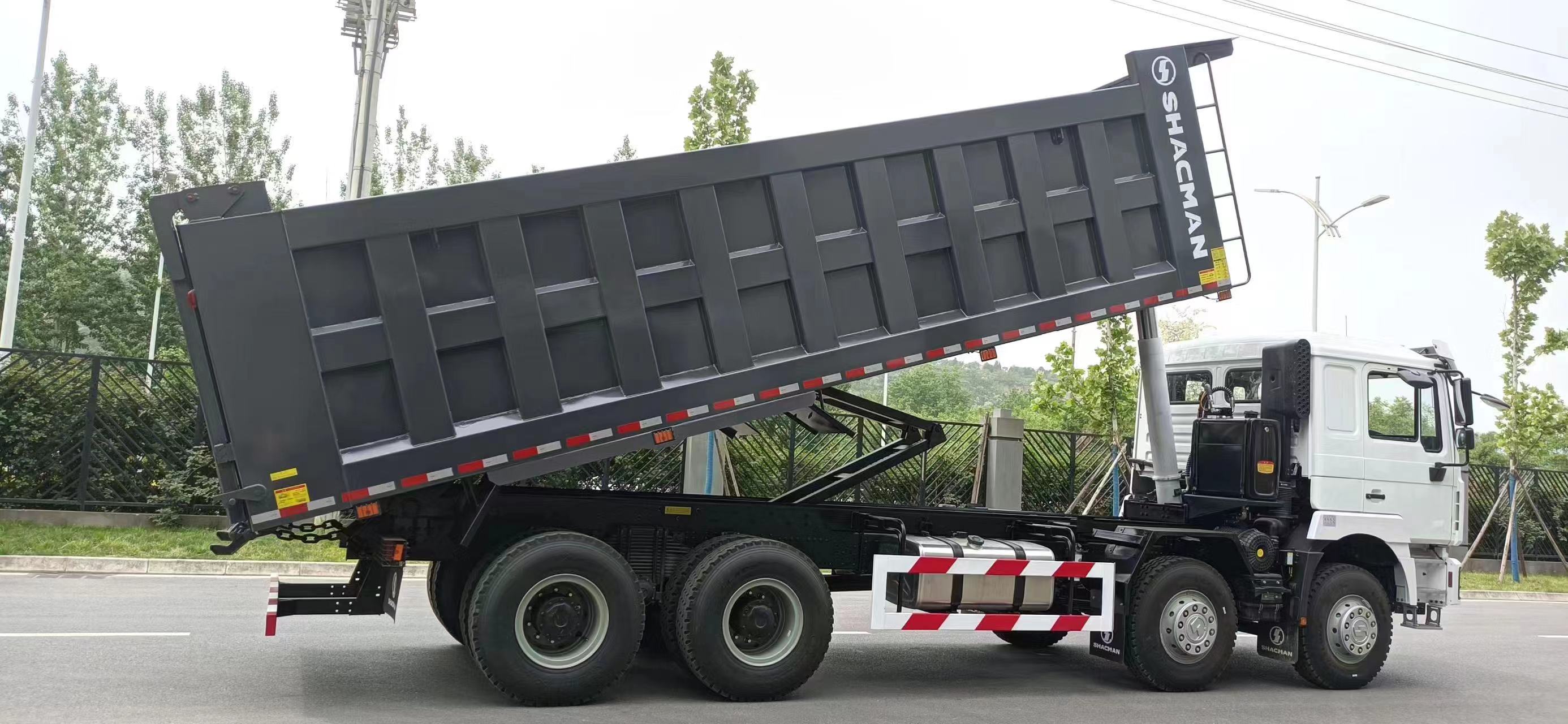

SHACMAN F3000 Reinforced 8x4 Mining Dump Truck

The SHACMAN F3000 reinforced 8x4 heavy-duty dump truck is designed for harsh mine and construction transport conditions, powered by WP12.430E201 430HP Euro II diesel engine matched with 12JSD200K manual transmission. It adopts thickened 8+7 layers 850×300mm frame and 16T heavy-duty double reduction rear axle, delivering powerful climbing and heavy load capacity for muddy, potholed and steep slope roads.

Equipped with 22 cubic meter cargo box, this tipper supports bulk ore, muck, sand and stone transportation. Standard oil bath air filter adapts high-dust mining environment. Complete export one-country-one-set configurations are available, including four-point hydraulic suspension, anti-theft fuel & battery box cover, 50T jack and 2kg fire extinguisher. Optional FHB400 hydraulic retarder and super optional package 1 for safer downhill operation.

With max total mass up to 70 tons, max speed 80km/h and 360L large aluminum alloy fuel tank, it is widely applied in open-pit mine, earthwork engineering, construction waste haulage and mountain heavy transport projects all over the world.

Driving Type	8×4
Engine	WP12.430E201, 430HP, Euro II Emission
Transmission	12JSD200K+QH50 Manual Gearbox
Frame	850×300mm, 8+7 Layers Reinforced Frame
Wheelbase	1800+3775+1400 mm
Cab	F3000 Medium Long Flat Roof Cab, Air Suspension Driver Seat
Axle	9.5T Front Axle, 16T HD Rear Axle, Ratio 4.769
Fuel Tank	360L Aluminum Alloy Fuel Tank
Tire Spec	12.00R20 Mixed Pattern Tire
Cargo Box Volume	22 CBM
Max Total Mass	70 Ton
Max Speed	80 km/h

MAIN PARAMETER

Full Chassis & Export Standard Configuration List

Category	Detailed Configuration
Cab Standard	F3000 Medium Long Flat Roof Cab, Air Suspension Driver Seat, Electric Window Lifter, Manual Cab Tilt, Metal Bumper with Light Guard, Two-step Footboard, No Central Lock, Oil Bath Air Filter, Complete Radiator & Oil Pan Protection Grille, 165Ah Maintenance-free Battery
Power Assembly	WP12.430E201 430HP Euro II Diesel Engine, 12JSD200K+QH50 Manual Transmission with Telescopic Shift Control
Chassis & Axle	8×4 Drive Layout, 850×300mm 8+7 Layers Reinforced Frame, 9.5T Heavy Front Axle, 16T HD Double Reduction Rear Axle, Final Ratio 4.769, Multi-leaf Spring Suspension (4 Main + 4 Auxiliary Bolts)
Fuel & Tire	360L Large Capacity Aluminum Alloy Fuel Tank, 12.00R20 Mixed Pattern Heavy-duty Tires
Export One-country-one-set Spec	4-point Hydraulic Suspension, SHACMAN Brand Logo & Full English Marking, Extra Long-life Primary Filter, Iron Air Reservoir, 50T Hydraulic Jack, 2kg Dry Powder Fire Extinguisher, Anti-theft Fuel Tank & Battery Box Cover, Chassis Reserved 2200mm Installation Space, Standard Export Toolkit
Optional Upgrades	FHB400 Hydraulic Retarder, Super Version Optional Package 1
Upfit Cargo Box	22 Cubic Meter Heavy-duty Dump Cargo Box, Dimension: 7600×2300×1500mm
Working Condition & Limit	Suitable for mine, muddy, potholed and steep slope pavement; Max Total Gross Mass: 70 Ton, Max Driving Speed: 80km/h

1. Terms of payment: TT, 30% deposit, balance before delivery from factory.

2. Delivery at China port period: 55 working days after advance payment.

3. Vehicle warranty period: 12 months from the date of bill of lading.
