Home > Products > SHACMAN F3000 Series 6×4 Dump Trucks | 380HP SX3255DT384R Heavy Duty Tipper Trucks
Driving type
6*4
Wheelbase(mm)
3975+1400
Max. Speed/(km/h)
85
Usage Scenario
Ideal for mining, construction, road building and earthmoving projects. Designed for heavy-duty tasks like hauling gravel, sand, ore and construction waste. Reliable performance on rough, unpaved roads and worksites.
PRODUCT DETAILS

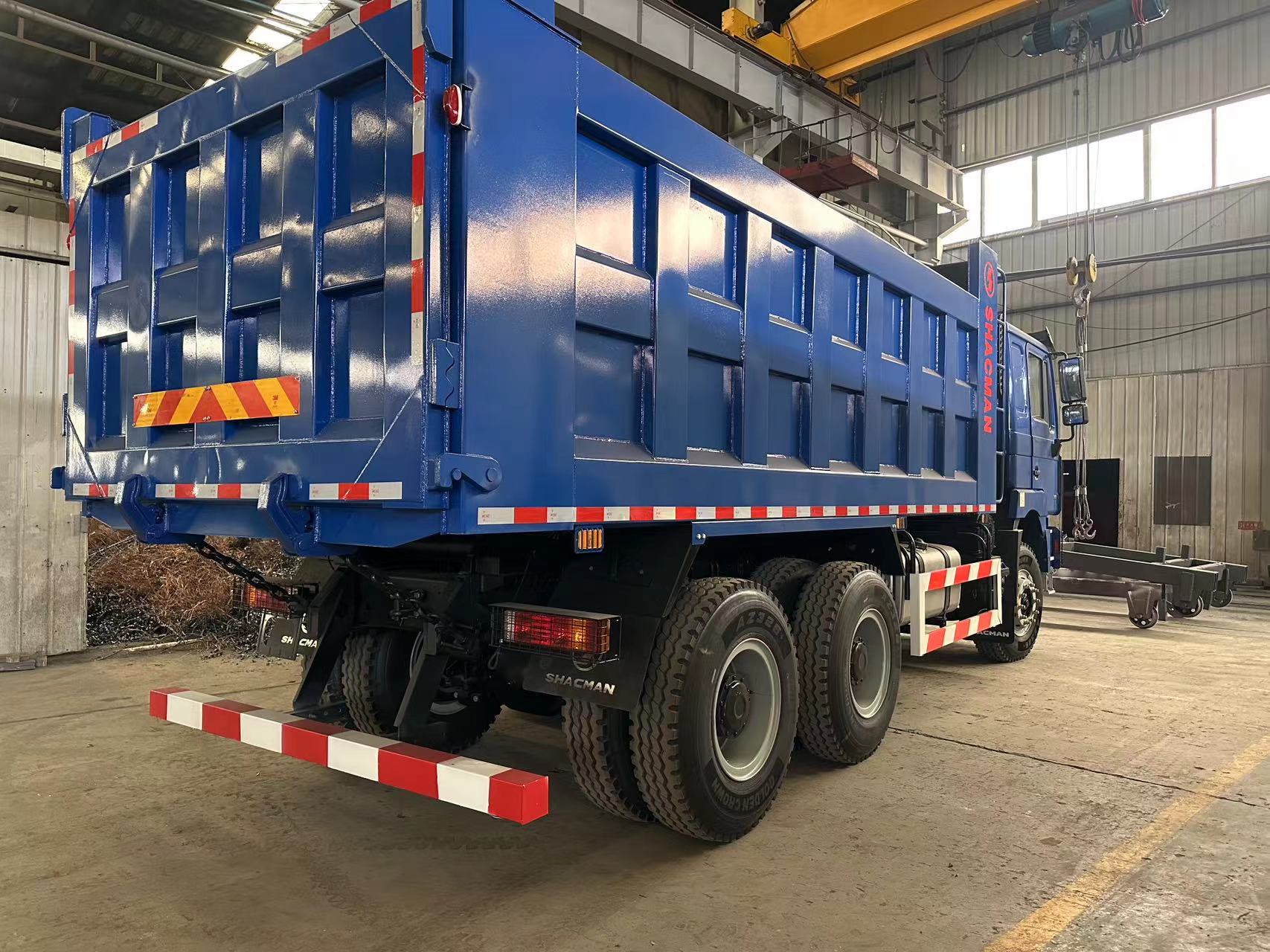

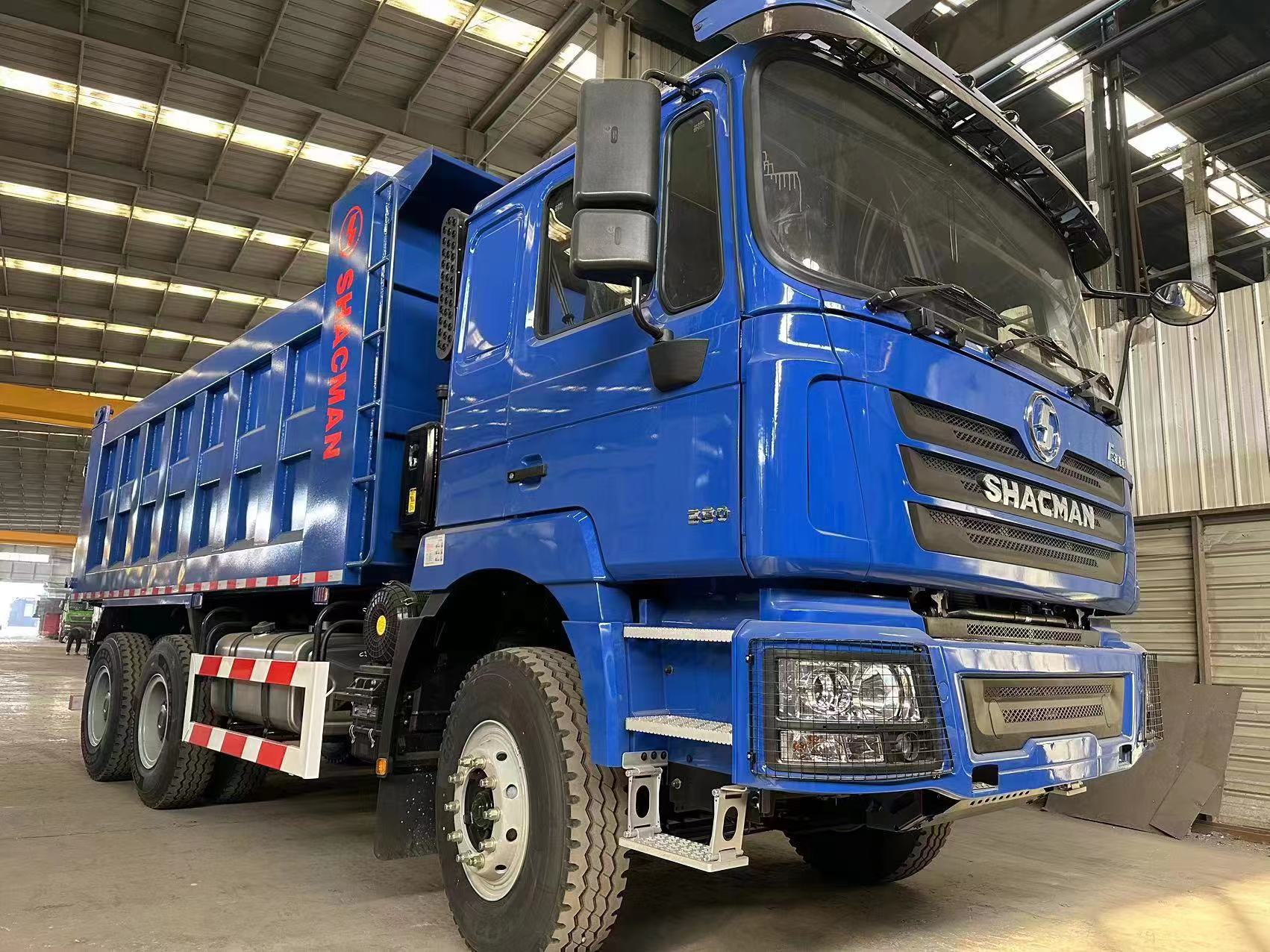

The SHACMAN F3000 6×4 Dump Truck SX3255DT384R is a heavy-duty reinforced tipper designed for mining, construction, and earthmoving projects. Built with robust components and proven technology, it delivers reliable performance even in the toughest working conditions.
Key Features & Construction-Grade Durability
Powerful Performance: Equipped with a WP10.380E22 engine (380HP, Euro II) and 10JSD180 transmission, delivering strong torque and reliable power output for heavy loads.
Heavy-Duty Chassis: Reinforced 850×300 frame, 16T HD dual-stage forged widened rear axle (4.769 ratio), and multi-leaf spring suspension for superior load capacity and stability.
Driver Comfort & Safety: F3000 mid-long flat roof cab with automatic A/C, hydraulic cab suspension, and protective grilles for bumpers, headlights, and taillights.
Worksite-Ready: 400L aluminum fuel tank, 13R22.5 mixed-pattern tires, and a 5600×2300×1500 cargo body, ideal for hauling gravel, ore, and construction waste.
MAIN PARAMETER
| Item | Specification |
|---|---|
| Model | SHACMAN F3000 SX3255DT384R 6×4 Dump Truck |
| Platform / Drive Form | F3000 / 6×4 |
| Engine Model | WP10.380E22 (380HP, Euro II) |
| Transmission | 10JSD180 Iron Shell with QH50 PTO |
| Rear Axle / Ratio | 16T HD Dual-Stage Forged Widened / 4.769 |
| Chassis Frame | 850×300mm (8+7 layers) |
| Wheelbase | 3775 + 1400 mm |
| Cargo Body Size | 5600 × 2300 × 1500 mm |
| Fuel Tank / Tires | 400L Aluminum / 13R22.5 Mixed Pattern |
| Cab / Suspension | Mid-Long Flat Roof / Four-Point Hydraulic Suspension |
1. Terms of payment: TT, 30% deposit, balance before delivery from factory.
2. Delivery at China port period: 55 working days after advance payment.
3. Vehicle warranty period: 12 months from the date of bill of lading.
RELATED PRODUCTS
SHACMAN X3000 6x4 Dump Truck SX32586V384, WP12 430HP Engine, Reinforced Cargo Box With Floor Heating
SHACMAN L3000 6x4 300HP Euro V Lightweight Dump Truck, 18CBM Tipper Truck for Construction & Mining
SHACMAN X3000 8×4 Heavy Duty Dump Truck, 400HP Euro II for Construction Mining

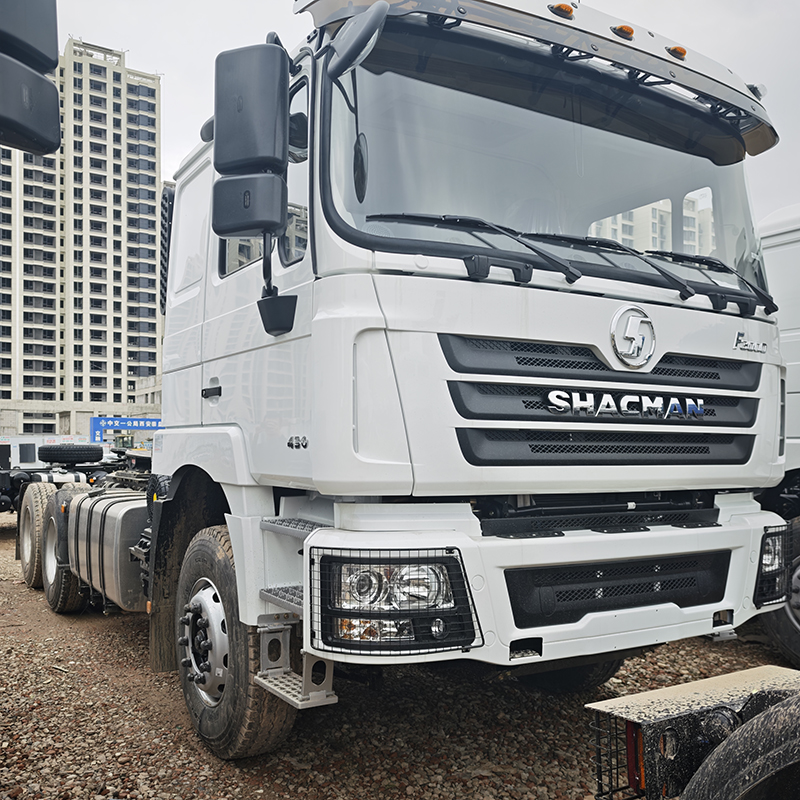

SHACMAN F3000 Reinforced 6x4 Tractor Truck 430HP Euro II Heavy Duty Container Semi Trailer Tractor Head
