Driving type
4×2
Email: shacman@shacman-truck.com
Tel.: +86 135 7927 1170
Email: shacman@shacman-truck.com
Tel.: +86 135 7927 1170
Driving type
4×2
Wheelbase(mm)
4500
Max. Speed/(km/h)
80-110km/h
PRODUCT DETAILS
| MODEL | SX4255JT324 | |
| Driver's position | Left Hand | |
| Driving type | 4×2 | |
| Wheelbase | 4500 | |
| Max. Speed | 80km/h | |
| Engine | Brand | Weichai |
| Model | WP10.380E22 | |
| Emission Standard | EUR2 | |
| Rated output power | 380HP | |
| Displacement(L) | Displacement | |
| Clutch | ￠430 diaphragm clutch | |
| Steering | ZF technology | |
| Frame | 850×300（8+5） | |
| Suspension | Front and rear multi leaf spring | |
| Fuel tank | 400L fueltank Al Alloy | |
| Wheels and tires | 12.00R20 | |
| Brakes | Running brake:Dual circuit compressed air brake | |
| Parking brake:Air discharging with spring control | ||
| Auxiliary brake:Engine exhaust brake | ||
| Without ABS | ||
| Cabin | H3000 cab.Air master seat, four hydraulic mount, single refrigeration and air conditioning, electric shake window machine, manual flip, ordinary air filter, the common 90 saddle, metal bumper, hinged on the pedal, fenders, 165 ah maintenance-free battery, the tank protection gate, headlamps protection gate, tail lamp protection gate, oil security, battery box anti-theft, SHACMAN identification, all in EnglishSign, add a common coarse filter, 2 danger warning lights | |
RELATED PRODUCTS
SHACMAN X3000 6x4 430HP Euro II Cargo Truck, 35t Heavy Duty Truck, 7.5m Box Body, WABCO ABS, 16T Axle
shacman H3000 Yellow Water Sprinkler truck 6×4

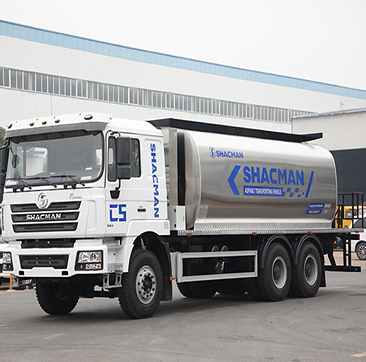

SHACMAN L3000 asphalt transport vehicle
