Home > Products > SHACMAN H3000 Enhanced 6×4 Dump Truck | 385HP Weichai M10 Engine 50Ton Heavy-Duty Tipper
Driving type
6*4
Wheelbase(mm)
3775+1400
Max. Speed/(km/h)
70km/h
Usage Scenario
Heavy-load transportation for construction sites, urban infrastructure, mining and quarry operations, and bulk material hauling on unpaved, rugged roads.
PRODUCT DETAILS

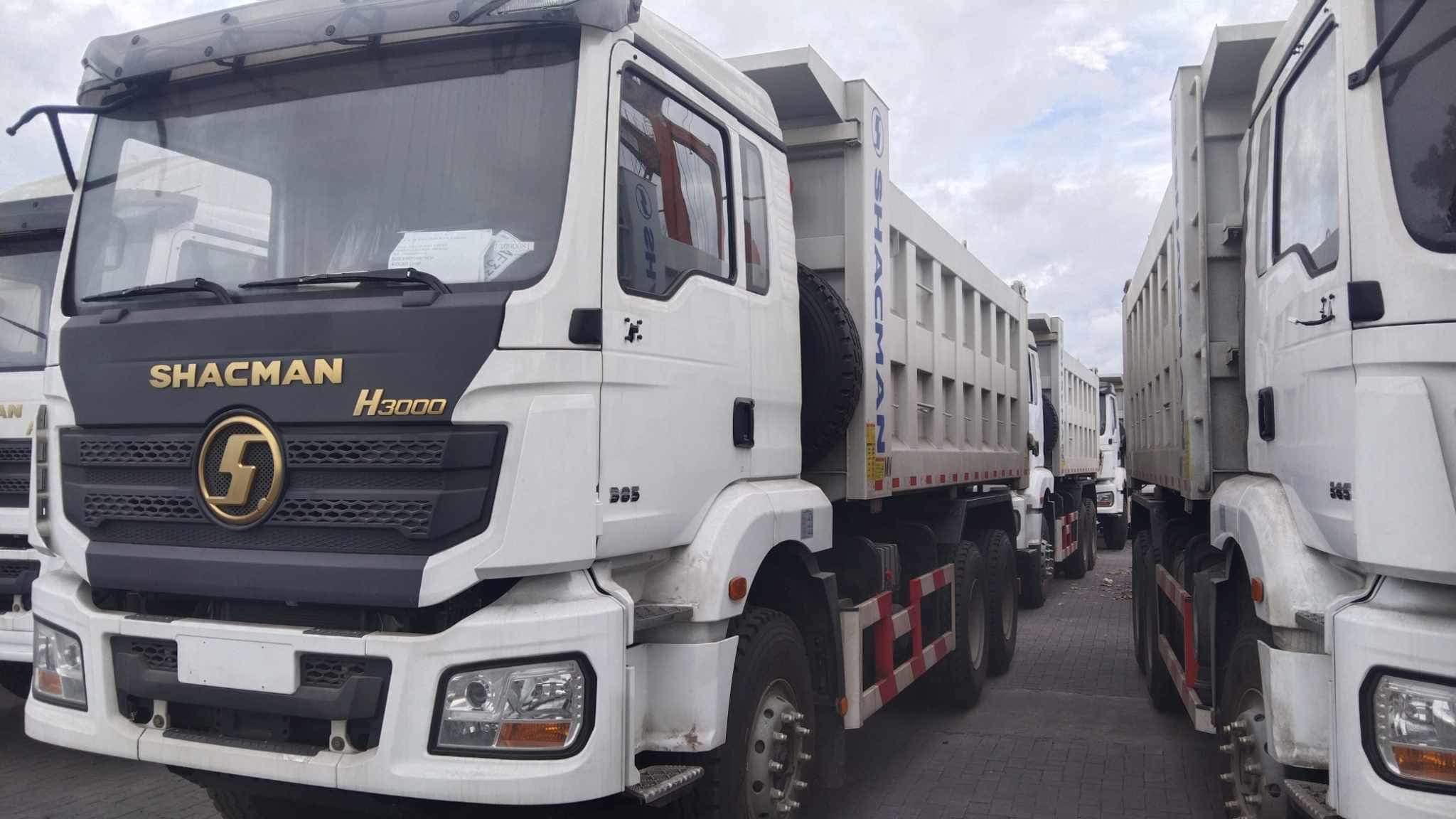

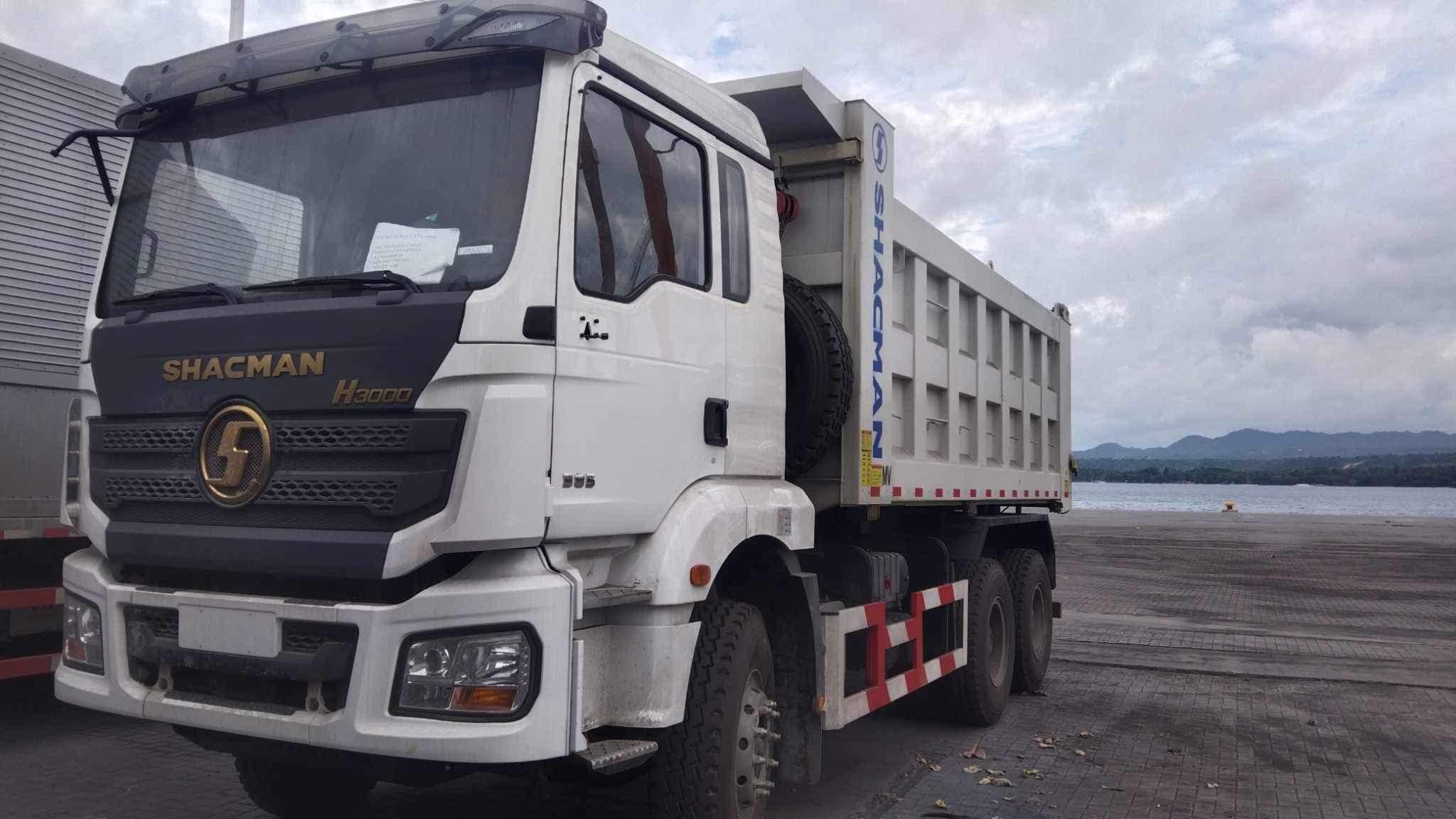

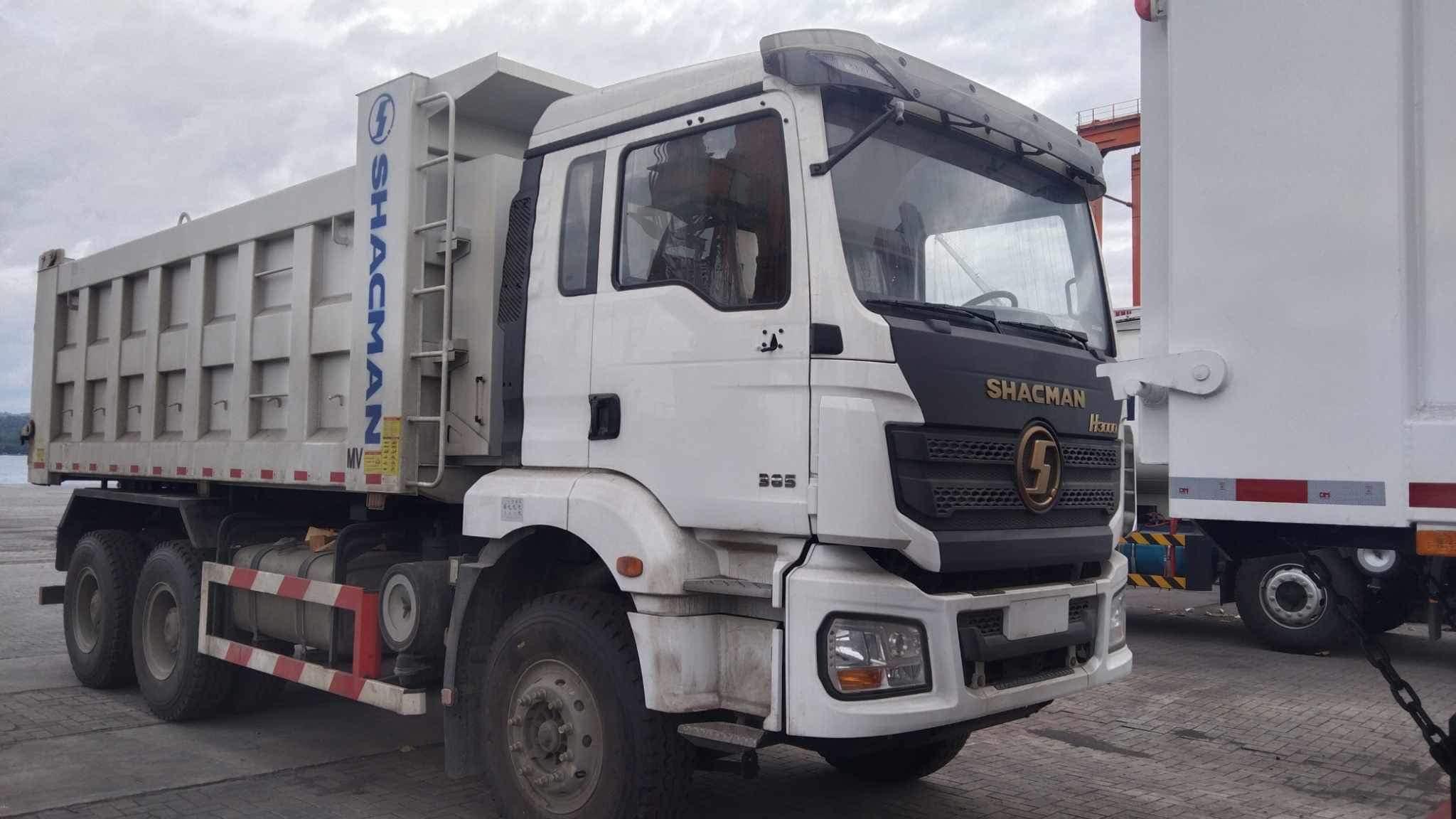

The SHACMAN H3000 Enhanced 6×4 Dump Truck (Model: SX3255MT384C) is a high-performance heavy-duty tipper engineered for extreme heavy-load operations in construction, mining, and bulk material transportation. Powered by a 385HP Weichai M10 Euro II engine, paired with a reinforced 6×4 chassis and 16T heavy-duty rear axle, this truck delivers exceptional load capacity (up to 50 tons GVW), durability, and reliability for global infrastructure projects. It is the ideal workhorse for heavy-duty haulage in harsh, unpaved working environments.
Core Advantages of SHACMAN H3000 Enhanced 6×4 Dump Truck
The SHACMAN H3000 Enhanced 6×4 dump truck is engineered to deliver outstanding performance in the harshest working environments, with multiple core advantages that make it the preferred choice for global construction and mining customers:
Powerful & Reliable Powertrain: Equipped with Weichai M10 385HP engine (Euro II) and Fast 12JSD200T gearbox, delivering strong torque for heavy-load climbing and long-haul operations.
Extreme Durability & Load Capacity: Reinforced 850×300 (8+7)mm high-strength steel chassis, 16T HD double-reduction wide rear axle, supporting a maximum gross weight of 50 tons.
Efficient Unloading System: Large 5.6m front-lifting hydraulic cargo box enables fast, smooth and stable unloading, greatly improving work efficiency and reducing transportation costs.
Driver-Friendly Design: Ergonomic standard cab with hydraulic seat, automatic air conditioning, and comprehensive safety protection, ensuring comfortable and safe driving for long hours.
Customizable Configuration: Multiple optional configurations to meet the specific needs of different regions and projects.
MAIN PARAMETER
| Parameter | Specification |
|---|---|
| Model | SHACMAN H3000 Enhanced 6×4 Dump Truck (SX3255MT384C) |
| Drive Configuration | 6×4 |
| Engine | Weichai M10 385HP, Euro II |
| Transmission | Fast 12JSD200T-B Iron Shell QH50 Gearbox |
| Front Axle | 9.5T HD Front Axle |
| Rear Axle | 16T HD Double Reduction Casting Wide Axle, Ratio 4.266 |
| Chassis Frame | 850×300 (8+7)mm High-strength Steel |
| Wheelbase | 3775+1400 mm |
| Chassis Rear Overhang | 1100 mm |
| Cargo Box Size | 5600×2300×1500 mm, Front Lifting Hydraulic |
| GVW | ≤50 Tons |
| Tires | 315/80R22.5 Mixed Pattern |
| Fuel Tank | 400L Aluminum Alloy Fuel Tank |
| Cab | H3000 Standard Cab, A/C, Hydraulic Seat |
* Description:
1. Terms of payment: TT, 30% deposit, balance before delivery from factory.
2. Delivery at China port period: 45 working days fter advance payment.
3. Vehicle warranty period: 24 months from the date of bill of lading.
RELATED PRODUCTS
shacman F3000 cleaning sewage truck 15 cubic meters

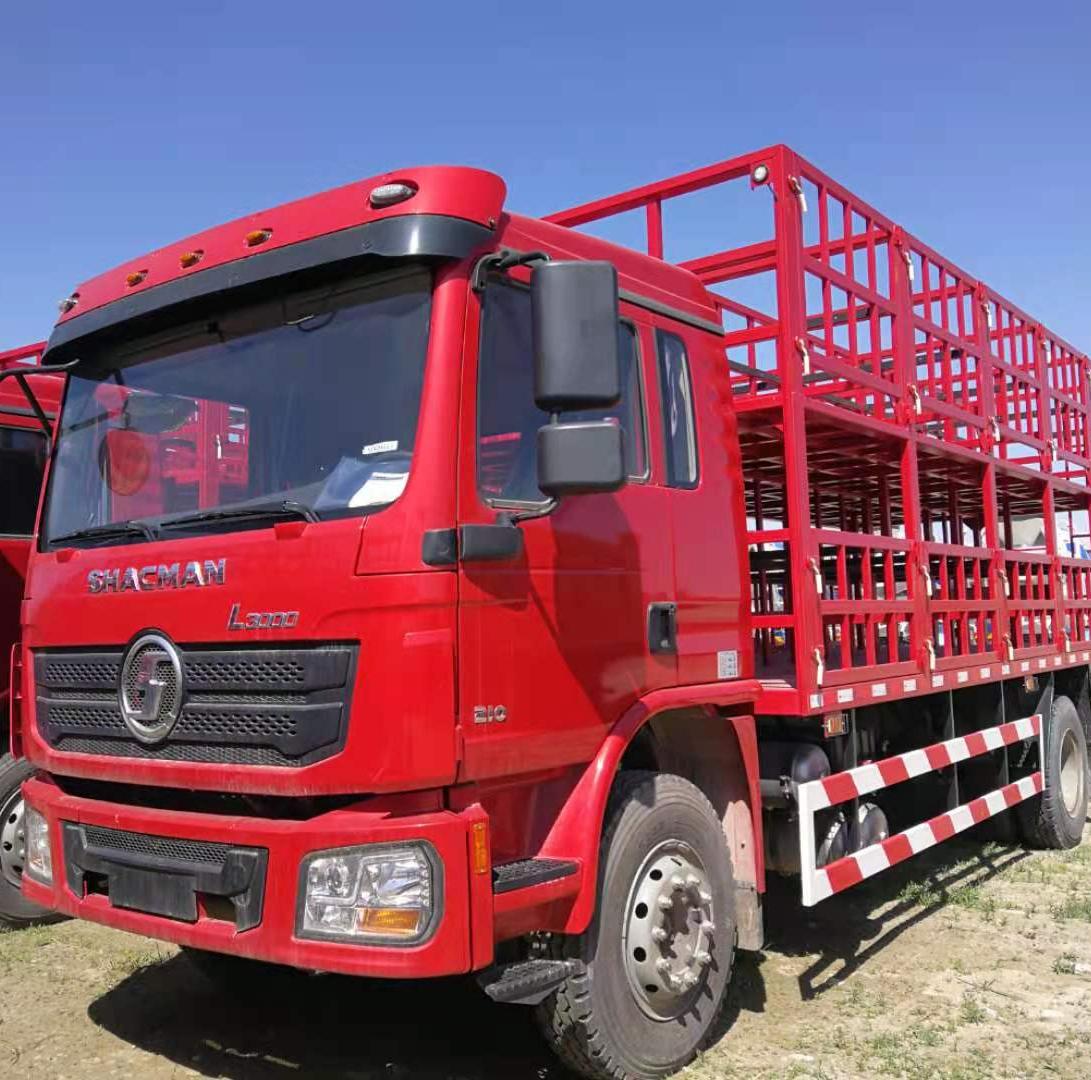

SHACMAN L3000 4×2 Stake Truck | Grid-Type Cargo Body | Durable for Agricultural & Logistics Use
shacman H3000 4×2 snow removal vehicle

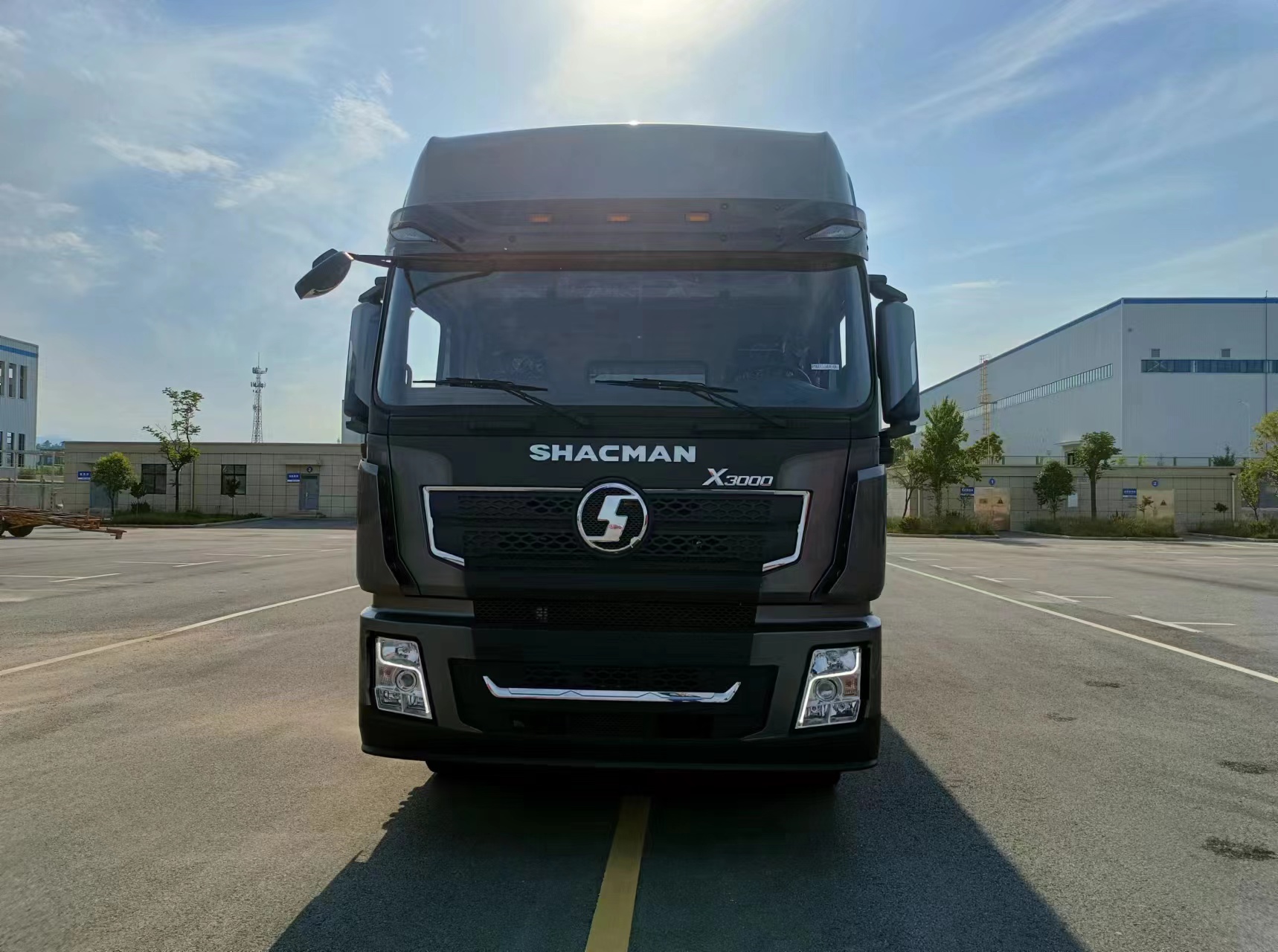

SHACMAN X3000 6x4 380HP Prime Mover & Cargo Truck | Heavy Duty Transport Lorry

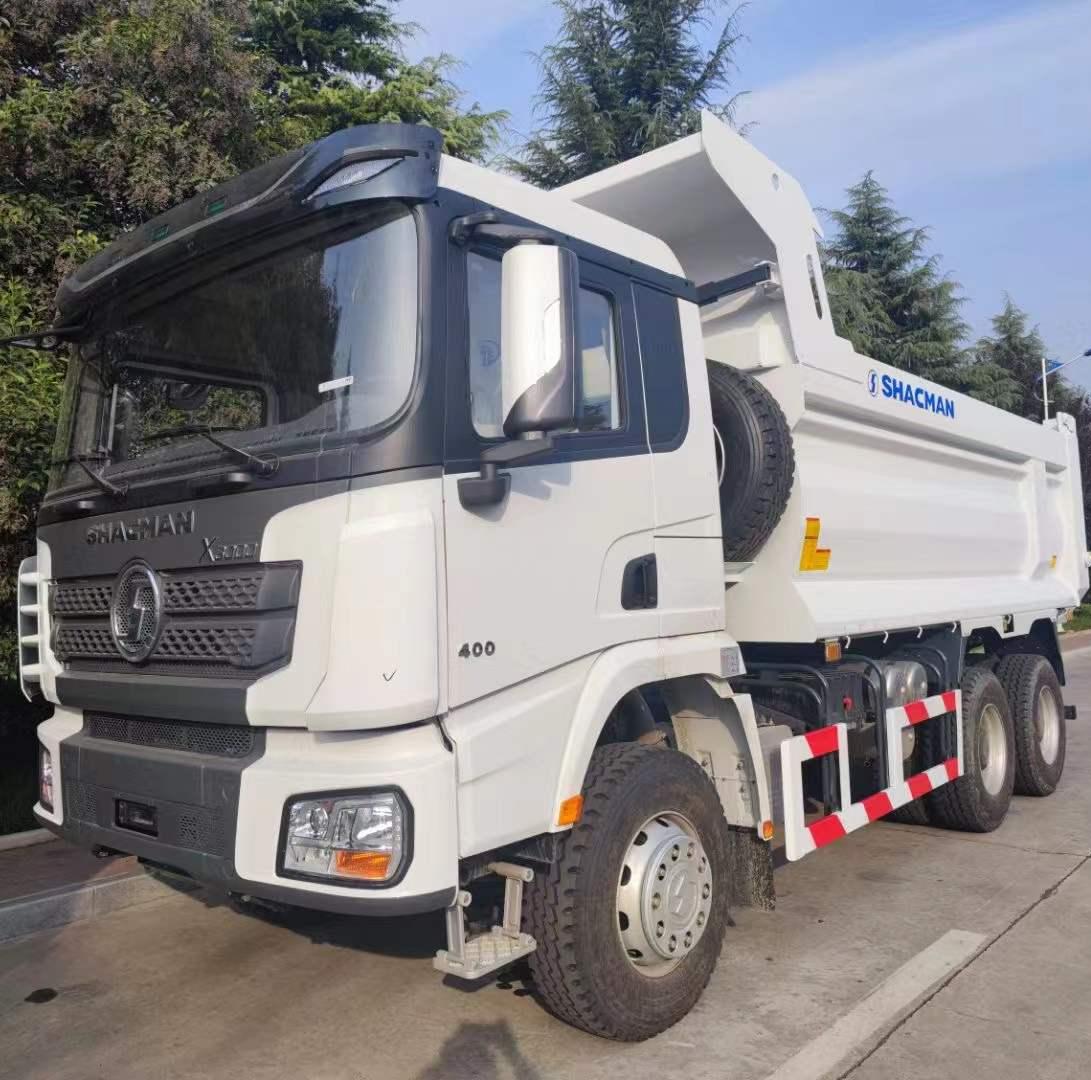

SHACMAN X3000 Arctic White – Built for the Toughest Jobs
SHACMAN X3000 6×4 Concrete Mixer Truck for Construction Sites

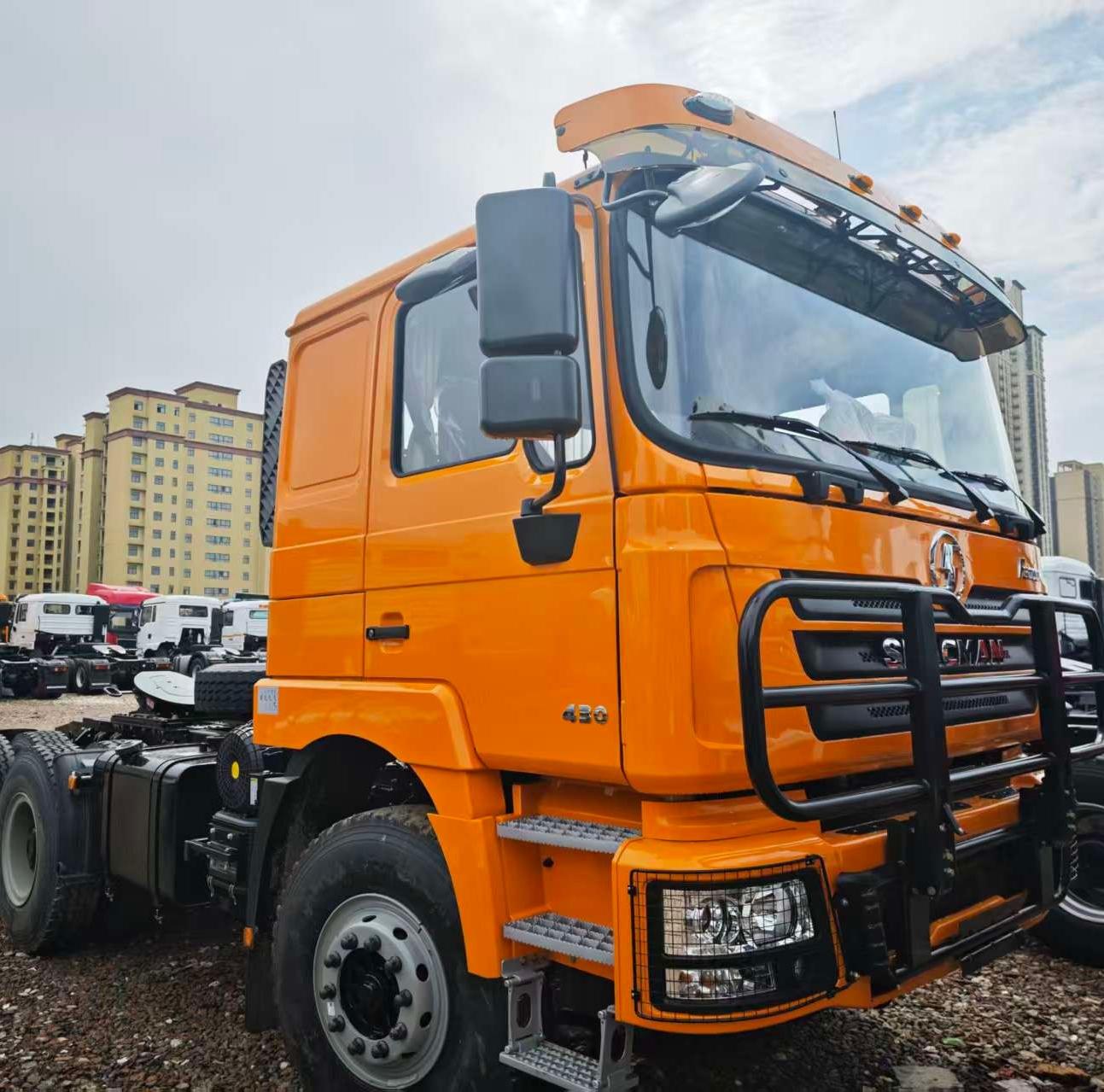

SHACMAN F3000 6x4 430HP Tractor Truck - New & Used

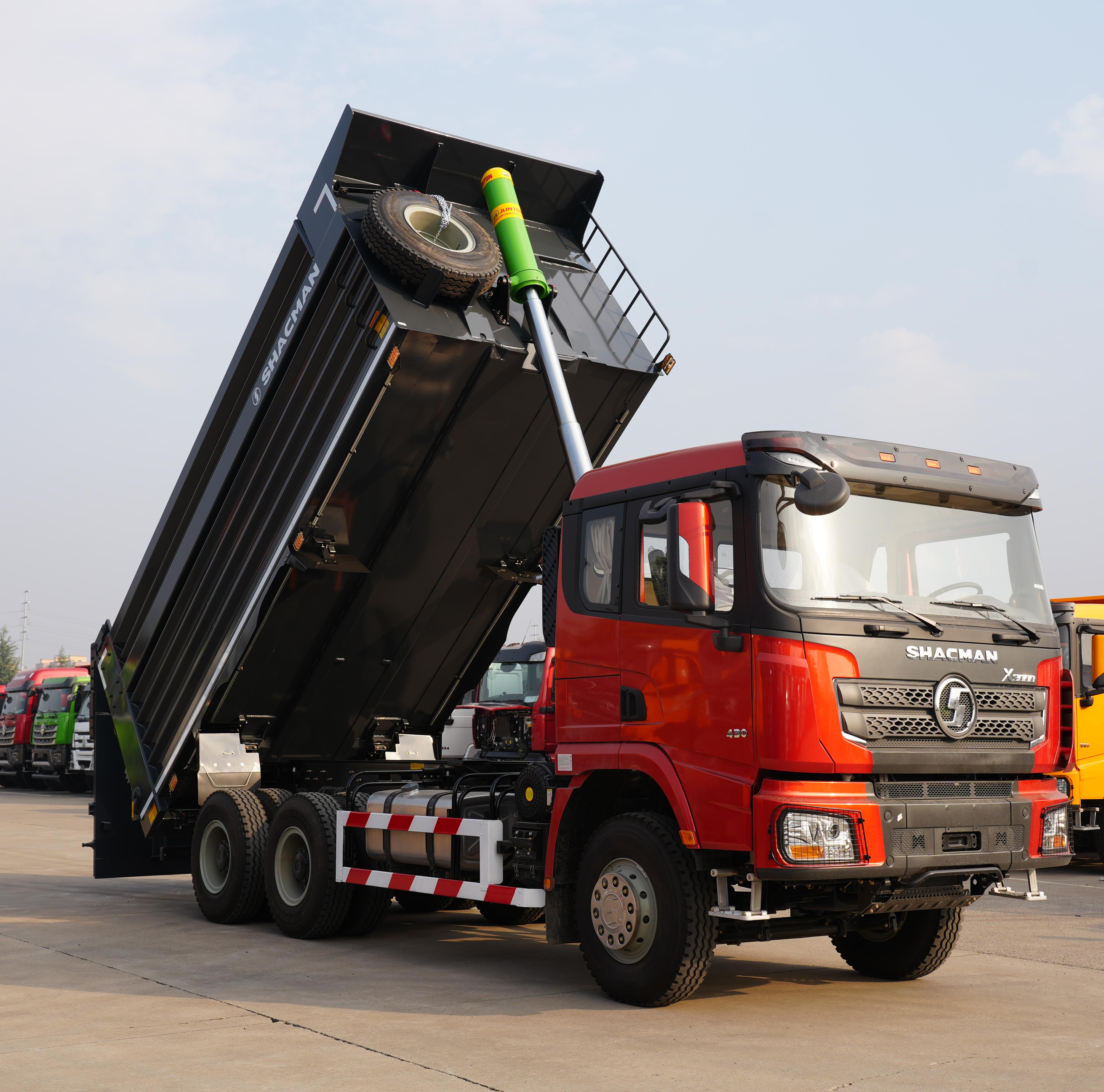

SHACMAN X3000 Lightning Orange Front-Lift Dump Truck
