SHACMAN X3000 6x4 Dump Truck SX32586V384, WP12 430HP Engine, Reinforced Cargo Box With Floor Heating

Driving type

6*4

Wheelbase(mm)

3800+1350

Max. Speed/(km/h)

75km/h

Usage Scenario

Suitable for mine ore transportation, earthwork muck hauling, gravel and bulk material delivery, foundation backfilling, construction waste transportation and heavy engineering transportation projects.

INQUIRY NOW

PRODUCT DETAILS

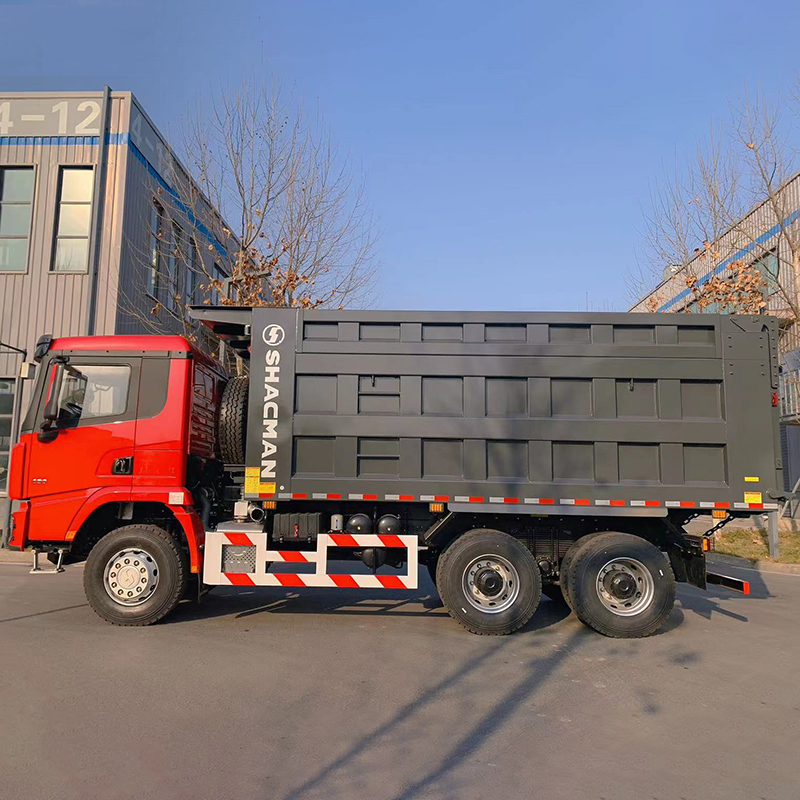

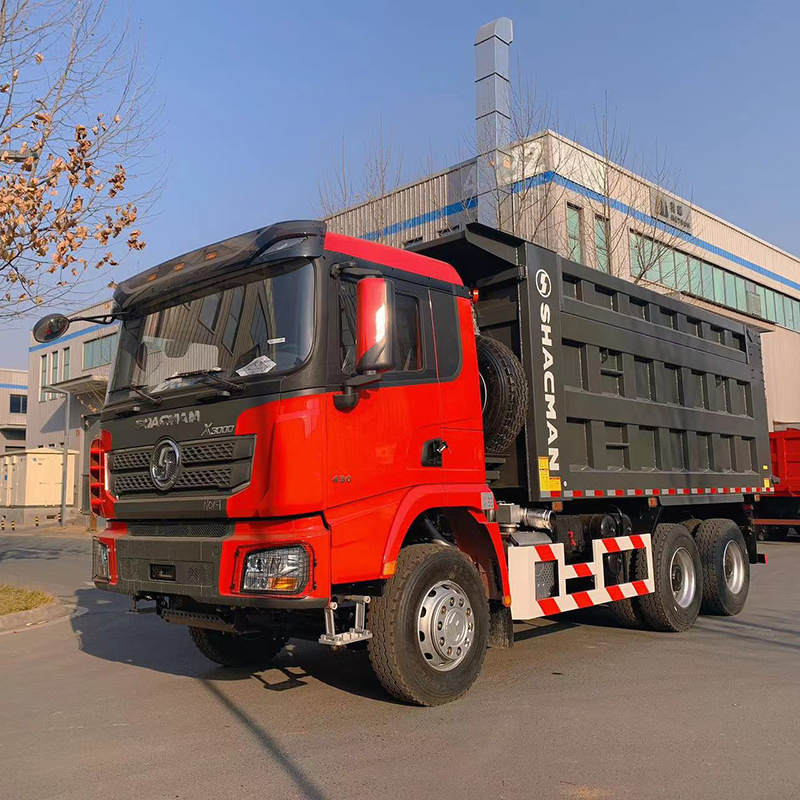

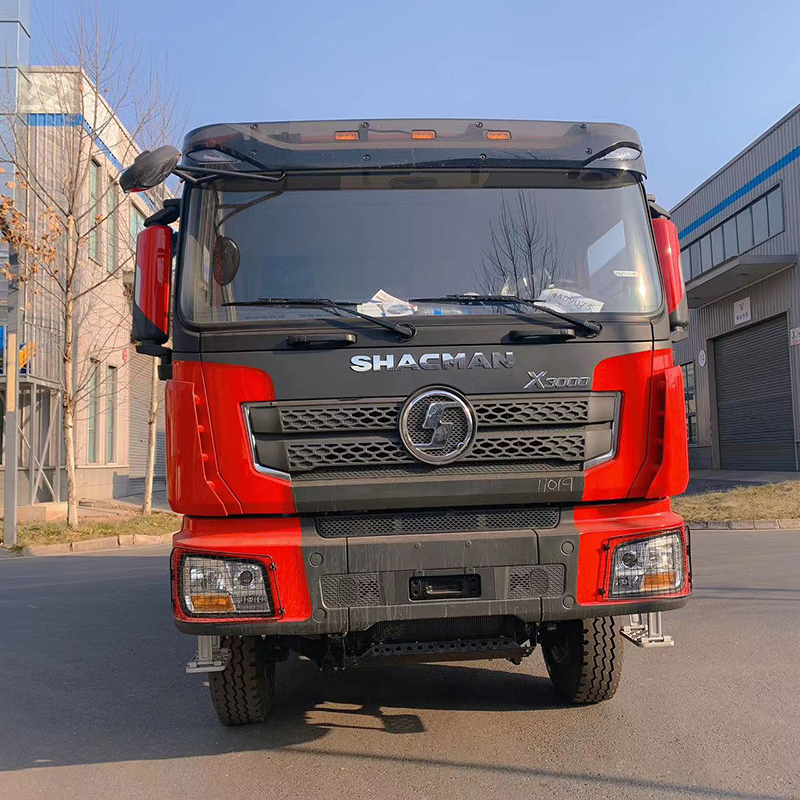

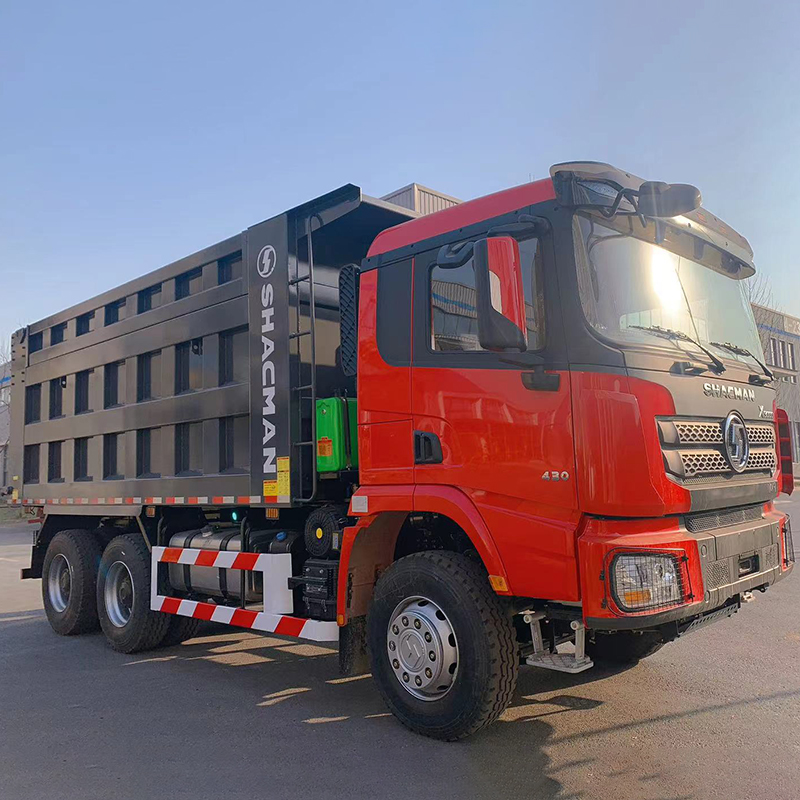

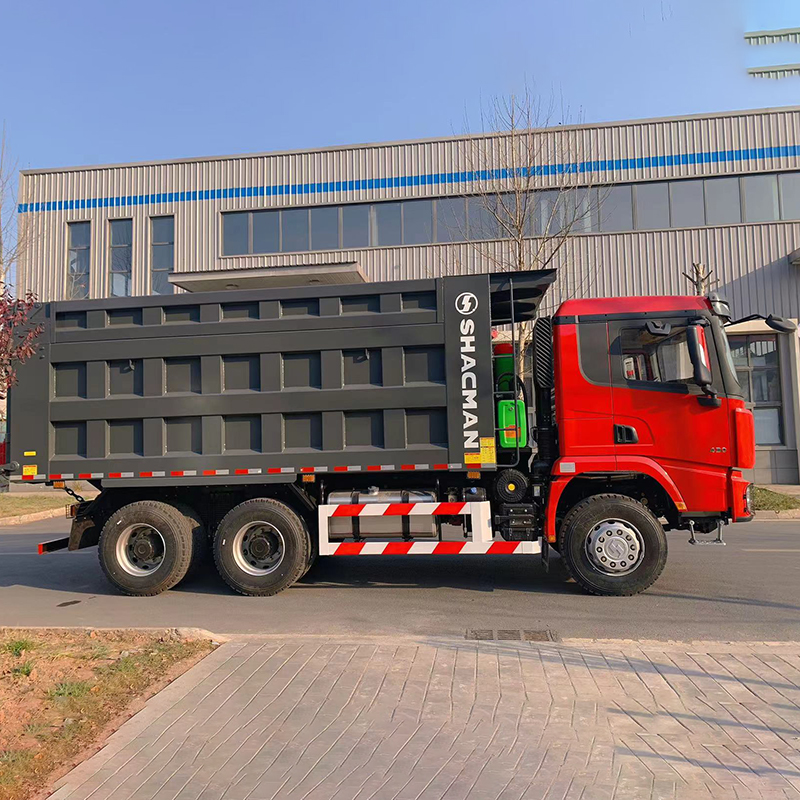

SHACMAN X3000 6×4 Heavy Duty Dump Truck Model SX32586V384

This 6x4 tipper dump truck is specially developed for heavy-duty transportation in mines, quarries, earthmoving construction and infrastructure projects. Equipped with WP12.430E50 430HP high-torque diesel engine, matched with reliable 12JSD200T-B transmission and MAN double reduction rear axle, it delivers strong climbing ability and stable running performance on rugged and complex road conditions.

The cargo box adopts reinforced wear-resistant structure with floor heating design. Its dimension is 5600×2300×1500+500mm, with 10mm floor thickness and 8mm side plate thickness, effectively preventing cargo freezing and abrasion during transportation. The four-point hydraulic suspension flat roof cab brings comfortable driving experience, equipped with automatic constant temperature air conditioner, electric windows, hydraulic main driver seat and complete safety auxiliary configurations.

The whole vehicle is manufactured in official factory with complete formal certification, VIN code and nameplate available. We support small modification to meet export standards, sufficient ready stock, global spare parts supply system and customized service for bulk orders to satisfy various overseas market demands.

Main Technical Parameters

Driving Type: 6×4

Wheelbase: 3800+1350 mm

Max Speed: 75 km/h

Engine Model: WP12.430E50, 430HP, Displacement: 11.596L

Transmission: 12JSD200T-B Manual Gearbox

Front Axle: MAN 9.5T Drum Brake Axle

Rear Axle: 16T MAN Double Reduction Cast Axle, Ratio 5.92

Fuel Tank: 400L Aluminum Alloy Fuel Tank

Tire Specification: 315/80R22.5 Tubeless Tire

Cargo Body Dimension: 5600×2300×1500+500mm

Overall Vehicle Dimension: 8900×2550×3650mm

Curb Weight: 12800kg, Rated Load Capacity: 12200kg

MAIN PARAMETER

Item	Parameter
Model	SX32586V384 SHACMAN X3000 6×4 Dump Truck
Driving Type	6×4
Wheelbase	3800+1350 mm
Max Speed	75 km/h
Engine Model	WP12.430E50, 430HP, Displacement 11.596L
Transmission	12JSD200T-B Manual Gearbox
Front Axle	MAN 9.5T Drum Brake Axle
Rear Axle	16T MAN Double Reduction Cast Axle, Ratio 5.92
Fuel Tank	400L Aluminum Alloy Tank
Tire Spec	315/80R22.5 Tubeless Tire
Cargo Body Size	5600×2300×1500+500 mm
Overall Dimension	8900×2550×3650 mm
Curb Weight / Rated Load	12800 kg / 12200 kg

1. Terms of payment: TT, 30% deposit, balance before delivery from factory.

2. Delivery at China port period: 55 working days after advance payment.

3. Vehicle warranty period: 12 months from the date of bill of lading.
