SHACMAN X3000 Reinforced 6x4 Dump Truck 340HP Euro II Heavy Construction Mining Tipper Truck For Muddy Slope Road

Driving type

6*4

Wheelbase(mm)

3775+1400

Max. Speed/(km/h)

70km/h

Usage Scenario

Suitable for open-pit mine ore transportation, construction muck and gravel haulage, earthwork engineering projects, adapted to complex rough roads including muddy ground, potholes and steep slopes; reliable heavy-load short-distance transport vehicle for mining and infrastructure construction sites.

INQUIRY NOW

PRODUCT DETAILS

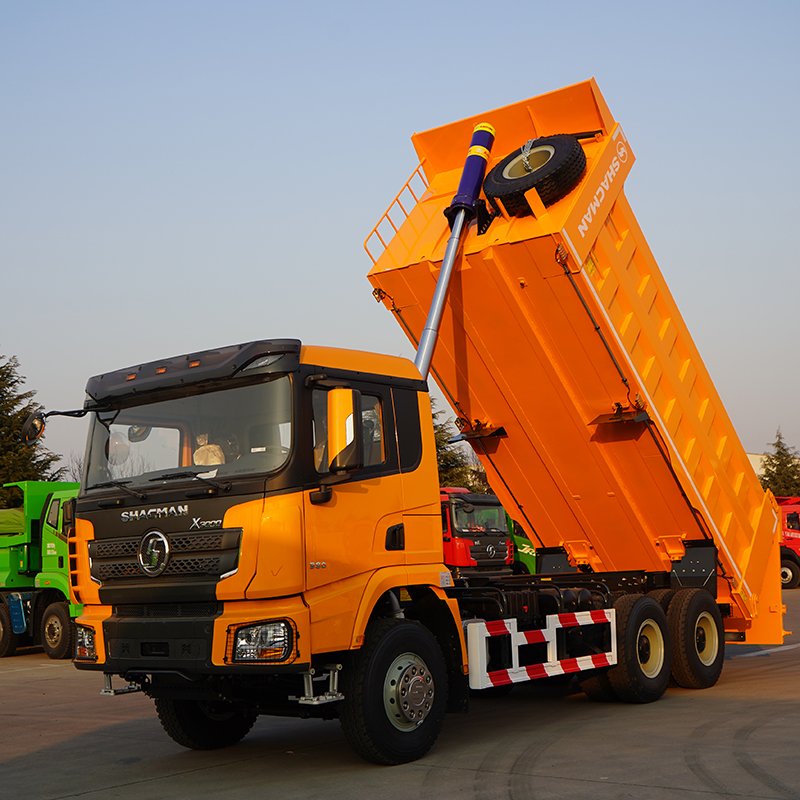

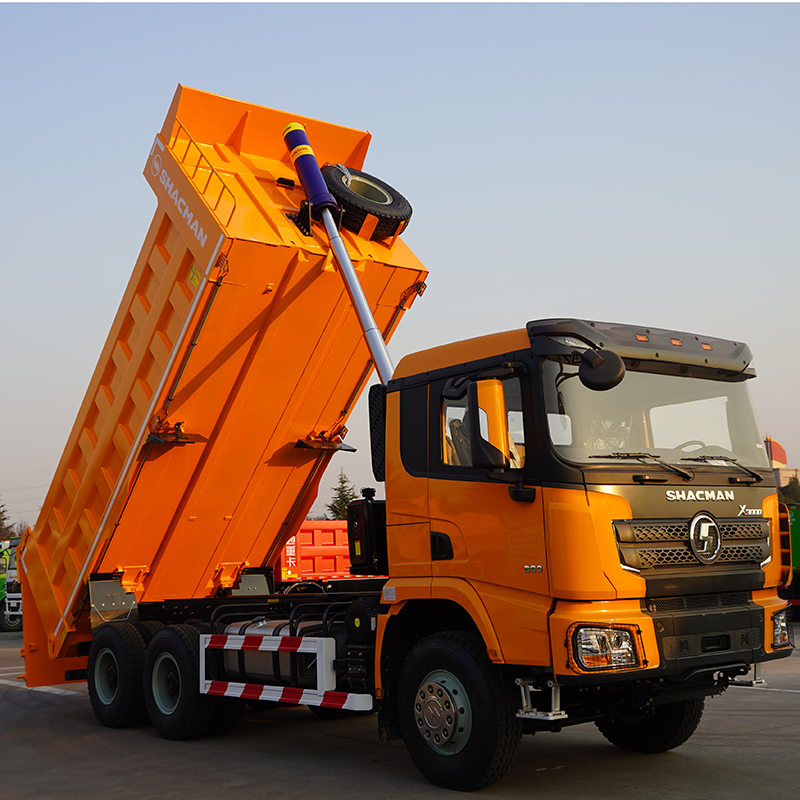

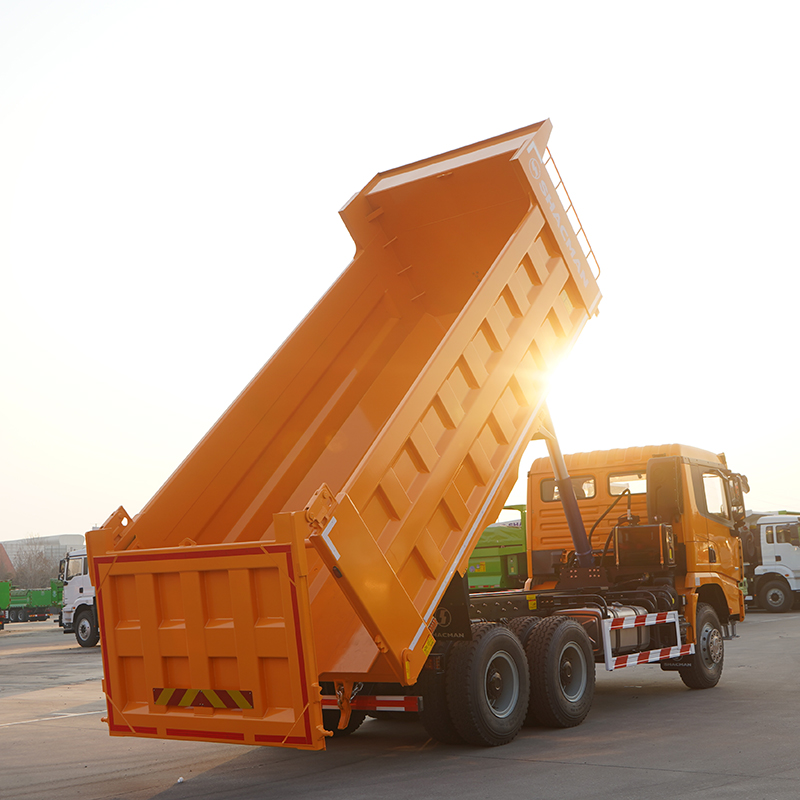

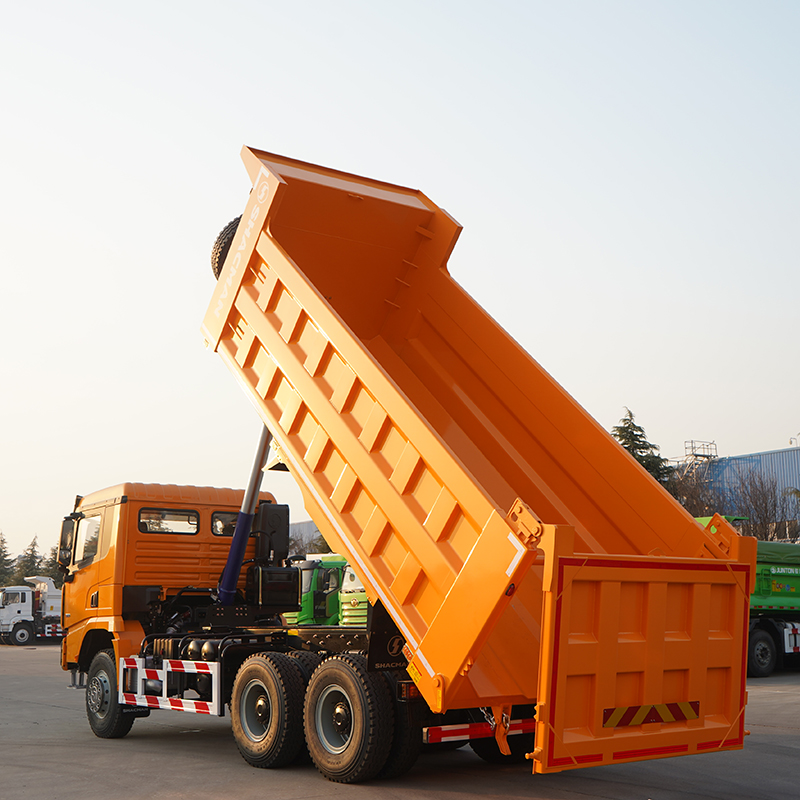

SHACMAN X3000 Reinforced 6x4 Heavy Duty Mining Dump Truck

The SHACMAN X3000 reinforced 6×4 dump truck is specially built for harsh mine and construction transport scenarios. It adopts WP10.340E22 340HP Euro II diesel engine matched with 10JSD180 iron shell transmission, equipped with thickened 8+7 layers 850×300mm frame and 16T heavy-duty double reduction rear axle, delivering strong climbing ability and stable heavy-load performance on muddy, bumpy and steep gradient roads.

The cab is X3000 medium long flat roof type with hydraulic suspension driver seat, central lock with remote control, three-stage footboard and X5000 black engineering bumper with light guard. Standard oil bath air filter adapts high-dust mining environment perfectly. Complete export one-country-one-set configurations are equipped as standard, including four-point hydraulic suspension, LED daytime running lights, anti-theft fuel tank & battery box cover, 50T hydraulic jack and 2kg fire extinguisher. Air suspension driver seat is available as optional upgrade.

With 400L large aluminum alloy fuel tank, max total mass up to 70 tons and max speed 70km/h, this tipper is widely used for open-pit mine ore haulage, construction muck & gravel transportation, earthwork engineering and mountain heavy cargo transport worldwide.

Driving Form	6×4
Engine Model	WP10.340E22, 340HP, Euro II Emission
Transmission	10JSD180 Iron Shell Gearbox with QH50 Spline Shaft
Frame Spec	850×300mm, 8+7 Layers Reinforced Frame
Wheelbase	3775+1400 mm
Cab Type	X3000 Medium Long Flat Roof Cab
Axle Configuration	9.5T Heavy Front Axle, 16T HD Double Reduction Rear Axle, Ratio 4.769
Fuel Tank	400L Aluminum Alloy Fuel Tank
Tire Size	12R22.5 Mixed Pattern Heavy Tire
Max Total Gross Mass	70 Ton
Max Driving Speed	70 km/h

MAIN PARAMETER

Full Standard & Export Configuration Table of SHACMAN X3000 6x4 Reinforced Dump Truck

Classification	Detailed Configuration
Basic Cab Configuration	X3000 Medium Long Flat Roof Cab without Top Spoiler, Hydraulic Suspension Driver Seat, Ordinary Rearview Mirror, Electronic Control Constant Temperature Air Conditioner, Electric Window Lifter, Manual Cab Tilt, X5000 Black Engineering Bumper with Light Guard, Three-step Footboard, Central Lock with Remote Controller, Ordinary Steering Wheel, Oil Bath Air Filter, Ordinary Exhaust System, Domestic Steering Gear & Clutch, Front & Rear Stabilizer Bars, Middle Front Traction Seat, Tail Light Protection Grille, Radiator Guard, Oil Sump Guard, 165Ah Maintenance-free Battery
Export One-country-one-set Standard	4-point Hydraulic Suspension, SHACMAN Brand Logo, Full English Markings, Silver Letter Logo, Anti-theft Battery Box & Fuel Cap, LED Daytime Running Light, Extra Long-life Primary Filter, Reverse Buzzer, 50T Hydraulic Jack, 2kg Dry Powder Fire Extinguisher, Economic Version Toolkit
Optional Accessory	Air Suspension Driver Seat
Power & Chassis Core Parameters	6×4 Drive Layout, WP10.340E22 340HP Euro II Engine, 10JSD180 Iron Shell Transmission with QH50 Spline Shaft, 16T Heavy-duty Double Reduction Rear Axle (Ratio 4.769), 850×300mm 8+7 Layers Reinforced Frame, Wheelbase: 3775+1400mm, Rear Overhang 850mm, 9.5T Heavy Front Axle, Multi-leaf Spring Suspension (4 Main + 4 Auxiliary Bolts), 400L Aluminum Alloy Fuel Tank, 12R22.5 Mixed Pattern Tires
Application & Limit Data	For open pit mine, construction muck and gravel transport, suitable for muddy, potholed and steep slope roads; Max Total Gross Mass: 70 Ton, Max Economic Speed: 70km/h

1. Terms of payment: TT, 30% deposit, balance before delivery from factory.

2. Delivery at China port period: 55 working days after advance payment.

3. Vehicle warranty period: 12 months from the date of bill of lading.
