SHACMAN X5000 8×4 Dump Truck | 460HP | Heavy Duty Mining & Construction Tipper Truck

Driving type

8*4

Wheelbase(mm)

1950+4425+1400

Max. Speed/(km/h)

90km/h

Usage Scenario

Widely used in composite cargo transport, bulk goods delivery, and construction material logistics, adapting to urban roads, highways and rural roads with reliable performance and high efficiency.

INQUIRY NOW

PRODUCT DETAILS

Product Overview

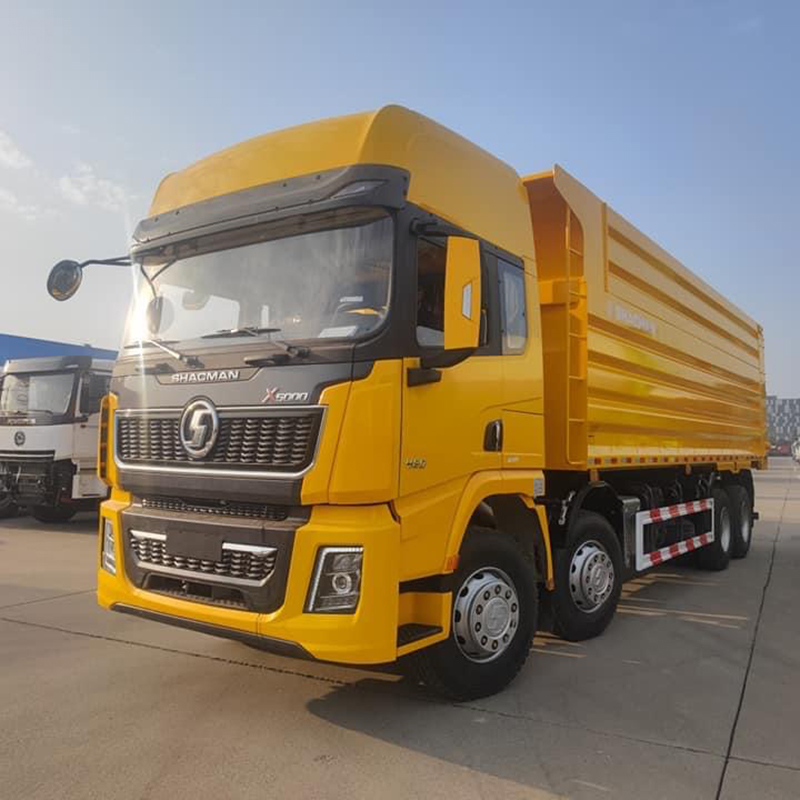

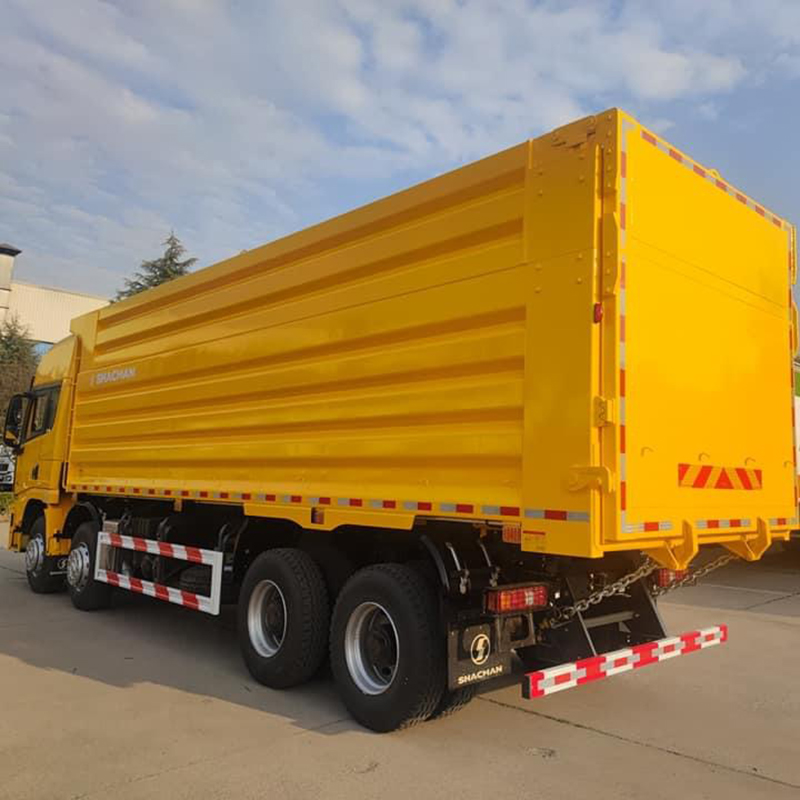

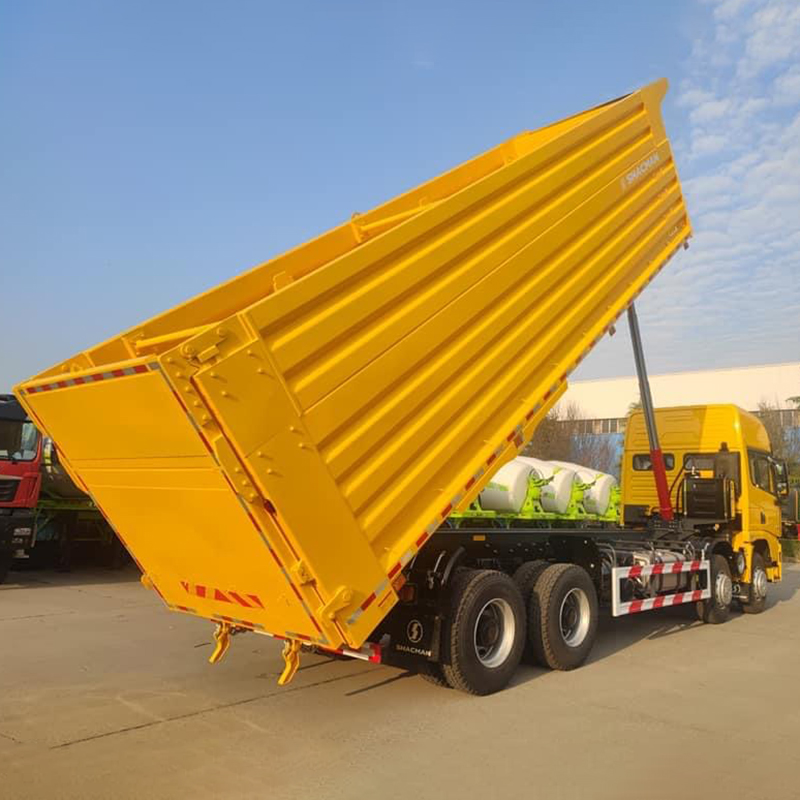

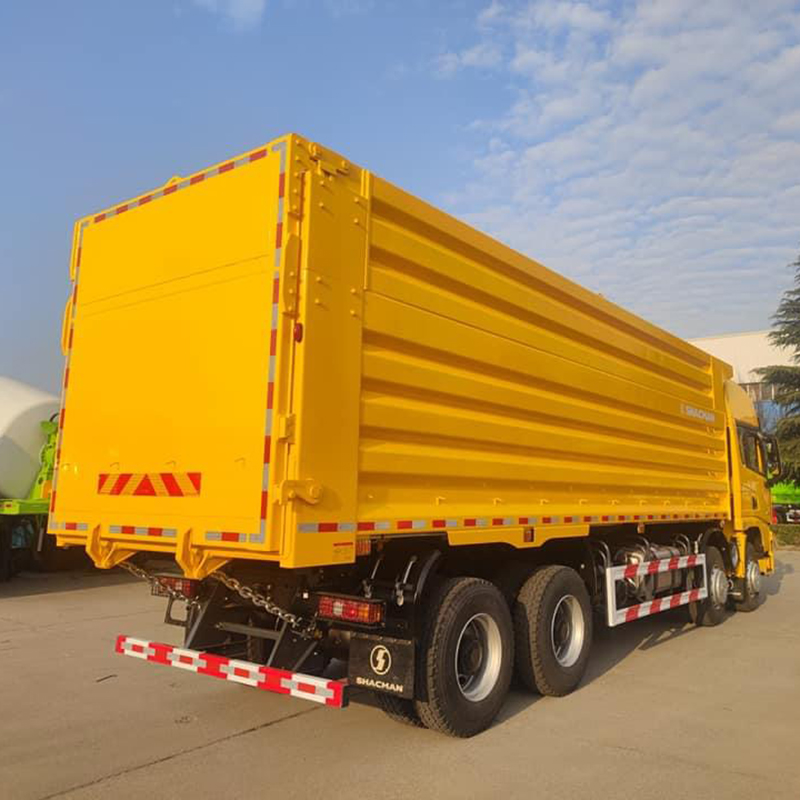

The SHACMAN X5000 8×4 Cargo Truck (Model: SX13195W466C) is a heavy-duty composite transport vehicle designed for efficient logistics operations. Powered by a 440HP X12EVIE440 engine (Euro VI emission), it delivers robust performance and reliability for long-distance and urban road transport.

Key Specifications

Driving Type: 8×4
Wheelbase: 1950+4425+1400 mm
Max. Speed: 90 km/h
Engine: X12EVIE440, 440 HP, Euro VI
Transmission: 12JSDX220TA-B Aluminum Casing with QH50 PTO & FHB400 Retarder
Axle: 13T HD Single Reduction Axle (Ratio: 5.286)
Fuel Tank: 400L Aluminum Alloy
Cargo Box Size: 9500×2450×650 mm
Payload Capacity: Up to 46.838 Tons GVW

Core Advantages

Robust Chassis: 850×300 (8+5) mm frame with multi-leaf spring suspension ensures high load capacity and stability on various road conditions.
Efficient Power: 440HP Euro VI engine with in-cylinder braking delivers strong power output and reliable performance for long-distance composite transport.
Comfortable Cabin: Extended flat-roof cabin with hydraulic seat, electric air conditioning and cruise control, reducing driver fatigue during long shifts.
Customizable Cargo Box: 9500×2450×650 mm large cargo box, ideal for bulk goods, construction materials and composite cargo delivery.

Usage Scenario

Widely used in composite cargo transport, bulk goods delivery, and construction material logistics, adapting to urban roads, highways and rural roads with reliable performance and high efficiency. Suitable for typical haul distances ≤100km with a loaded speed of 50-60km/h.

Cabin Configuration

The SHACMAN X5000 features an extended flat-roof cabin without a wind deflector, equipped with a hydraulic main seat, electric heated rearview mirror, automatic constant temperature air conditioning, and electric window lifters. The cabin also supports electric flipping, a multifunctional steering wheel with cruise control, and a 180Ah maintenance-free battery, ensuring a comfortable and convenient driving experience.

Chassis & Suspension

Item	Specification
Frame	850×300 mm (8+5)
Front Axle	HD 7.5T (Reinforced)
Suspension	Front & Rear Multi-leaf Springs
Tire Specification	Front: 385/65R22.5 (AT557 pattern), Rear & Spare: 315/80R22.5 (MD777 pattern)
Safety Features	WABCO 6-channel ABS, ETA container breaker, front & lower side protection, 2KG fire extinguisher, LED warning lights

MAIN PARAMETER

Parameter Item	Specification
Platform	SHACMAN X5000
Driving Type	8×4
Version	Composite Edition
Design Model	SX13195W466C
Engine Model	X12EVIE440 (In-cylinder Brake)
Horsepower	440 PS
Emission Standard	Euro VI
Transmission	12JSDX220TA-B Aluminum Casing with QH50 PTO & FHB400 Retarder
Axle Ratio	13T HD Single Reduction Axle (Ratio: 5.286)
Frame (mm)	850×300 (8+5)
Wheelbase (mm)	1950+4425+1400
Cargo Box Size (mm)	9500×2450×650
Fuel Tank	400L Aluminum Alloy
Tire Specification	Front: 385/65R22.5, Rear & Spare: 315/80R22.5
GVW (Tons)	46.838

* Description：

1. Terms of payment: T/T, 30% deposit, balance before delivery from factory.

2. Delivery at China port period: 55 working days after advance payment.

3. Vehicle warranty period: 12 months from the date of bill of lading.
