Home > Products > SHACMAN X5000 Enhanced Edition 6×4 Concrete Mixer Truck | 336HP Euro V | 10 Cubic Meter Mixer
Driving type
6*4
Wheelbase(mm)
3975+1400
Max. Speed/(km/h)
90km/h
Usage Scenario
Ideal for concrete transportation and construction projects, with GVW ≤35t, suitable for paved roads and some rough road conditions. With a max speed of 90km/h, it is designed for short to medium distance transport (≤100km), ideal for delivering concrete to construction sites and urban infrastructure projects.
PRODUCT DETAILS

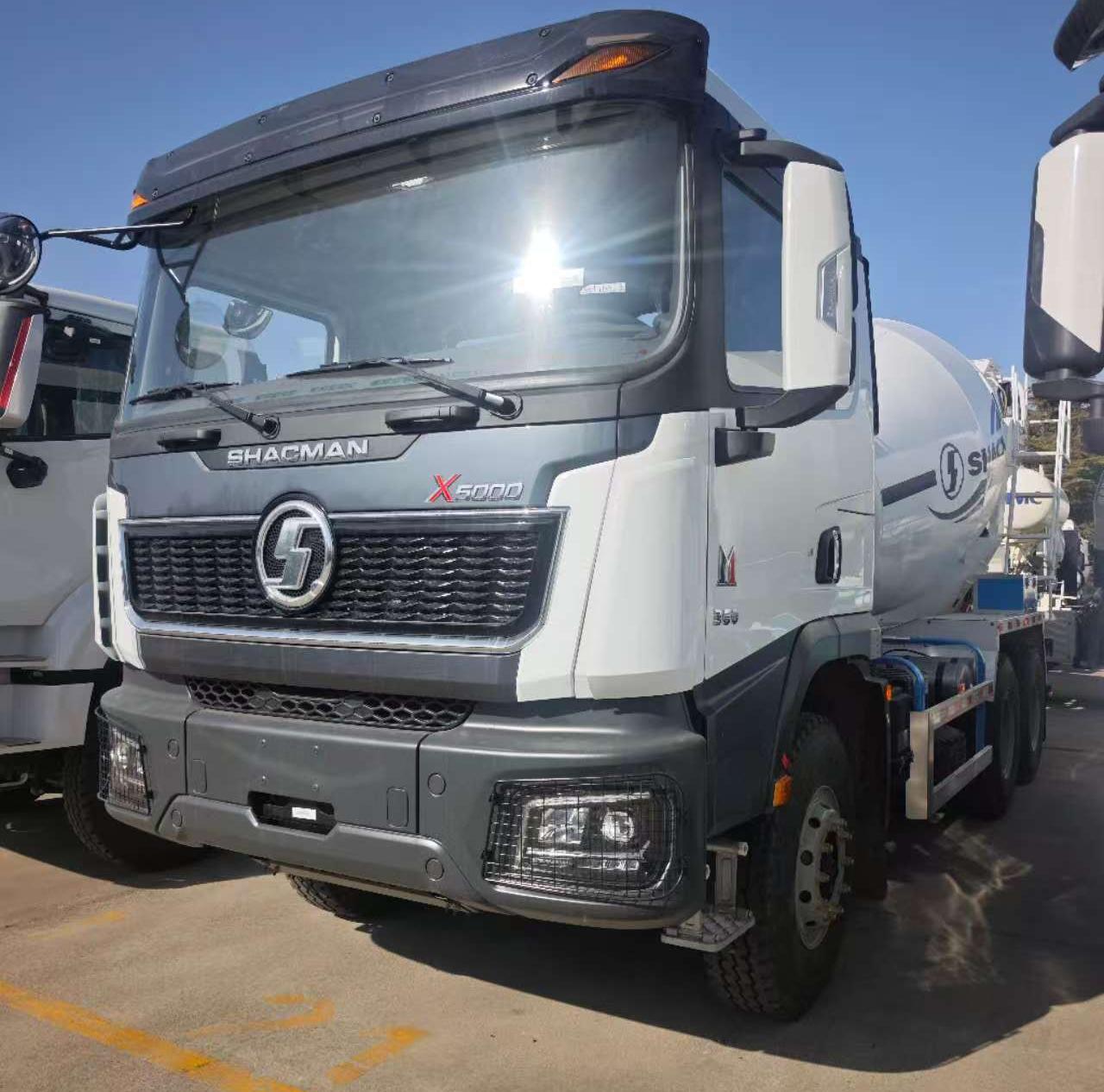

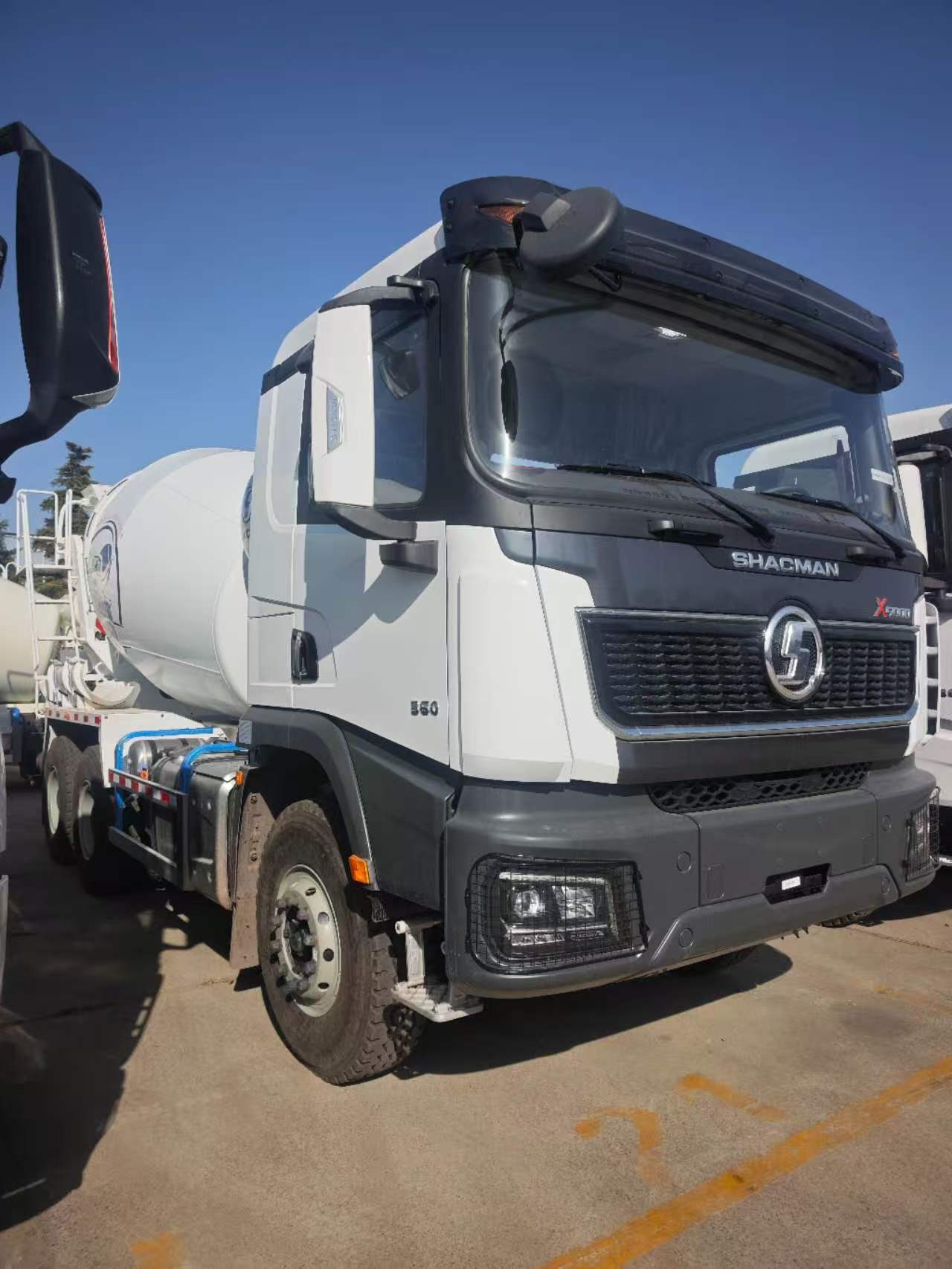

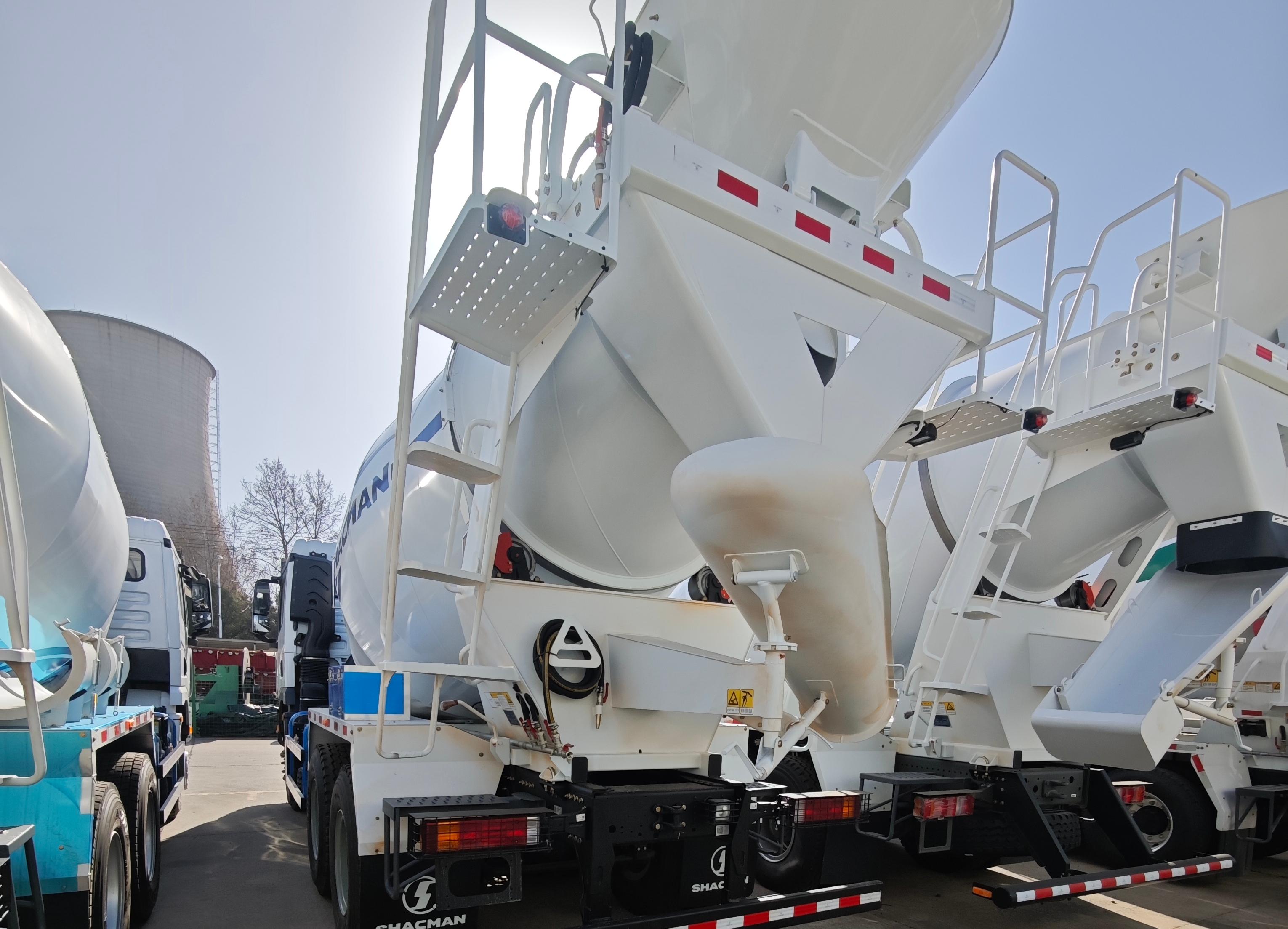

The SHACMAN X5000 Enhanced Edition 6×4 Concrete Mixer Truck is a heavy-duty vehicle designed for concrete transportation and construction projects. Powered by a 336HP Euro V engine with PTO, it features a 10 cubic meter mixing drum and reliable performance for short to medium distance concrete delivery.
Driving Type: 6×4
Max. Speed: 90 km/h
Engine: WP10.336E53, 336 PS, Euro V emission
Transmission: 12JSD160TA
Axle: 16T HD Rear Axle (Ratio: 5.262)
Fuel Tank: 500L Aluminum Alloy
Mixer Drum: 10 Cubic Meter
The SHACMAN X5000 is equipped with an extended flat-roof cabin with 4-point air suspension, featuring air main seats, electric heated rearview mirrors and automatic constant temperature air conditioning. The cabin provides a comfortable driving environment with dark interior and multimedia display, ideal for long construction operations.
| Parameter Item | Specification |
|---|---|
| Front Axle | 7.5T HD Front Axle |
| Suspension | Front & Rear Multi-leaf Spring (Four Main Leaves + Four Riding Bolts) |
| Frame (mm) | 850×300 (8+7) |
| Stabilizer Bars | Front & Rear Stabilizer Bars for enhanced stability |
MAIN PARAMETER
| Item | Specification |
|---|---|
| Platform | SHACMAN X5000 Enhanced Edition |
| Driving Type | 6×4 |
| Design Model | SX52586GJB5R404 |
| Engine | WP10.336E53 (with PTO), 336 PS, Euro V |
| Transmission | 12JSD160TA |
| Axle Ratio | 16T HD Rear Axle - 5.262 |
| Wheelbase (mm) | 3975+1400 |
| Fuel Tank | 500L Aluminum Alloy |
| Tire | 315/80R22.5 (Mining Pattern) |
| Mixer Drum | 10 Cubic Meter (Front Lift) |
| Max. Speed | 90 km/h |
p> * Description：
1. Terms of payment: T/T, 30% deposit, balance before delivery from factory.
2. Delivery at China port period: 55 working days after advance payment.
3. Vehicle warranty period: 12 months from the date of bill of lading.
