Home > Products > SHACMAN X5000 Heavy Duty 8×4 Dump Truck | 520HP Euro V | 16T HD Double-Stage Cast Axle | For Heavy Load Transport
Driving type
8*4
Wheelbase(mm)
1800+2975+1400
Max. Speed/(km/h)
80km/h
Usage Scenario
Ideal for heavy-duty construction and mining applications, including earthmoving, ore transportation, bulk cargo delivery and road construction projects. With a max speed of 80km/h, it features strong load capacity and stable chassis, suitable for harsh working conditions and efficient heavy load transport.
PRODUCT DETAILS

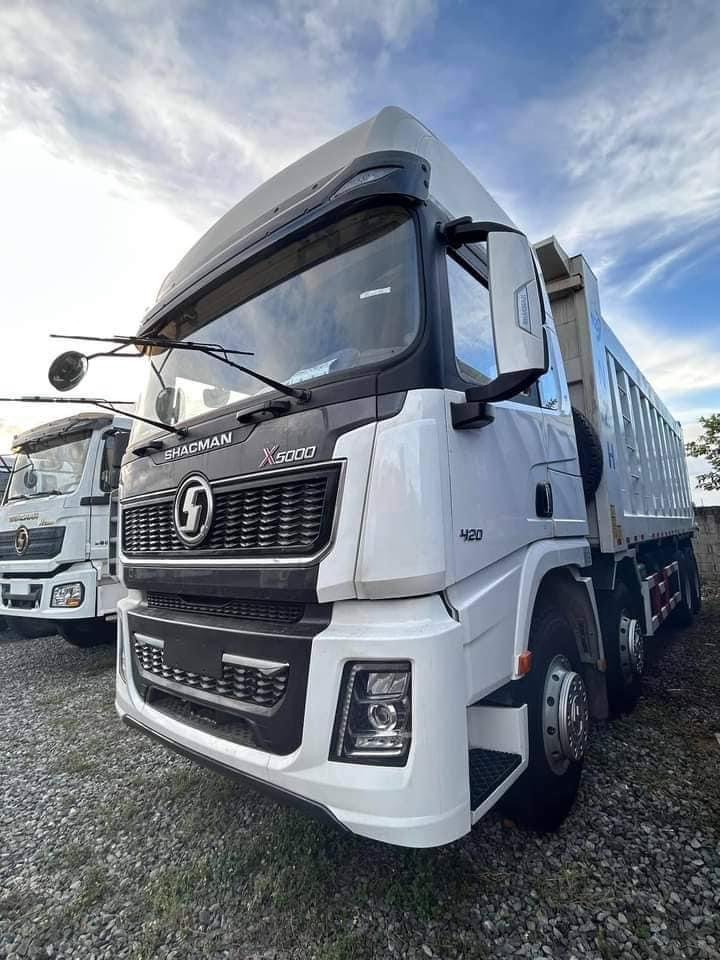

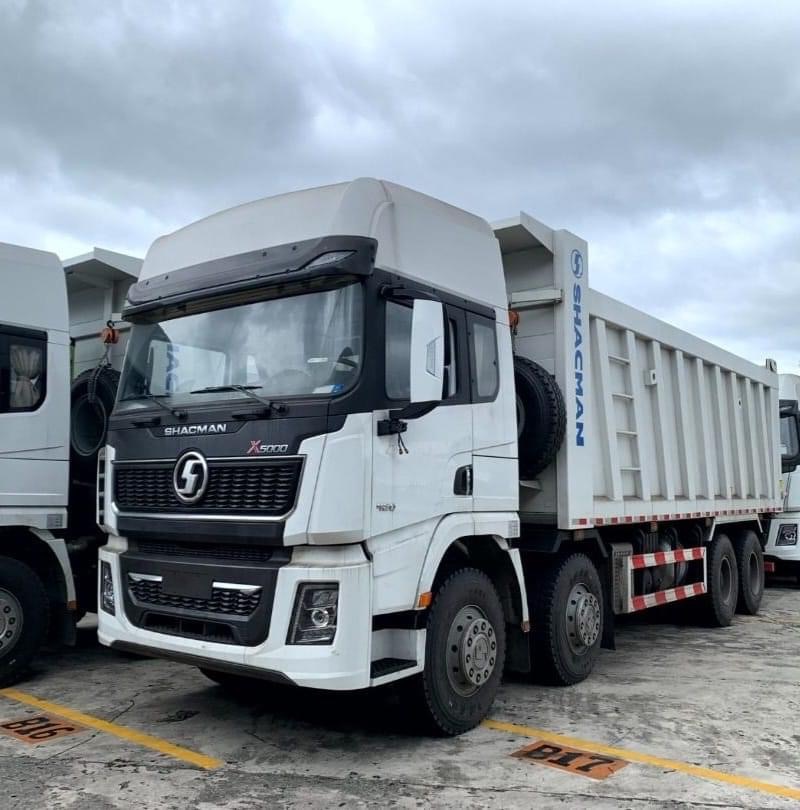

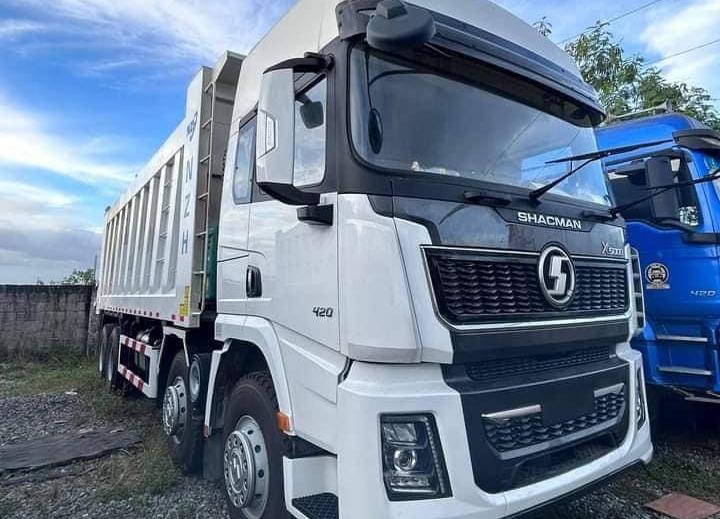

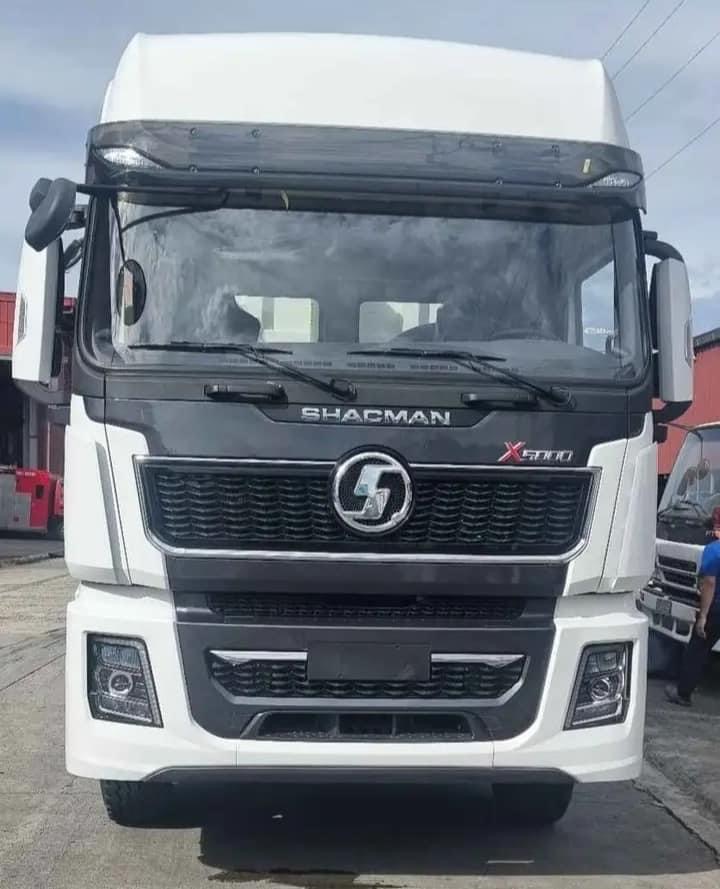

The SHACMAN X5000 Enhanced Edition 8×4 Dump Truck (Model: SX331862306C) is a powerful heavy-duty tipper designed for construction and mining applications. Powered by a 520HP Euro V engine, it delivers robust performance and reliability for heavy load transport and harsh working conditions.
Driving Type: 8×4
Wheelbase: 1800+2975+1400 mm
Max. Speed: 80 km/h
Engine: M13E5 520, 520 PS, Euro V emission (ECE certificate)
Transmission: 13JSDX240T Iron Casing with QH50 Splined PTO & FHB400 Retarder
Axle: 16T HD Double-Stage Cast Widened Axle (Ratio: 5.262)
Fuel Tank: 300L Aluminum Alloy
Tire Specification: 12.00R24 Radial Tire (Mixed Pattern)
Dump Box Size: 6500×2300×1600 mm (Front Lift)
The SHACMAN X5000 is equipped with a medium-long flat-roof cabin, featuring an air main seat, electric heated rearview mirror, automatic constant temperature air conditioning and electric window lifters. The cabin supports manual flipping, with a multifunctional steering wheel (with cruise control) and single berth, ensuring a comfortable driving experience for long-distance construction and mining operations.
| Parameter Item | Specification |
|---|---|
| Front Axle | HD 9.5T Disc Brake Front Axle (optional) |
| Suspension | Multi-leaf Spring (Four Main Leaves, Four Riding Bolts) Rear Suspension |
| Frame (mm) | 850×300 (8+7) |
| Stabilizer Bars | Front & Rear Stabilizer Bars for enhanced stability |
MAIN PARAMETER
p> * Description：
1. Terms of payment: T/T, 30% deposit, balance before delivery from factory.
2. Delivery at China port period: 55 working days after advance payment.
3. Vehicle warranty period: 12 months from the date of bill of lading.
