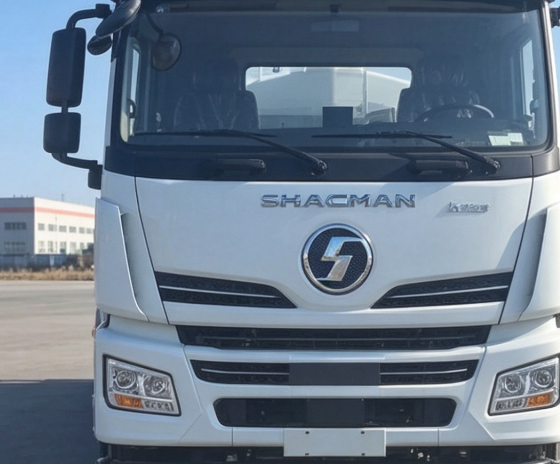

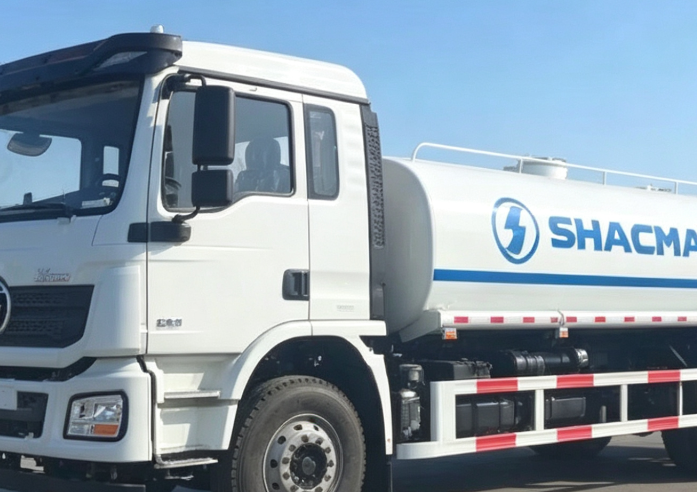

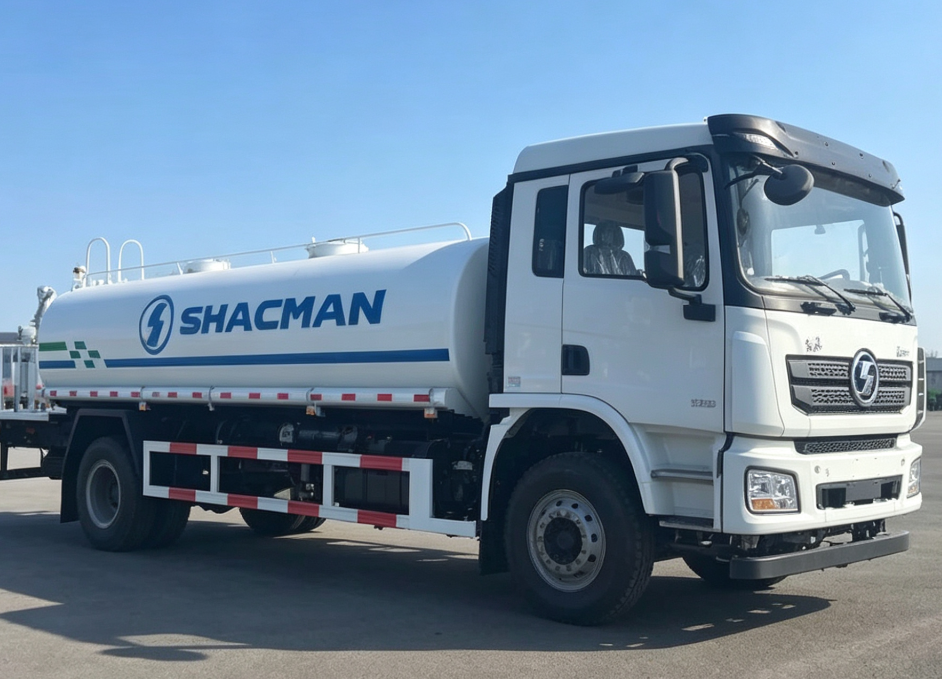

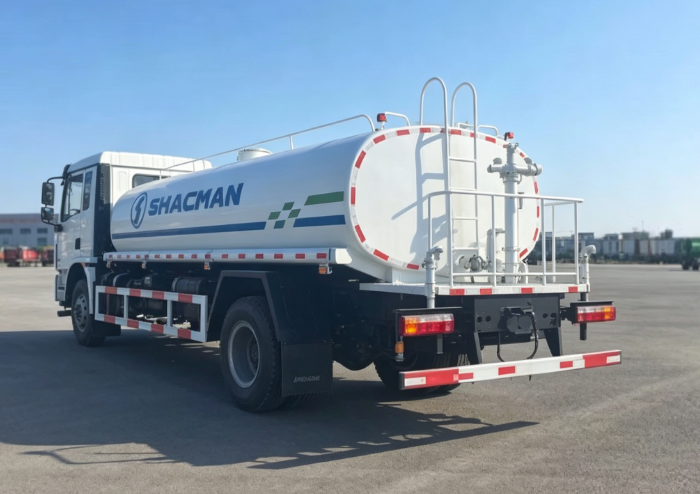

SHACMAN L3000 4×2 Sprinkler Truck SX5185GSS8J451C, 210HP Euro III 10 Cubic Meter Water Sprinkler Truck

Driving type

4*2

Wheelbase(mm)

4500

Max. Speed/(km/h)

90km/h

Usage Scenario

This L3000 4×2 sprinkler truck works for road washing, dust control and green irrigation, widely used in municipal works, communities and construction sites with reliable long-hour operation.

INQUIRY NOW

PRODUCT DETAILS

Power System Advantage
Equipped with ISDe210 30 engine, Euro III emission standard, stable 210 horsepower output and strong torque, satisfying long-time sprinkling operation and complex road driving requirements.

Reliable Transmission Matching
Matched with 8JS85TM aluminum housing gearbox with PTO, 10-ton single reduction rear axle with ratio 4.625, stable transmission, low failure rate and long service life.

Durable Chassis Design
870×250mm thickened high-strength frame with 7+4 layers, strong bearing capacity, stable running for long-distance frequent watering work on construction sites and municipal roads.

Comfortable & Practical Cab
L3000 cab with electric heated rearview mirror, electric air conditioner and manual tilting structure, complete export-oriented accessories for safe and comfortable driving.

Complete Export Configuration
Full one-country-one-package export fittings, Spanish cab-tilting marking, fire extinguisher, warning lamps and anti-theft design, meeting customs clearance requirements for global overseas markets.

Vehicle Model	SX5185GSS8J451C, L3000 Standard Load 4×2 Sprinkler Truck
Platform	L3000
Drive Type	4×2
Version	Standard Load Version
Engine Model	ISDe210 30
Power	210 PS
Emission Standard	Euro III
Transmission	8JS85TM Aluminum Housing Gearbox with QD40J PTO
Rear Axle & Ratio	10T Heavy-Duty Single Reduction Axle, Final Ratio 4.625
Frame Specification	870×250mm, 7+4 Layers Thickened High-Strength Frame
Wheelbase	4500mm
Rear Overhang	1900mm
Cab Type	Mid-length Flat Roof Cab
Front Axle	4.8T Disc Brake Front Axle
Suspension	Front & Rear Multi-leaf Spring Suspension
Fuel Tank	300L Aluminum Alloy Fuel Tank
Tire Spec	12.00R22.5 Longitudinal Pattern Tires
Water Tank Volume	10 Cubic Meter
GVW	19.738 Ton
Upper Chassis Code	DH91881213MH2

MAIN PARAMETER

Vehicle Model	SX5185GSS8J451C, L3000 Standard Load 4×2 Sprinkler Truck
Platform	L3000
Drive Type	4×2
Version	Standard Load Version
Engine Model	ISDe210 30
Power	210 PS
Emission Standard	Euro III
Transmission	8JS85TM Aluminum Housing Gearbox with QD40J PTO
Rear Axle & Ratio	10T Heavy-Duty Single Reduction Axle, Final Ratio 4.625
Frame Specification	870×250mm, 7+4 Layers Thickened High-Strength Frame
Wheelbase	4500mm
Rear Overhang	1900mm
Cab Type	Mid-length Flat Roof Cab
Front Axle	4.8T Disc Brake Front Axle
Suspension	Front & Rear Multi-leaf Spring Suspension
Fuel Tank	300L Aluminum Alloy Fuel Tank
Tire Spec	12.00R22.5 Longitudinal Pattern Tires
Water Tank Volume	10 Cubic Meter
GVW	19.738 Ton
Upper Chassis Code	DH91881213MH2

1. Terms of payment: TT, 30% deposit, balance before delivery from factory.

2. Delivery at China port period: 55 working days after advance payment.

3. Vehicle warranty period: 12 months from the date of bill of lading.
