Home > Products > Special Vehicle > SHACMAN L3000 4x2 Refrigerated Truck

  • SHACMAN L3000 4x2 Refrigerated Truck

  • SHACMAN L3000 4x2 Refrigerated Truck

  • SHACMAN L3000 4x2 Refrigerated Truck

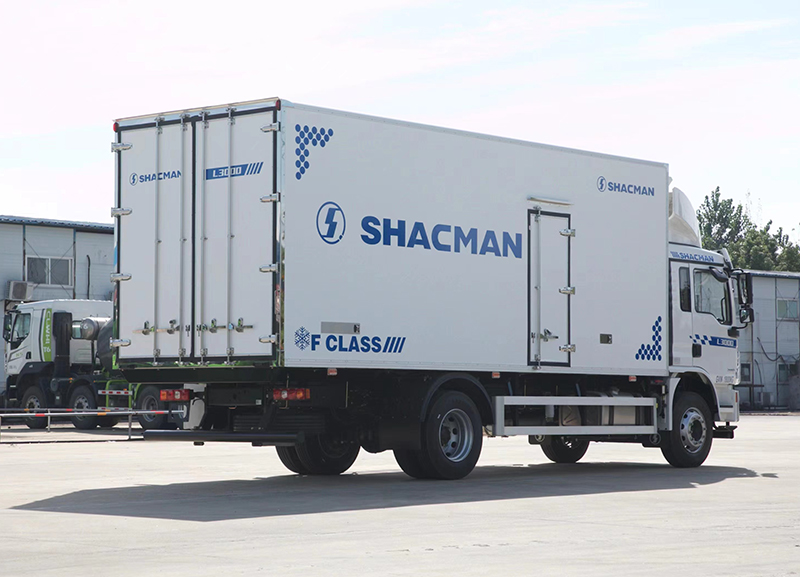

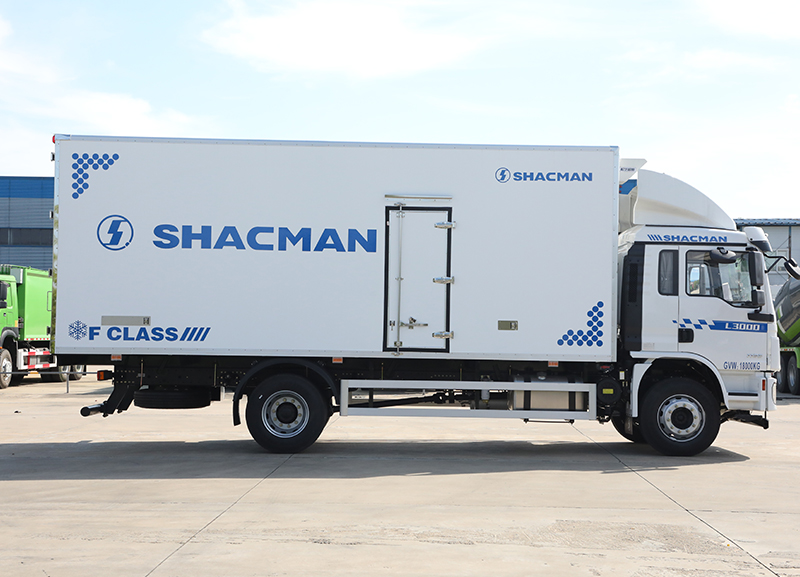

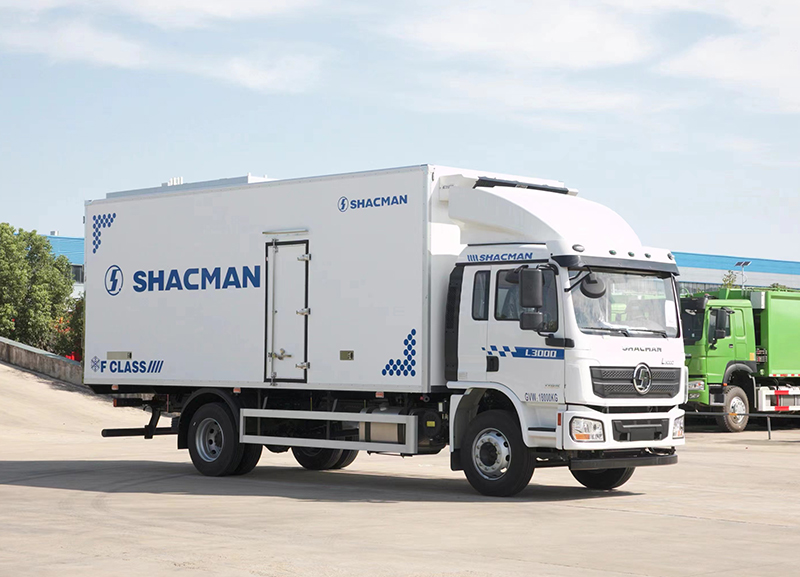

SHACMAN L3000 4x2 Refrigerated Truck

Driving type

4*2

Wheelbase(mm)

3600

Max. Speed/(km/h)

90km/h

Usage Scenario

Engineering construction, Logistics transportation

MAIN PARAMETER

MODELSX5185ZYS8J361
Driver positionLeft Hand
Driving type4*2
Wheelbase/(mm)3600
Max. Speed/(km/h)90km/h

Engine


SHACMAN L3000 4x2 Refrigerated Truck

BrandWEICHAI
ModelWP6.210E32(2)
Emission StandardEURO III
Rated output power/(PS)210HP/154KW
Displacement(L)6.75L

Transmission


SHACMAN L3000 4x2 Refrigerated Truck

BrandFAST
Model8JS85TM+QD40J
Front axleBrandHANDE
Model4.8T
Rear axleBrandHANDE
Model10T MAN Single stage bridge
Speed ratio: 5.125
Clutch¢430 diaphragm clutch
SteeringZF technology
Frame870×250(7+4)
SuspensionFront and rear multi-leaf
Fuel tank200L
Wheels and tires10.00R20
BrakesRunning brake:Dual circuit compressed air brake
Parking brake:Air discharging with spring control
Auxiliary brake:Engine exhaust brake
Cabin

Electric air conditioning, electric window shaker, LED daytime running lights,

central locking (dual remote control), front fixed and rear hydraulic suspension,

135Ah maintenance free battery, soft shaft control, aluminum alloy air storage cylinder,

hydraulic main seat, manual flipping, SHACMAN logo, full English logo, remote throttle

controller shipped with the vehicle (only electronic control engine), oil bath air filter

Upbody

The refrigerated compartment adopts a broken bridge insulation design to reduce

thermal conductivity; Mortise and tenon joint box technology, overall frame structure,

sturdy and durable; The fully sealed dual combination polyurethane adhesive provides

long-lasting insulation effect; The thickness of the compartment insulation board is 8cm;

Stainless steel corner cladding; Aluminum alloy edging; The interior of the cabin adopts

LED lighting and cabin width indicator lights; The rear door frame is made of thickened

stainless steel door decoration; The sealing strip is a black EPDM rubber sealing strip

(new 5-blade with aluminum alloy pressure strip), and the rear door and side door are

fully enclosed sealing strips; The side door frame is made of insulated PVC+thickened

stainless steel material; Install 2 drainage holes at the front end of the compartment;

2 anti-collision rubber blocks; The auxiliary beam is made of lightweight high-strength

steel as a whole; Pressure plate+U-shaped bolt+rubber steel wire pad+protective

net+mudguard+3M reflective rubber plate are standard parts; Other standard configurations.

The refrigeration unit adopts domestically produced refrigeration units, with a temperature

of -15 degrees Celsius

* Description:

1. Terms of payment: T/T, 30% deposit, balance before delivery from factory.

2. Delivery at China port period: 15 working days after advance payment.

3. Vehicle warranty period: 12 months from the date of bill of lading.
