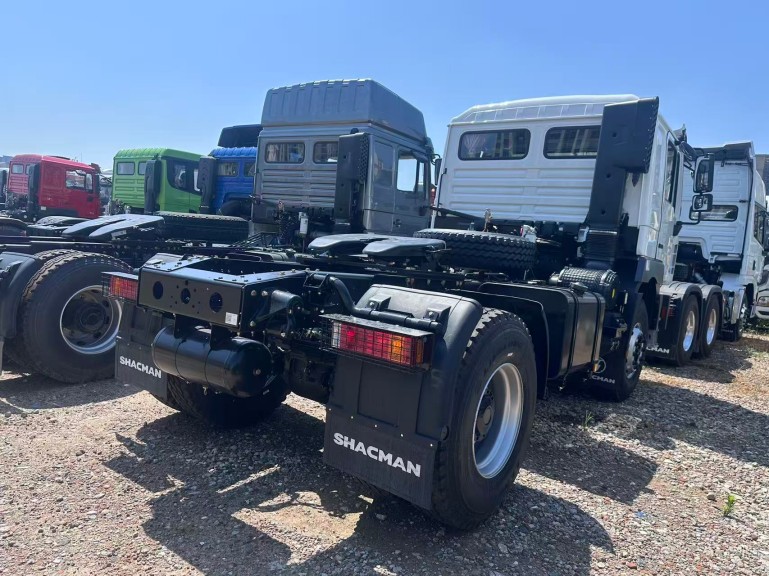

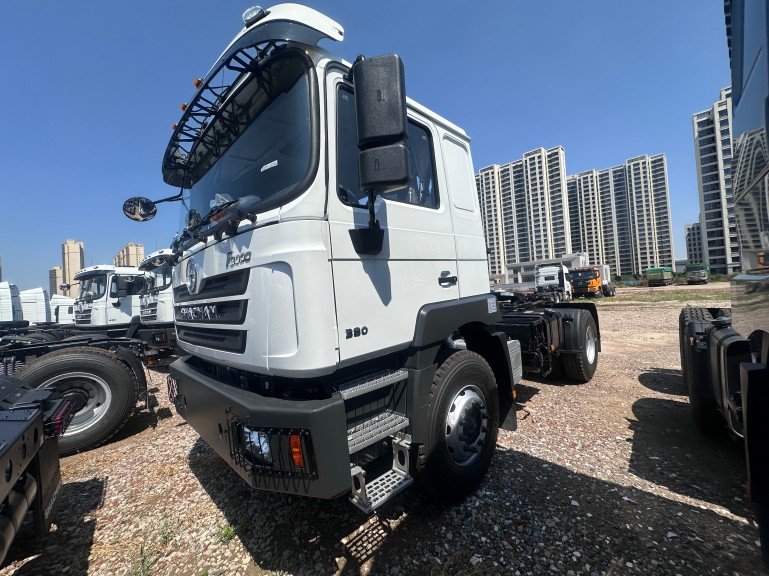

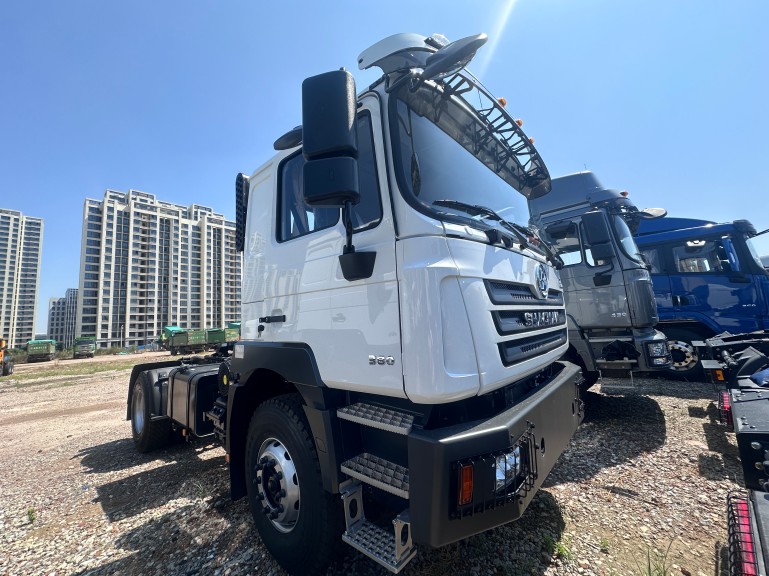

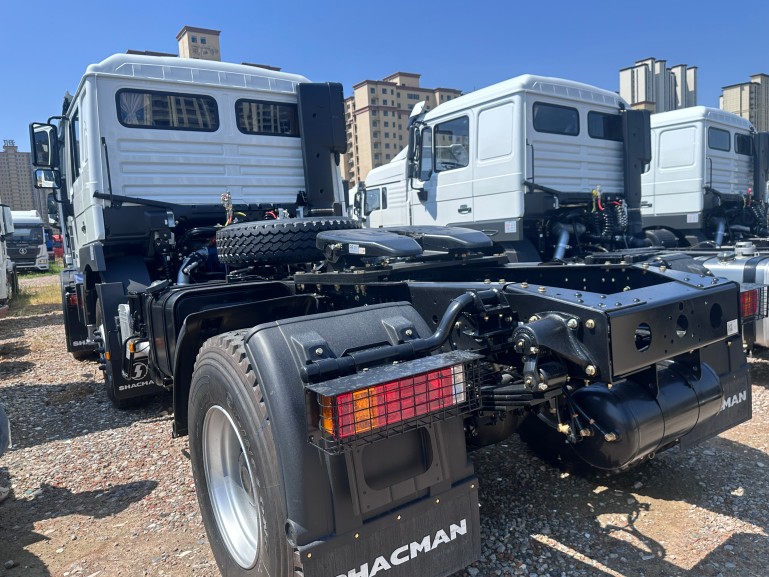

Home > Products > Tractor Truck > SHACMAN F3000 4X2 Tractor Head Weichai Engine Heavy Duty Tractor Truck
Driving type
4*2
Wheelbase(mm)
3600
Max. Speed/(km/h)
90km/h
Usage Scenario
Long‑distance highway logistics,port container transfer,general cargo transportation,suitable for paved road freight projects,widely used in Africa,Central Asia
PRODUCT DETAILS
Main Technical Parameters
MAIN PARAMETER
| MODEL | SX4185JU361 | |
| Driver position | Left Hand | |
| Driving type | 6*4 | |
| Wheelbase/(mm) | 3600 | |
| Max. Speed/(km/h) | 90km/h | |
Engine
| Brand | WEICHAI |
| Model | WP12.400E201 | |
| Emission Standard | EURO II | |
| Rated output power/（PS） | 294KW/400HP | |
| Displacement(L) | 11.596L | |
Transmission
| Brand | FAST |
| Model | 12JSD200T-B | |
| Front axle | Brand | HANDE |
| Model | MAN 7.5T | |
| Rear axle | Brand | HANDE |
| Model | 13T MAN double reduction driving axle Speed ratio: 3.866 | |
| Clutch | ￠430 diaphragm clutch | |
| Steering | ZF technology/ ZF | |
| Frame | (940-850)×300(8)) | |
| Suspension | Front and rear multi-leaf spring | |
| Fuel tank | 400L Aluminum alloy | |
| Wheels and tires | 12R22.5 6+1 | |
| Brakes | Running brake:Dual circuit compressed air brake | |
| Parking brake:Air discharging with spring control | ||
| Auxiliary brake:Engine exhaust brake | ||
| Cabin | F3000 extended flat top cab with roof deflector, air master seat, four point air suspension, ordinary rearview mirror, electrically controlled automatic temperature control air conditioning, electric window rocking machine, manual flipping, metal bumper with light screen, three-level boarding pedal, ordinary air filter, ordinary exhaust, water tank protective grille, oil pan protective grille, Yoster 50 saddle, split type mudguard, tail light protective grille, 165Ah maintenance free battery, SHACMAN logo, full English logo, iron air storage tank, WABCO four channel ABS, corrugated plate installation plate, mixed pattern front tire, rear wheel and spare tire block shape, reverse buzzer, 2kg fire extinguisher, telescopic Axis control, battery box anti-theft, fuel system anti-theft, rear reflector | |
* Description:
1. Terms of payment: T/T, 30% deposit, balance before delivery from factory.
2. Delivery at China port period: 55 working days after advance payment.
3. Vehicle warranty period: 24 months from the date of bill of lading.
