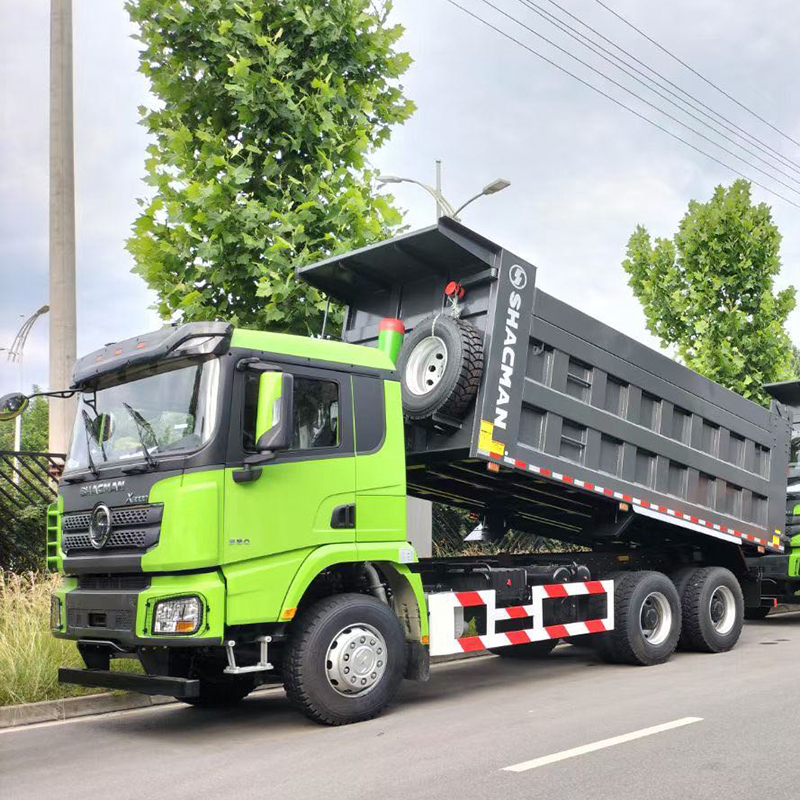

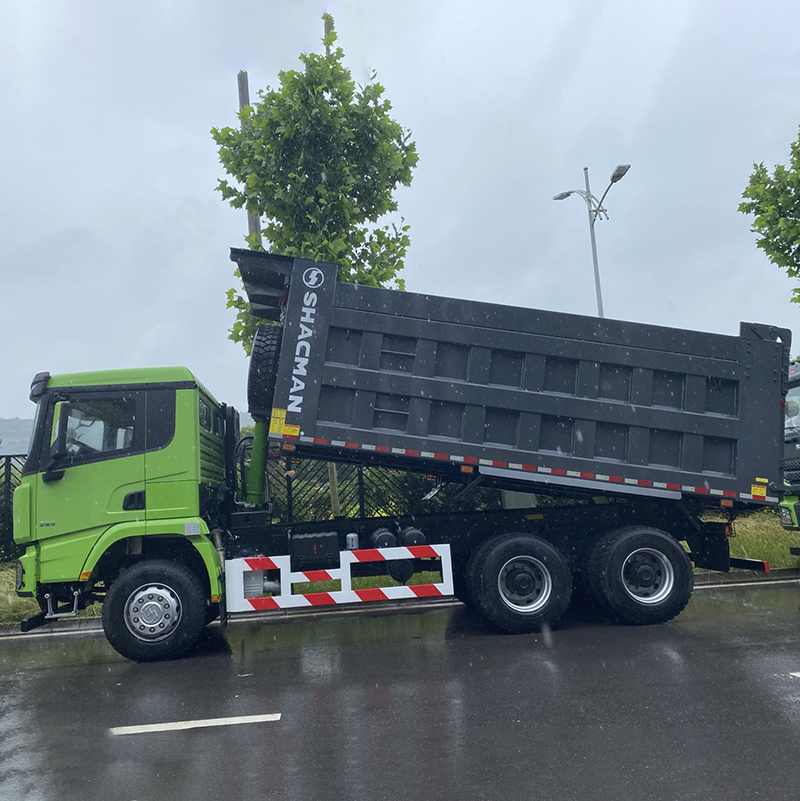

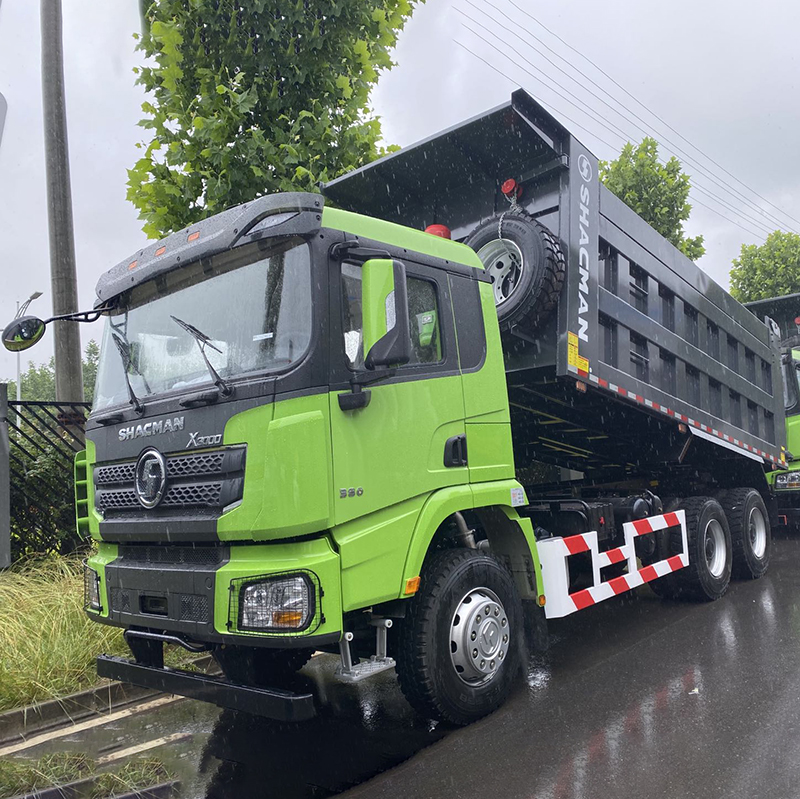

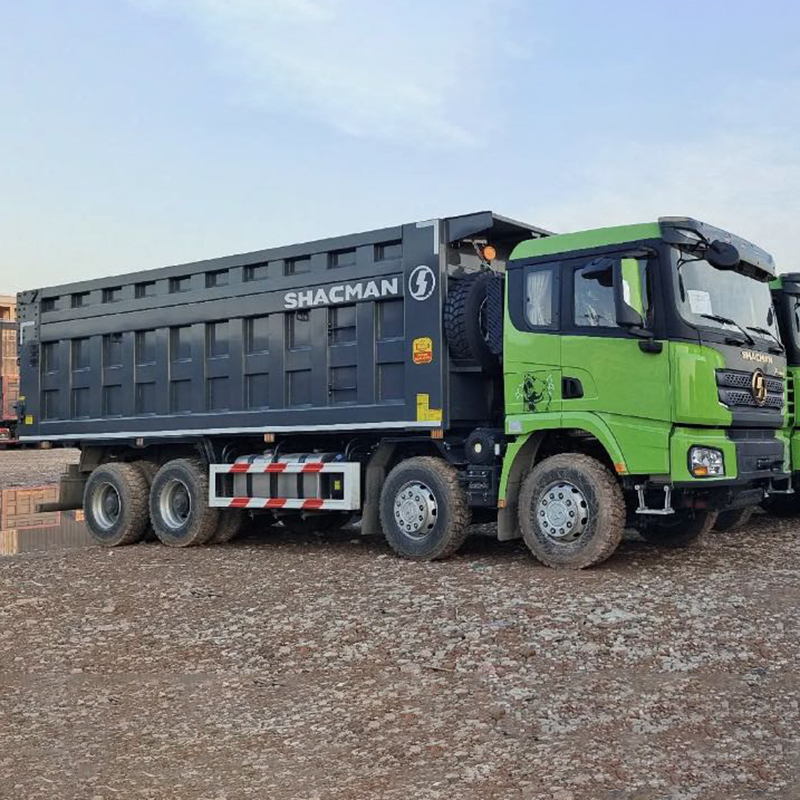

Home > Products > Tractor Truck > SHACMAN F3000 Enhanced Version 6x4 Dump Truck 340HP Euro II Heavy Duty Tipper Truck For Mining Construction
Driving type
6*4
Wheelbase(mm)
3975+1400
Max. Speed/(km/h)
75km/h
Usage Scenario
This SHACMAN F3000 enhanced 6×4 dump truck is widely applied in open-pit mining, earthwork construction, sand & gravel transportation, infrastructure engineering and quarry haulage. It fits rough road conditions, specially customized for overseas projects in Africa, Central Asia and other regions with Euro II emission standard.
PRODUCT DETAILS
Model Core Technical Parameters
| Item | Specific Parameter |
|---|---|
| Product Model | SX3255DR404 |
| Platform & Drive Mode | F3000 Platform, 6×4 Drive |
| Engine Model | WP10.340E22 |
| Rated Power | 340HP |
| Emission Standard | Euro II |
| Transmission | 12JSD200T-B Iron Shell Gearbox + QH50 PTO |
| Rear Axle & Speed Ratio | 16T HD Double Reduction Axle, Final Drive Ratio 5.92 |
| Frame Size | 850×300mm (8+7 Layers) |
| Wheelbase | 3975+1400mm |
| Rear Overhang of Frame | 1000mm |
| Cab Type | Mid-long Flat Roof Cab with 4-point Hydraulic Suspension |
| Front Axle Load | HD 9.5T Front Steer Axle |
| Suspension System | Multi-leaf Spring Suspension |
| Fuel Tank | 400L Aluminum Alloy Fuel Tank |
| Tire Specification | 12.00R20 Mixed Pattern Tire with Rim Decorative Cover |
| Cargo Box Dimension | 5800×2300×1300mm, Front Lifting Type |
MAIN PARAMETER
| Optional Item | Detailed Description | Applicable Model Restriction |
|---|---|---|
| Super Version Package 1 | Reinforced Steel Bumper + Strengthened Leaf Spring + Full LED Taillights | Only for Model 2 & Model 5 |
| Mining Pattern Tire | 12.00R20 Mining Deep Pattern Tire | Only for Model 2 & Model 3 |
| Upgraded Driver Seat | Air Suspension Main Driver Seat | All Optional |
| Heavy-duty Air Intake | Oil Bath Type Air Cleaner | All Optional |
| Rear Axle Upgrade | 16T HD Double Reduction Axle, Final Ratio 5.262 | All Optional |
| Integrated Upgrade Package | Steel Bumper + Reinforced Plate Spring + Independent LED Taillight + 3-step Access Step + Front & Rear Stabilizer Bar | Only for Model 1 / 2 / 3 |
| Lightweight Fuel Tank | 400L Aluminum Alloy Fuel Tank | Only for Model 4 |
| Cargo Box Heating | Tipper Body Bottom Heating Device | Only for Model 5 |
| Access Step Upgrade | 3-step Boarding Step | Only for Model 1 & Model 2 |
| Rear Stabilizer Bar | Rear Axle Stabilizer Bar | Only for Model 1 / 2 / 4 |
| Front & Rear Protection Package | Adjustable Rear Protection + Manual Throttle + Super Package 1 Combo | Only for Model 2 |
| Fuel Tank With Guard | 400L Aluminum Fuel Tank Equipped With Bottom Protection Plate | Only for Model 2 |
| Front Underrun Protection Package | Front Lower Anti-collision Protection + Super Package 1 Combo | Only for Model 2 |
1. Terms of payment: TT, 30% deposit, balance before delivery from factory.
2. Delivery at China port period: 55 working days after advance payment.
3. Vehicle warranty period: 12 months from the date of bill of lading.
RELATED PRODUCTS

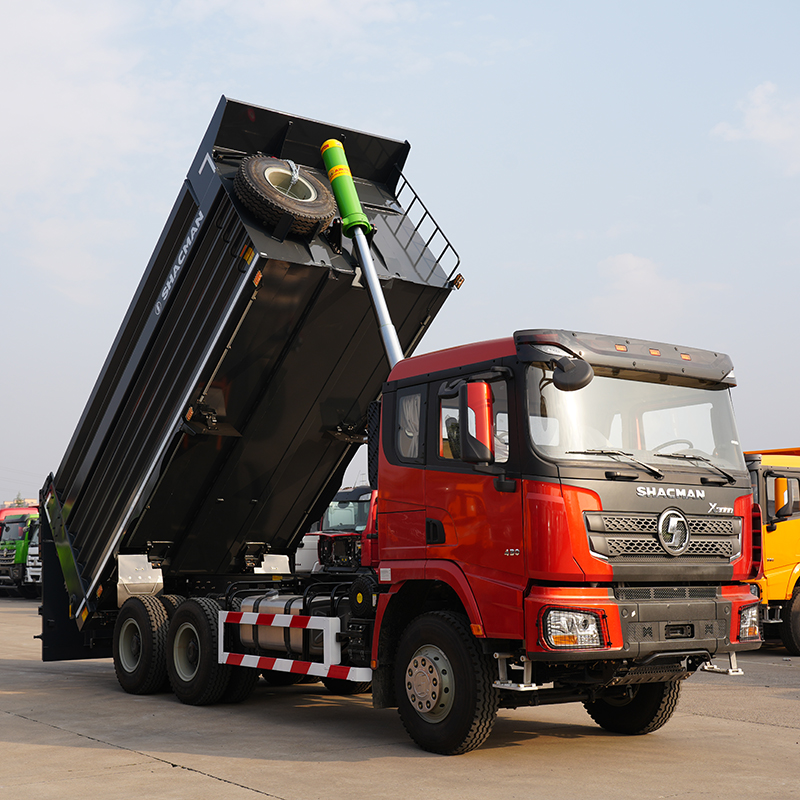

SHACMAN X3000 6×4 Dump Truck 430HP Heavy Tipper Lorry For Construction & Mining Transportation
