Driving type
6*4
Wheelbase(mm)
3775+1400
Max. Speed/(km/h)
100km/h
Usage Scenario
Engineering construction, Logistics transportation
MAIN PARAMETER
| MODEL | SX4255HV384 | |
| Driver position | Left Hand | |
| Driving type | 6*4 | |
| Wheelbase/(mm) | 3775+1400 | |
| Max. Speed/(km/h) | 100km/h | |
Engine
| Brand | WEICHAI |
| Model | WP12.430E201 | |
| Emission Standard | EURO II | |
| Rated output power/（PS） | 316KW/430HP | |
| Displacement(L) | 11.596L | |
Transmission
| Brand | FAST |
| Model | 12JSDX220T-B- | |
| Front axle | Brand | HANDE |
| Model | MAN 7.5T | |
| Rear axle | Brand | HANDE |
| Model | 16T MAN Double stage widened bridge Speed ratio: 4.266 | |
| Clutch | ￠430 diaphragm clutch | |
| Steering | ZF technology | |
| Frame | 850×300（8+5） | |
| Suspension | Front and rear multi leaf springs, four main plates+four saddle bolts | |
| Fuel tank | 600L Aluminum alloy | |
| Wheels and tires | 315/80R22.5 | |
| Brakes | Running brake:Dual circuit compressed air brake | |
| Parking brake:Air discharging with spring control | ||
| Auxiliary brake:Engine exhaust brake | ||

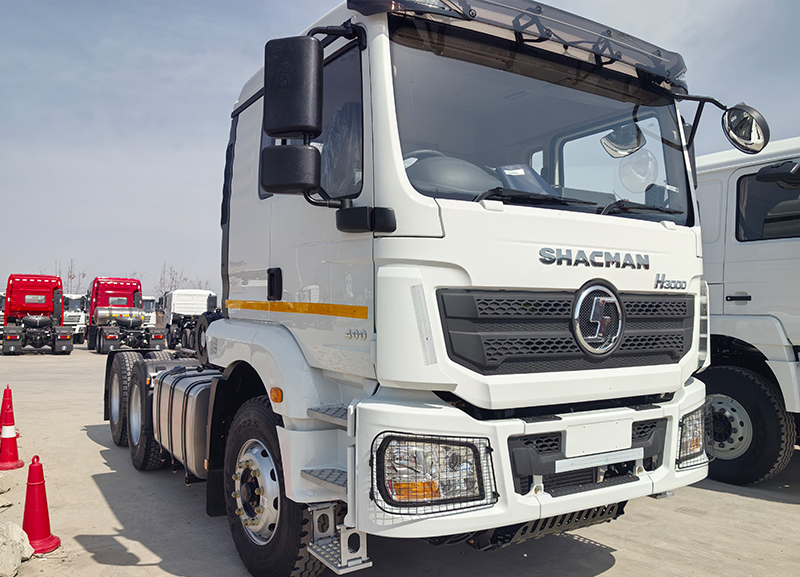

| Cabin | H3000 extended flat top cab without top air deflector, air master seat, four point hydraulic suspension, pole type rearview mirror, single refrigeration air conditioning, electric window rocking machine, manual flipping, metal bumper with light protection net, three-level boarding pedal, oil bath air filter, ordinary exhaust, water tank protection grille, ordinary 90 saddle, split type mudguard, tail light protection grille, 165Ah maintenance free battery, sunshade lighting fixtures all in white, 2 hazard warning lights, SHACMAN logo, full English logo, additional ordinary coarse filter, iron air storage cylinder, reverse buzzer, telescopic shaft control, battery box anti-theft, fuel tank cap anti-theft, side mounted spare spare spare parts anti-theft tire frame | |
* Description:
1. Terms of payment: T/T, 30% deposit, balance before delivery from factory.
2. Delivery at China port period: 55 working days after advance payment.
3. Vehicle warranty period: 12 months from the date of bill of lading.
