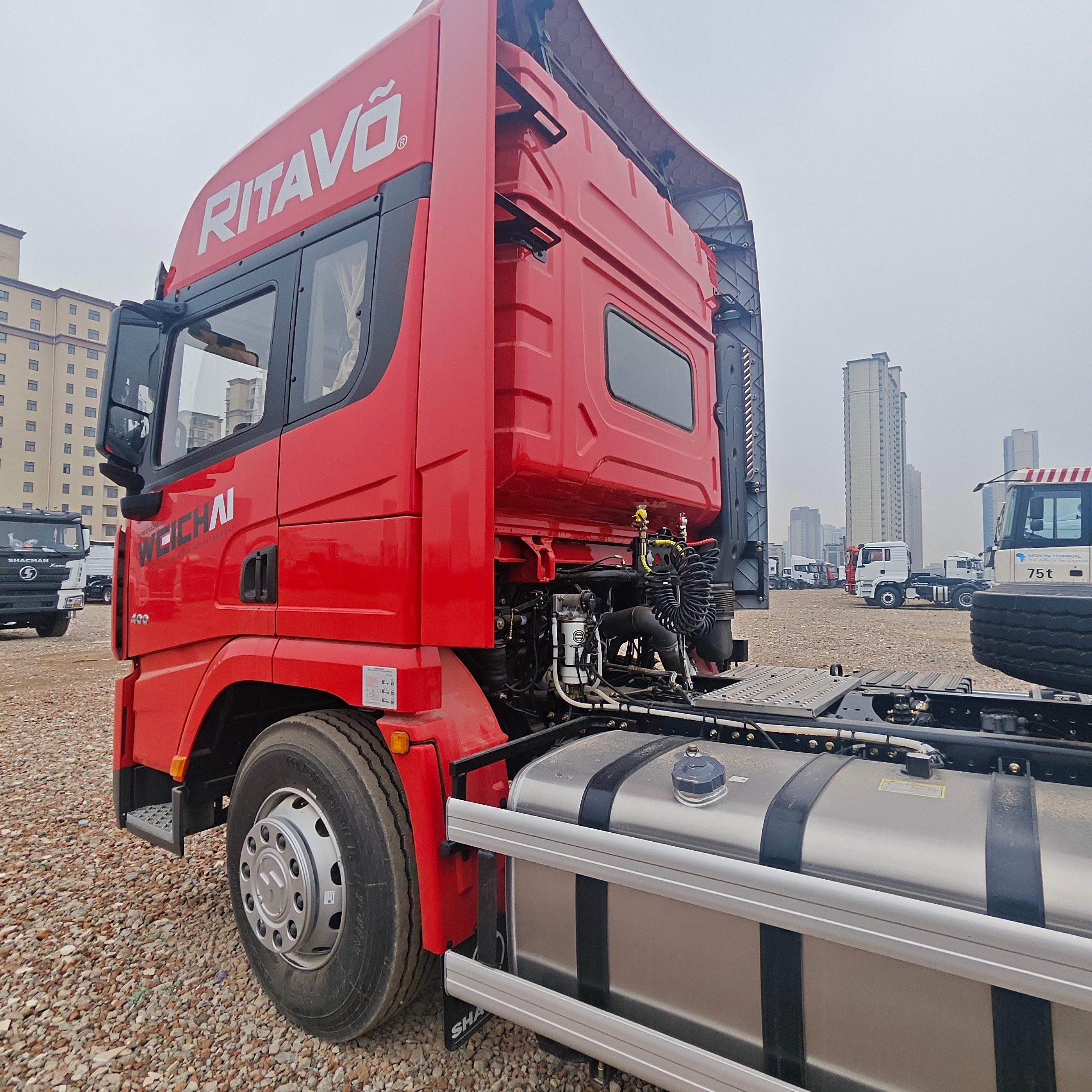

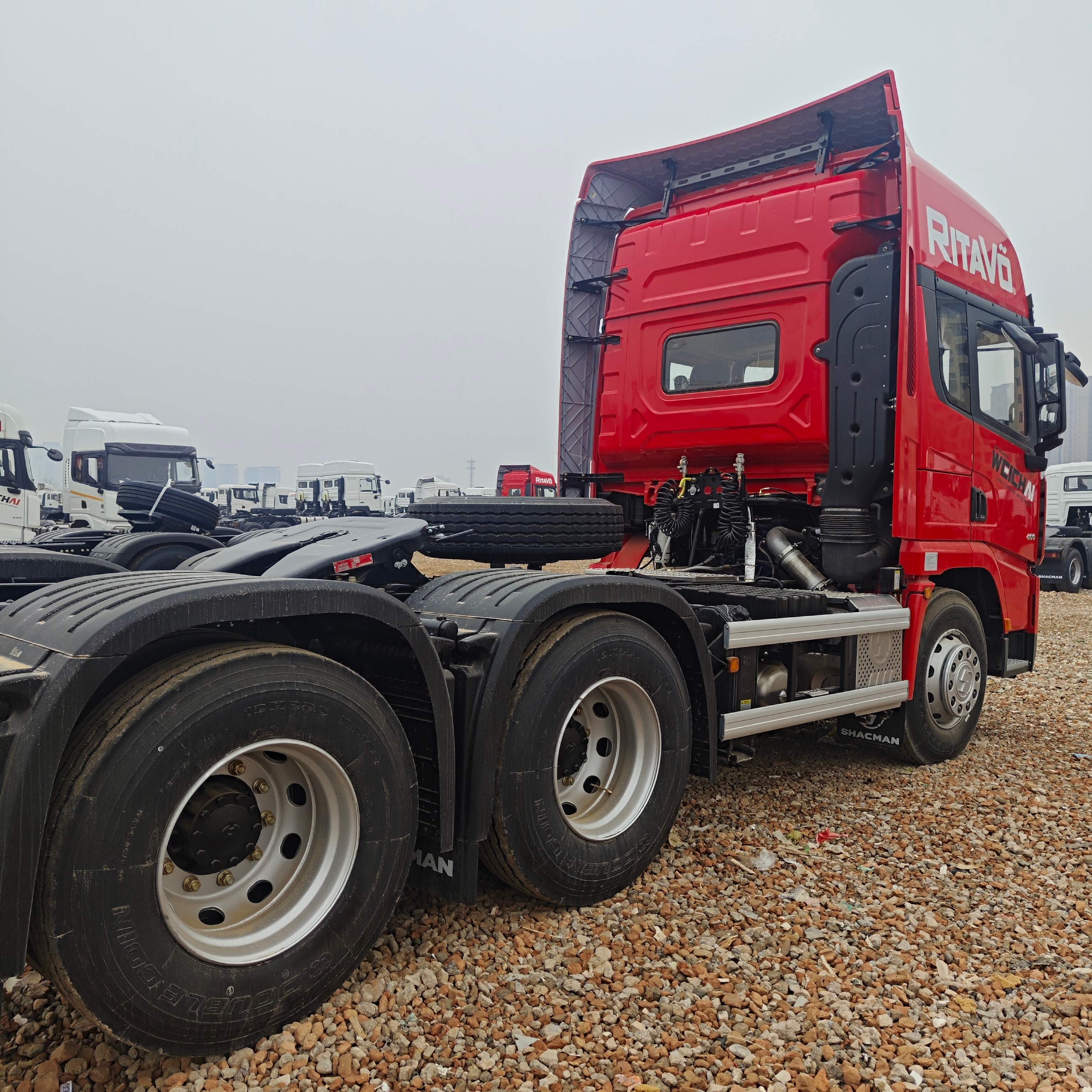

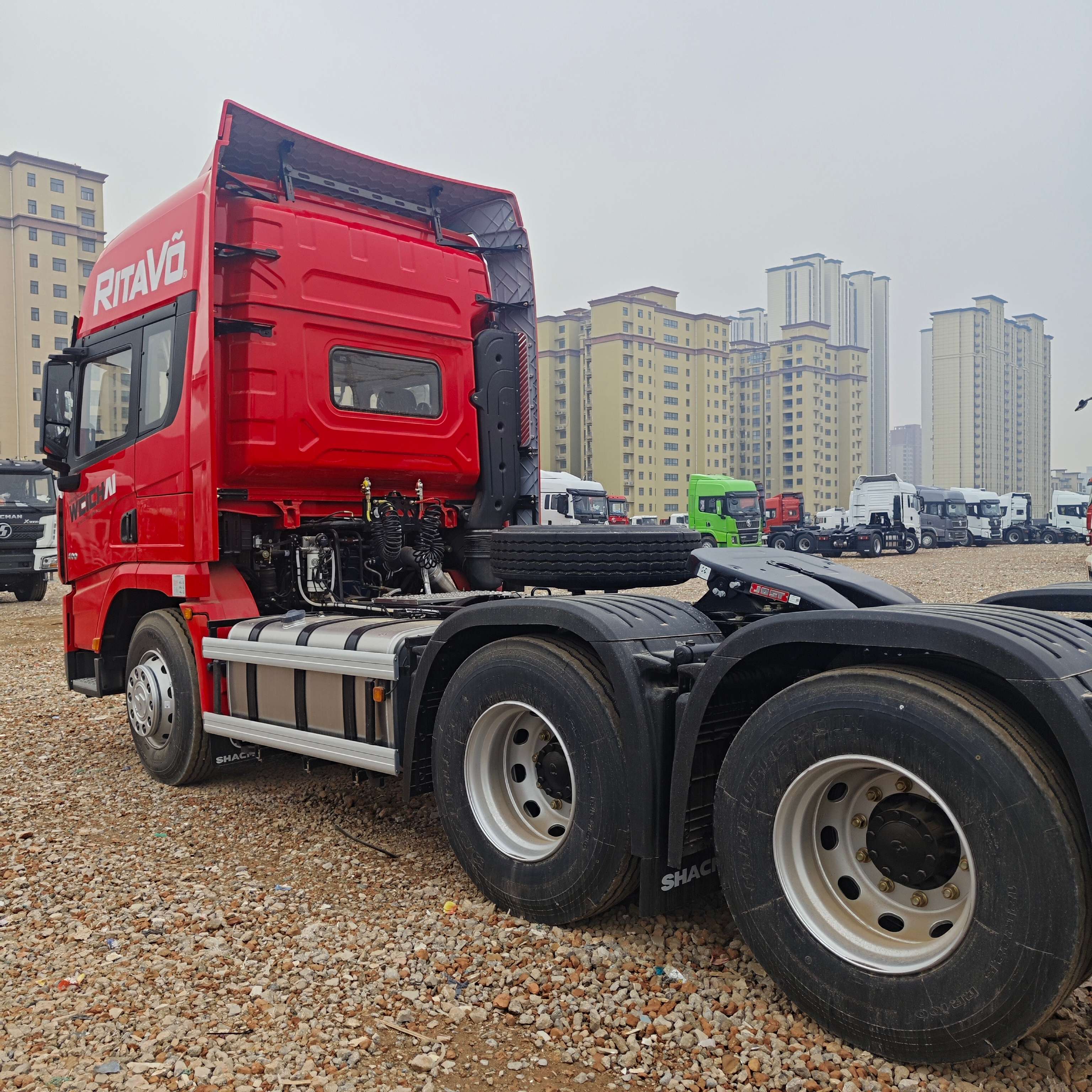

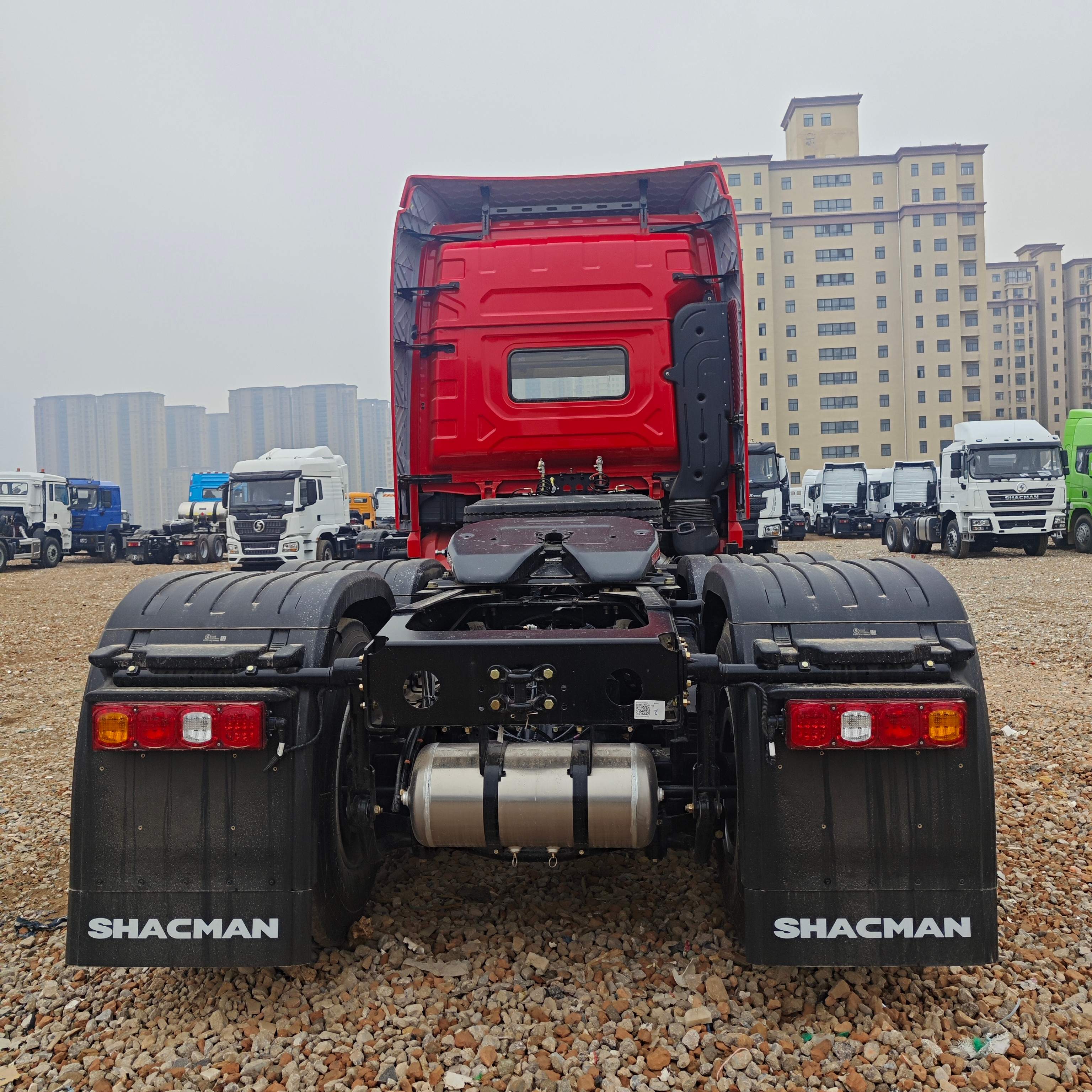

SHACMAN X3000 6x4 Heavy Duty Tractor Head SX42554V324 Euro II 430HP WP12 Engine Container Semi Trailer Truck for International Logistics Transportation

Driving type

6*4

Wheelbase(mm)

3175+1400

Max. Speed/(km/h)

85km/h

Usage Scenario

It is suitable for container transportation, bulk cargo delivery, mine haulage and international cross-border logistics, mainly exported to Africa, Central Asia and the Middle East, with customized export configuration available.

INQUIRY NOW

PRODUCT DETAILS

This is SHACMAN X3000 6×4 enhanced version tractor unit with model number SX42554V324. Equipped with WP12.430E21 Euro II 430 horsepower diesel engine and 12JSD200T-B manual transmission, it features powerful power output and strong climbing capacity, which can perfectly adapt to mountain roads, mine roads and long-distance cross-border transportation conditions.

The cab adopts extended high roof design with top wind deflector, electric flip function, air suspension main driver seat and electric heating rearview mirror. It is equipped with automatic constant temperature air conditioning, central control lock with two remote keys and 7-inch smart display with reverse image, greatly improving driving comfort and driving safety for long-distance transportation.

Model Core Technical Parameters

Product Model: SX42554V324

Product Platform: X3000

Drive Form: 6×4

Engine Model: WP12.430E21

Rated Horsepower: 430PS

Emission Standard: Euro II

Transmission Gearbox: 12JSD200T-B Iron Shell Manual Transmission

Rear Axle Type & Speed Ratio: 16T HD Double Reduction Cast Axle, Optional 4.266 / 4.769

Frame Size: 850×300mm (8+7 layers)

Wheelbase: 3175+1400mm

Cab Style: Extended High Roof Cab with Side Wind Deflector

Front Axle Load: HD 7.5T Steering Front Axle

Suspension System: Front and Rear Multi-leaf Spring Suspension

Standard Fuel Tank: 400L Aluminum Alloy Fuel Tank (700L Optional)

Tire Spec: 12.00R20 Mixed Pattern Tire with Rim Cover

Export Configuration: One Country One File, Full English External Marking

MAIN PARAMETER

Optional Item	Detailed Specification
Rear Axle	16T HD Double Reduction Cast Axle, Ratio 4.769
Traction Saddle	Reinforced 90# Saddle, JOST 50# Saddle Optional
Fuel Tank	700L Large Capacity Aluminum Alloy Fuel Tank
Air Reservoir	Aluminum Alloy Air Storage Cylinder
Brake System	WABCO Four-channel ABS System
Tire	315-80R22.5 Tubeless Tire
Transmission Parts	QH50 Power Take-off, FHB400 Hydraulic Retarder
Control Mode	Flexible Shaft Control (Replace Telescopic Shaft Control)

1. Terms of payment: TT, 30% deposit, balance before delivery from factory.

2. Delivery at China port period: 55 working days after advance payment.

3. Vehicle warranty period: 12 months from the date of bill of lading.
